Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
1 / 5
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera
Wopson Long Elevated Bridge Inspection Telescopic Pole Camera

Wopson Long Elevated Bridge Inspection Telescopic Pole Camera

Customization: Available
Technology: Pipe Inspection Camera
Style: Box Camera
Send Inquiry

Product Description

📋 Basic Information
Model NO.
WPS-L1-C23LG
Type
Video Camera
Sensor
CMOS
HDMI Format
AVI
Horizontal Resolution
720p
Kind
Pipe Inspection Camera
Certification
CE, FCC, RoHS, EMI/EMC, ISO9001: 2000
Feature
Waterproof, High Definition
Effective Distance
3.6m
Sensor Size
1/3 inch
Monitor Size
4.3inch
Length
3.6m
Material
Telescopic Pole (Carbon Fiber)
Structure
3 Joints
Color
Black
Video/Photo Record
Yes / Yes
Zoom
8X
Camera Diameter
23mm
Waterproof
IP68
Battery
Yes (Rechargeable Li-ion)
📸 Product Showcase

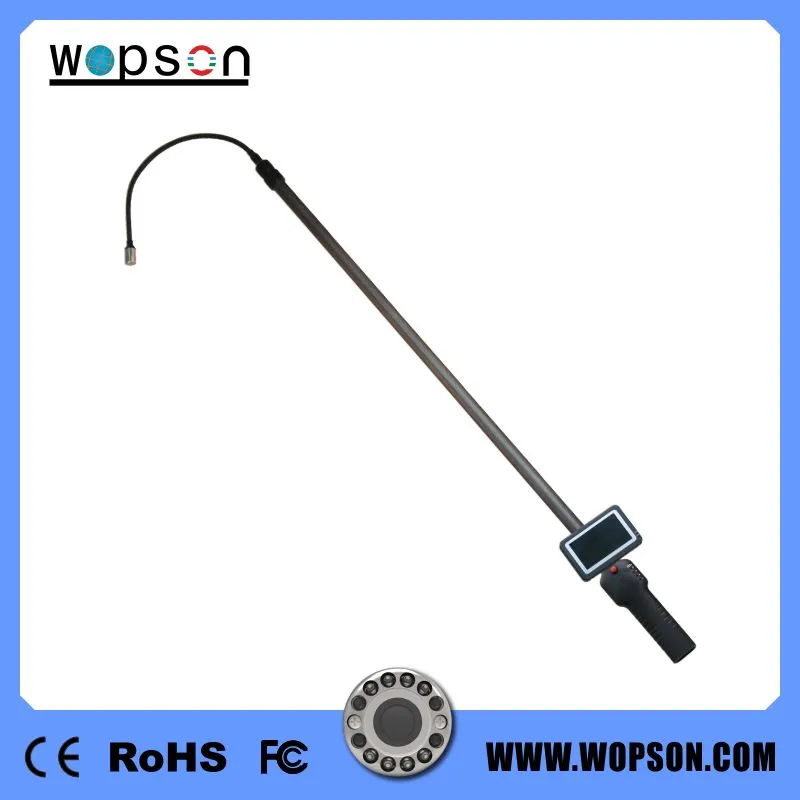

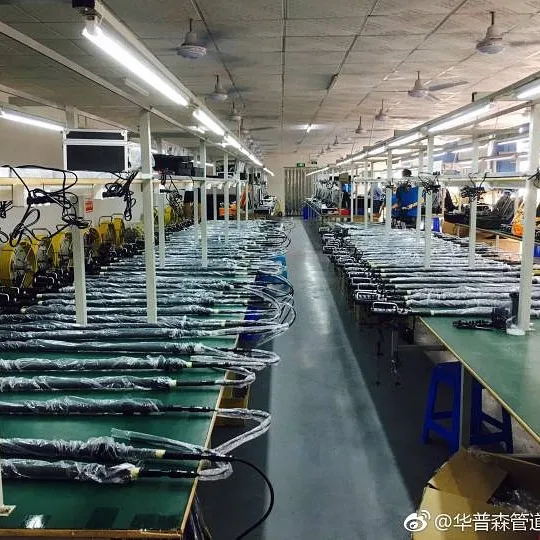

Inspection Camera View 1 Inspection Camera View 2 Inspection Camera View 3
🔍 Product Description

MODEL: WPS-4LG

Carbon Fibre CCTV Systems Handheld Telescopic Pole Wall and Chimney Inspection Camera. This system is designed for professional inspections in hard-to-reach areas, featuring a lightweight but durable carbon fiber pole.

Versatile Applications:
Ideal for Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak detection, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Cooling Lines, Attics, Wells, Underwater use, and Maintenance of Plumbing and Wiring behind walls.
⚙️ Technical Specifications

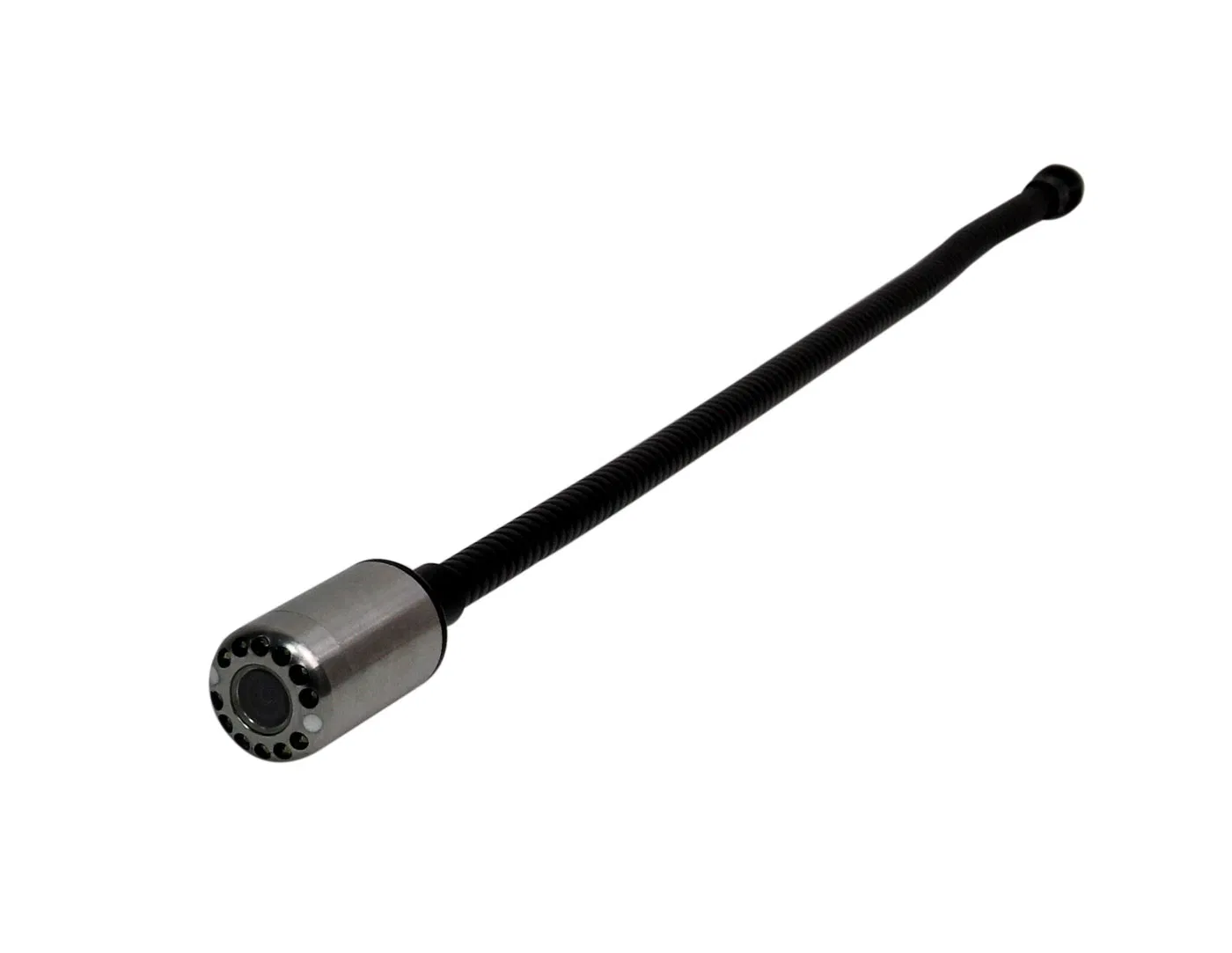

CAMERA SYSTEM
Camera SizeΦ23mm*510mm(L)
Housing MaterialStainless steel
PixelsPAL: 720*576 / NTSC: 720*480
View Range120°
Illumination12PCS white LEDS
Waterproof LevelIP68

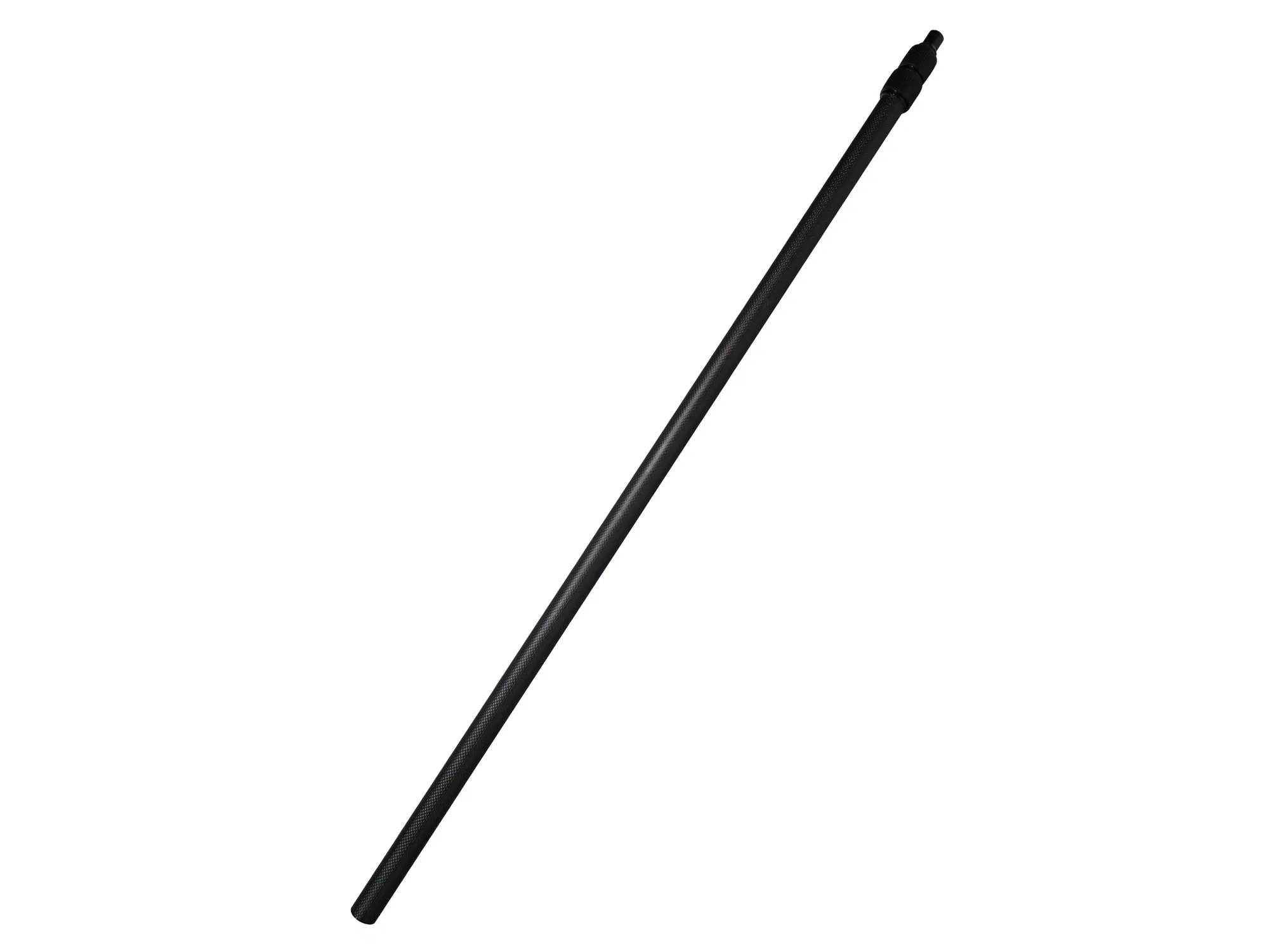

TELESCOPIC POLE
MaterialCarbon fiber
Joints3 joints
Length Range1080mm to 3600mm (Total 3.6m)

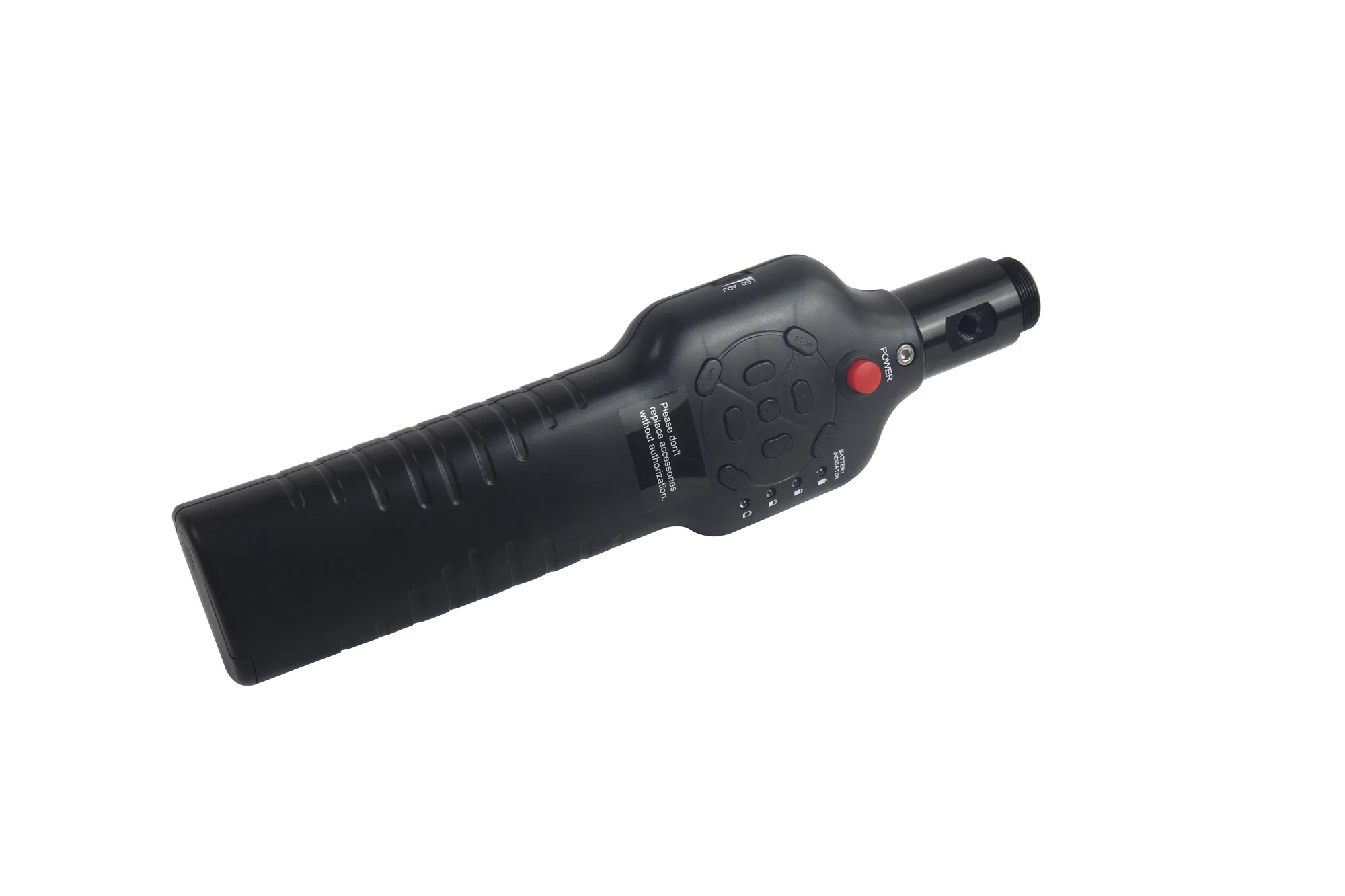

MONITOR & CONTROL
Monitor Size4.3 inch TFT color monitor
Resolution480(RGB)X272
StorageSD card (max 32G)
FunctionsPicture Snap, Movie Record, Audio Record
POWER & PACKING
Battery12V 5200MAH Li-ion (>260 mins use)
Packing Size117*16*29cm
Gross Weight11KG
🌟 Our Advantages
🛠️ Customized development
📜 16x Patents
💰 Affordable Price
🏆 ISO9001 & CE Certified
⚡ 8X Zoom Capability
💧 IP68 Waterproofing
❓ Frequently Asked Questions
What is the maximum length of the telescopic pole?
The carbon fiber telescopic pole can extend to a maximum total length of 3600mm (3.6 meters).
Can this camera record video and capture photos?
Yes, the system supports both video recording (AVI format) and picture snapping, saved directly to an SD card.
Is the camera head waterproof?
The camera head is rated IP68 waterproof, making it suitable for underwater inspections and wet environments like sewers or drains.
How long does the battery last on a full charge?
The 5200MAH rechargeable Li-ion battery provides more than 260 minutes (over 4 hours) of continuous operation.
What is the diameter of the camera head?
The camera head has a diameter of 23mm, made of durable stainless steel.
Does the system support audio recording?
Yes, the control box includes a microphone for synchronized audio recording during video capture.
