Custom Length Telescopic Camera Viaduct Bridge Surface Damage Inspection

Customization: Available
Technology: Pipe Inspection Camera
Style: Box Camera

Product Description

Basic Specifications

Model NO.
WPS-L1-C23LG
Type
Video Camera
Sensor
CMOS 1/3 inch
Horizontal Resolution
720p
Monitor Size
4.3 inch
Telescopic Pole
3.6m Carbon Fiber
Camera Head
23mm Stainless Steel
Waterproof
IP68
Zoom
8X
Battery
Rechargeable Li-ion

Product Overview

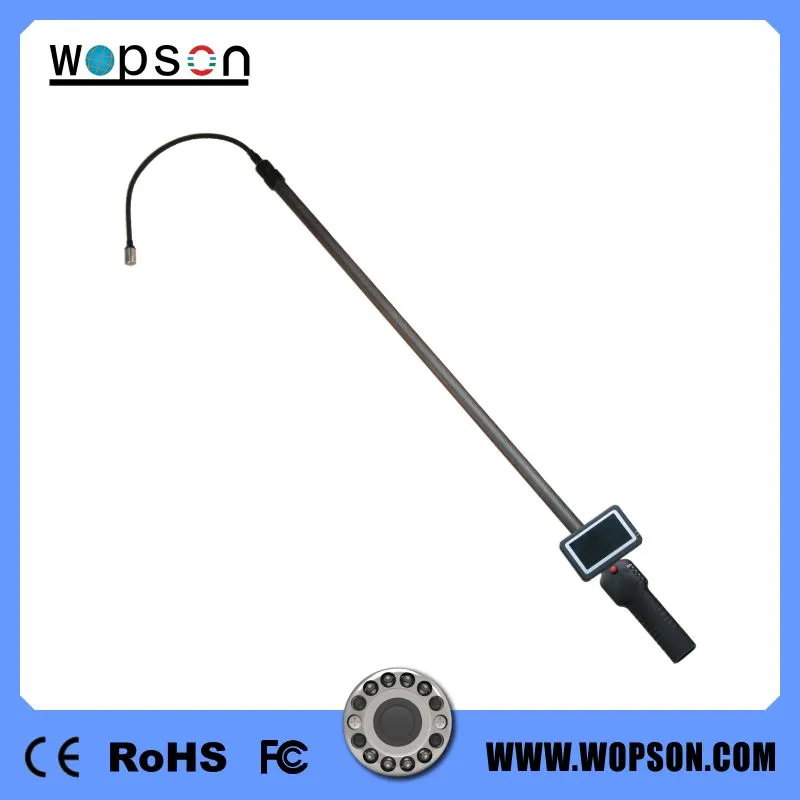

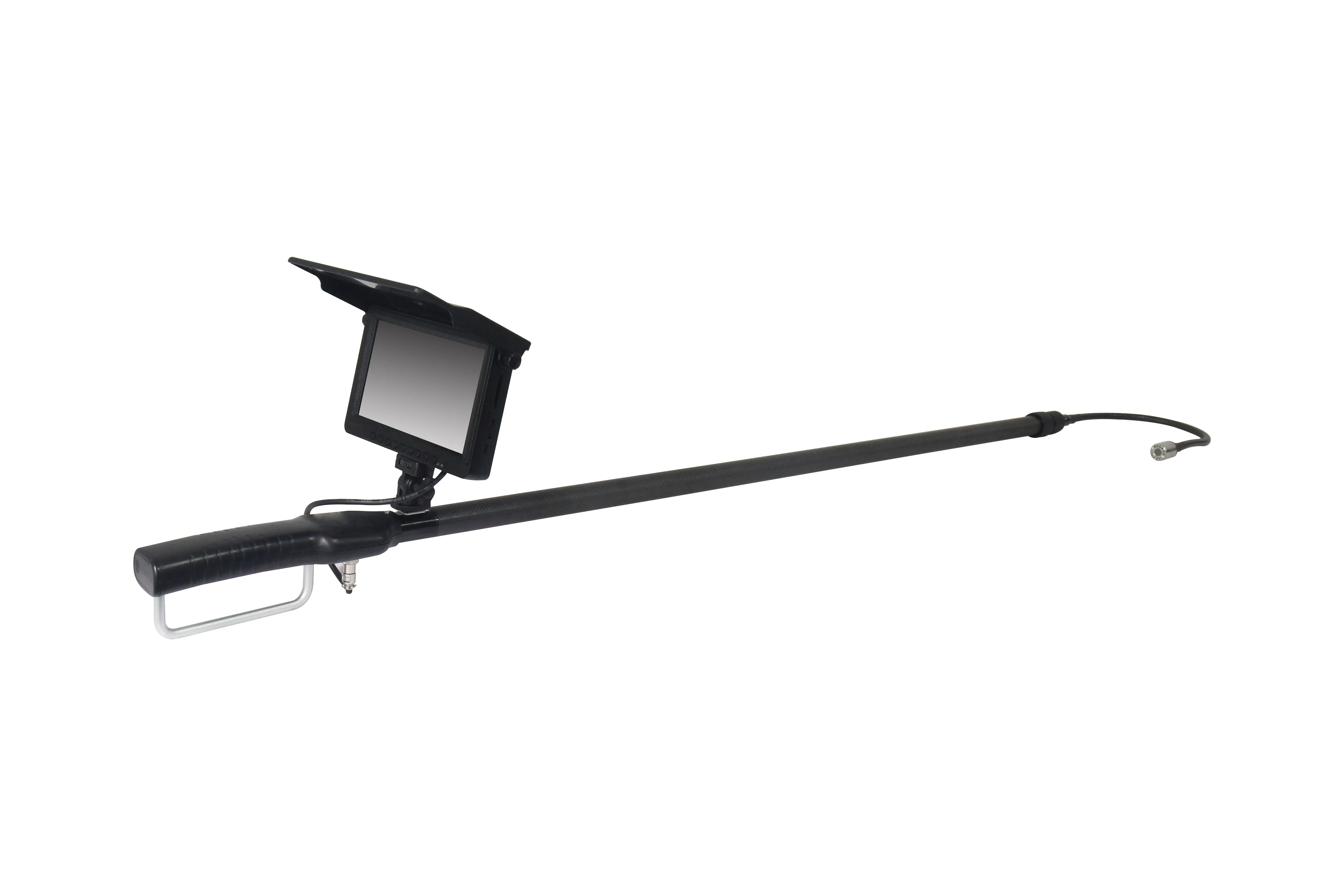

This Carbon Fibre CCTV System features a handheld telescopic pole designed specifically for wall, chimney, and under-car inspections. The high-definition 1080P/720P camera provides crystal clear imagery for professional structural assessments.

Technical Parameters

📷 CAMERA SYSTEM
Camera SizeΦ23mm * 510mm(L)
View Range120° Wide Angle
Illumination12PCS White LEDs
Operating Temp-10°C to +50°C
🏗️ TELESCOPIC POLE
MaterialHigh-strength Carbon Fiber
Joints3 Adjustable Joints
Length Range1080mm to 2850mm (Total 3600mm)

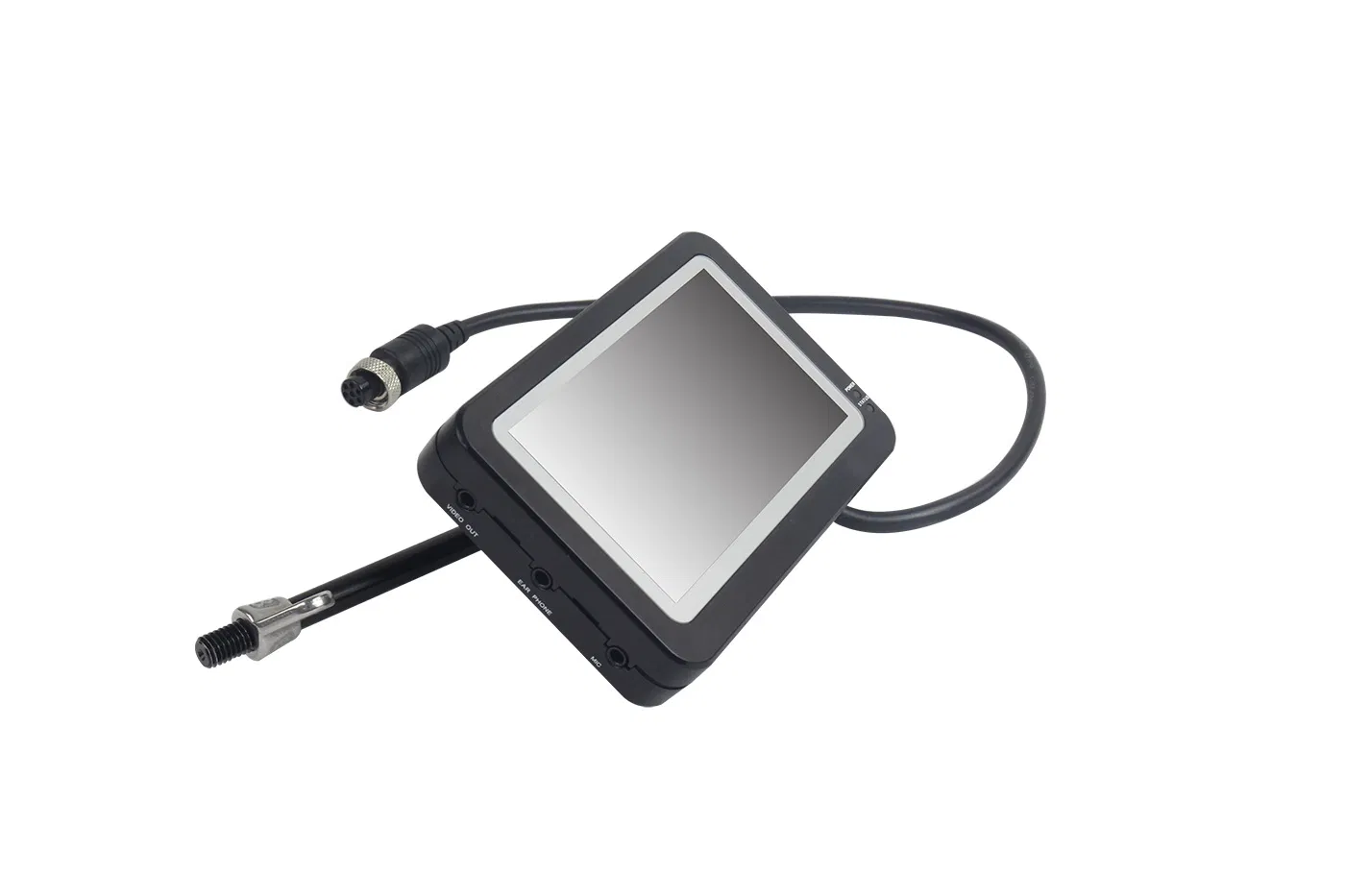

📺 MONITOR & CONTROL
Display4.3 inch TFT Color Monitor
StorageSD Card (Max 32G)
FormatAVI Video & Picture Snap
Battery Life> 260 Minutes (5200mAh)

Key Advantages

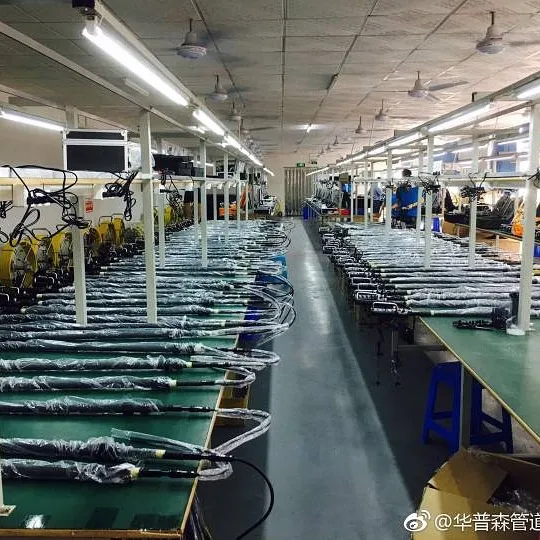

  • Professional Manufacturer Quality
  • Customized Development Support
  • 16x Registered Patents
  • CE, FCC, RoHS, EMC Certified
  • ISO9001 Certified Production
  • 9 Years OEM & ODM Experience
  • Advanced TQM Operation
  • High Definition 8X Zoom Capability

Wide Applications

Pipe & Pipeline Drain & Sewer Chimneys Ducts & Tanks Water Leak Detection Confined Space Underwater Inspection Civil Engineering Rescue Operations Bridge Surface Inspection

Frequently Asked Questions

1. What is the total reach of the telescopic pole?
The telescopic pole consists of 3 joints and can extend from a minimum length of 1080mm to a maximum total length of 3600mm (3.6 meters).
2. Is the camera head waterproof for underwater use?
Yes, the camera head is rated IP68 waterproof and constructed from durable stainless steel, making it suitable for underwater and sewer inspections.
3. How long does the battery last on a single charge?
The system is equipped with a 5200mAh rechargeable Li-ion battery that provides over 260 minutes (approximately 4.3 hours) of continuous operation.

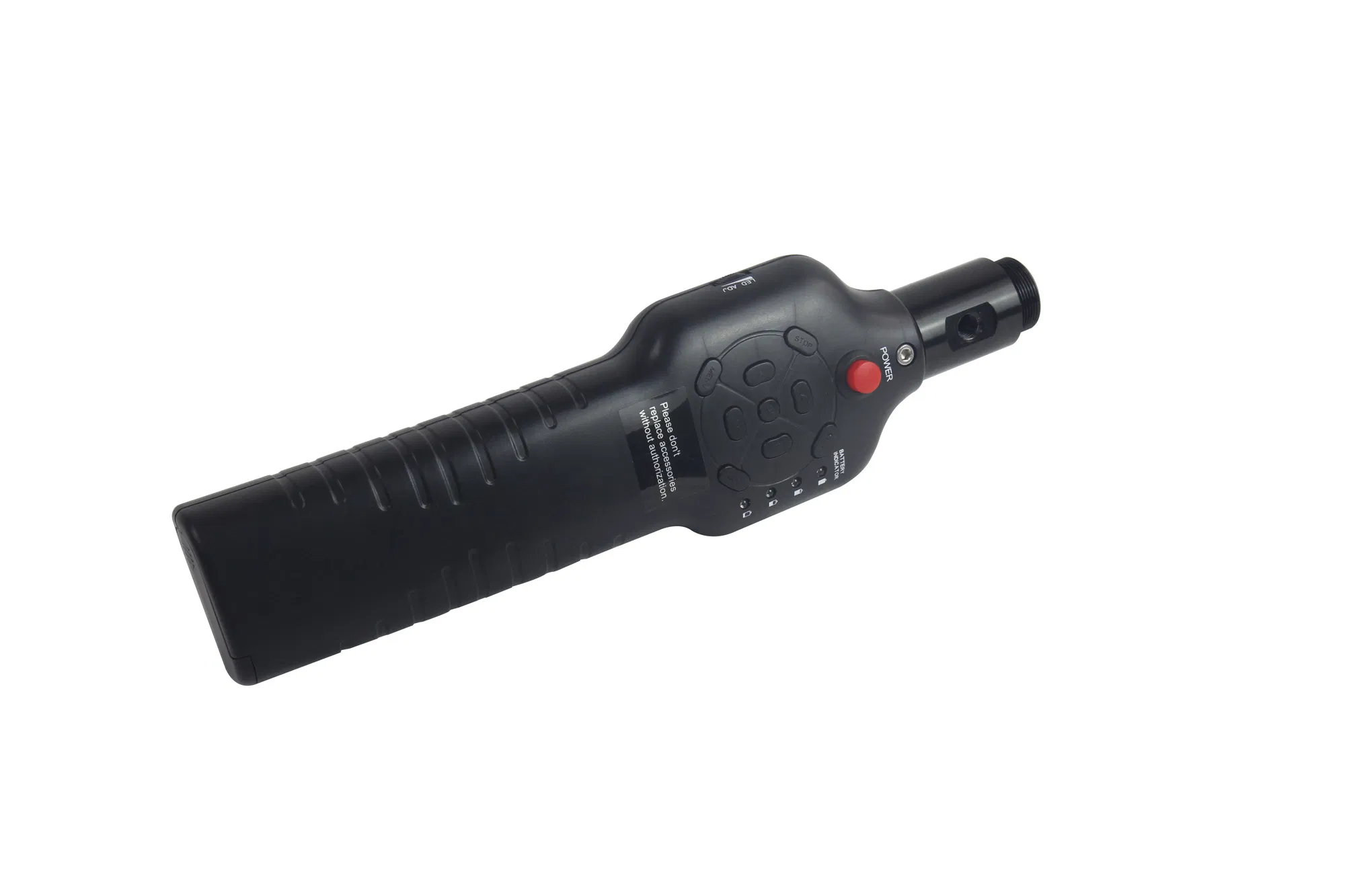

4. Does the system support video recording?
Yes, the control box allows for both picture snapping and movie recording in AVI format. It supports SD cards with a capacity of up to 32GB.
5. What are the main features of the camera lens?
The camera features a 1/3 inch CMOS sensor, 720p resolution, an 8X digital zoom, and 12 high-intensity white LEDs for clear illumination in dark spaces.
6. What materials is the pole made of?
The pole is manufactured using premium carbon fiber, ensuring it is both lightweight for handheld use and extremely durable for industrial environments.
