Vuelo Camera
1 / 5
MODEL: WPS-4LG

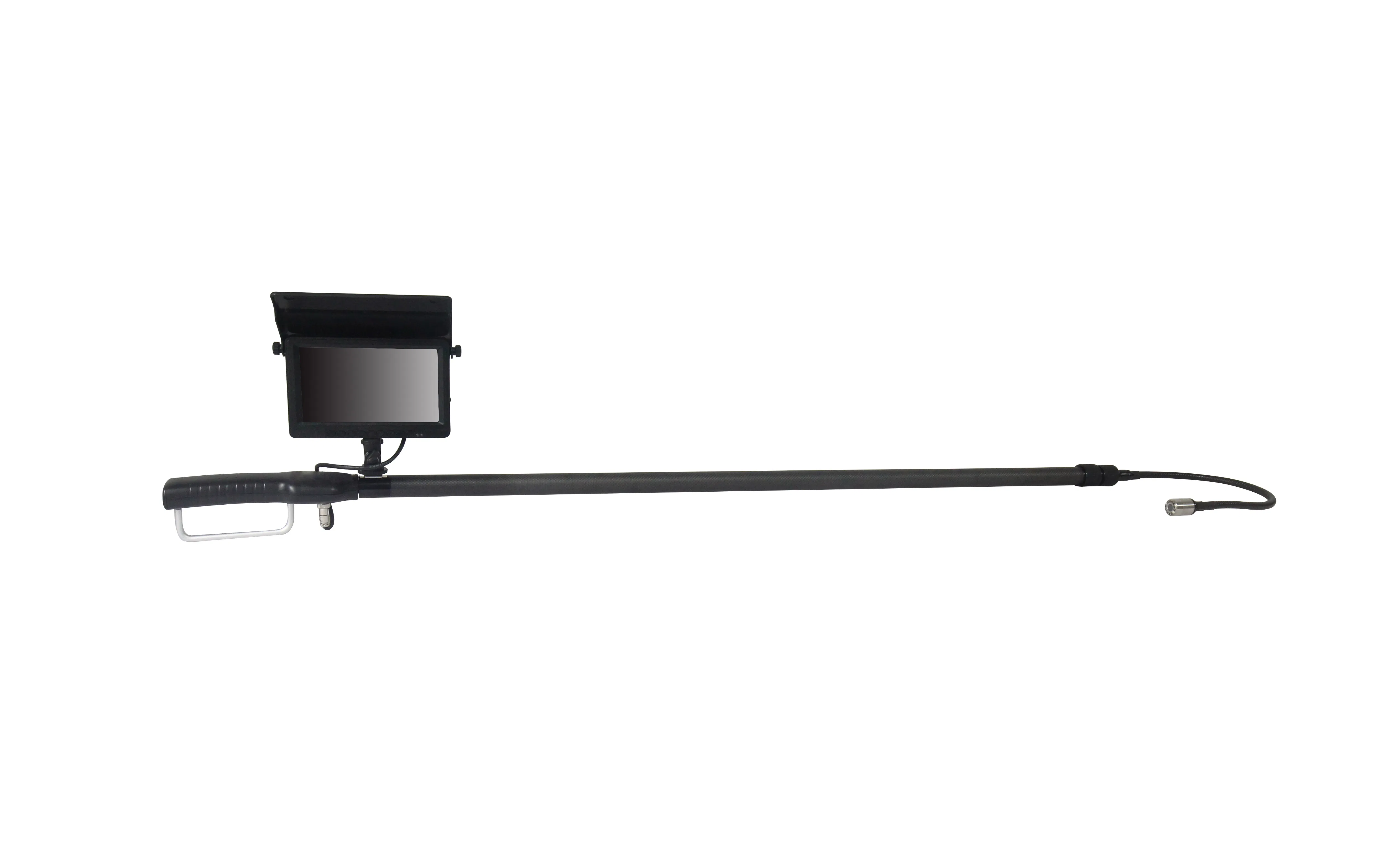

Carbon Fibre CCTV Systems Handheld Telescopic Pole Wall and Chimney Inspection Camera. High-resolution imaging designed for architectural and industrial inspections.
SPECIFICATION: Carbon Fibre Universal Wheel 1080P HD Mini Under Car Inspection Camera DVR System with 5m Telescopic Pole (Configuration dependent).
| CAMERA SPECIFICATIONS | |
|---|---|
| Camera Size | Φ23mm*510mm(L) |
| Housing Material | Stainless steel |
| Sensor Size | 1/4 inch |
| Total Pixels | PAL: 720*576 / NTSC: 720*480 |
| View Range | 120° |
| Illumination | 12PCS white LEDS |
| Waterproof Level | IP68 |
| Operating Temperature | -10°C to +50°C |
| TELESCOPIC POLE | |
|---|---|
| Pole Material | Carbon fiber |
| Joints | 3 joints |
| Minimum Length | 1080mm |
| Maximum Length | 2850mm |
| Total Reach | 3600mm |
| MONITOR & CONTROL | |
|---|---|

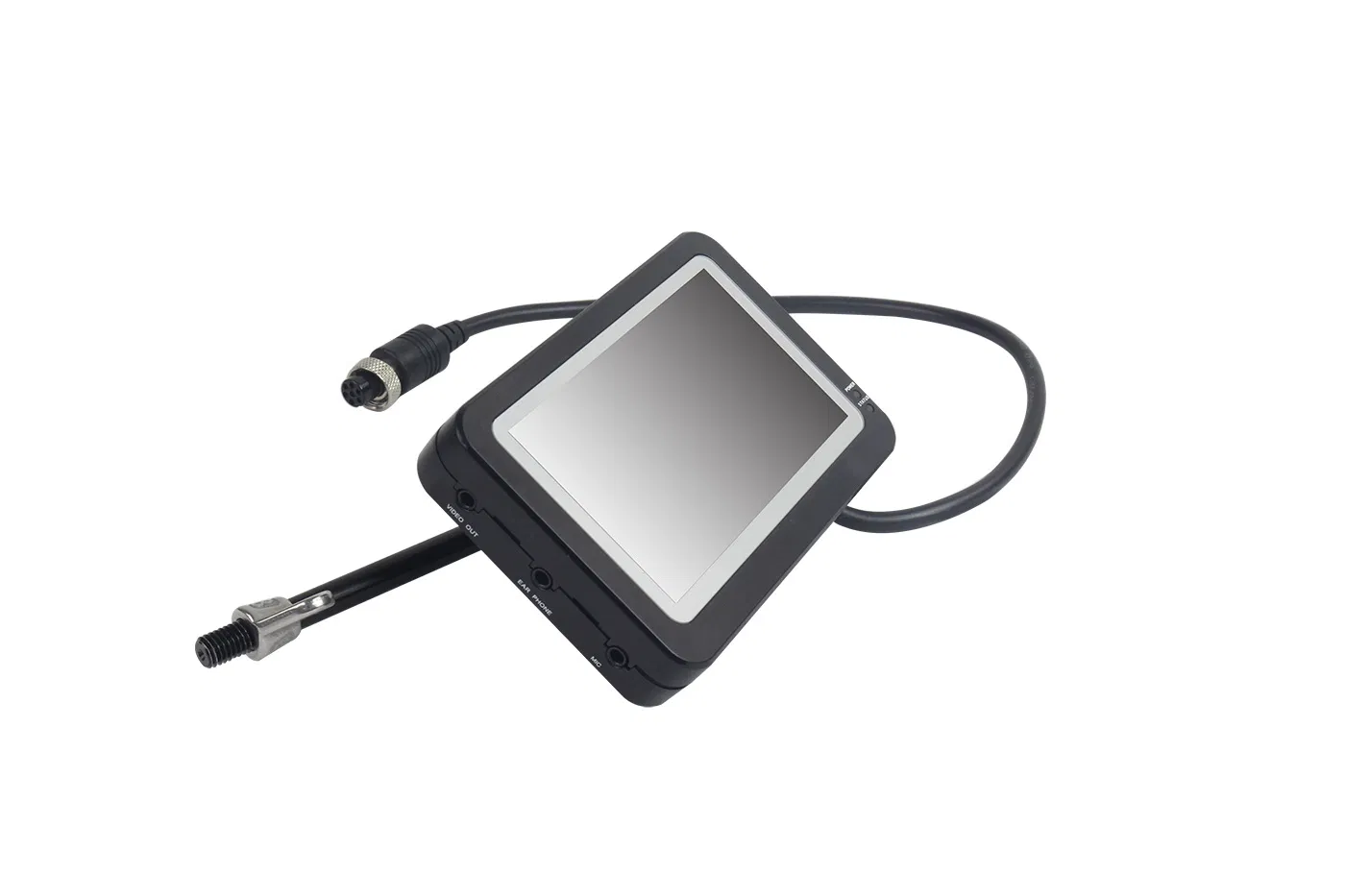

| Monitor Size | 4.3 inch TFT color monitor |
| Storage | SD card (max 32G) |
| Functions | Picture Snap and Movie Record |
| Movie Format | AVI |
| Audio | Microphone Audio Record |
| BATTERY & CASE | |
|---|---|
| Battery | 12V 5200MAH rechargeable Li-ion |
| Used Time | >260 minutes |

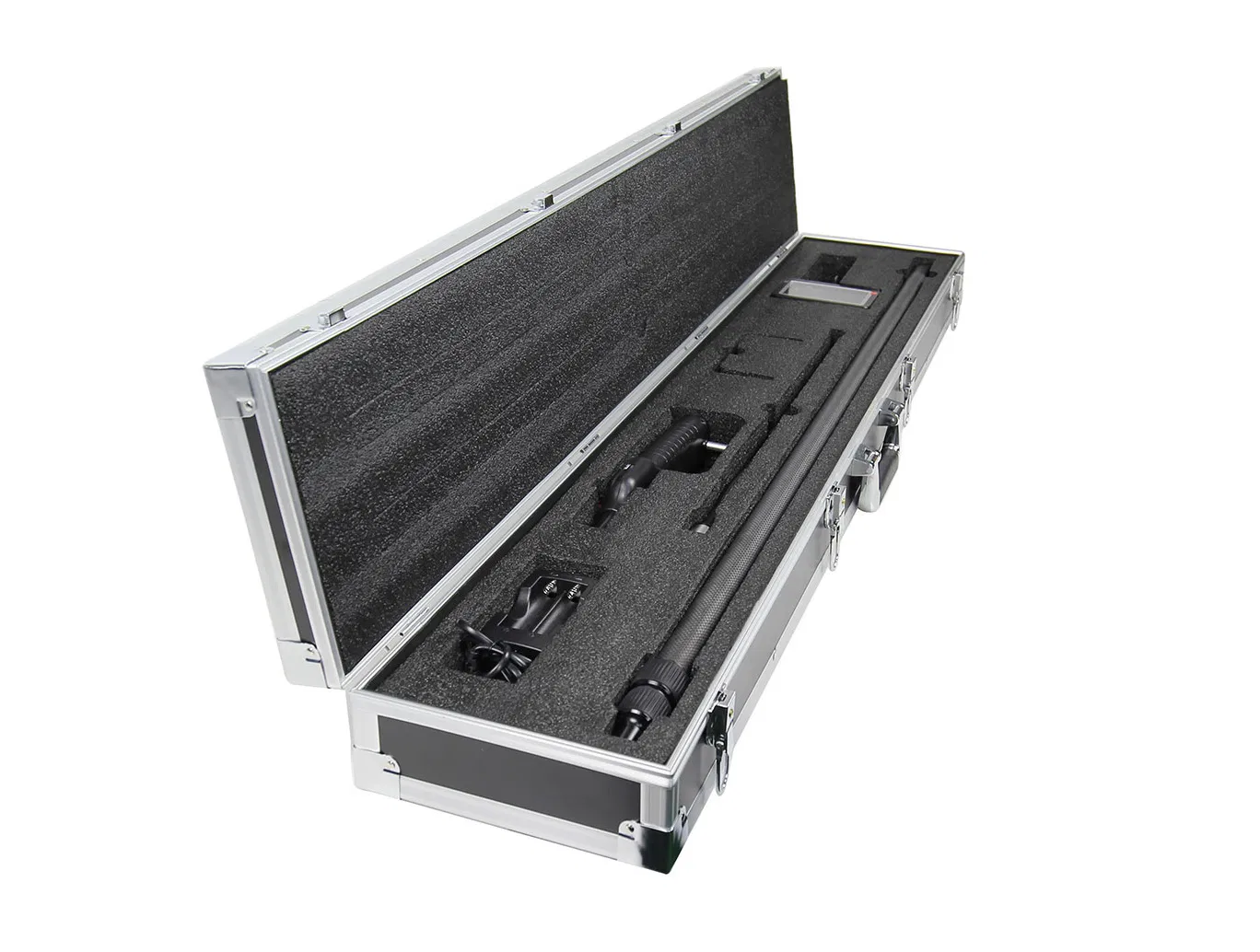

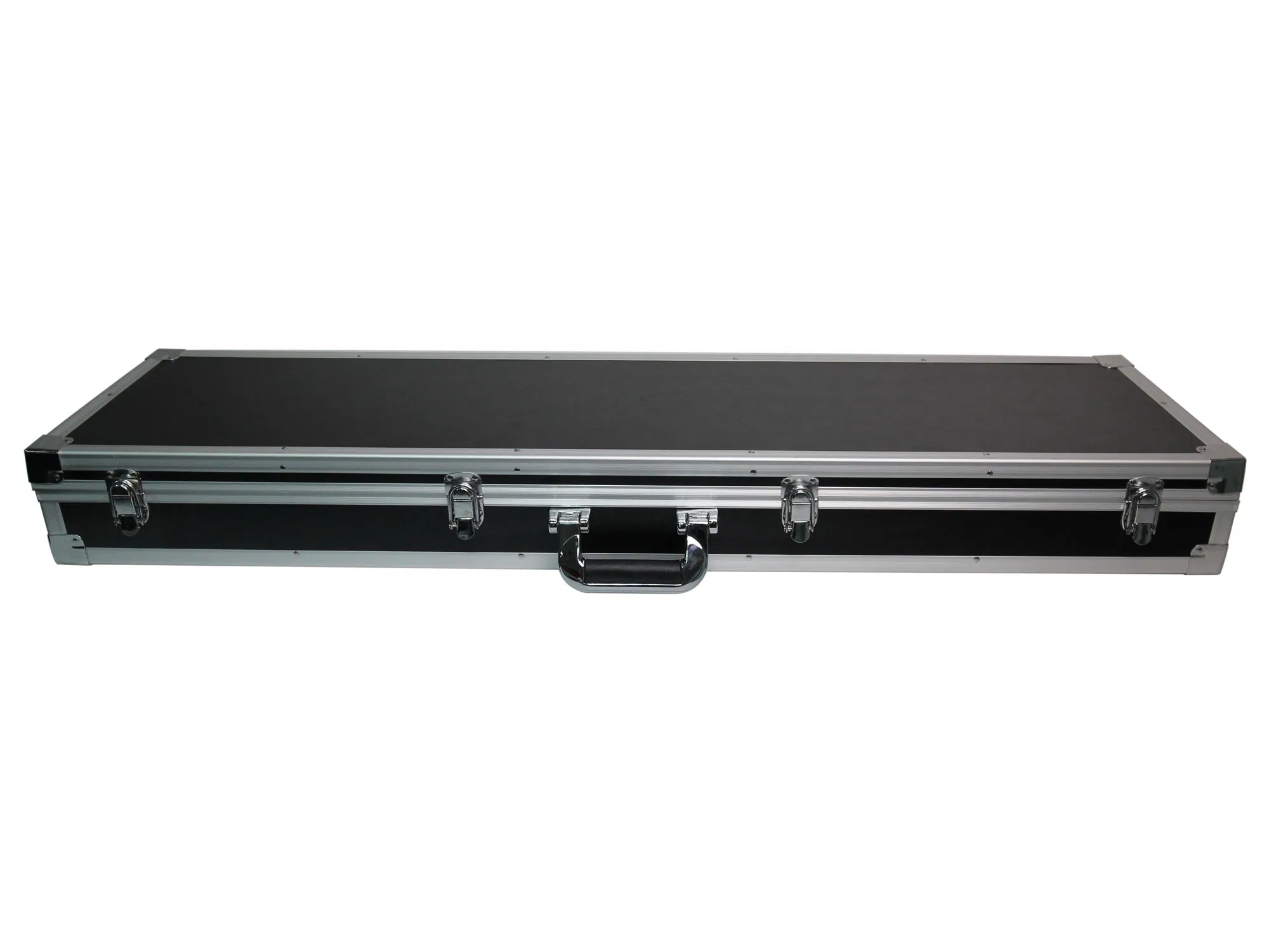

| Case Material | Fire board & Aluminum alloy |
| Packing Size | 117*16*29cm |
| Gross Weight | 11KG |
This system is versatile and highly effective for: Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Cooling Lines, Attics, Wells, Underwater, Maintenance of Plumbing and Wiring Behind Walls, Ventilation Shafts, Civil Engineering, Cavities, and Rescue Areas.
