23mm Lens Telescopic Camera Viaduct Bridge Defect Detection Video Photo

1 / 5

23mm Lens Telescopic Camera Viaduct Bridge Defect Detection Video Photo

Customization:	Available
Technology:	Pipe Inspection Camera
Style:	Box Camera

Send Inquiry

Product Description

Technical Specifications Overview

Model NO.

WPS-L1-C23LG

Type

Video Camera

Sensor

CMOS

Horizontal Resolution

720p

Kind

Pipe Inspection Camera

Certification

CE, FCC, RoHS, EMI/EMC, ISO9001

Feature

Waterproof, High Definition

Effective Distance

3.6m

Monitor Size

4.3inch

Material

Carbon Fiber Telescopic Pole

Camera Diameter

23mm

Waterproof

IP68

Product Description

MODEL: WPS-4LG

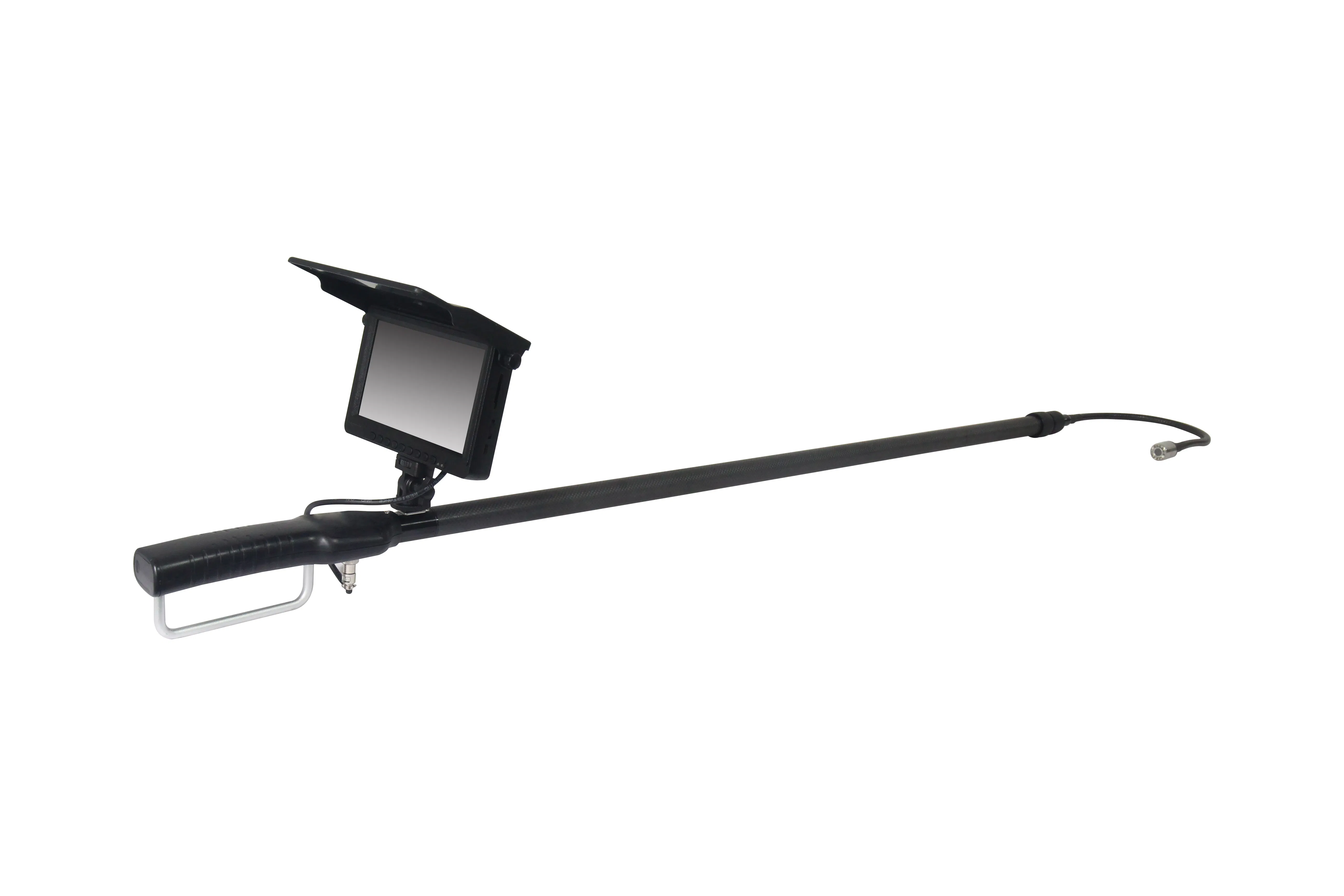

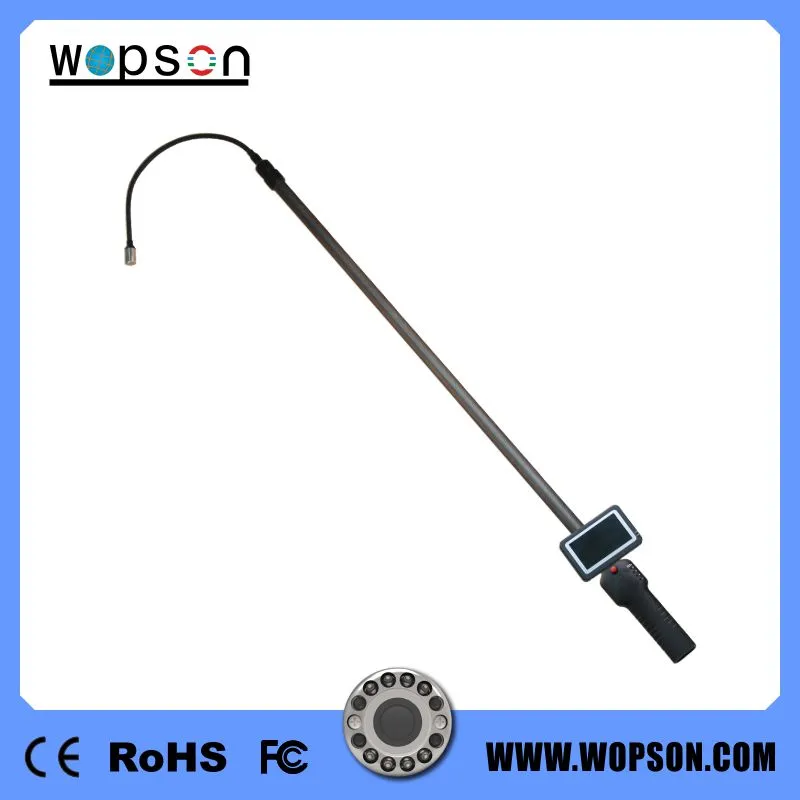

Professional Carbon Fibre CCTV System featuring a Handheld Telescopic Pole designed for high-reach Wall, Chimney, and Bridge Inspection. This HD mini camera system provides crystal-clear visual access to hard-to-reach areas.

Camera & Pole Details

CAMERA UNIT
Camera Size	Φ23mm*510mm(L)
Housing Material	Stainless steel
Sensor Size	1/4 inch
Total Pixels	PAL:720576 / NTSC:720480
View Range	120°
Illumination	12PCS white LEDS
Waterproof Level	IP68
TELESCOPIC POLE
Pole material	Carbon fiber
Joints	3 joints
Min. Length	1080mm
Max. Length	2850mm
Total System Length	3600mm

Monitor & Control System

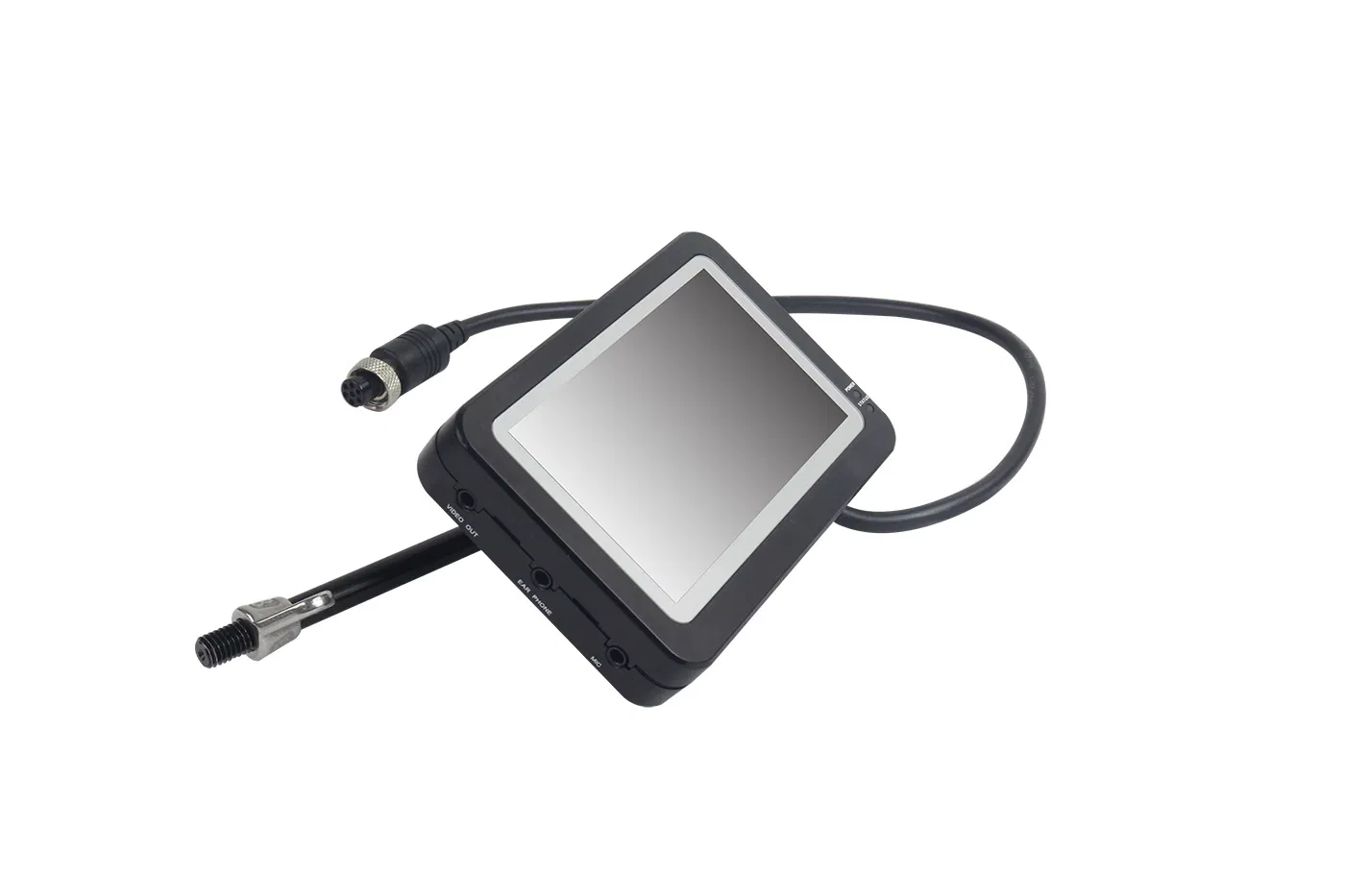

MONITOR UNIT
Monitor Size	4.3 inch TFT color monitor
Pixels	480(RGB)X272
OSD Language	English

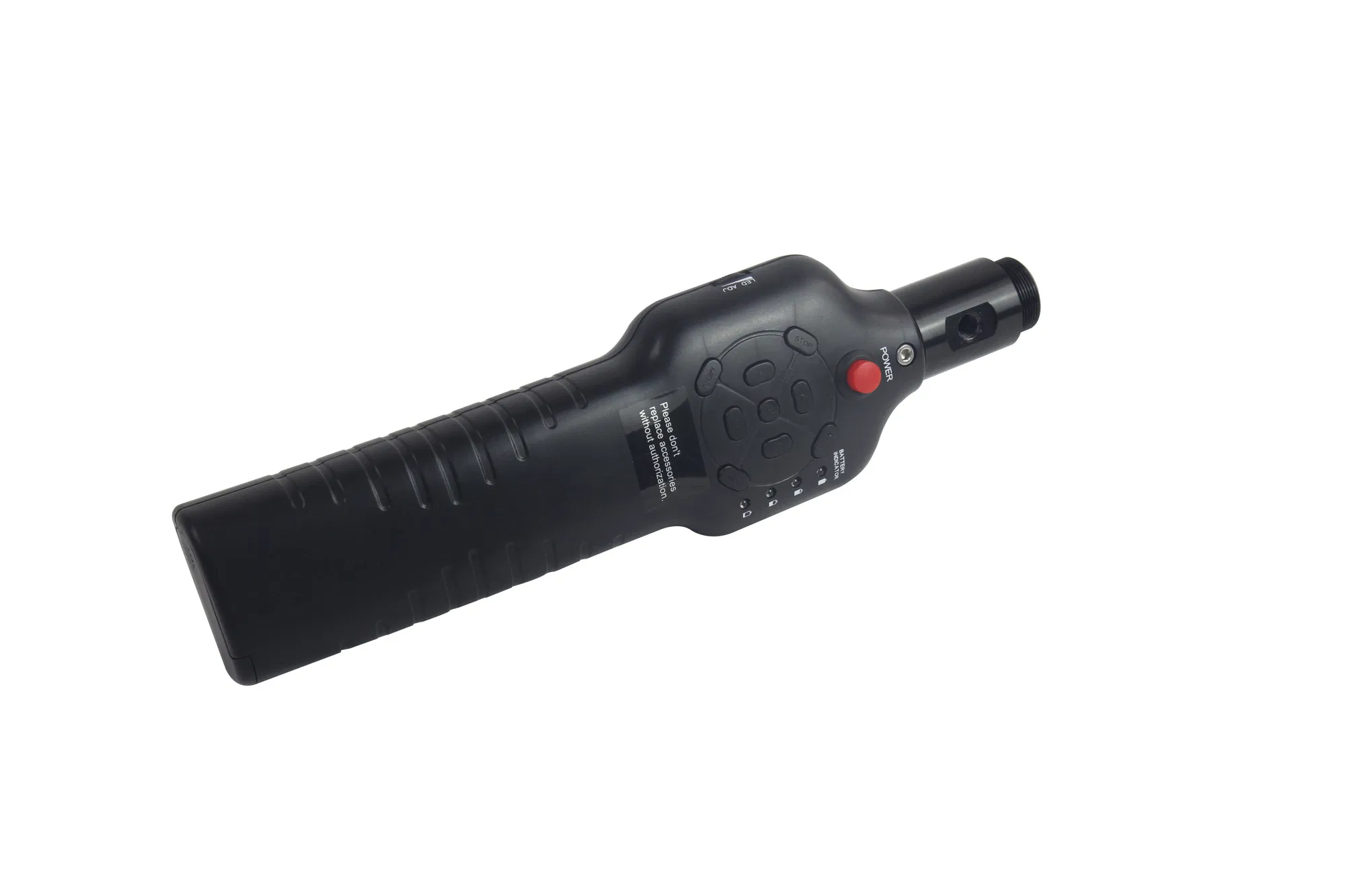

CONTROL BOX
Storage Medium	SD card (max 32G)
Recording Features	Picture Snap & Movie Record
Movie Format	AVI
Audio	Microphone Audio Record

Power & Packing

BATTERY & POWER
Battery	12V 5200MAH rechargeable Li-ion battery
Operation Time	>260 minutes
Charger Input	AC100-240V~50/60Hz

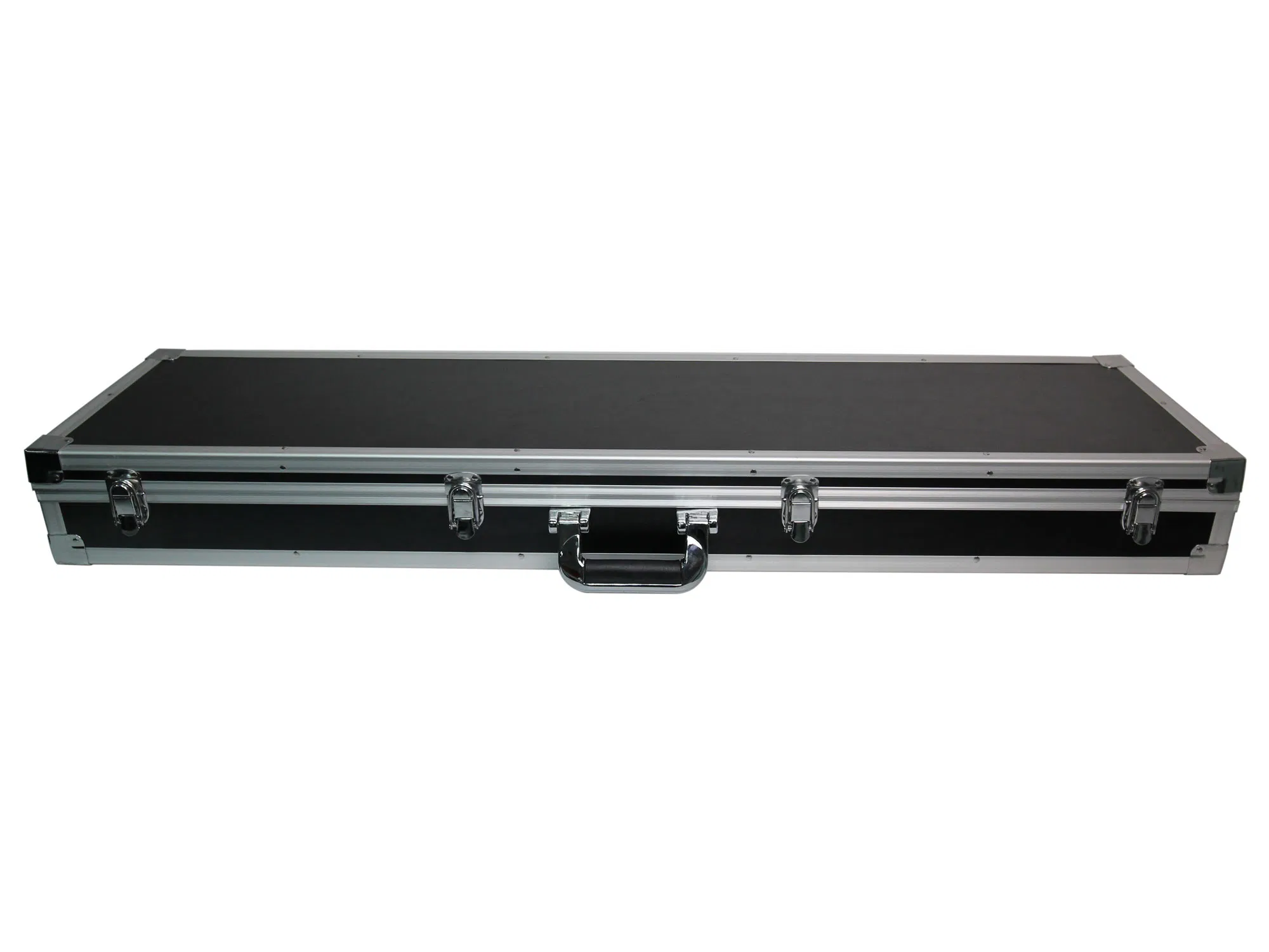

CARRY CASE & PACKING
Case Material	Fire board & Aluminum alloy
Case Size	1150140270mm
Packing Weight	Gross weight: 11KG

Versatile Applications

This system is ideal for a wide range of inspection tasks, including: Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak Detection, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Cooling Lines, Attics, Wells, Underwater inspection, Maintenance of Plumbing/Wiring behind walls, Ventilation Shafts, and Rescue Areas.

Key Advantages

✅ Direct Manufacturer & High-tech Quality
✅ Customized Development Available
✅ Certified Quality (ISO9001, RoHS, FCC, CE)
✅ Durable Carbon Fiber Construction

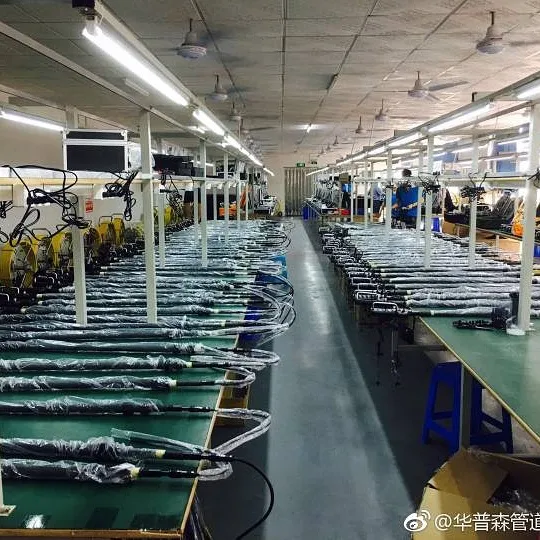

✅ Over 9 Years of Professional Experience
✅ Client-First Operation Strategy

Frequently Asked Questions

What is the maximum reach of the inspection camera?

The system features a 3-joint carbon fiber telescopic pole with a total reach of 3.6 meters (3600mm), allowing for high-altitude or deep inspections.

Is the camera head waterproof for underwater use?

Yes, the camera head is rated IP68 waterproof and is housed in durable stainless steel, making it suitable for underwater inspections and wet environments.

How long can the system operate on a single charge?

Equipped with a 5200MAH rechargeable Li-ion battery, the system provides more than 260 minutes of continuous operation.

Can I record video and take photos with this device?

Absolutely. The control box supports SD cards up to 32GB and allows for both AVI movie recording and picture snaps, including microphone audio recording.

What kind of visibility does the camera provide in dark areas?

The 23mm camera head is equipped with 12 high-intensity white LEDs, providing excellent illumination in dark pipes, chimneys, or cavities.

What comes in the standard package?

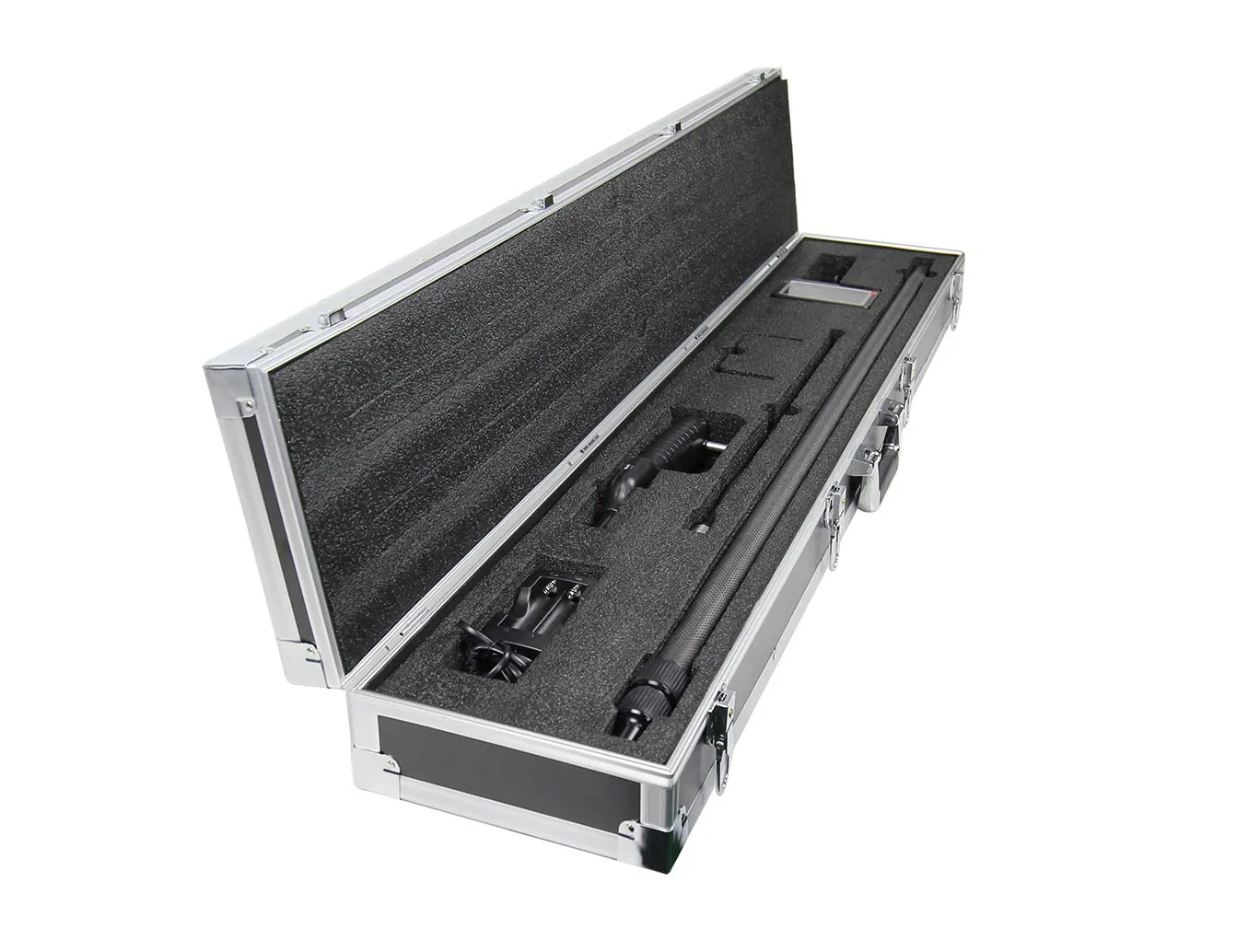

The complete kit includes the telescopic pole, camera head, 4.3" monitor, control box, battery, charger, and a rugged aluminum alloy carry case.
