Customization: Available
Technology: Pipe Inspection Camera
Style: Box Camera
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
WPS-L1-C23LG
Type
Video Camera
Sensor
CMOS
Format
AVI
Resolution
720p
Kind
Pipe Inspection Camera
Certification
CE, FCC, RoHS, EMI/EMC, ISO9001
Feature
Waterproof, High Definition
Max Length
3.6m
Monitor Size
4.3 inch
Camera Diameter
23mm
Waterproof
IP68
📷

Product Showcase

MODEL: WPS-4LG - Carbon Fibre CCTV Systems Handheld Telescopic Pole Wall and Chimney Inspection Camera

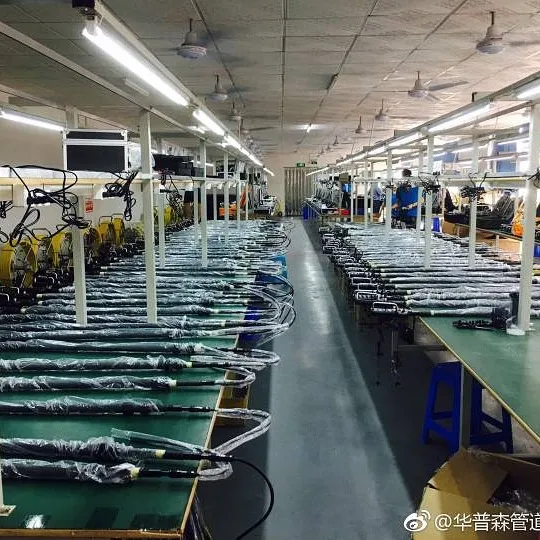

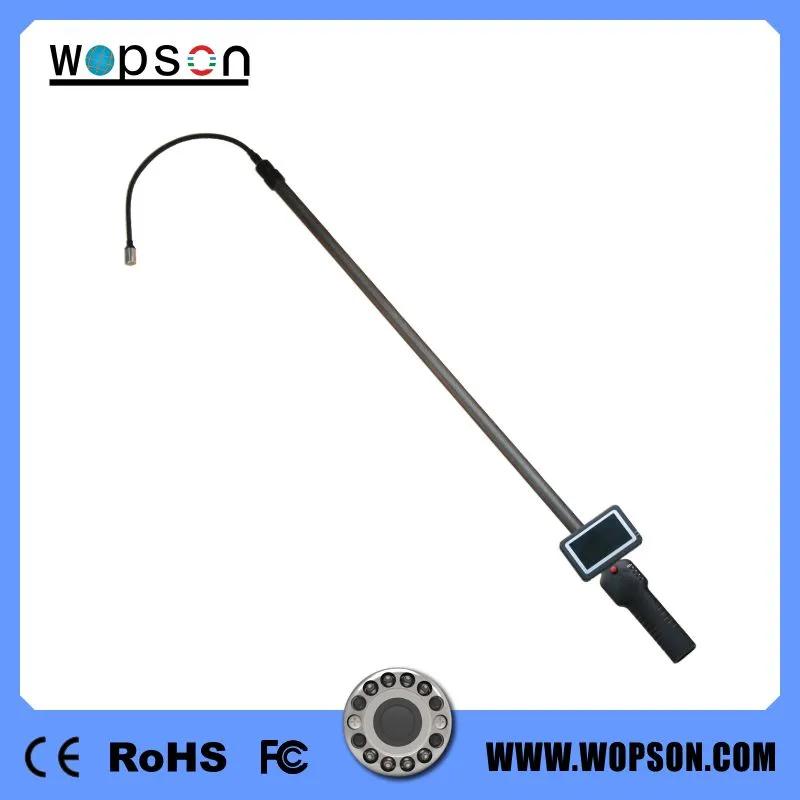

Inspection Camera View 1 Inspection Camera View 2 Inspection Camera View 3
⚙️

Technical Parameters

CAMERA SYSTEM
Camera SizeΦ23mm*510mm(L)
Housing MaterialStainless steel
Sensor Size1/4 inch
View Range120°
Illumination12PCS white LEDS
Waterproof LevelIP68
TELESCOPIC POLE
MaterialCarbon fiber
Joints3 joints
Minimum Length1080mm
Maximum Length2850mm
Total Extended Length3600mm
MONITOR & CONTROL
Monitor4.3 inch TFT color monitor (480x272)
StorageSD card (max 32G)
Movie FormatAVI
Battery12V 5200MAH Li-ion (>260 mins use)
🛠️

Wide Applications

Ideal for: Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Cooling Lines, Attics, Wells, Underwater, Maintenance of Plumbing and Wiring behind walls, Ventilation Shafts, Civil Engineering, Cavities, and Rescue Areas.
🌟

Key Advantages

✔ Direct manufacturer
✔ Customized development
✔ 16x patents
✔ Low Cost & Affordable
✔ 9 years OEM&ODM experience
✔ ISO9001 certified
✔ TQM operation
✔ Client focused
❓

Frequently Asked Questions

What is the maximum reach of the inspection camera?
The telescopic pole features 3 joints and can extend to a maximum total length of 3.6 meters (3600mm).
Is the camera head waterproof?
Yes, the camera head is rated IP68 waterproof, making it suitable for underwater inspections and wet environments like drains and sewers.
How long does the battery last on a single charge?
The 5200MAH rechargeable Li-ion battery provides a continuous working time of more than 260 minutes.
Can I record video and take photos during inspection?
Yes, the system supports both movie recording (AVI format) and picture snapping directly to an SD card (up to 32GB).
What is the resolution of the camera and monitor?
The camera provides 720p horizontal resolution with a 120° view range, and the handheld unit features a 4.3-inch TFT color monitor.
What materials are used for the pole and camera?
The telescopic pole is made of lightweight, high-strength carbon fiber, while the camera housing is constructed from durable stainless steel.
