Vuelo Camera
1 / 5
MODEL: WPS-4LG

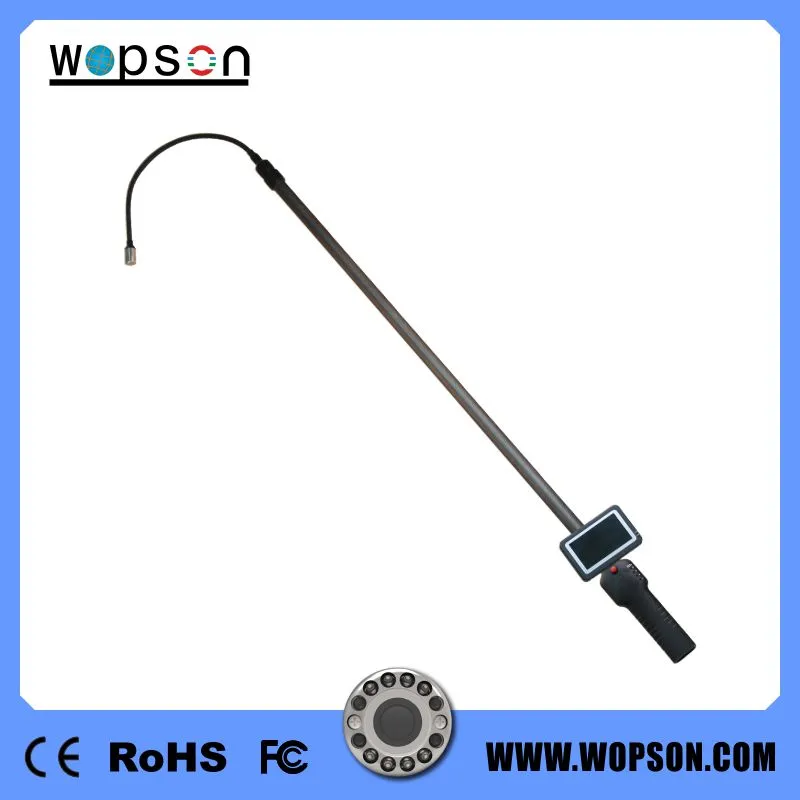

This Carbon Fibre CCTV System is a high-performance handheld telescopic pole camera designed for professional wall, chimney, and bridge inspections.
| Camera System Details | |
|---|---|
| Camera Head Size | Φ23mm * 510mm(L) |
| Housing Material | High-Grade Stainless Steel |
| Illumination | 12PCS White LEDs |
| Total Pixels | PAL: 720*576 / NTSC: 720*480 |
| Operating Temp | -10°C to +50°C |
| Telescopic Pole Joints | 3 Adjustable Joints |
| Min/Max Length | 1080mm / 2850mm (Total 3600mm) |
| Control & Power | |
|---|---|

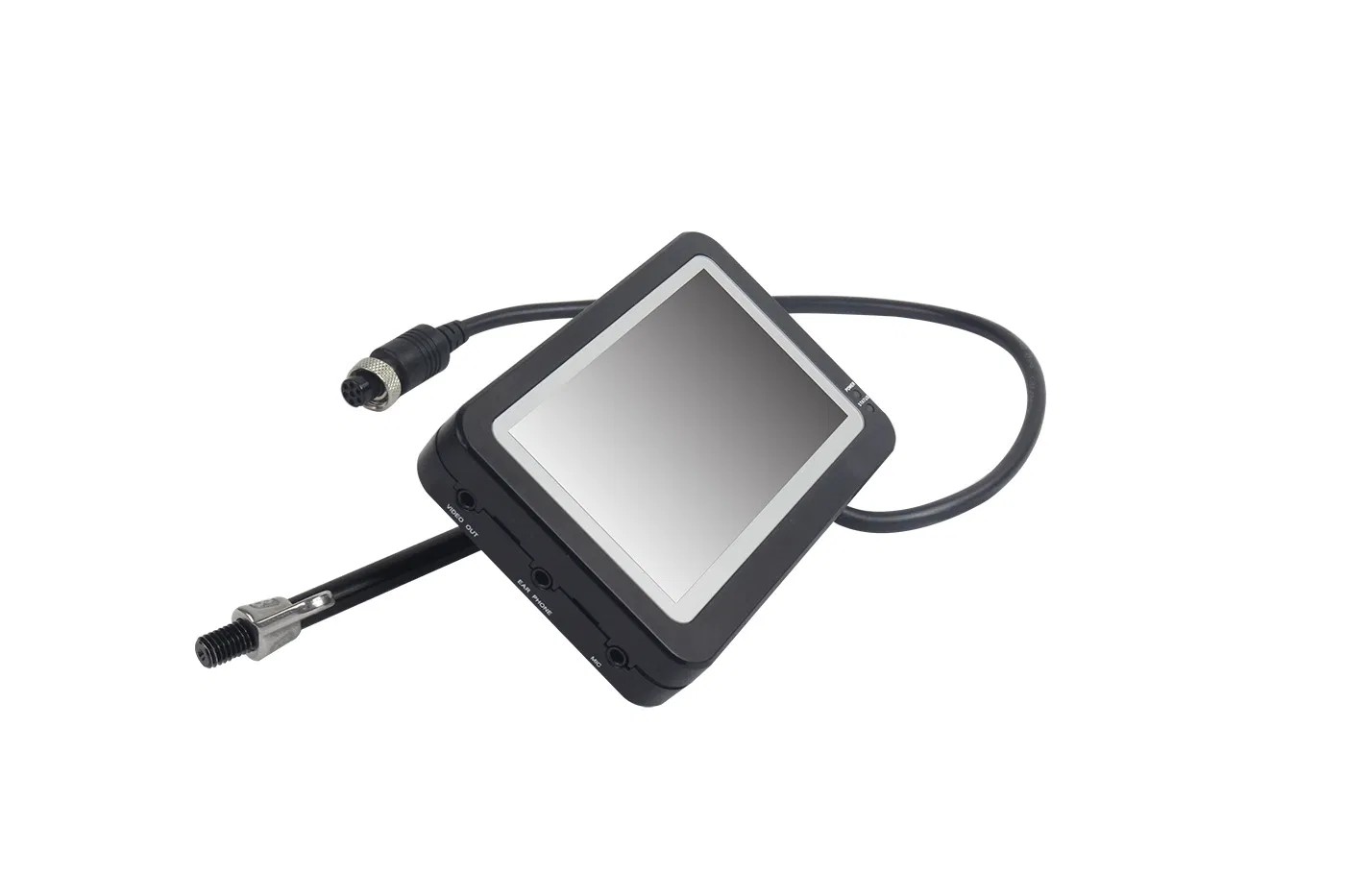

| Monitor Type | 4.3 inch TFT Color Monitor (16:9) |
| Storage | SD Card (Max 32G Supported) |
| Record Function | Video (AVI format), Photo, and Audio |
| Battery Capacity | 12V 5200MAH (Over 260 mins usage) |

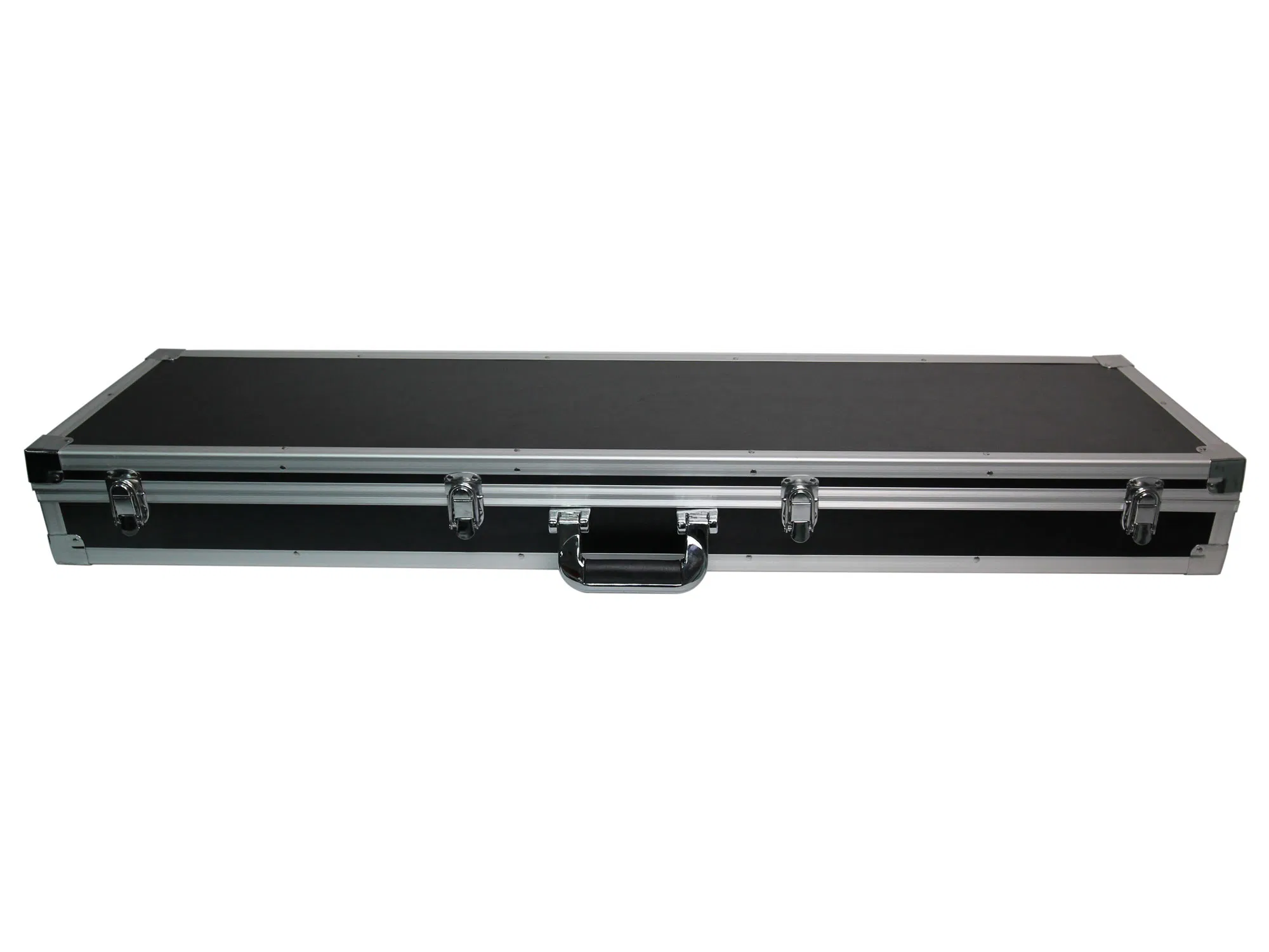

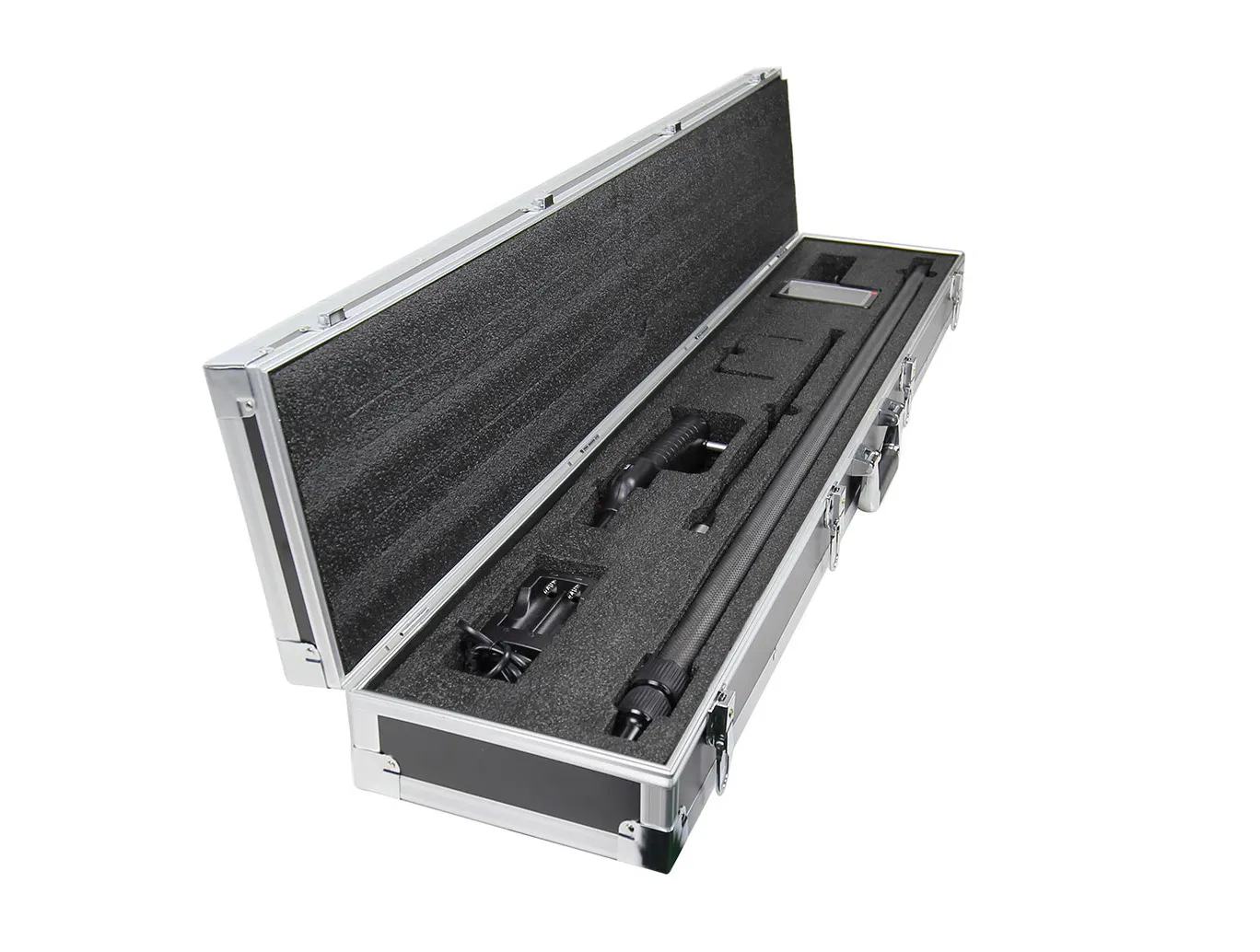

| Carry Case Material | Fire Board & Aluminum Alloy |
This versatile inspection tool is suitable for a variety of environments:

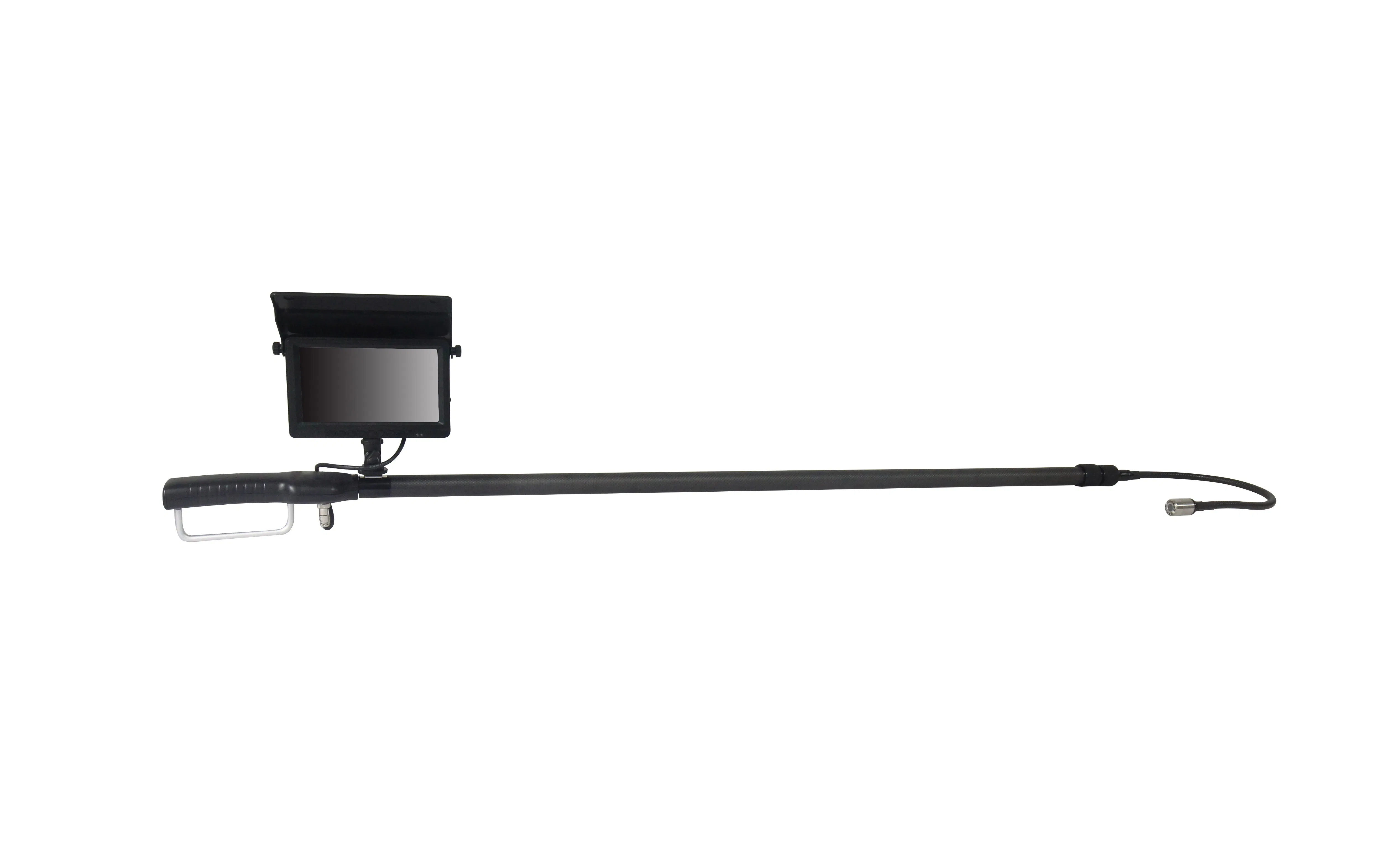

The telescopic pole is made of carbon fiber and has 3 joints, reaching a maximum extended length of 2850mm and a total system length of 3600mm (3.6 meters).
Yes, the camera head is rated IP68 waterproof and constructed from durable stainless steel, making it suitable for underwater inspections and wet environments like sewers and tanks.
The system uses a 12V 5200MAH rechargeable Li-ion battery that provides over 260 minutes of continuous operating time.

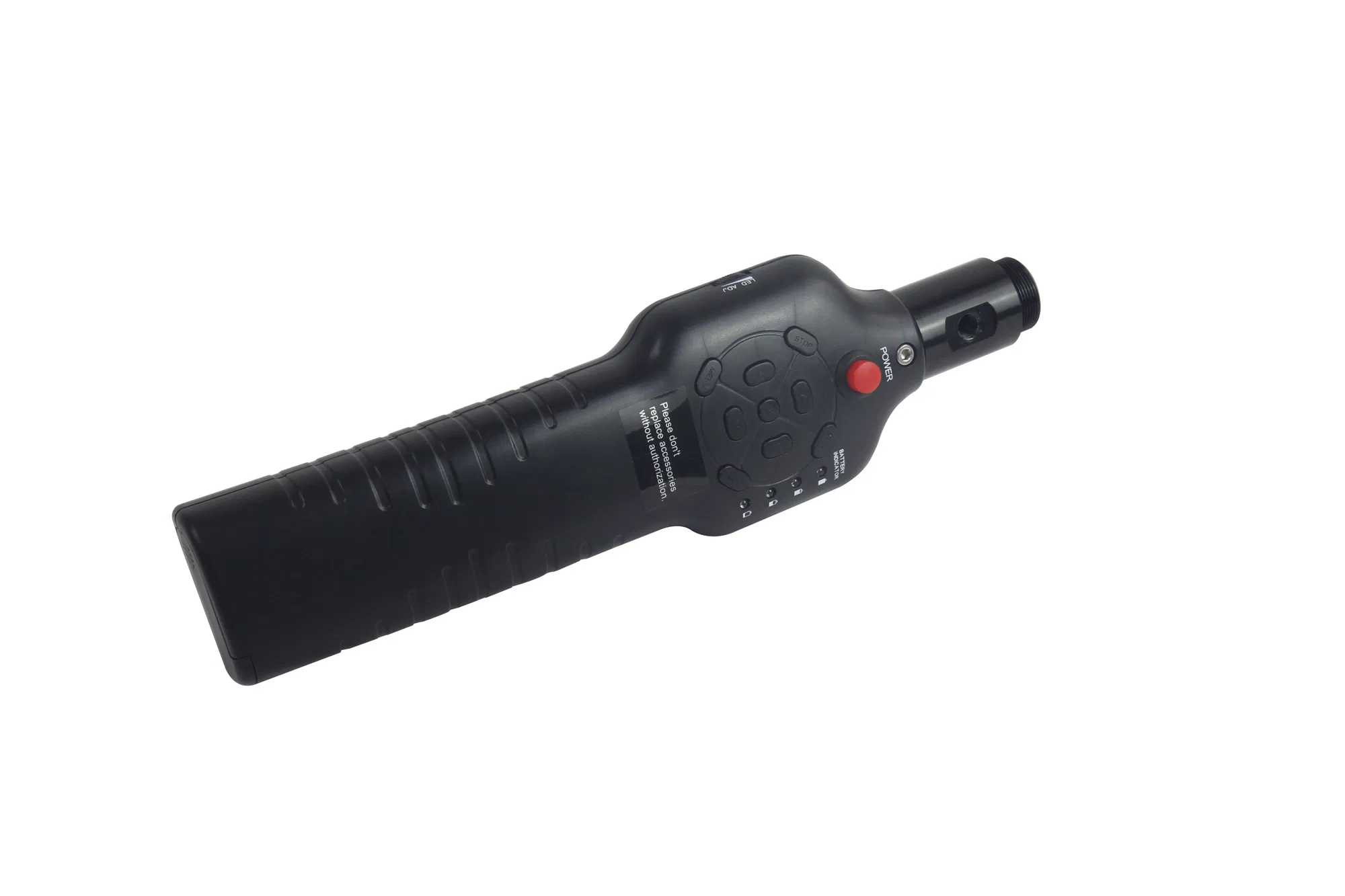

Yes, the control box supports both picture snapping and movie recording (AVI format). It also features a microphone for audio recording during inspections.
The camera head is equipped with 12 high-intensity white LEDs to ensure clear visibility even in completely dark spaces like pipes or chimneys.
The system records data onto a standard SD card, with a maximum supported capacity of 32GB.
