📋 Basic Information
Horizontal Resolution
720p
Kind
Pipe Inspection Camera
Certification
CE, FCC, RoHS, EMI/EMC, ISO9001
Feature
Waterproof, High Definition
Material
Carbon Fiber / Telescopic Pole
🔍 Product Gallery
⚙️ Technical Specification
| Camera System |
|---|
| Camera Size | Φ23mm*510mm(L) |
| Housing Material | Stainless steel |
| Sensor Size | 1/4 inch |
| Total Pixels | PAL: 720*576 / NTSC: 720*480 |
| View Range | 120° |
| Illumination | 12PCS White LEDs |
| Waterproof Level | IP68 |

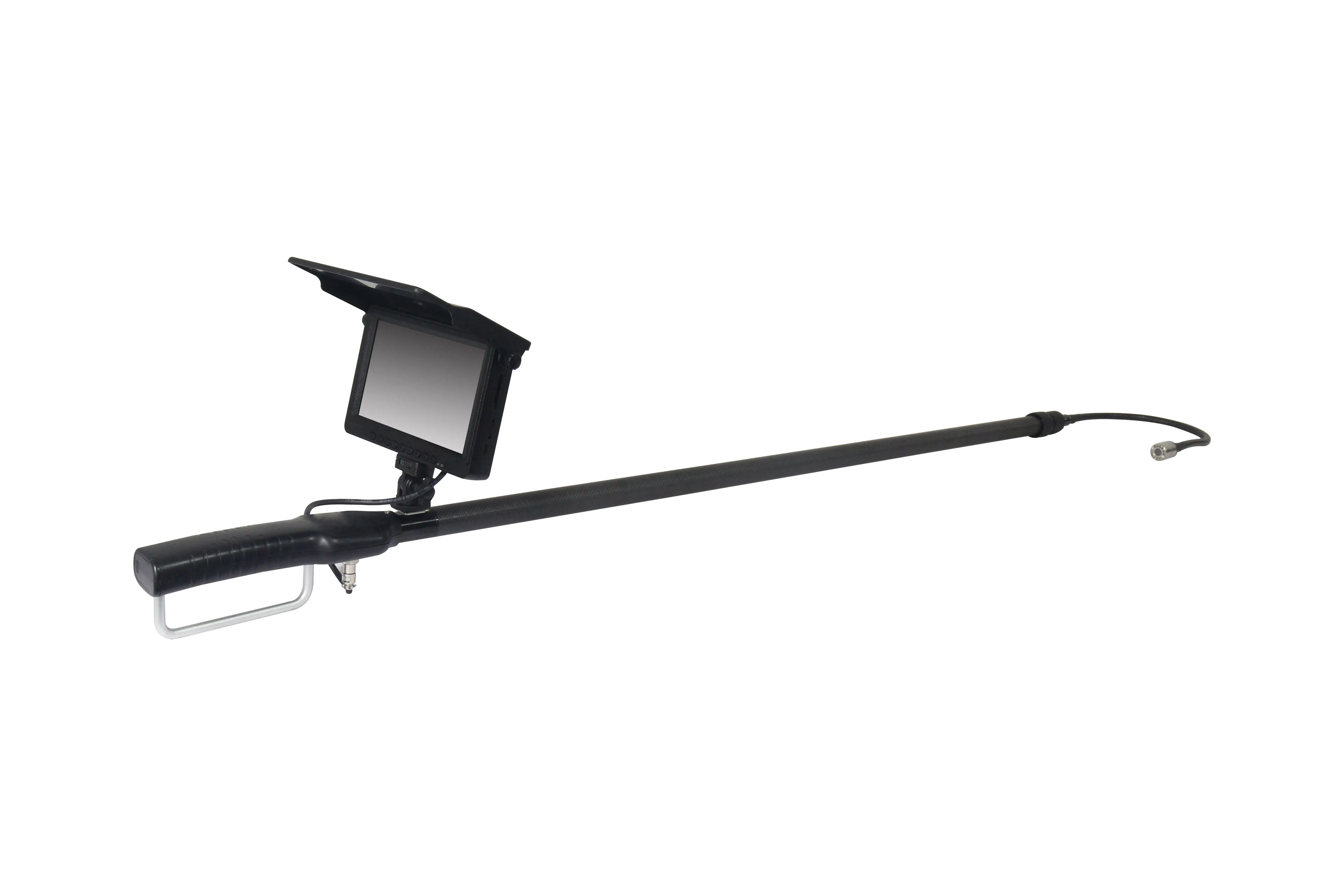

| Telescopic Pole |
|---|
| Pole Material | Carbon Fiber |
| Joints | 3 Joints |
| Minimum Length | 1080mm |
| Maximum Length | 2850mm |
| Total Length | 3600mm |

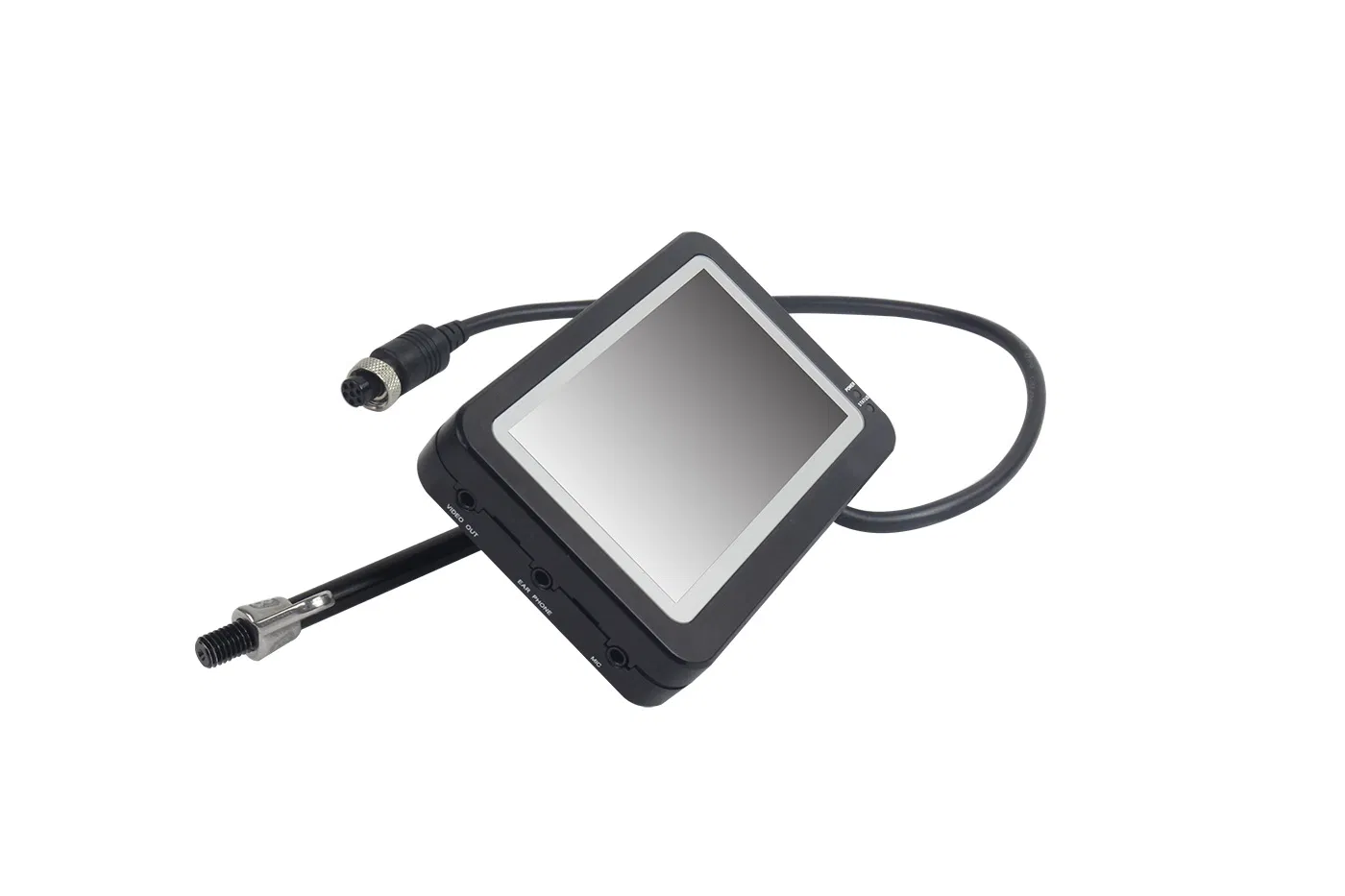

| Monitor & Control Box |
|---|
| Monitor Size | 4.3 inch TFT Color Monitor |
| Storage | SD Card (Max 32G) |
| Movie Format | AVI |
| Audio | Microphone Audio Record Support |
| Battery | 12V 5200MAH Rechargeable Li-ion |
| Operating Time | >260 minutes |
🌟 Key Advantages
- Direct Manufacturer Support
- Customized Development
- High-tech Certified Enterprise
- 16+ Patents Recognition
- 9 Years OEM & ODM Experience
- Full Certification (RoHS, FCC, CE, EMC)
- ISO9001 Quality Control
- TQM Operation Standards
🛠️ Application Areas
Carbon Fibre CCTV Systems Handheld Telescopic Pole Wall and Chimney Inspection Camera is ideal for:
Pipe & Pipeline
Drain & Sewer Lines
Ducts & Tanks
Water Leak Detection
Chimneys & Exhaust Vests
Confined Space Investigation
Underwater Inspection
Civil Engineering
Rescue Operations
Ventilation Shafts
❓ Frequently Asked Questions
What is the maximum reach of the telescopic pole?
The carbon fiber telescopic pole has 3 joints and can extend to a maximum total length of 3600mm (3.6 meters).
Is the camera head waterproof for underwater use?
Yes, the camera head is rated IP68 waterproof and constructed from stainless steel, making it suitable for underwater inspections and wet environments.
How long does the battery last on a full charge?
The system is equipped with a 12V 5200MAH rechargeable Li-ion battery that provides over 260 minutes of continuous operation.
Can I record video and take photos with this device?
Yes, the control box supports both picture snapping and movie recording in AVI format, saving directly to an SD card (up to 32GB).
What is the viewing angle and visibility in dark pipes?
The camera features a wide 120° viewing angle and is equipped with 12 high-intensity white LEDs to provide clear illumination in dark spaces.
What are the main materials used in this system?

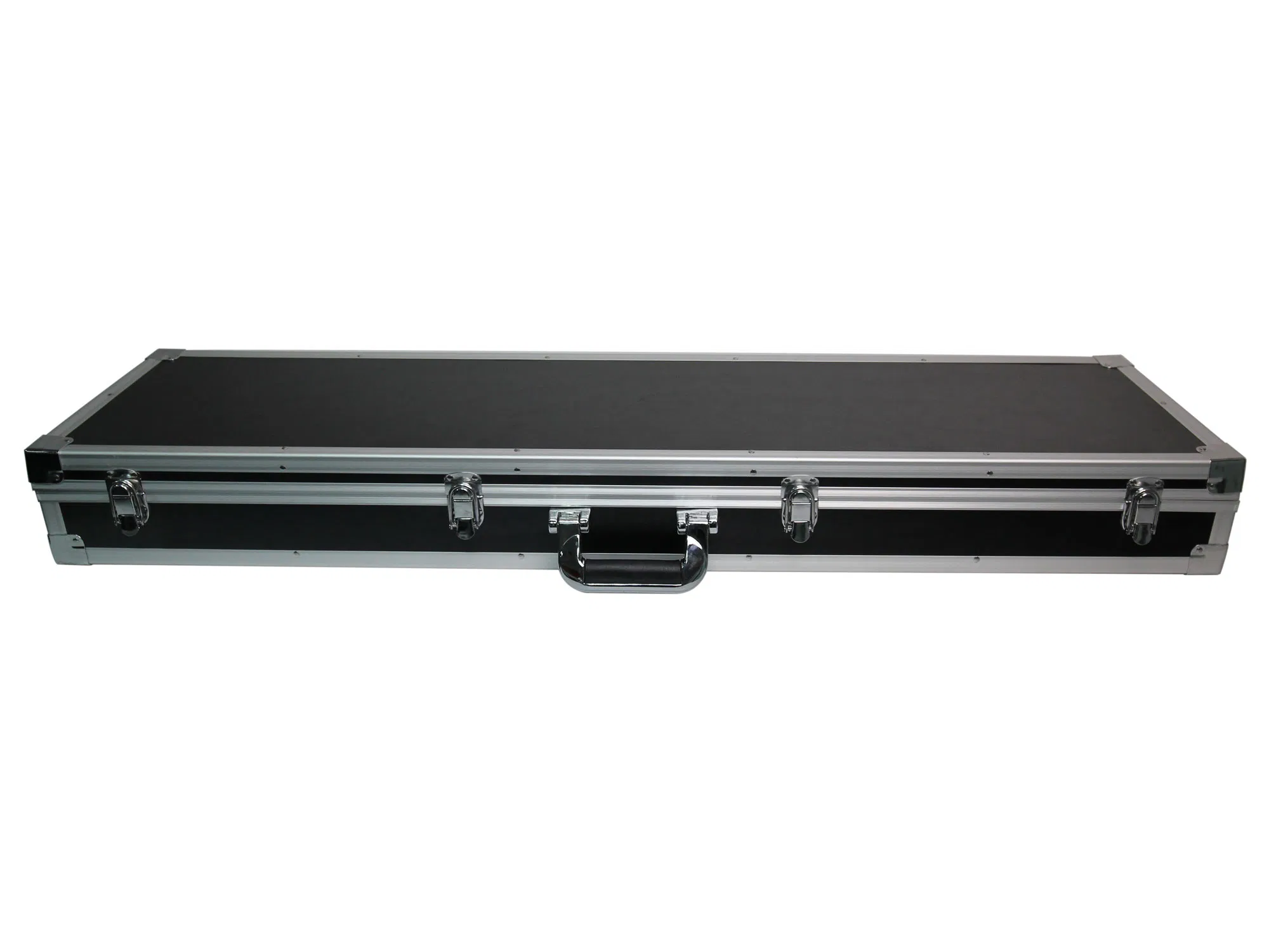

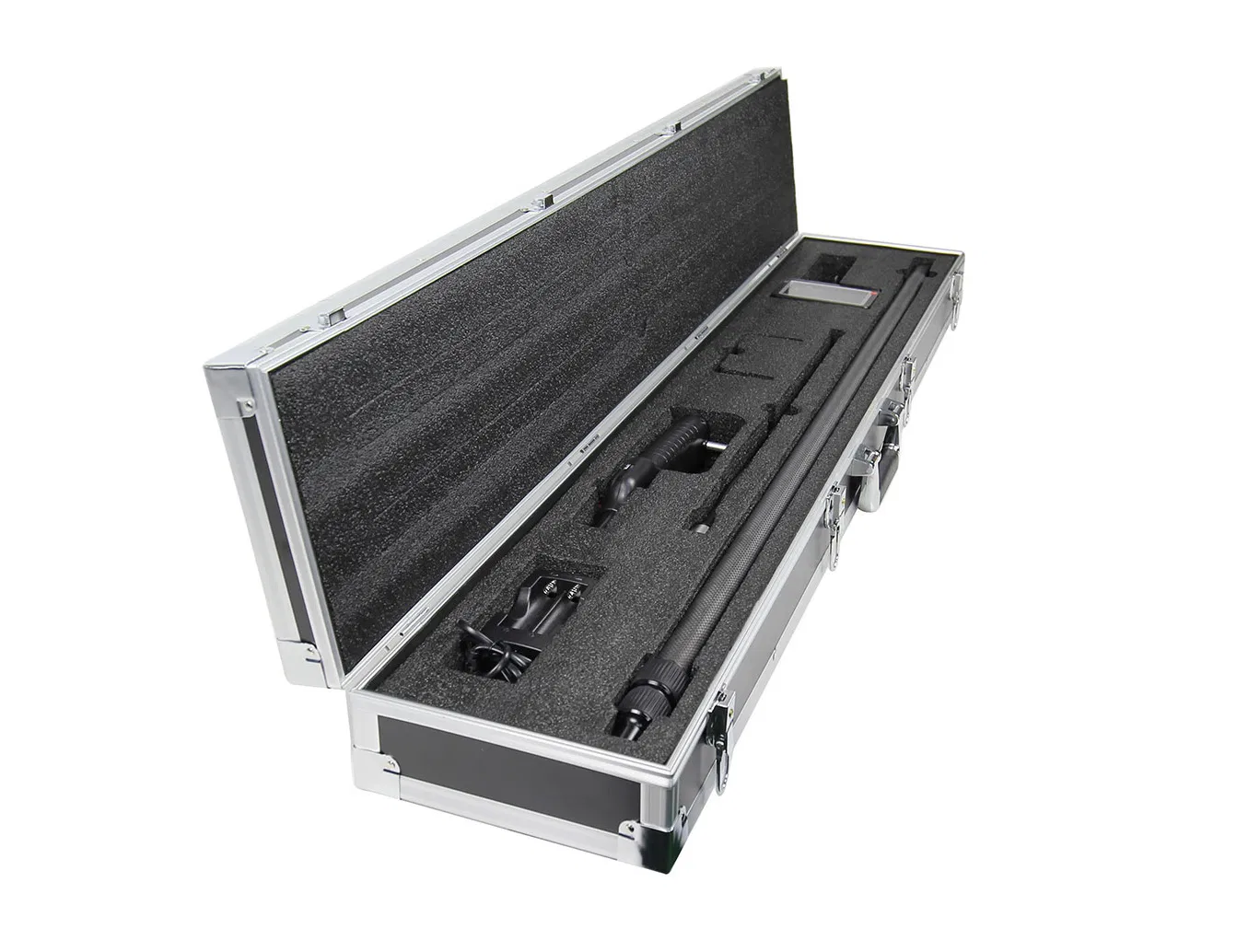

The main pole is made of lightweight, durable carbon fiber, the camera housing is stainless steel, and the carrying case is made of aluminum alloy and fire board.
