Telescopic Inspection Camera Custom Length Viaduct Bridge Health Monitoring

1 / 5

Telescopic Inspection Camera Custom Length Viaduct Bridge Health Monitoring

Customization:	Available
Technology:	Pipe Inspection Camera
Style:	Box Camera

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

WPS-L1-C23LG

Type

Video Camera

Sensor

CMOS (1/3 inch)

Resolution

720p

Certification

CE, FCC, RoHS, ISO9001

Waterproof

IP68

Monitor Size

4.3 inch

Pole Length

3.6m Telescopic

Zoom

8X Digital Zoom

Camera Diameter

23mm Stainless Steel

💡

Product Description

MODEL: WPS-4LG

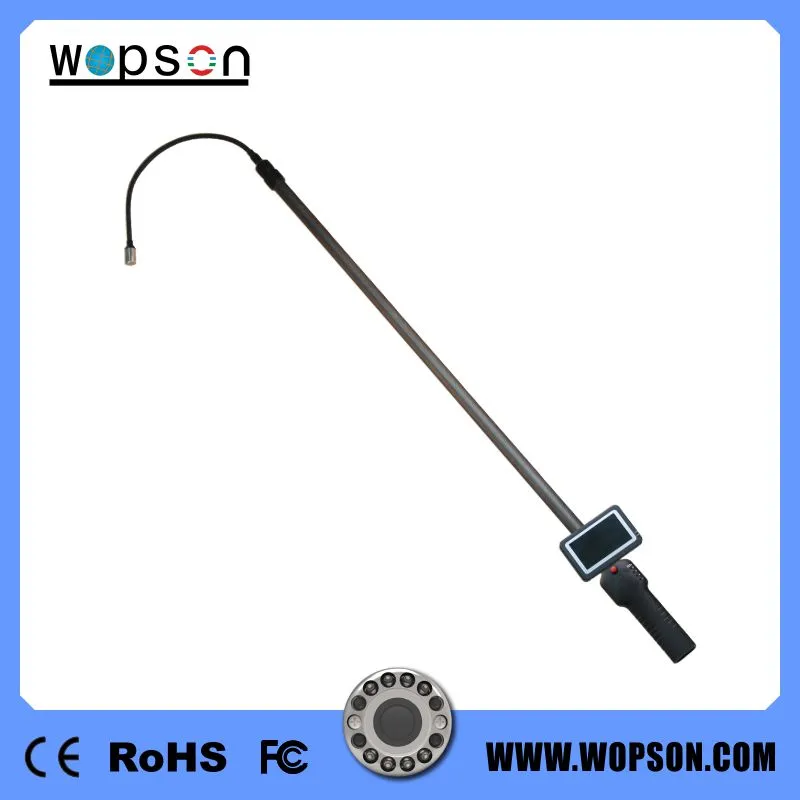

Carbon Fibre CCTV Systems Handheld Telescopic Pole Wall and Chimney Inspection Camera. High-performance system designed for versatile health monitoring and structural inspections.

⚙️

Technical Parameters

CAMERA UNIT
Camera Size	Φ23mm*510mm(L)
Housing Material	Stainless steel
Sensor / Pixels	1/4 inch CMOS / PAL: 720*576
View Range / Illumination	120° / 12PCS white LEDs
Waterproof Level	IP68

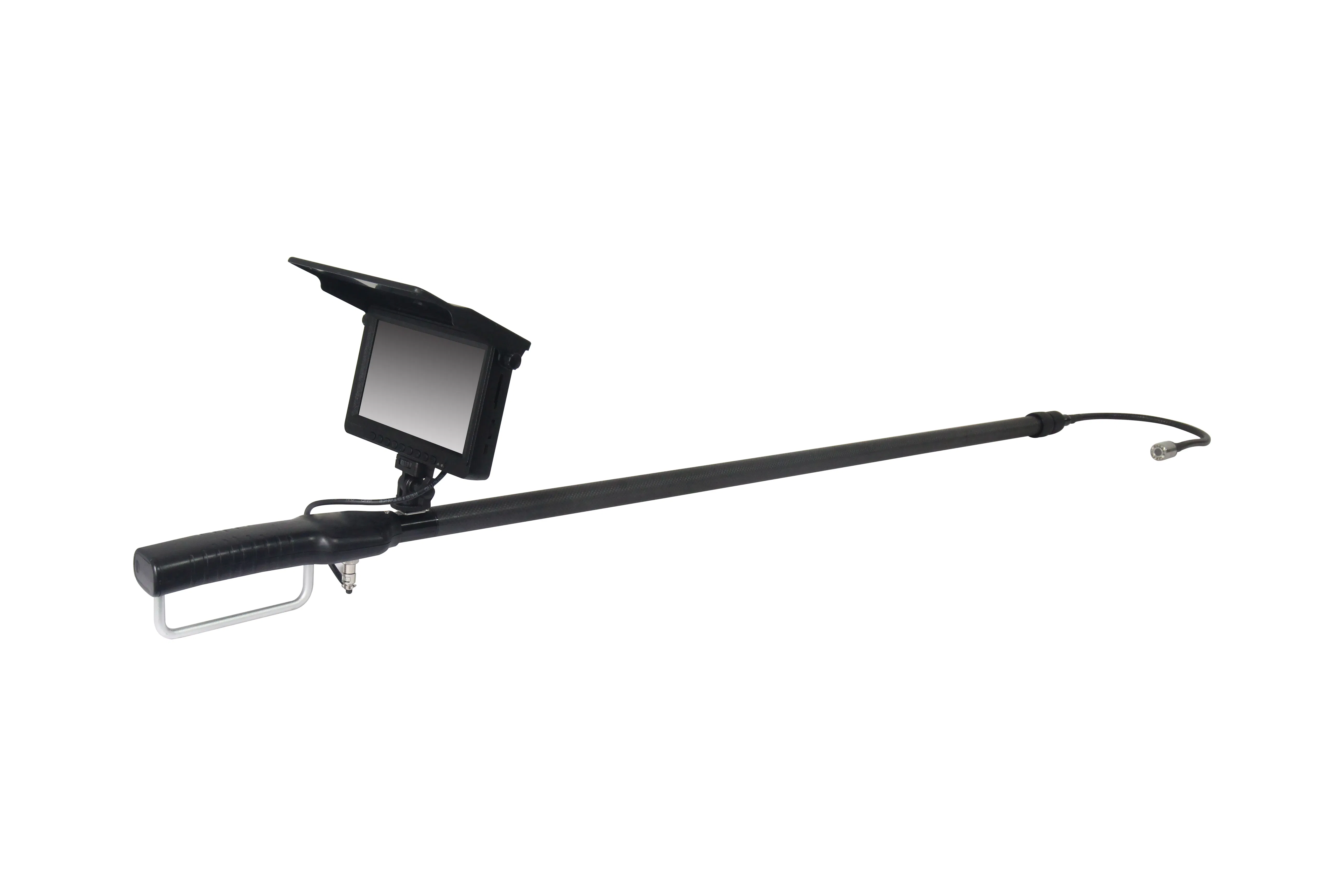

TELESCOPIC POLE
Material	Carbon fiber
Joints	3 joints
Min / Max Length	1080mm / 2850mm
Total Reach	3600mm

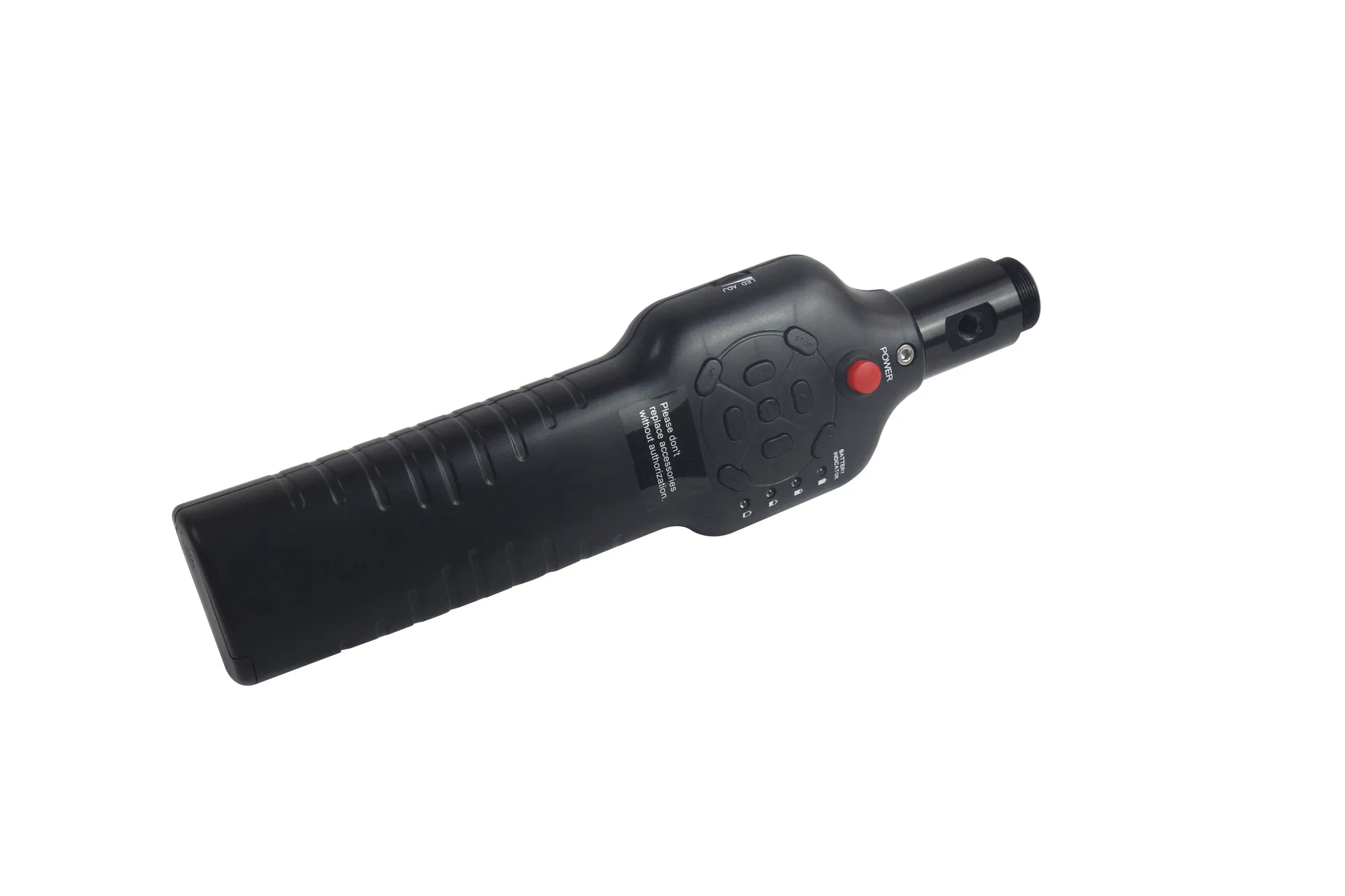

MONITOR & CONTROL

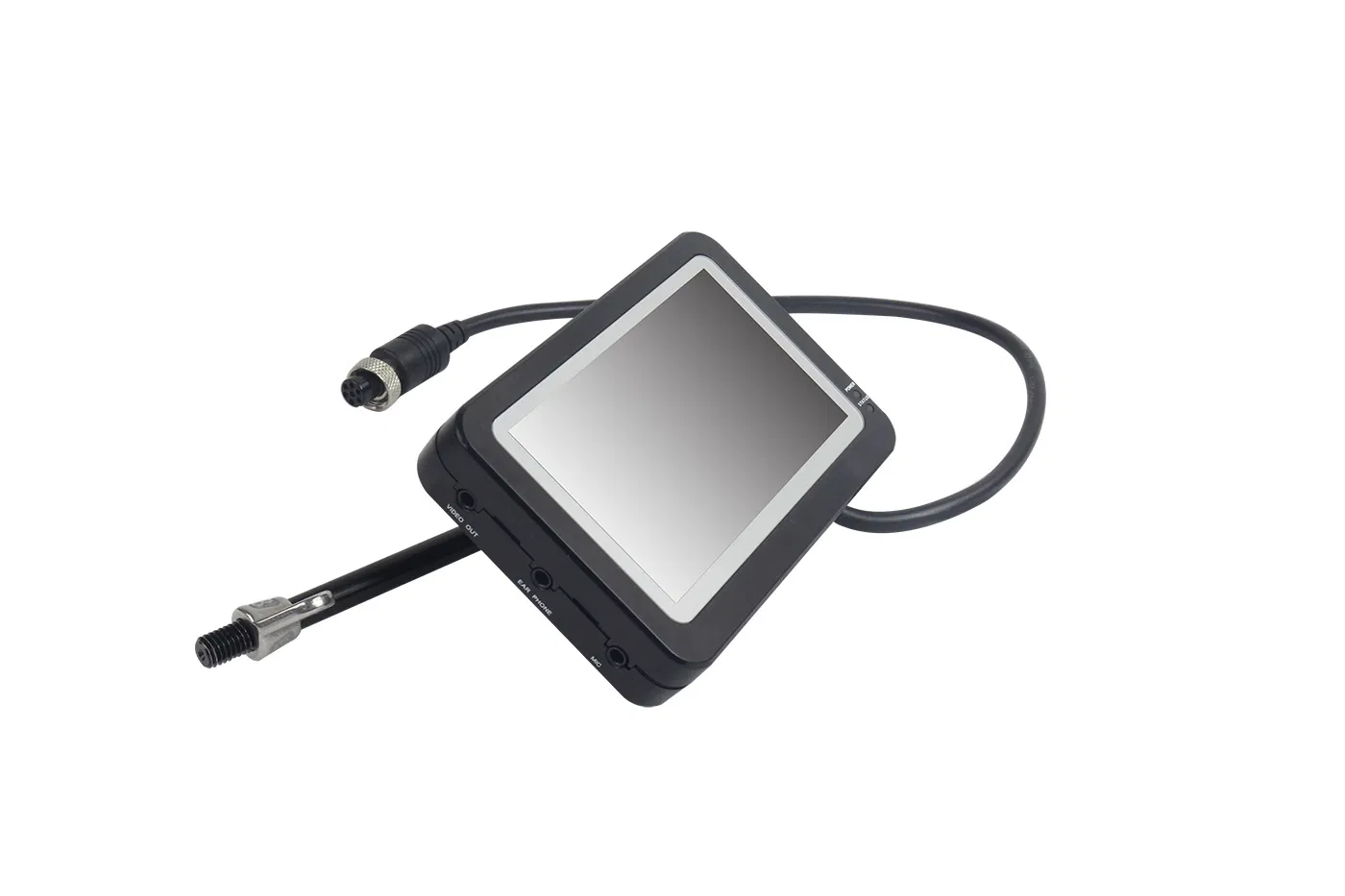

Monitor	4.3 inch TFT color (480x272)
Storage	SD card (max 32G)
Record Format	AVI Movie / Picture Snap
Battery	12V 5200MAH Li-ion (>260 mins)

🏆

Wide Applications & Advantages

Ideal for: Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Colling Lines, Attics, Wells, Underwater, Maintenance of the Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.

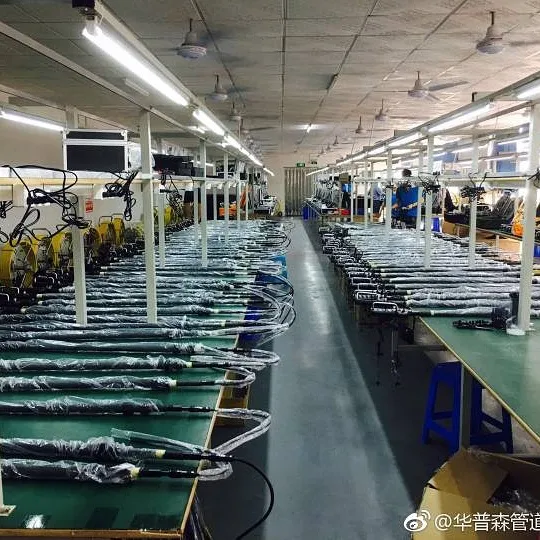

Direct Manufacturer

Customized Development

16x Patents

9 years OEM&ODM

ISO9001 Certified

High-Tech Enterprise

❓

Frequently Asked Questions

Q: What is the maximum reach of the inspection camera? A: The telescopic pole is made of carbon fiber and can extend up to a total length of 3.6 meters (approx. 11.8 feet).

Q: Is the camera head waterproof for underwater use? A: Yes, the camera head is rated IP68 waterproof, making it suitable for underwater inspections, sewers, and wet pipes.

Q: How long does the battery last on a full charge? A: The 5200MAH rechargeable Li-ion battery provides over 260 minutes of continuous operation.

Q: Can I record both video and audio with this system? A: Yes, the control box supports movie recording in AVI format and includes microphone audio recording capabilities.

Q: Does the system include a storage medium? A: The system supports SD card storage up to 32GB for saving your photos and video recordings.

Q: What is the material of the camera and pole? A: The camera housing is made of durable stainless steel, and the telescopic pole is crafted from lightweight, high-strength carbon fiber.
