Custom Length Telescopic Camera Viaduct Bridge Real Time Video Inspection

Customization:	Available
Technology:	Pipe Inspection Camera
Style:	Box Camera

Send Inquiry

Product Description

📋 Basic Information

Model NO.

WPS-L1-C23LG

Type

Video Camera

Sensor

CMOS

Format

AVI / 720p

Kind

Pipe Inspection Camera

Certification

CE, FCC, RoHS, ISO9001

Feature

Waterproof, High Definition

Max Length

3.6m (Telescopic)

Monitor

4.3 inch TFT

Zoom

8X Digital Zoom

Waterproof

IP68

Camera Head

23mm Stainless Steel

🔍 Product Description

MODEL: WPS-4LG

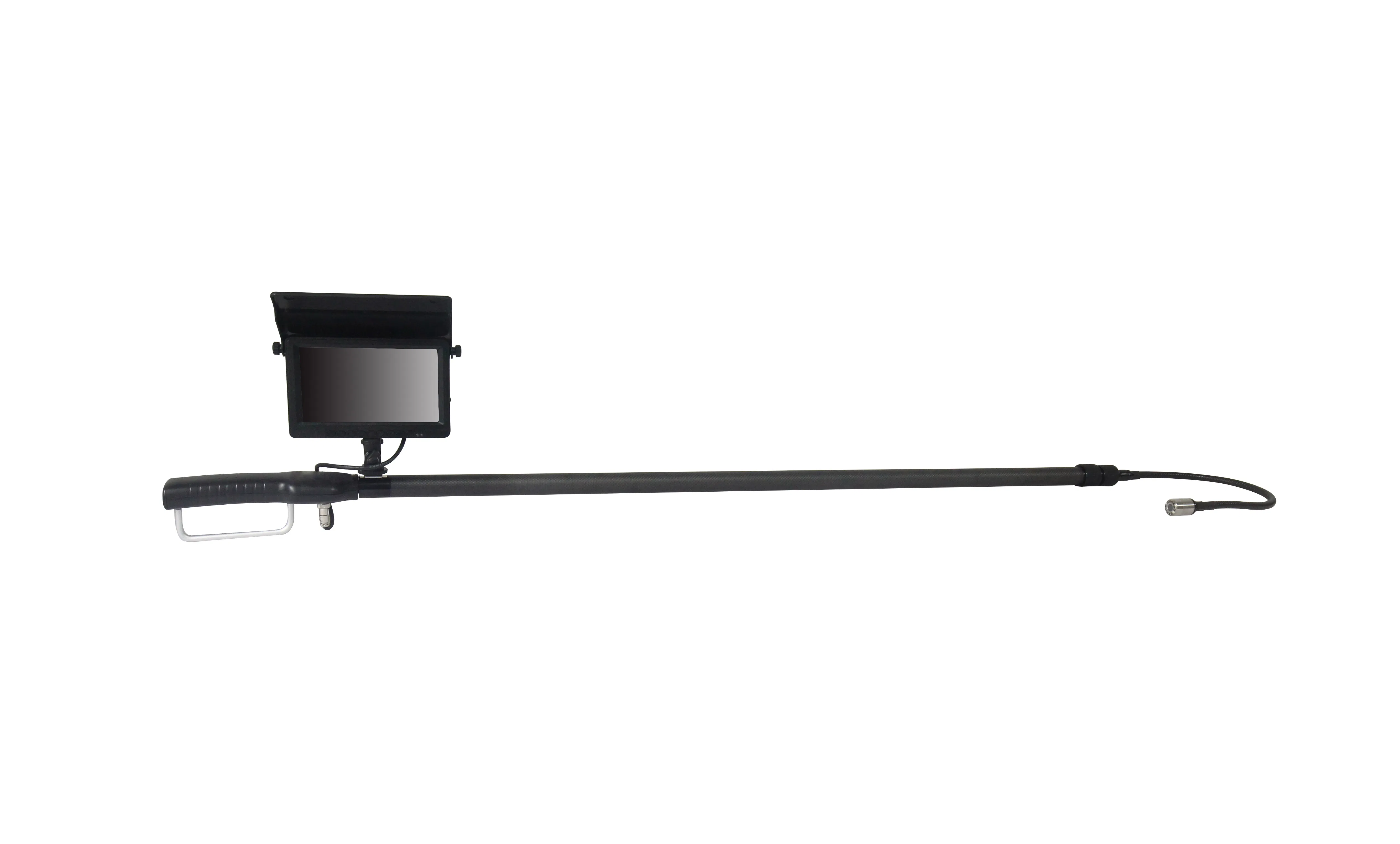

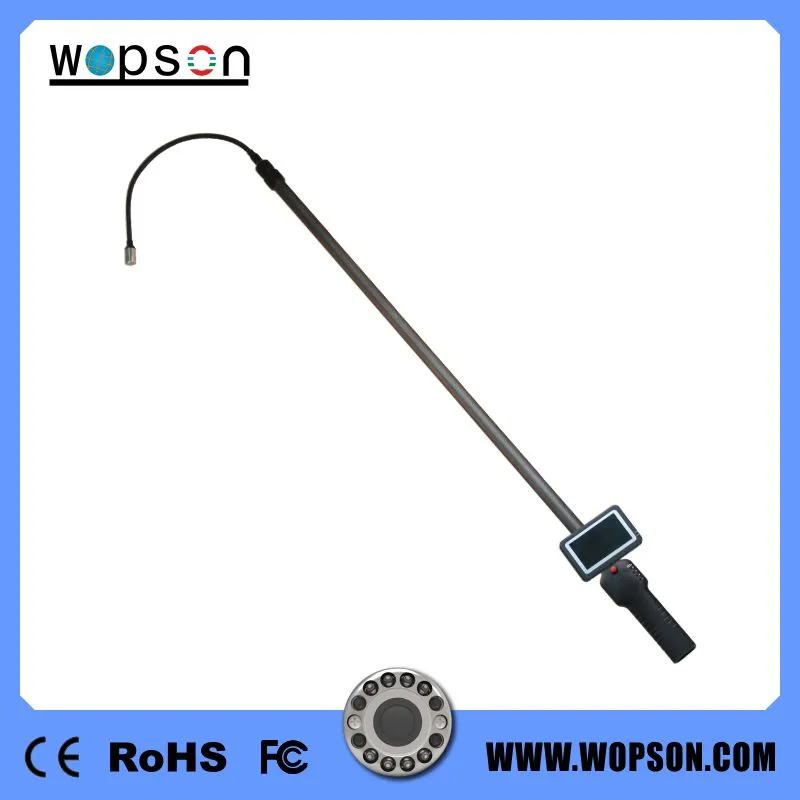

High-quality Carbon Fibre CCTV Systems with Handheld Telescopic Pole designed for professional wall, chimney, and under-car inspections. This system provides real-time video feedback for viaduct bridge and high-altitude structural assessments.

⚙️ Technical Specifications

CAMERA UNIT
Size	Φ23mm * 510mm (L)
Housing Material	Stainless Steel
Sensor	1/4 inch CMOS
View Range	120° Wide Angle
Illumination	12PCS White LEDs
Waterproof	IP68

TELESCOPIC POLE
Material	Carbon Fiber
Structure	3 Adjustable Joints
Length Range	1080mm to 2850mm
Total Reach	Up to 3600mm

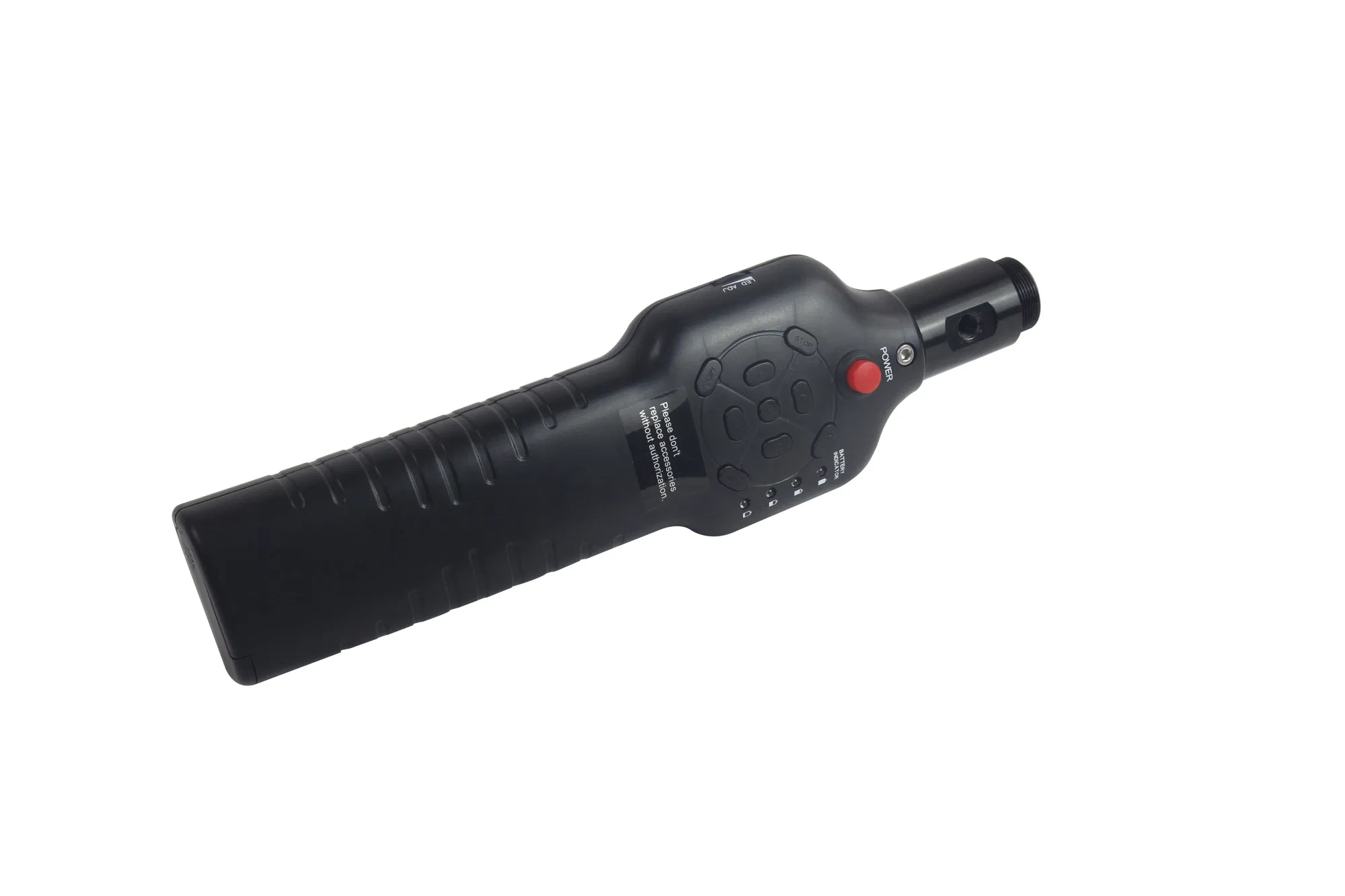

MONITOR & CONTROL

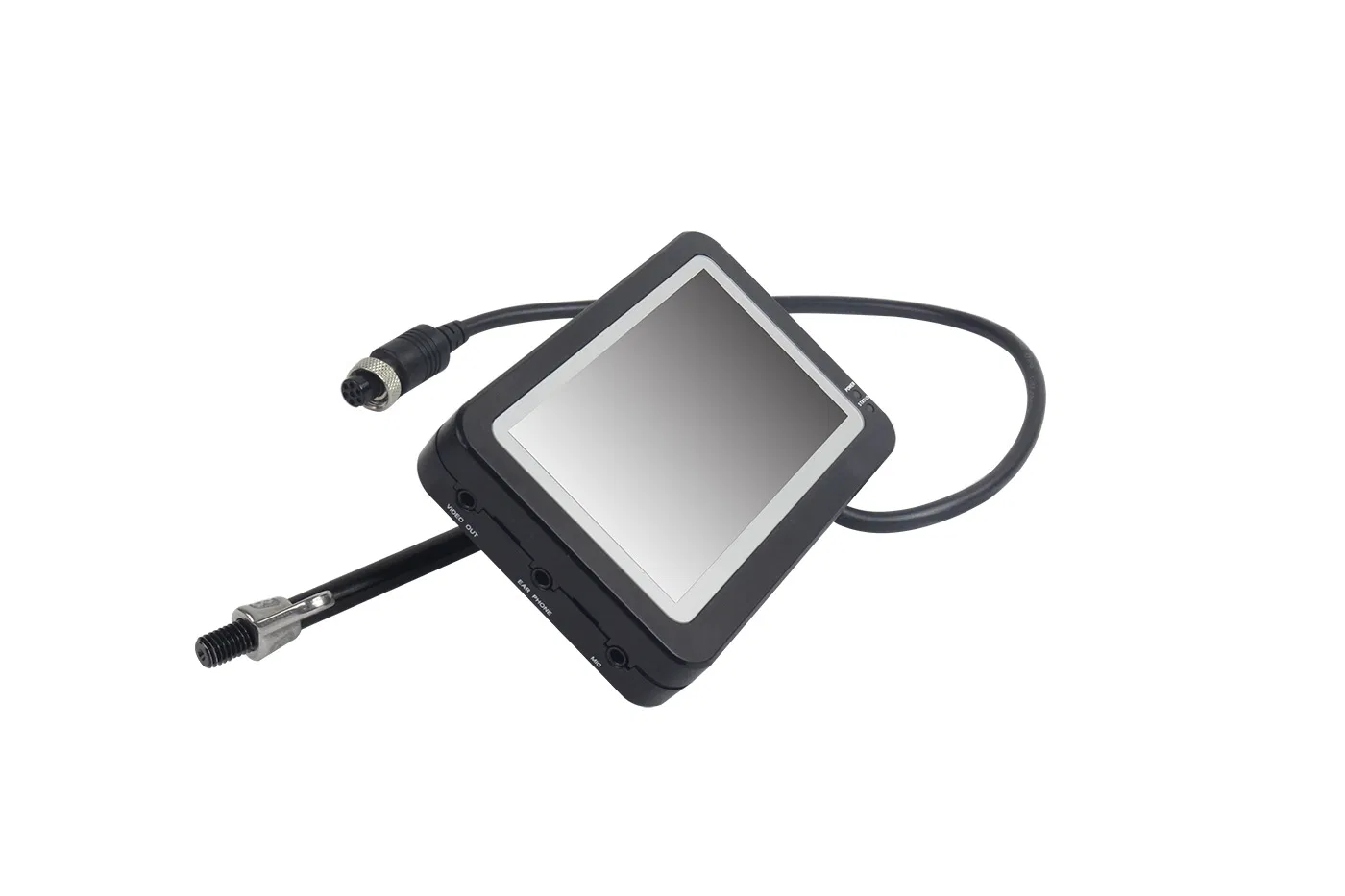

Monitor Size	4.3 inch TFT color monitor (480x272)
Storage	SD card (max 32G)
Recording	Picture Snap and Movie Record (AVI)
Battery	12V 5200MAH Li-ion (Rechargeable)
Operation Time	>260 minutes

🛠️ Wide Application Areas

Pipe & Pipeline Sewer Lines Chimney Inspection Viaduct Bridge Ducts & Tanks Confined Space Underwater Maintenance Electrical Shafts Rescue Operations Civil Engineering

⭐ Our Advantages

✅ Direct manufacturer

✅ 16x patents

✅ OEM & ODM experience

✅ ISO9001 certified

✅ CE, FCC, RoHS certified

✅ National High-tech Enterprise

❓ Frequently Asked Questions

What is the maximum length of the inspection pole?

The telescopic pole is made of carbon fiber and can reach a maximum total length of 3600mm (3.6 meters) with 3 adjustable joints.

Is the camera suitable for underwater use?

Yes, the camera head is made of stainless steel and has an IP68 waterproof rating, making it suitable for underwater inspections and wet environments.

How long does the battery last on a single charge?

The 5200MAH rechargeable Li-ion battery provides more than 260 minutes of continuous operation time.

Can I record video and take photos?

Absolutely. the system supports both high-quality picture snapping and movie recording in AVI format, saved directly to an SD card.

What is the camera's viewing angle and visibility?

The camera features a 120° wide viewing range and is equipped with 12 high-intensity white LEDs to ensure clear visibility in dark spaces.
