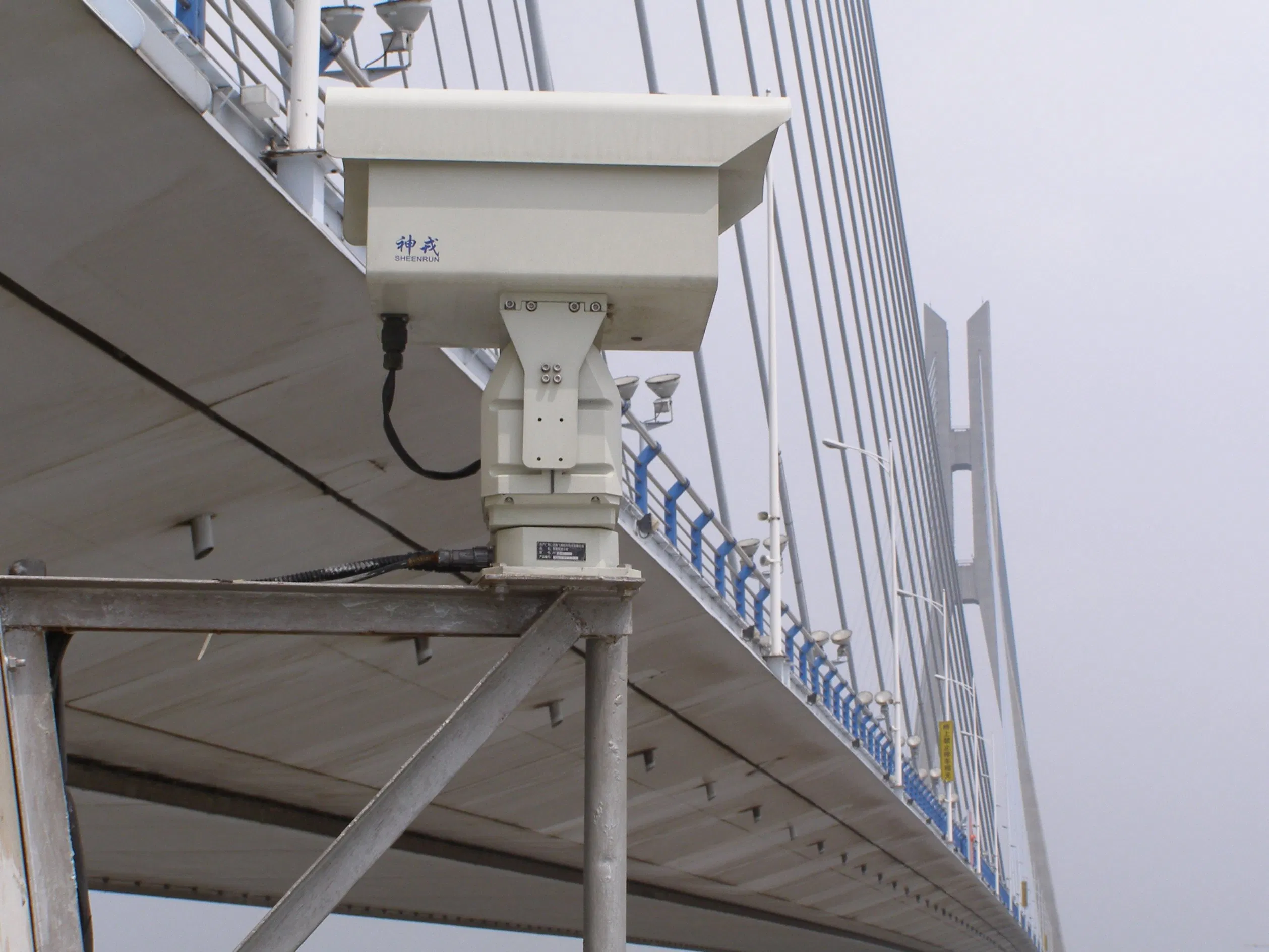

CCTV PTZ Laser Night Vision Camera for Bridge

1 / 5

CCTV PTZ Laser Night Vision Camera for Bridge

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Specifications

Model NO.

SHR-HLV1520

Type

IP Camera

Sensor

CMOS

Format

1080P

Lens Type

Autofocus

Certification

CE, FCC, ISO9001

IP Grade

IP66

Focal Length

15.6~500mm

Distance

1.5km Day / 3km Night

Capacity

1000 Units

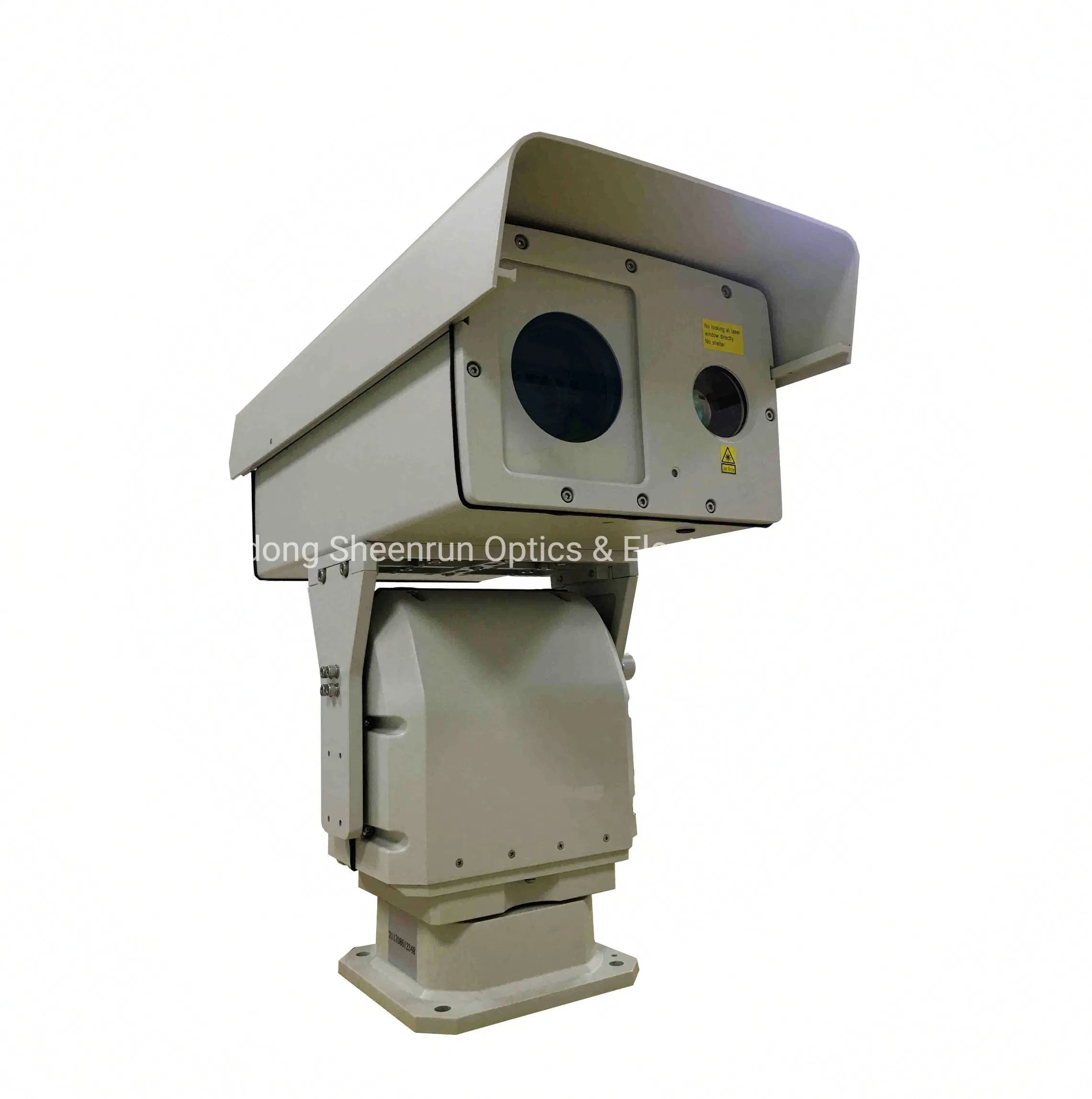

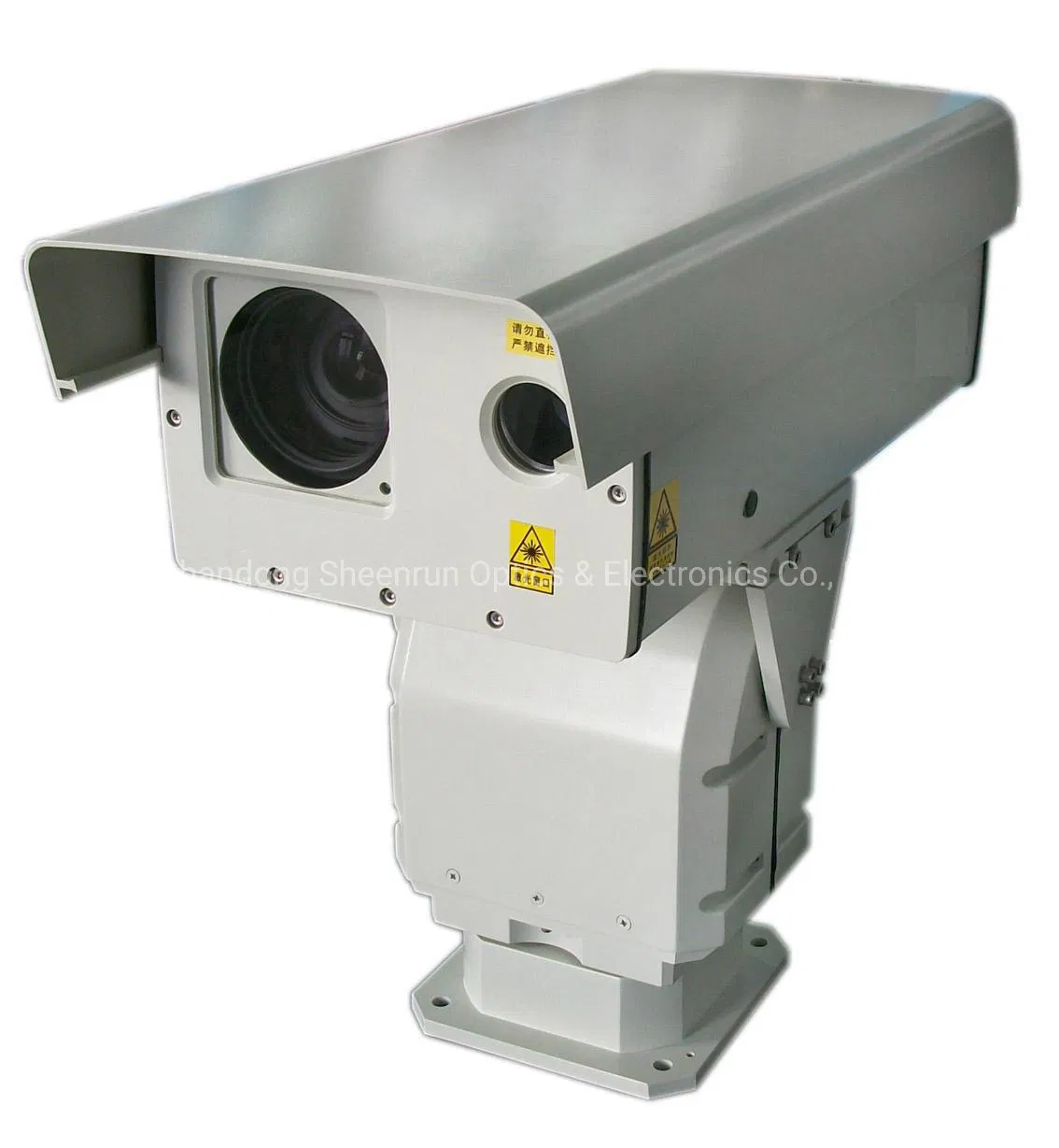

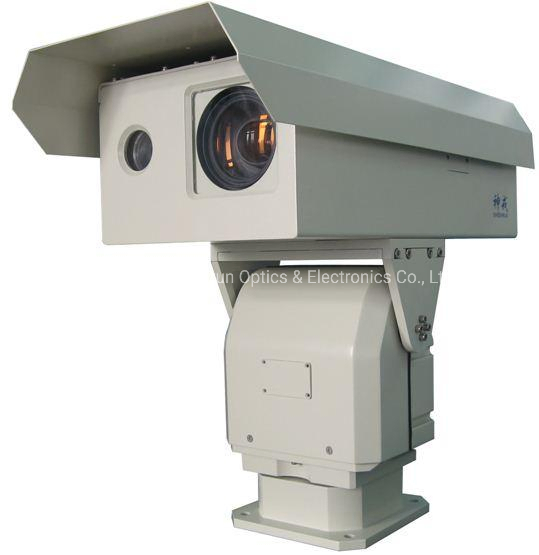

HD Night Vision Laser PTZ Camera

The SHR-HLV1520 is a high-performance HD middle-range night vision laser PTZ camera designed for sophisticated surveillance requirements in diverse environments.

Key Features

Synchronous zooming laser illuminating system with long distance and large range monitoring in 0Lux.
2 Megapixels color to black camera for continuous day and night low-light monitoring.
MCIC multi-tube core fusion mixed mode light homogenization technology for high edge definition.
Advanced image support: Fog penetration, backlight compensation, and multistage wide dynamic range.
Optional auto-focusing with multiple triggering modes.
Remote debugging and camera back focal length fine adjustment technology.
3D locating function and long focal length speed limit support.
High network applicability with abundant protocol support.
External MMA fine adjustment for laser alignment without disassembly.
Professional anti-corrosion, waterproof (IP66), and anti-acid rain shell.

Technical Indicators

Category	Parameter	Specification
Monitoring Distance	Night Vision	1500 meters
Monitoring Distance	Day Vision	3000 meters
Imaging Lens	Focal Length	15.6~500mm
	FOV	0.8°~24.7°
	Auto Focusing	Supporting (Optional)
	Fog Penetration	Supporting (Optional)
Camera	Sensor Type	1/1.8" Progressive Scan CMOS
	Video Resolution	1080P HD (Three stream support)
	Coding Mode	H.264/MPEG4/MJPEG
	Video Frame Rate	1~30 F/S (60Hz)
Illuminator	Laser Lens	60x Zooming Laser Lens
	Power/Wave Length	10W / 810nm
	Angle	0.5°~30° Continuous changing
Pan-tilt	Carrying Capacity	22kg (Top load)
	Rotation Angle	Horizontal 360° / Pitching -60°~+20°
	Preset Bits	255 bits, 8 cruising paths
Environment	Protection Grade	IP66 Waterproof
Power	Consumption	≤120W (AC24V)

Applications & Usage

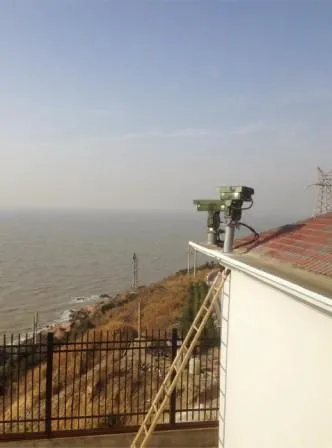

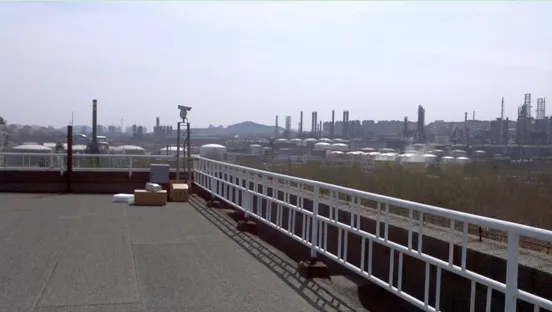

Primary Deployment: Frontier and coast defense, Oilfields, Railway systems, Airports, Harbors, Armored monitoring, and large area real-time monitoring for day and night security.

Frequently Asked Questions

What is the maximum night vision range of this PTZ camera?

The camera features a high-power 10W laser illuminator that allows for clear night vision monitoring up to 1500 meters in total darkness (0Lux).

Is the camera suitable for harsh outdoor environments?

Yes, the device is built with a professional-grade shell that is IP66 rated, making it waterproof, anti-corrosion, and capable of withstanding acid rain and extreme temperatures ranging from -25ºC to +55ºC.

What imaging resolution does the SHR-HLV1520 provide?

It utilizes a 1/1.8" Progressive Scan CMOS sensor to deliver Full HD 1080P (1920*1080) resolution for high-definition video monitoring.

Does this camera support automatic focusing?

The camera includes an autofocus lens with a focal length of 15.6~500mm. Optional advanced auto-focusing functions are also available to support various triggering modes.

What are the main application areas for this laser camera?

It is primarily used for long-distance surveillance in frontier and coast defense, border security, oilfield monitoring, railway and airport security, and harbor management.
