📋 Basic Specifications
Feature
with Remote Control
Certification
CE, FCC, CCC, RoHS, EMI/EMC, ISO9001
Horizontal Resolution
520tvl
Screen Resolution
1080*1920
Battery Capacity
7.2V 9000mAh Lithium-Ion Battery
Memory
Supports 64G SD Card
⌨️ Keyboard Input Parameters
| Input Language | English |
| Maximum page count | 9 pages |
| Character count per page | 500 |
| Character hiding | One click hide and display all characters |
| Keyboard compatibility | Compatible with specified PC Bluetooth keyboard |
| Length meter | Built-in |
| Meter tolerance | Maximum (± 10cm + 0.5%) |
| Meters and feet | Meter/foot/closed |

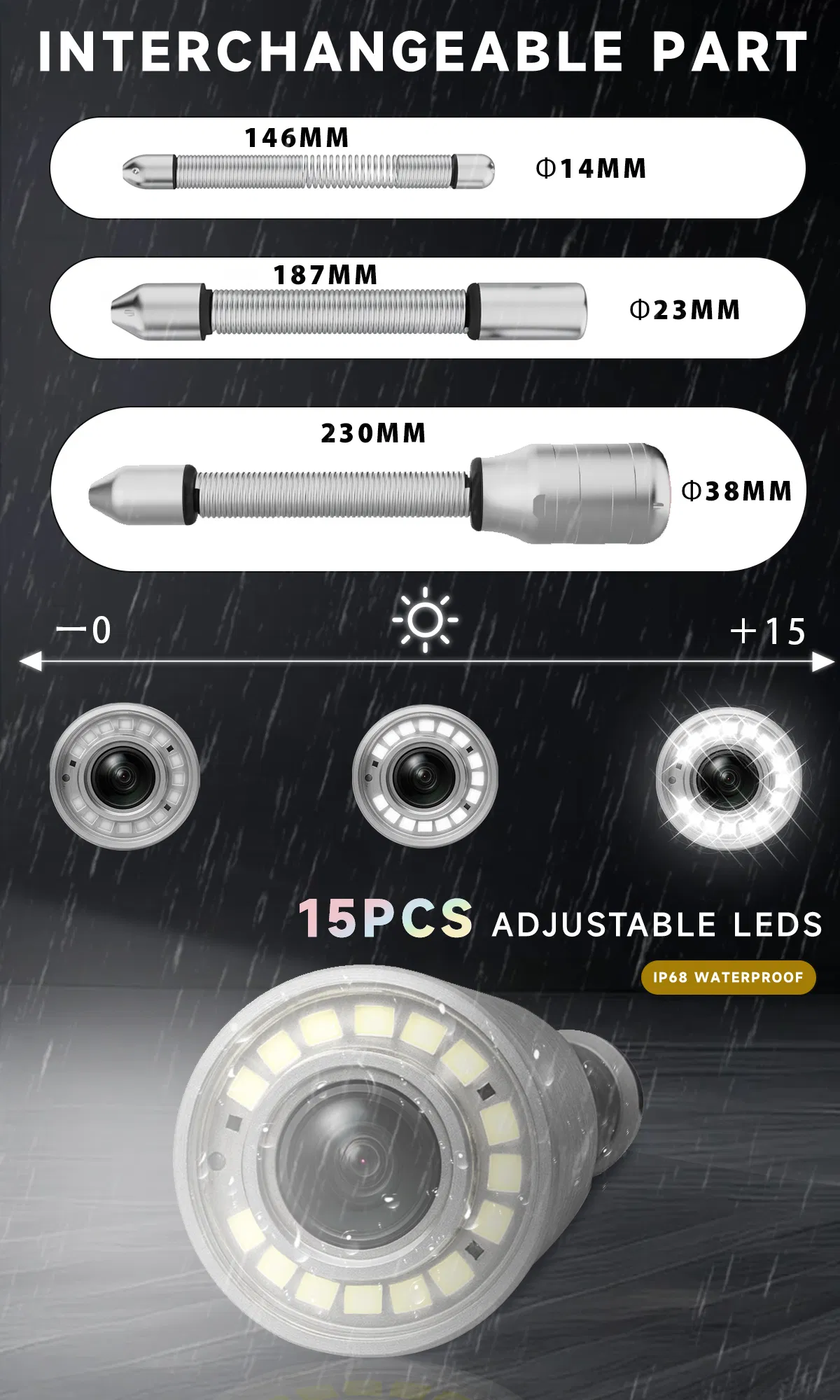

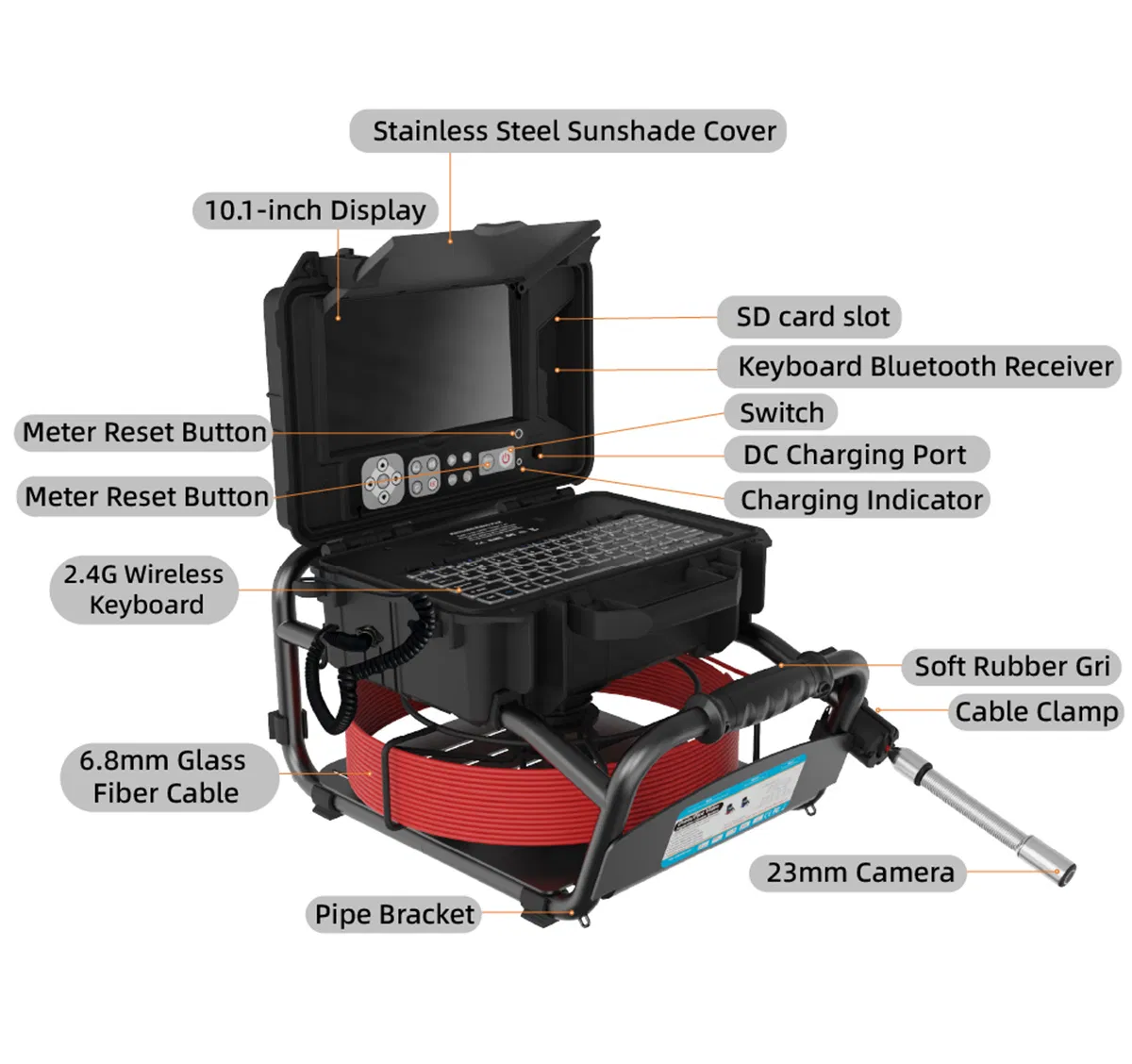

📷 Camera Parameters (23mm)
| Sensor | 1/3” CMOS |
| Resolution | AHD 1920x1080 |
| Field of View (FOV) | 130° |
| Focal Length | Approximately 15cm |
| Depth of Field | Approximately 20cm |
| Camera Size | 23mm x 51mm (Main Body) |
| Lens Material | Sapphire glass |
| Housing Material | 304# Stainless steel |
| Light Source | Built-in 15 white LEDs |
| Waterproof Depth | 20m water depth (fixed on cable) |

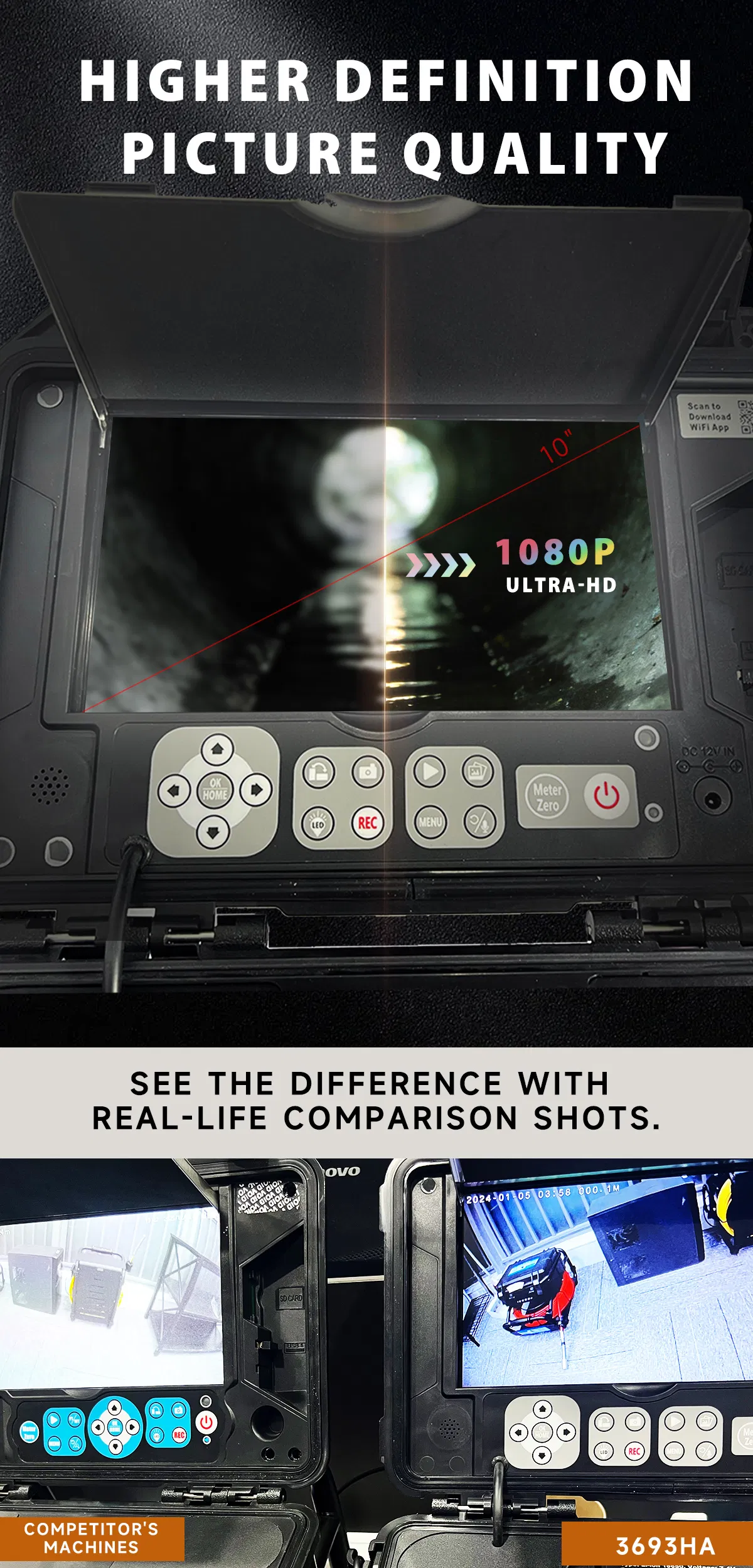

🖥️ Display Parameters
| Screen | High-definition color LCD screen |
| Screen resolution | 1080*1920 |
| Video resolution | AHD 1080P, CVBS D1 |
| Video compression | H.264 High Compression |
| Memory | Supports 64G SD card |
| LED adjustment | Built-in LED dimming |
| Operating time | 11-12 hours (7") / 10-11 hours (10.1") |
| Charging time | Approximately 10 hours |
🌟 Why Choose Our System?
Our product represents a different class of inspection technology. From the replaceable 9000mAh battery to the true 1080P display and self-leveling camera, every detail is engineered to deliver higher efficiency, clearer visuals, and a more professional user experience. Clearer images, faster controls, longer runtime, and smarter features simply make your job easier.
❓ Frequently Asked Questions
How long does the battery last on a single charge?
The high-capacity 9000mAh lithium-ion battery provides approximately 11-12 hours of operating time for the 7" screen and 10-11 hours for the 10.1" screen models.
Is the camera head waterproof?
Yes, the camera is rated IP68 waterproof and is tested to withstand water depths of up to 20 meters when properly fixed to the cable.
Does the system support recording and storage?
Absolutely. The system supports local video and photo recording with an SD card slot that accommodates up to 64GB of storage.
Can I use a keyboard for data entry during inspection?
Yes, the system is compatible with specified PC Bluetooth keyboards, allowing you to input text across up to 9 pages with 500 characters per page.
What is the field of view for the camera?
The 23mm camera features a wide 130° Field of View (FOV) with a 1/3” CMOS sensor for comprehensive pipeline coverage.
Does the display support different languages?
Yes, the interface supports multiple languages including English, Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, and more.
