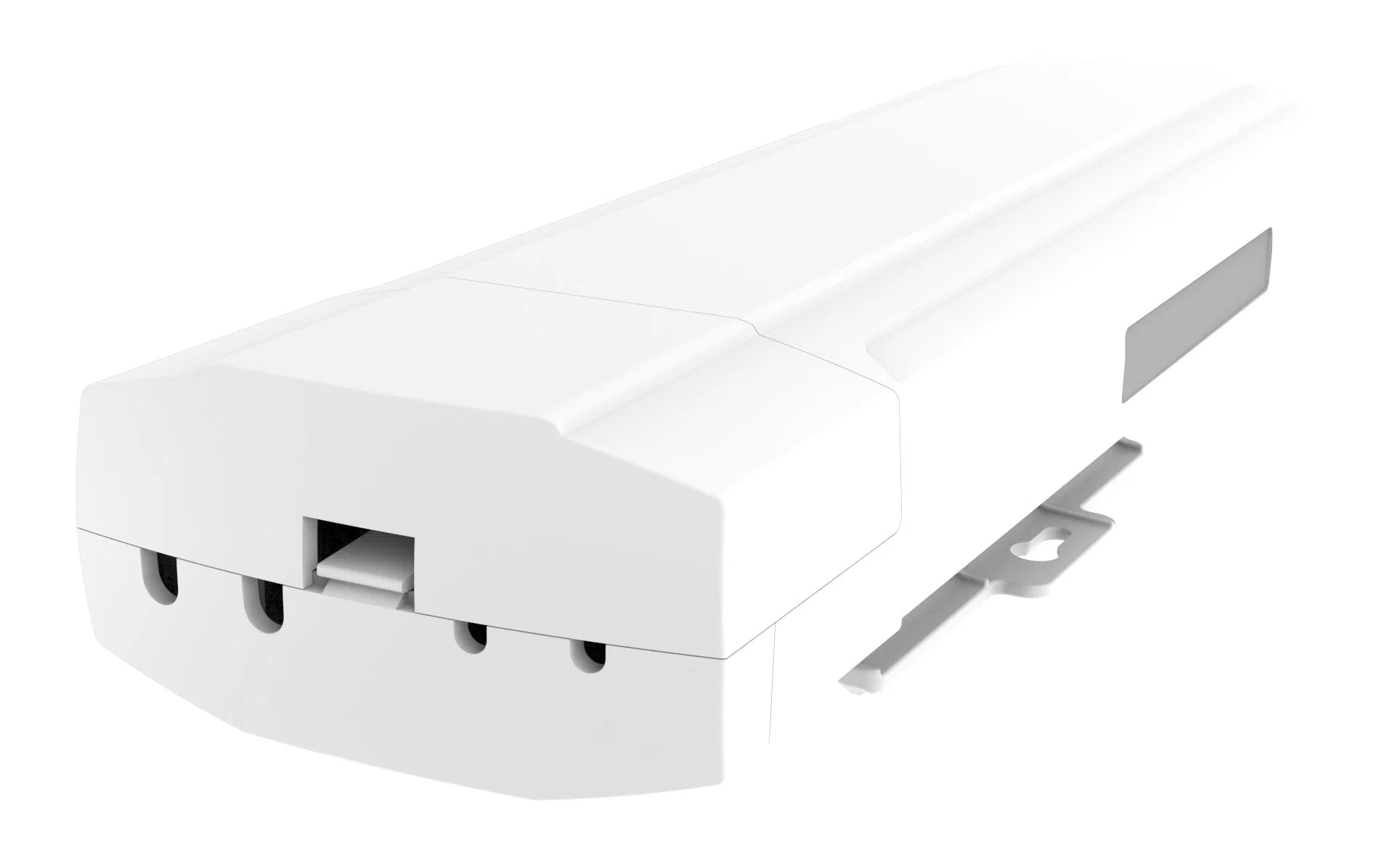

1km CPE WiFi Bridge Point to Point 300Mbps IP Camera

1 / 5

1km CPE WiFi Bridge Point to Point 300Mbps IP Camera

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

CPE513P

Antenna Type

Built-in

Rate

11n 300Mbps

Voltage

48V PoE

Antenna Gain

13dBi

Certification

ISO9001, RoHS, CE

Origin

China

Capacity

10000/Week

📦

Packaging & Delivery

Package Size

25.00cm * 13.00cm * 5.00cm

Gross Weight

3.000kg

★

Product Description

CPE513P is a professional 5.8G 300Mbps 3KM+ distance outdoor CPE/Wi-Fi Bridge. It features an integrated LED display to show the Channel, IP address, and Signal Strength. With a convenient slide switch to change operation modes, it simplifies PTP/PTMP connections, making it ideal for long-range data transmission such as CCTV, wireless security, and village wireless coverage.

In addition to data transmission, it functions as an outdoor PoE switch, with its LAN port supporting PoE out for CCTV/IP Cameras. This design provides significant cost savings and installation flexibility for wireless security projects.

Main Features

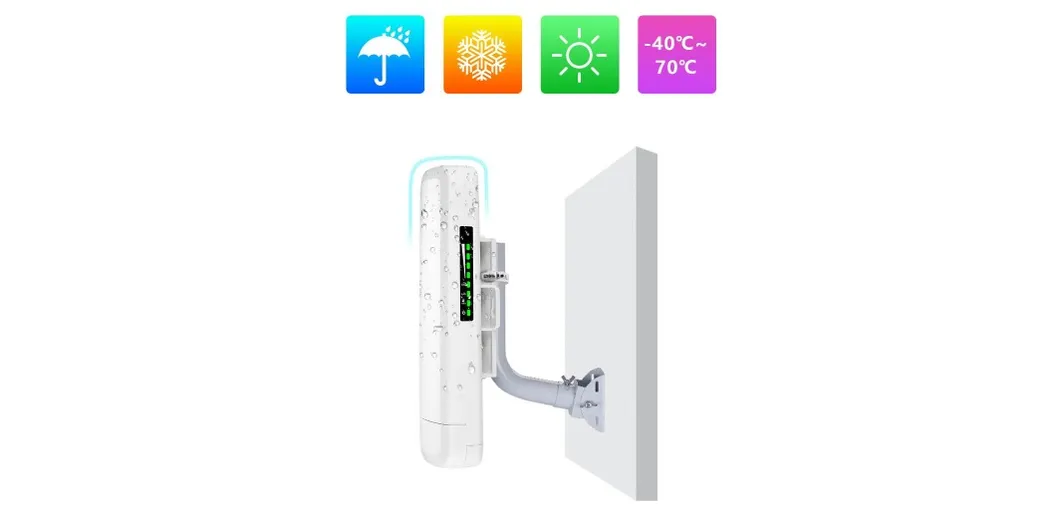

Weather-proof Design: ABS shell, dust-proof, and sunscreen. PCB board includes ESD and port surge protection, operating from -40ºC to 55ºC.
High Speed: 300Mbps high-speed performance using Atheros industrial chipset for stable voice, video, and data transmission.

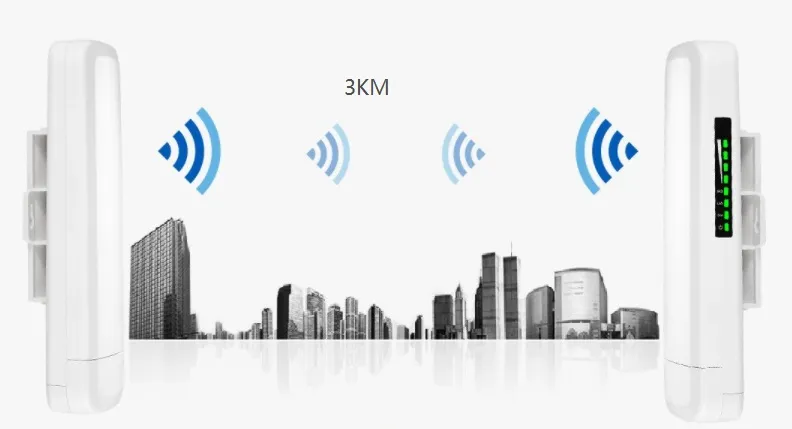

Long Range: Features a 300mW true power external amplifier and 14dBi high gain antenna for ranges exceeding 3000 meters.

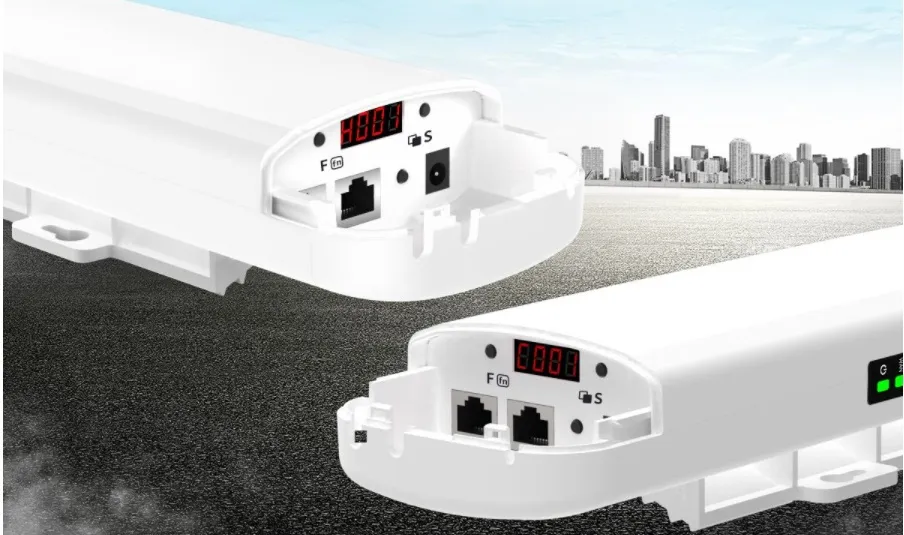

Easy Configuration: Slide switch for mode changes and LED display for setup without needing GUI access.

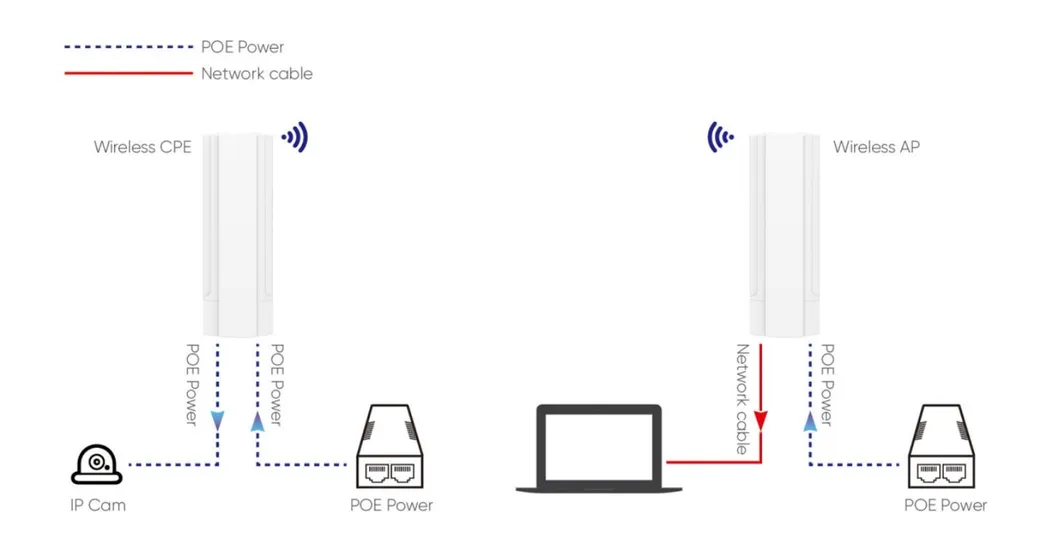

PoE Support: WAN port supports 802.3at 48V PoE in; LAN port supports 802.3af 48V PoE out to power IP cameras.

⚙

Hardware Specifications

Model	CPE513P
Chipset	Atheros
Flash / RAM	16MB / 64MB
Standard	IEEE802.3, IEEE 802.11n, IEEE 802.11a
Frequency	5.150GHz-5.825GHz
Data Rate	300Mbps
Antenna	14dBi Dual-polarized panel antenna

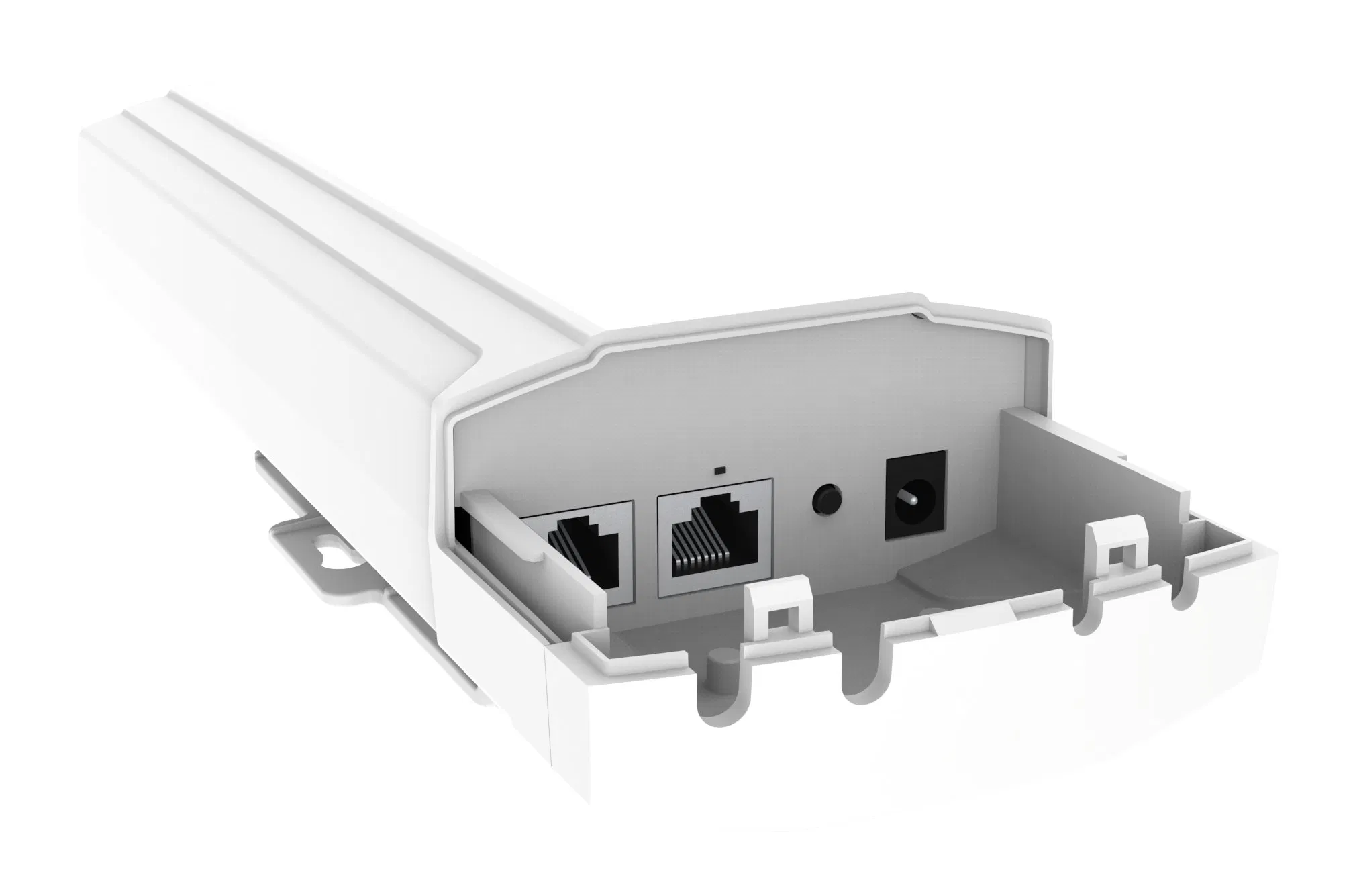

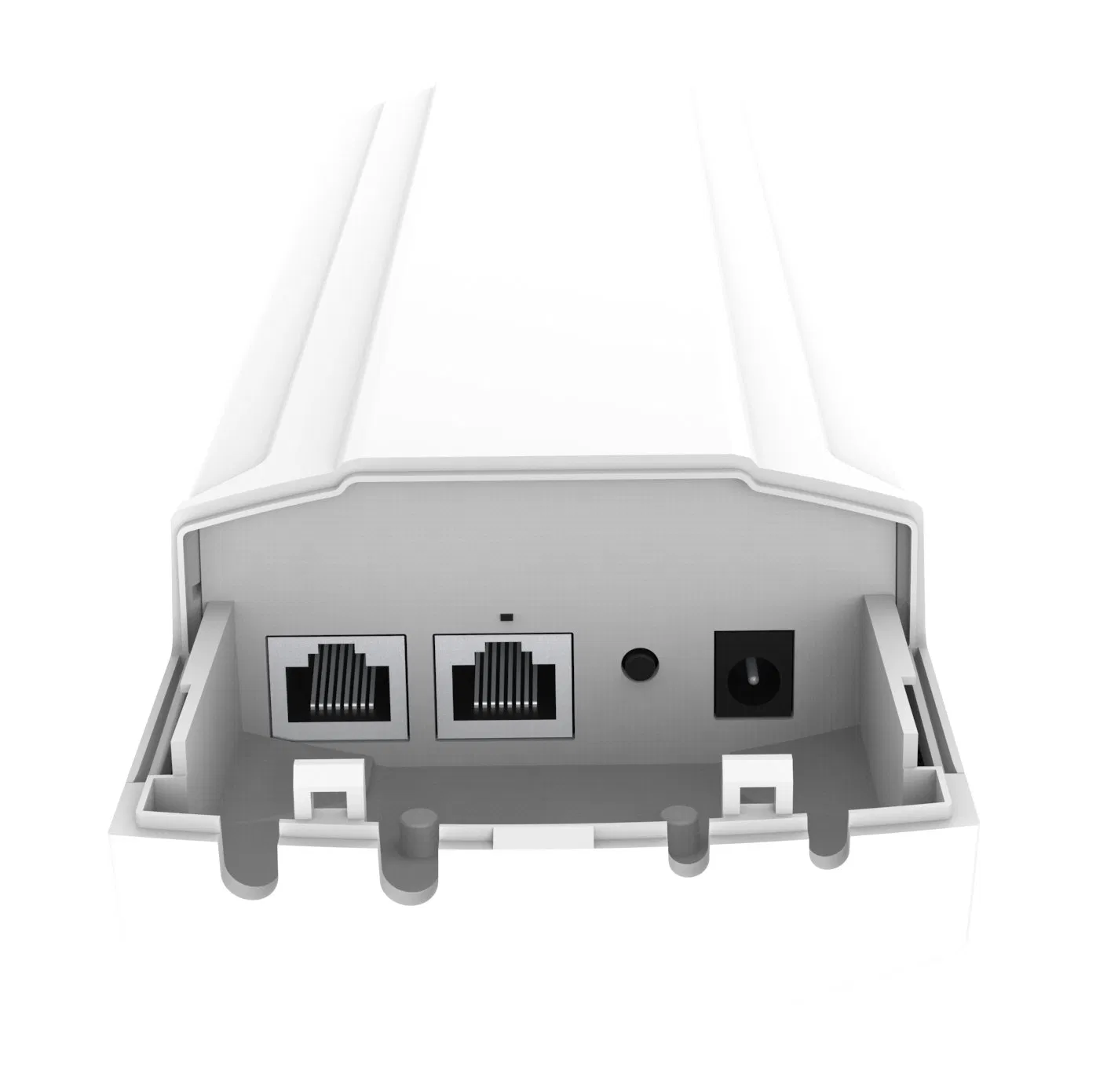

WAN Port	1 * 10/100Mbps RJ-45, supports 802.3at 48V PoE in
LAN Port	1 * 10/100Mbps RJ-45, supports 802.3af 48V PoE out

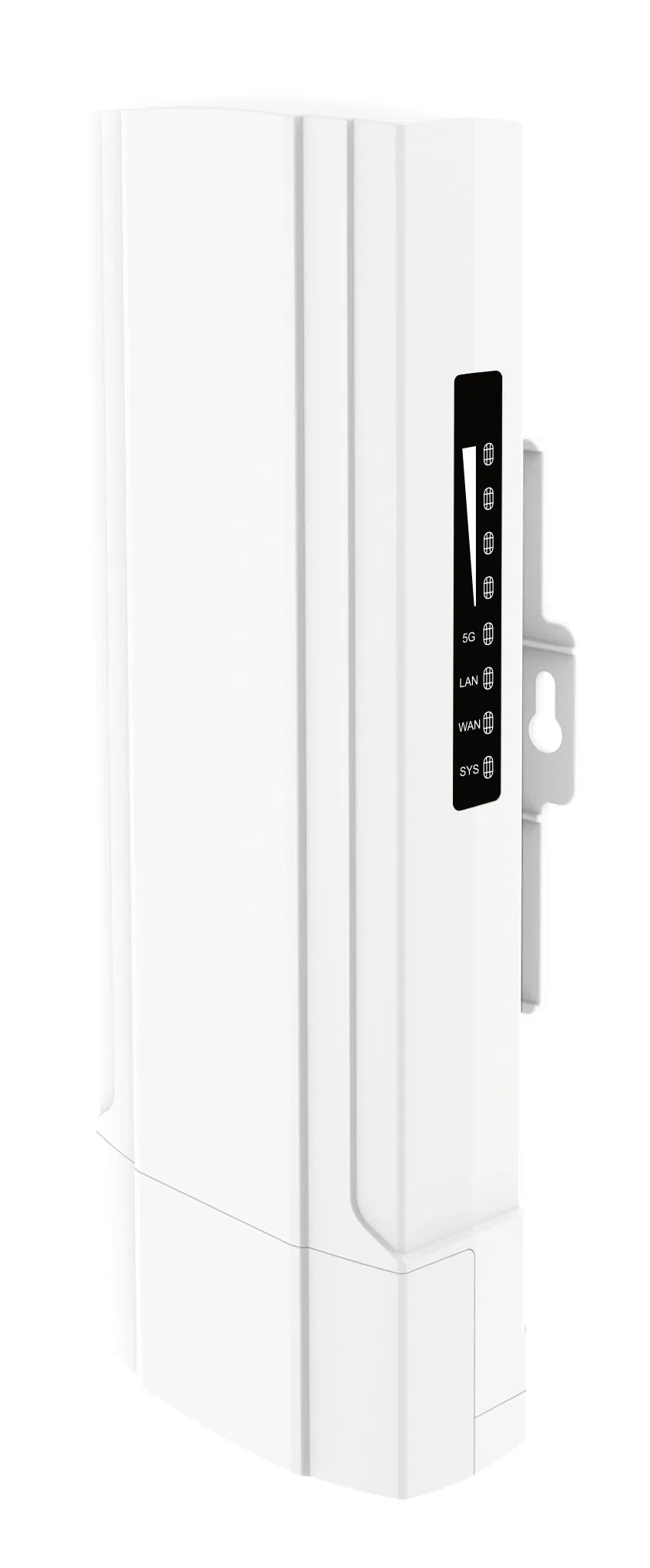

LED Display	Shows Operation mode, channel, IP, and signal strength
Water-proof	IP65
Temperature	Working: -30°C ~ 55°C; Extreme: -40°C ~ 70°C
Operation Mode	AP, Repeater

Frequently Asked Questions

Q1: What is the maximum transmission distance of the CPE513P? The CPE513P is designed for long-range connectivity, supporting distances of 3KM and above with its 14dBi high-gain antenna.

Q2: Does this device support Power over Ethernet (PoE)? Yes, it supports both PoE In (WAN port, 48V 802.3at) and PoE Out (LAN port, 48V 802.3af) to power external devices like IP cameras.

Q3: How do I configure the PTP or PTMP connection? Configuration is simplified through a physical slide switch and an LED display, allowing you to set the IP, channel, and mode without a GUI.

Q4: Is the device suitable for extreme outdoor weather? Absolutely. It features an IP65-rated ABS weatherproof shell and can operate in temperatures ranging from -40°C up to 70°C.

Q5: What chipset is used in the CPE513P? It utilizes an industrial-grade Atheros chipset for high performance and low power consumption.

Q6: Can I use it for CCTV monitoring? Yes, its 300Mbps speed and PoE output capability make it an excellent choice for wireless CCTV and security camera installations.
