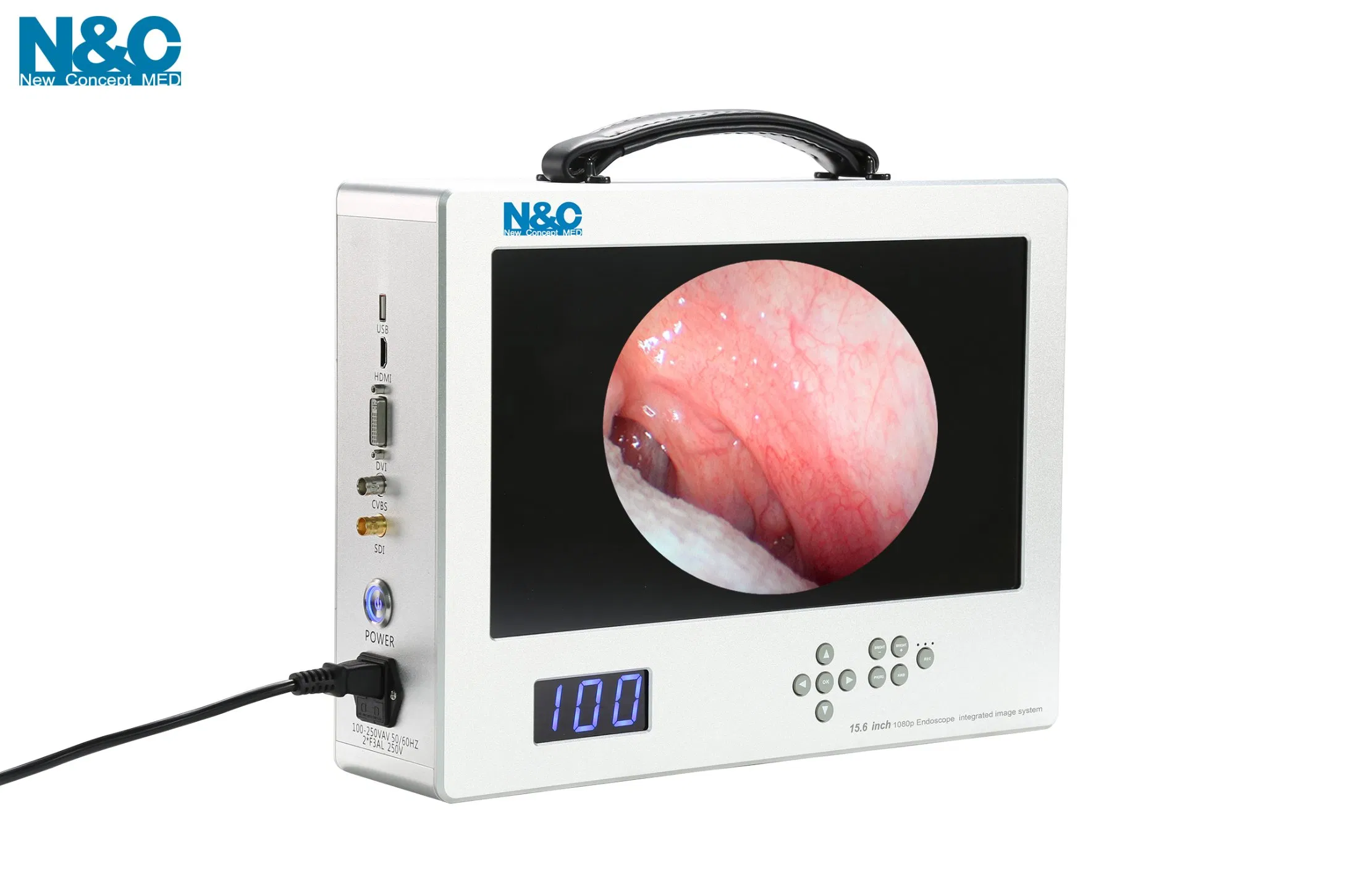

Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
1 / 5
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera

Surgical Full HD Endoscope Camera

Certification: CE, ISO13485
Scale: Medium
Camera Sensor: 1/1.8'' Sony Signal CMOS
Send Inquiry

Product Description

Basic Specifications
Model NO.
NCM-FHD180
Resolution
1080*1920p
Frame Rate
60fps
Language
Customization Acceptable
Touch Screen
Customization Acceptable
Transport Package
Carton
Specification
Sheet-metal
Origin
China

FHD MEDICAL ENDOSCOPY CAMERA SYSTEM

Medical Applications
🔬Laparoscopy
🦴Arthroscopy
👂E.N.T. Endoscopy
➰Fiberscopy
🐾Veterinary
💧Uroscopy
🏥Spine
🗣️Laryngoscopy
🧪Cystoscopy
🔍Dermatoscopy
Technical Parameters
MODEL: NCM-FHD180
Output Video16:9 1080*1920P 60fps
Effective Pixels≥ 2 Mega Pixels
Scanning systemProgressive Scanning
Image settingsAWB, Freeze, Zoom, Brightness, Color adjustment, etc.
Record FormatMP4
Record DeviceUSB

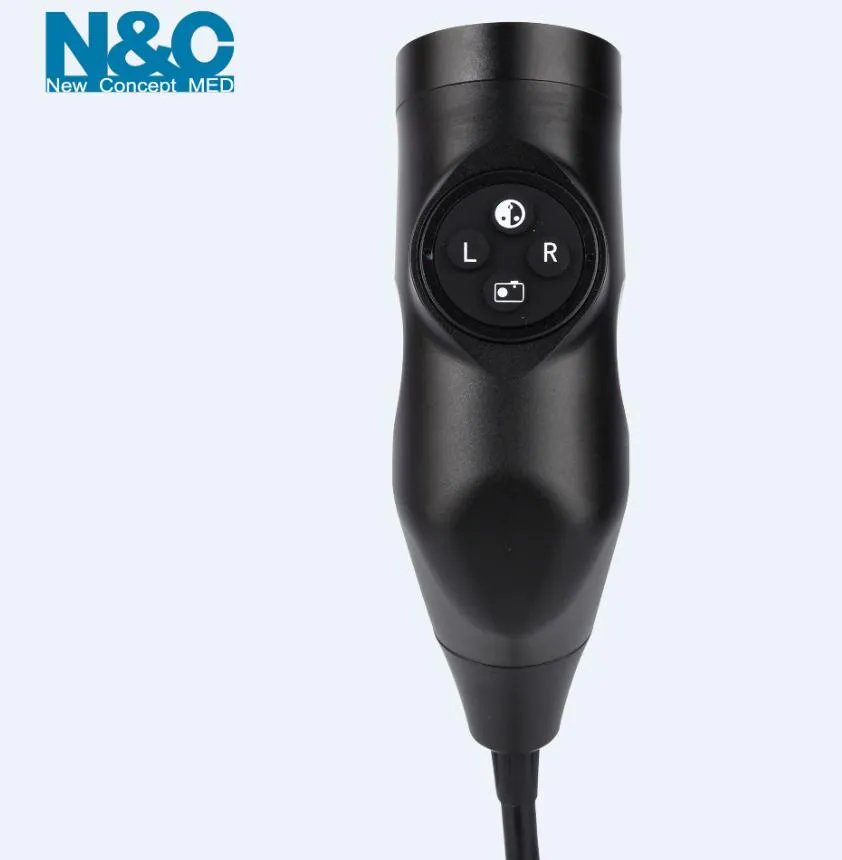

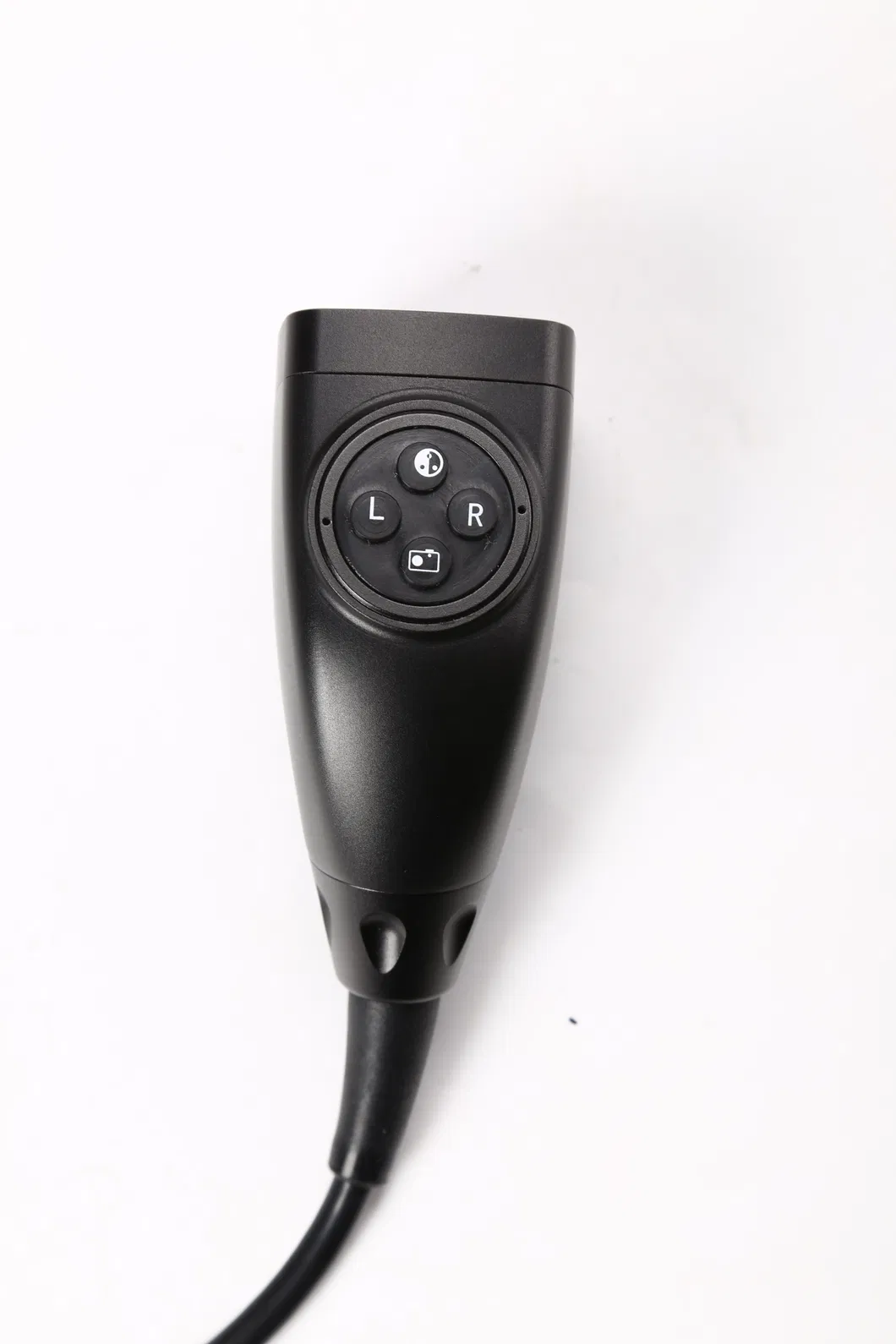

CAMERA HEAD
Image Sensor1/1.8'' Sony Signal CMOS
Camera Dimension38x45x130mm
Camera Weight200 g
Camera SterilizationAutoclave and waterproof IPX 67

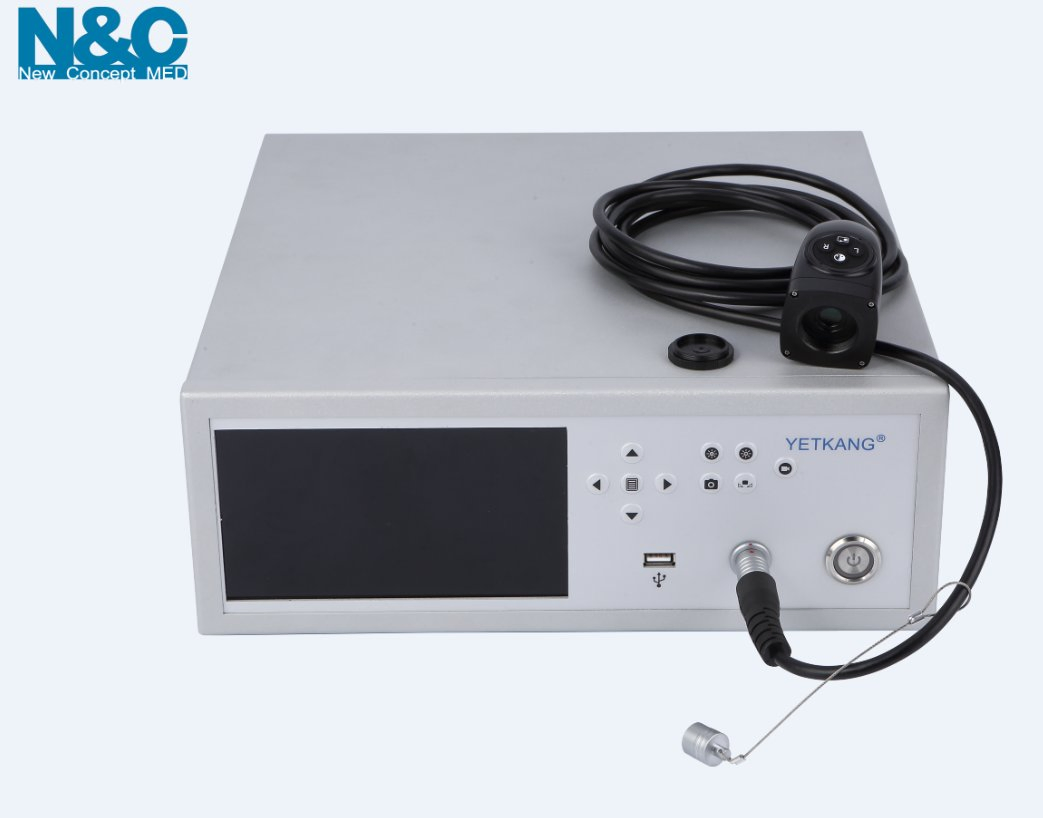

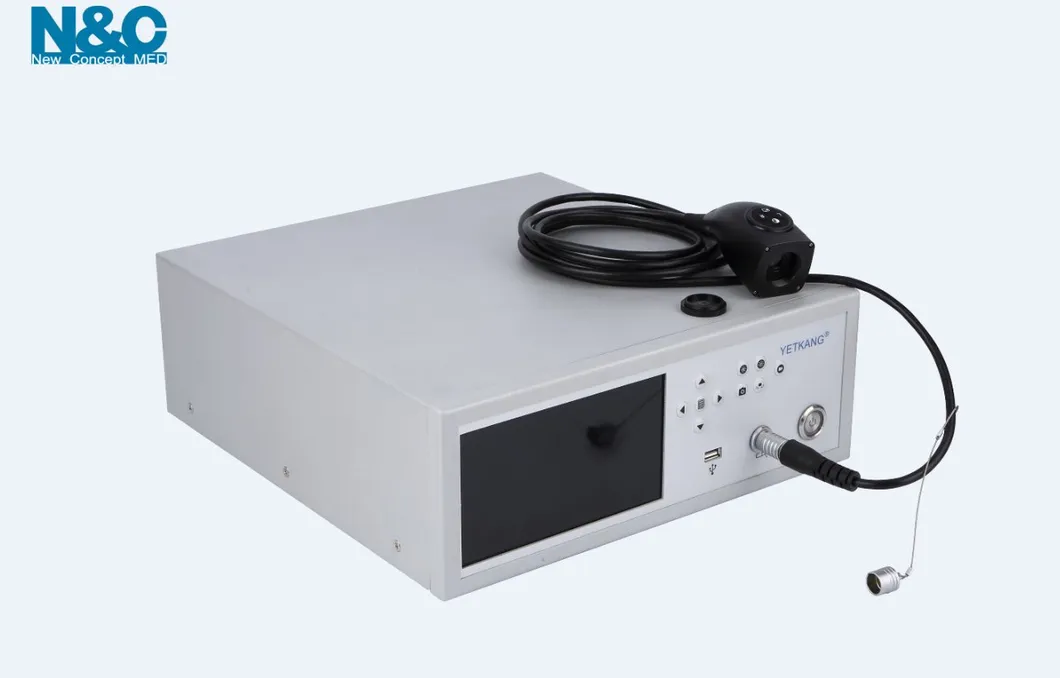

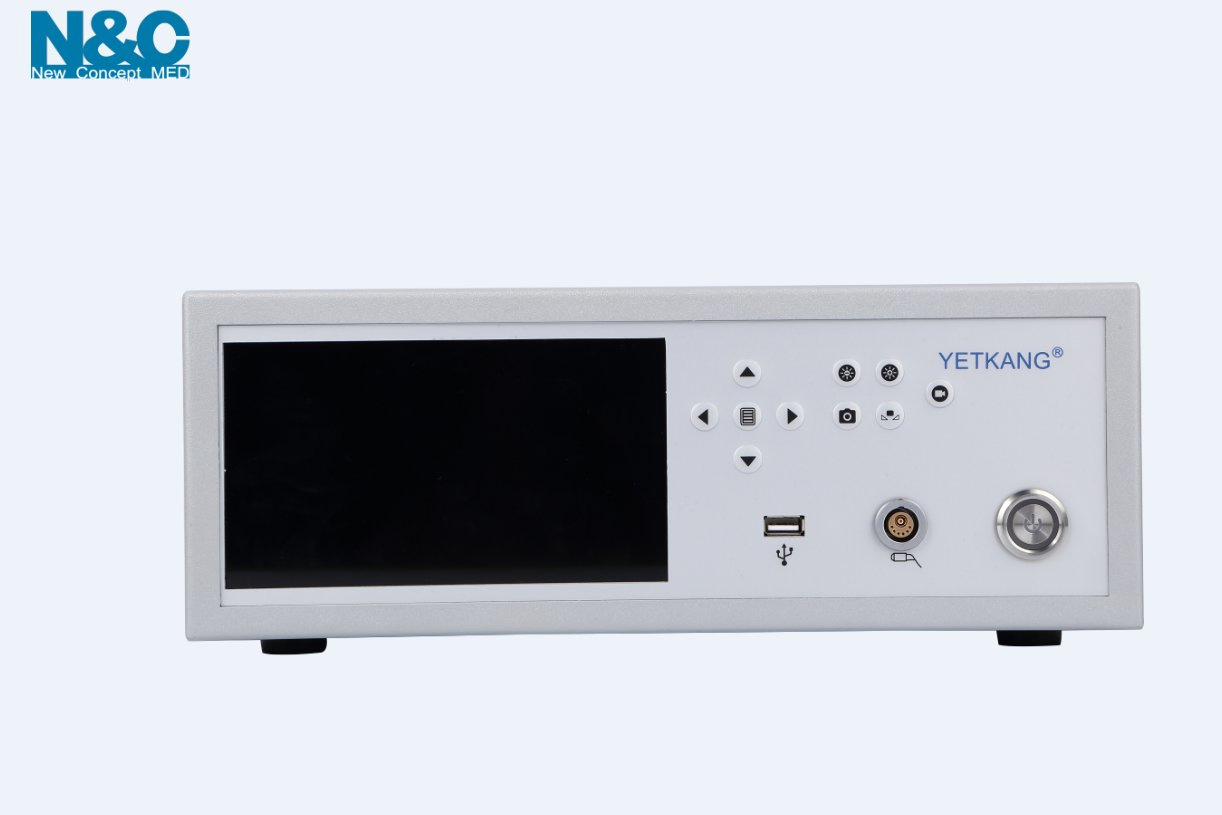

PROCESSOR UNIT

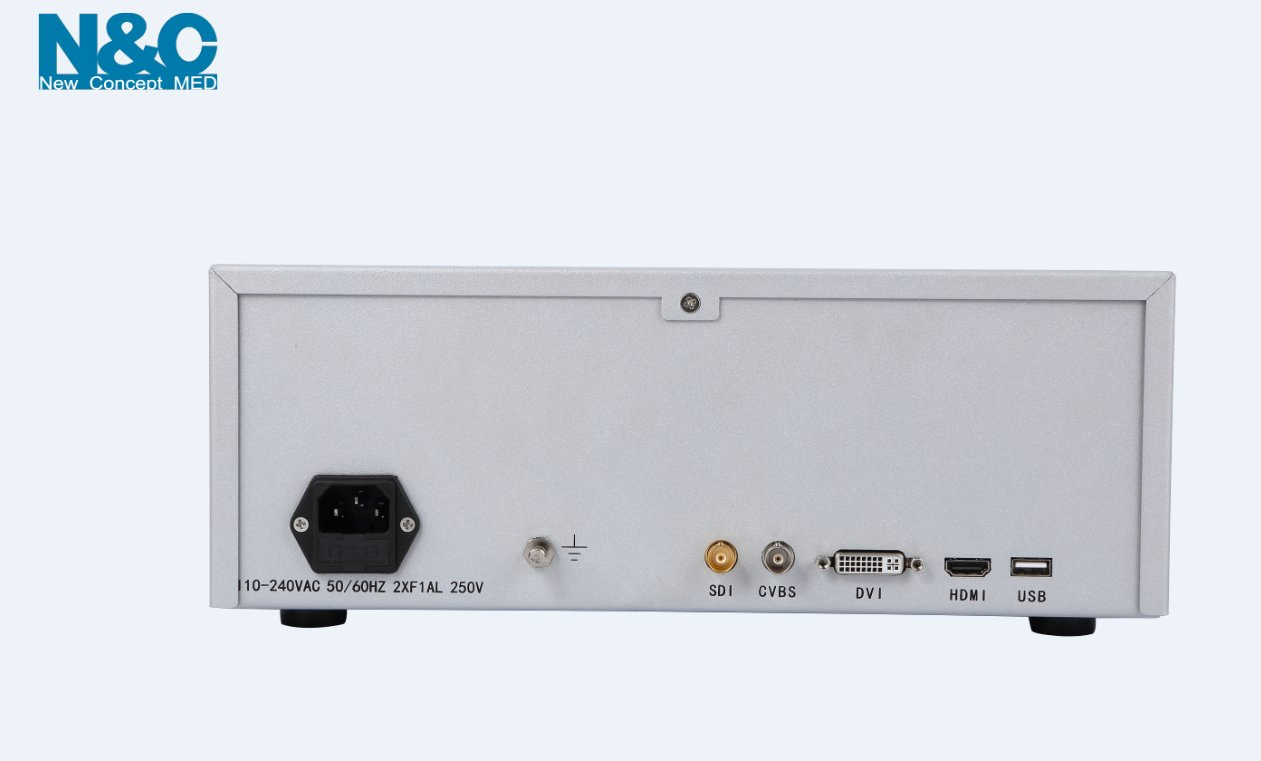

Processor OutputHDMI+DVI+SDI+CVBS+USB+LVDS screen+Net port
Display screen7 inch
FunctionRecord video, capture image, playback video
Processor KeyAWB+Freeze+Record+Photo+Zoom
Processor Weight5.5KG
Key Features
  • Keys on camera head can be customized per user's preference
  • Capture picture & record video; playback directly on the camera
  • Supporting video display with USB connectivity
  • Mouse control: easy to operate and modify file names directly
  • Four states comparison: convenient for lesion status analysis
  • Accept OEM/ODM demand: appearance, function, ports, and keypad position
Product Gallery
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Surgical Full HD Endoscope Camera
Frequently Asked Questions
Q1: What is the video resolution of the NCM-FHD180?
The system provides Full HD 1080*1920P resolution at 60fps for smooth, high-quality medical imaging.
Q2: Is the camera head waterproof for sterilization?
Yes, the camera head is IPX 67 waterproof and supports autoclave sterilization methods.
Q3: Can I record surgery videos directly?
Absolutely. The system supports video recording and image capture in MP4 format directly to a USB device.
Q4: Does the system support external mouse control?
Yes, it features mouse control for easy operation and the ability to rename files directly on the processor unit.
Q5: What sensor technology does the camera use?
The camera head is equipped with a high-performance 1/1.8'' Sony Signal CMOS sensor.
Q6: Are OEM or ODM customizations available?
Yes, we accept OEM/ODM requests for camera appearance, specific functions, port layouts, and keypad positioning.
