Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
1 / 5
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System
Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System

Ai Bsd Blind Spot Detection System Vehicle and Pedestrian Active Detection Anti Collision Warning Forklift Camera Monitor System

Customization: Available
Warranty: 1year
Applicable Model: Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
HDS-764AI271S4-SG
Shell Material
ABS Plastic
Display Type
Reverse Image
Interface
BNC
Function
Waterproof, Dustproof, Shockproof
Definition
AHD
Chip
CMOS
Waterproof
IP69K
Screen
7-Inch IPS Screen
Resolution
1024(H) X 600(V)DOT
OS
RTOS
Format
H.264 TS
Video Output
1280X720P
Voltage
DC9-36V
🛡️

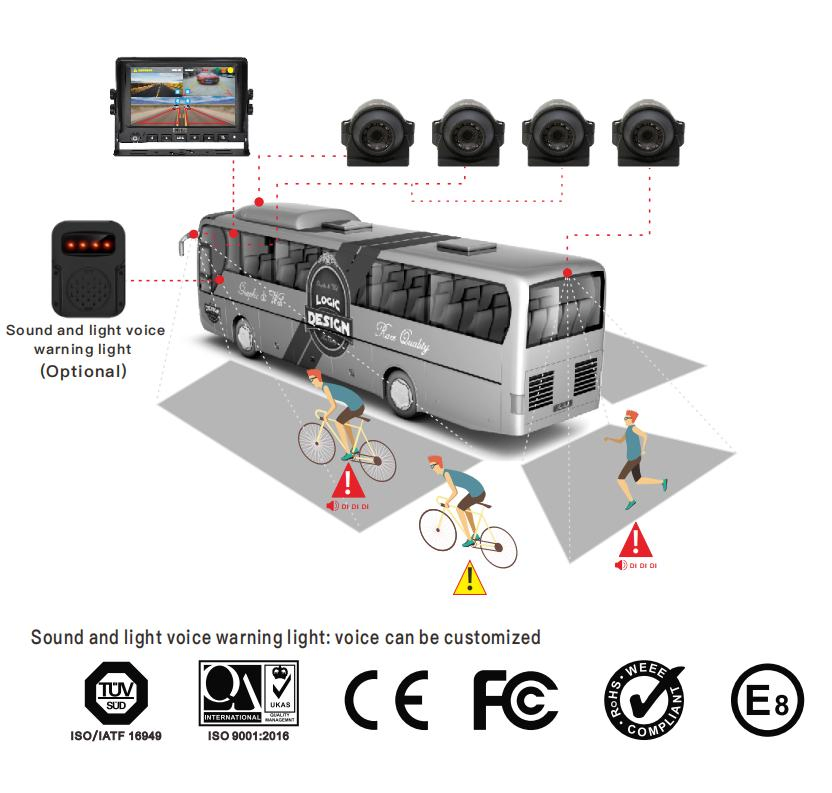

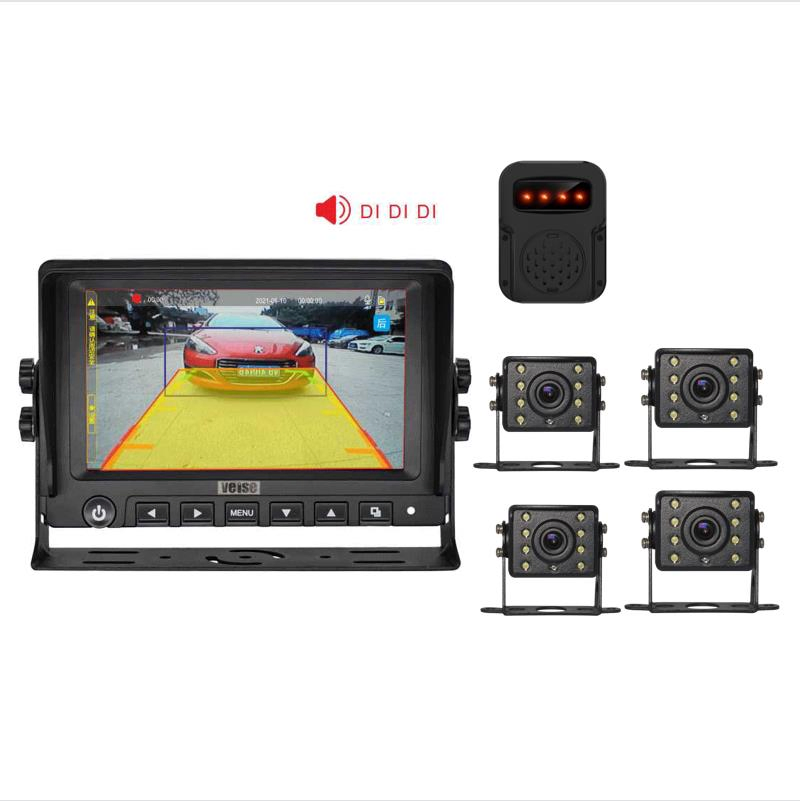

AI BSD Blind Spot Detection System

Vehicle And Pedestrian Active Detection Anti-Collision Warning System for Forklifts and Commercial Vehicles.

  • 7-inch IPS high-definition display with 600 cd/m2 brightness
  • Real-time AI pedestrian and vehicle detection for left, right, and rear channels
  • Supports 4-channel AHD 720P camera signal input
  • Customizable warning area and regional calibration
  • Built-in sound control alarm with adjustable volume
  • Supports up to 256GB TF card for local automatic loop recording
  • IP69K Waterproof rated HD rear view cameras
  • Cold-resistant and vibration-resistant (5G rating)
AI BSD System
⚙️

Technical Parameters

Monitor & Camera Specifications
Video resolution1280x720p
Pedestrian detectionLeft, right, and rear blind areas warning
Video storageUp to 256G (Approx. 65 hours)
Image Sensor1/3 Color Sony
Viewing angle165° wide angle
Night modeFull color night vision / Infrared LED
Shell materialHeat-dissipating Aluminum alloy
Vibration resistance5G (GB-T2423056-2006)
Working Temperature-20ºC to +70ºC
🔍

Detailed Quality & R&D

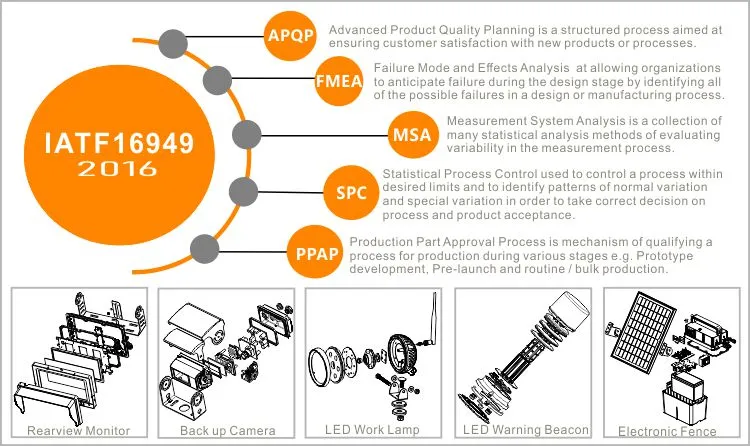

R&D

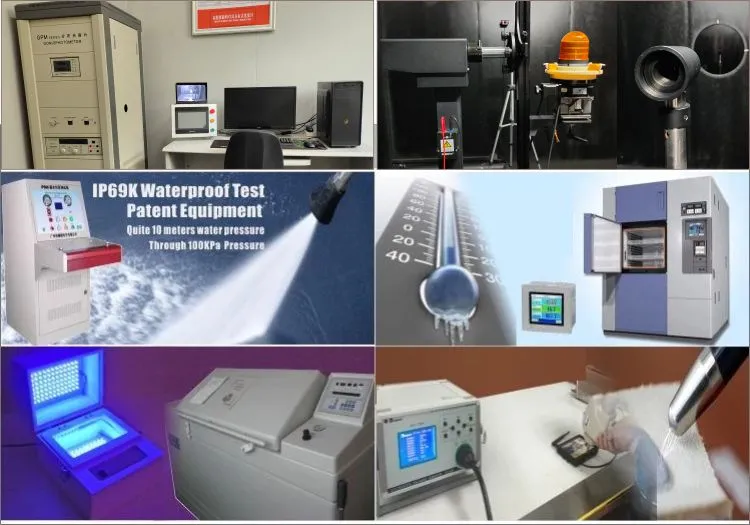

Quality Control

Light intensity analyzer & Waterproof pressure tester

Certifications
ERP System
Trade Show
❓

Frequently Asked Questions

⭐ What is AI BSD detection?
It is an Artificial Intelligence Blind Spot Detection system that actively identifies pedestrians and vehicles in the blind spots of a vehicle and provides real-time visual and audio warnings to the driver.
⭐ How does the system handle harsh weather?
The cameras are IP69K waterproof rated, meaning they are fully protected against dust and high-pressure water jets. The system is also vibration-resistant (5G) and operates in temperatures from -20°C to +70°C.
⭐ Can the detection zones be customized?
Yes, the system supports regional warning calibration, allowing users to adjust and customize the specific warning areas according to the size and type of the vehicle.
⭐ Does it support night vision?
Yes, the camera features 6 high-quality 850nm infrared LEDs and a Sony image sensor to provide clear full-color or infrared night vision.
⭐ What is the maximum storage for recordings?
The monitor supports a TF card of up to 256GB, which allows for approximately 65 hours of continuous loop recording across the video channels.
⭐ Is it compatible with 24V vehicle systems?
Absolutely. The system has a wide working voltage range of DC 9V to 36V, making it ideal for forklifts, trucks, buses, and other heavy-duty machinery.
