Customization: Available
Measuring Method: Manual
Application: Industry
Send Inquiry

Product Description

📍 Basic Product Information
Model NO.
RT630
Weight
About 1.3kg (with Battery)
Battery
10,000mAh Lithium-Ion
Detector Type
12μm Uncooled Infrared
Infrared Resolution
640×512
Super Resolution
1280×1024
Spectral Band
7.5-14μm
Netd
<35mk (25°c,F1.0)
Frame Rate
25Hz
Visible Light
13 Megapixels
🔍 Product Description

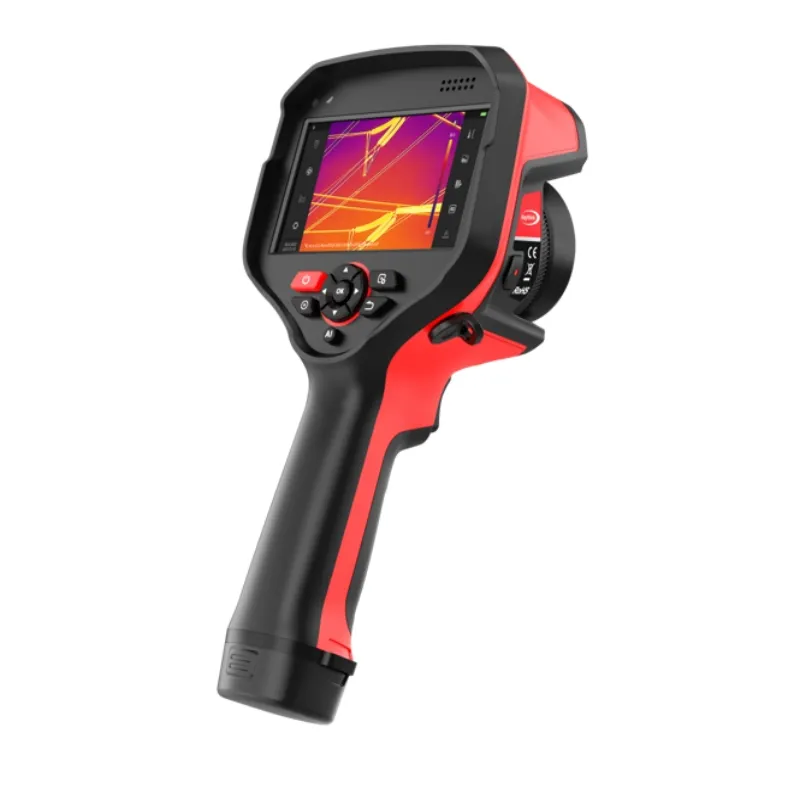

RT630 Thermal Camera
Equipped with a new-generation detector with a resolution of 480×360/640×512 and a NETD as low as 35mK, the new RT400/630 series can capture more subtle hotspots, and display sharper and cleaner thermal images. The device has rich and powerful features such as Android OS, trend analysis, area measurement. It is a new strong tool for expert-level full-scene analysis.
🌟 Product Highlights
  • Clear Thermal Images, Precise Measurement Equipped with a 12μm uncooled infrared detector, with a resolution of 640×512/480×360, supporting super resolution. NETD as low as 35mK.
  • Various Lenses and Fast Focusing Standard 25° lens, with optional wide-angle, long-focus, ultra-long-focus, and macro lenses flexible for diverse scenarios.
  • Functional Upgrade & Android OS Android operating system for easier operation. Supports intelligent image stabilization, laser rangefinding, and area measurement.
  • Intelligent Analysis Support up to 20 points/lines/areas. Support customized isotherms and intelligent routine inspection for task efficiency.
📋 Technical Specifications
Thermal Imaging
Infrared Resolution640×512 (Super Resolution: 1280×1024)
NETD<35mK (25°C, F1.0)
Focal LengthStandard: 17.7mm (Options: Wide, Tele, Macro)

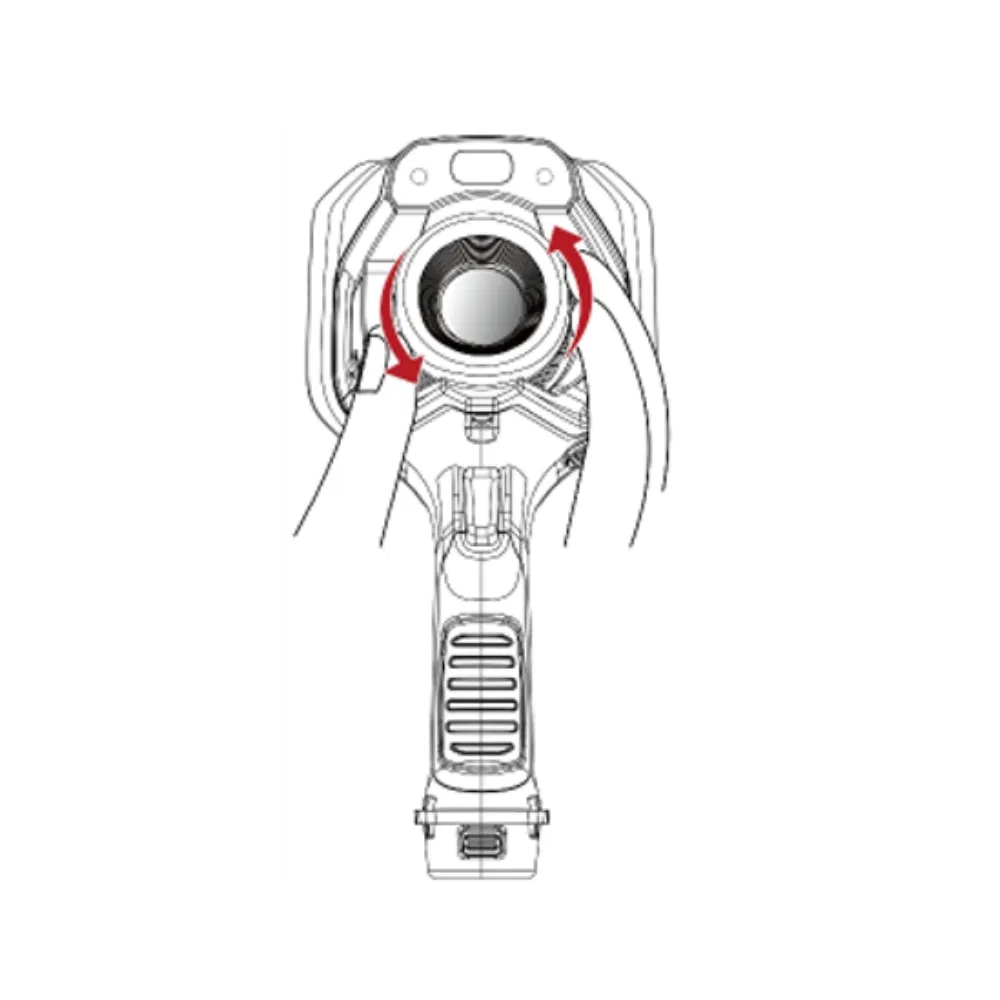

Focus ModeManual, One-button, Auto, Laser-assisted, Electric micro
Measurement Range-20°C~+150°C, 100°C~650°C (Optional: 1500°C)
Image Display & Analysis
Display5-inch OLED touch screen, 1280×720
Image ModeInfrared, Visible light, PIP, Dual-spectrum fusion
Analysis Functions20 movable points/lines/frames/polygons
Storage64GB Micro SD (Support up to 2TB)
System & Battery
Battery10,000mAh lithium-ion, replaceable, fast charging
Battery Life≥ 6 hours continuous operation
Protection GradeIP54, Shock & Vibration resistant
🚀 Applications
Electric Routine Inspection
Electric Routine Inspection

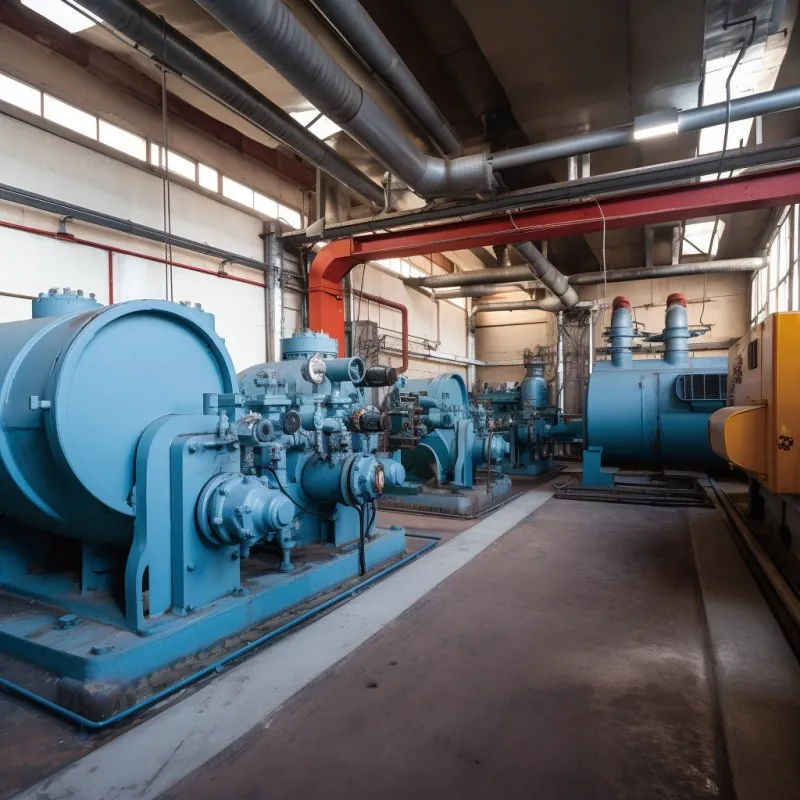

Chemical Maintenance
Chemical Operation
Electronic R&D
Electronic & Electrical R&D

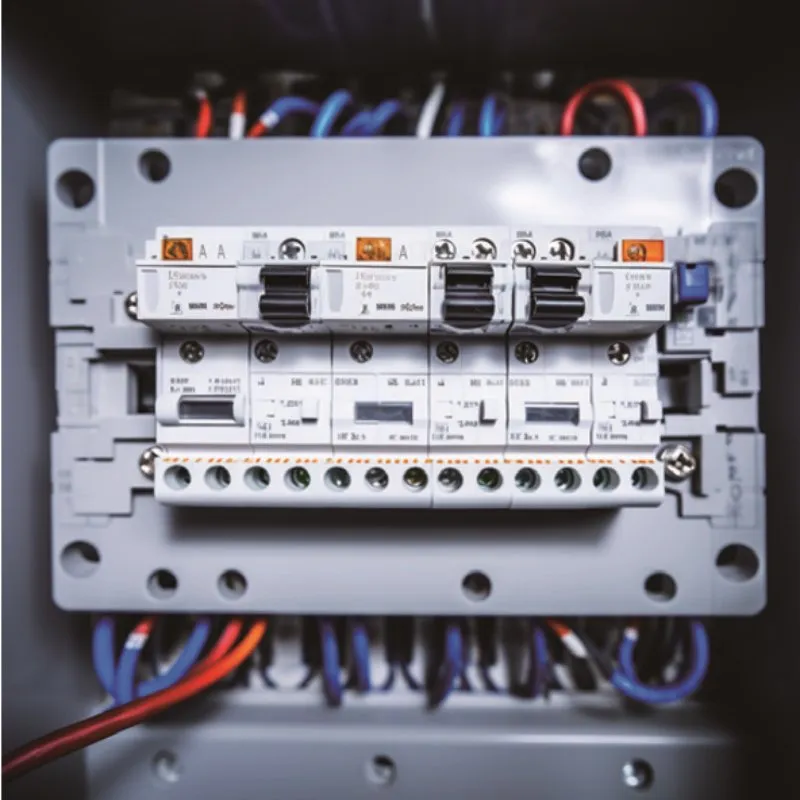

Material Monitoring
Material Monitoring

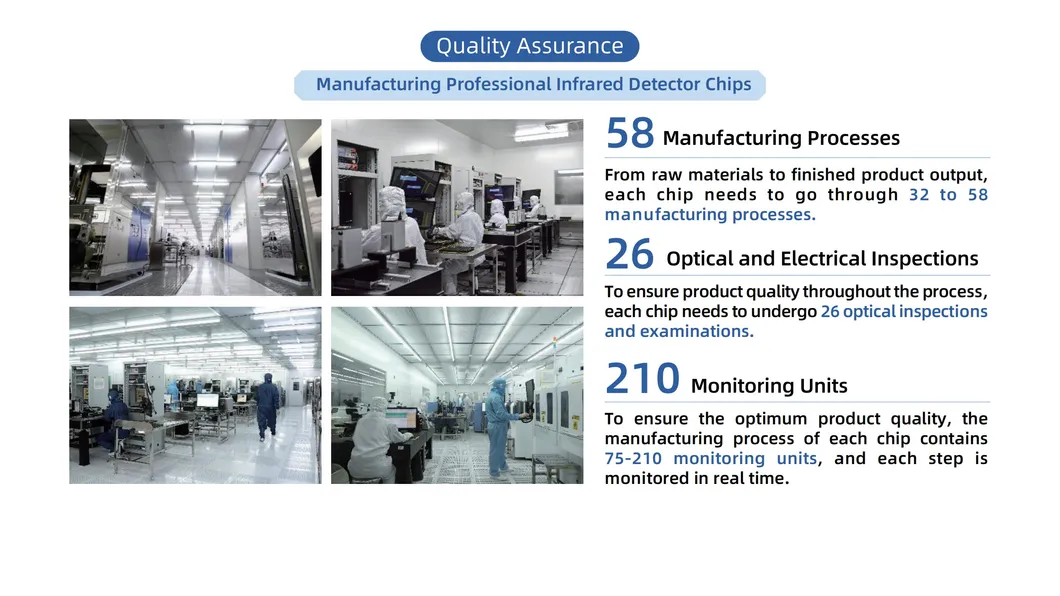

🛠️ Quality & Manufacturing
Manufacturing
Production
Testing
Reliability
Calibration
Equipment
❓ Frequently Asked Questions
Q1: How is the product quality guaranteed?

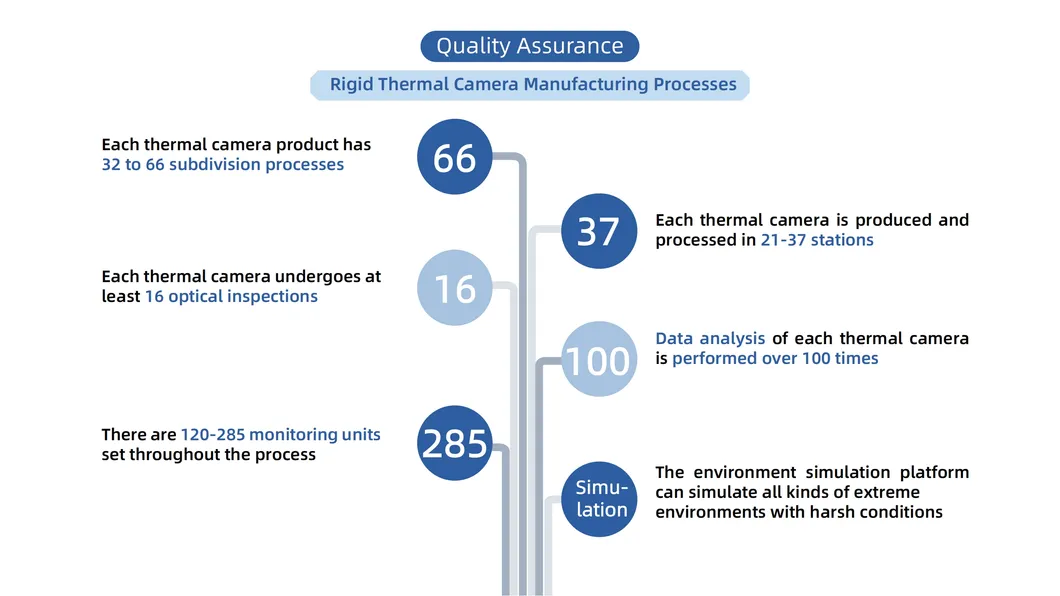

We utilize professional infrared detector chip manufacturing, a rigid thermal camera production process, and a perfect quality management system including CNAS certification reliability testing.
Q2: What is the typical delivery time?
For small orders, it usually takes 7 working days. For OEM orders, please confirm the specific timeline with our support team.
Q3: What are the available payment terms?
We accept various payment methods including L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
Q4: What is the warranty policy for the thermal cameras?
Thermal cameras come with a 2-year warranty, while our internal detectors are covered by a 10-year warranty.
Q5: Is after-sales technical support available?
Yes, we provide lifetime Technical Support. Our engineers typically respond to technical inquiries within 24 hours.
Q6: Does the device support voice control?
Yes, the device features a voice assistant and quick command recognition for hands-free operation in the field.
