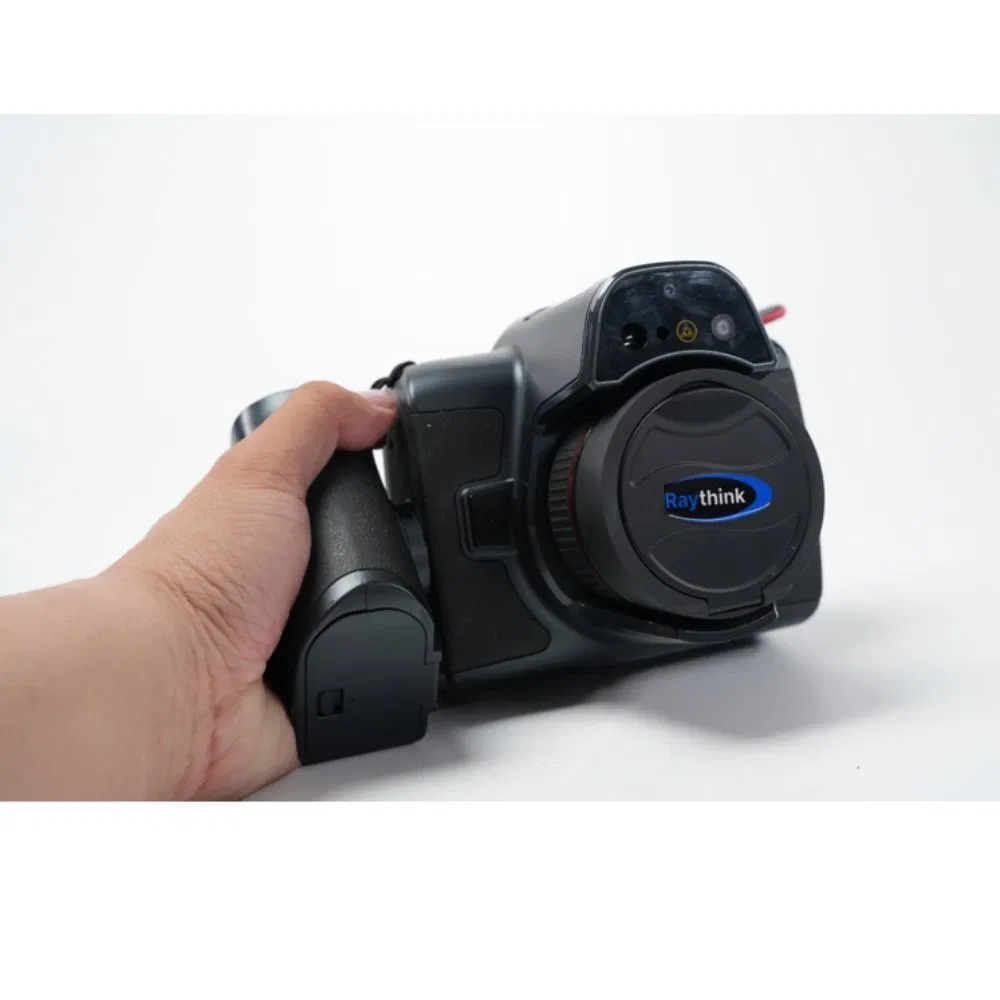

Raythink RS1280 Flagship Handheld Thermal Imaging Camera for Scientific Research

Customization: Available
Measuring Method: Automatic
Application: Industry

Product Description

Basic Specifications
Model
RS1280
Weight
<1.7kg (with Battery)
Battery
9000mAh Lithium-Ion
Detector Type
12μm Uncooled Infrared
Resolution
1280×1024
Super Resolution
2560×2048
Spectral Band
7.5~14μm
NETD
<25mk (25°C, F1.0)
Frame Rate
30Hz
Visible Camera
13 Megapixels
Product Overview

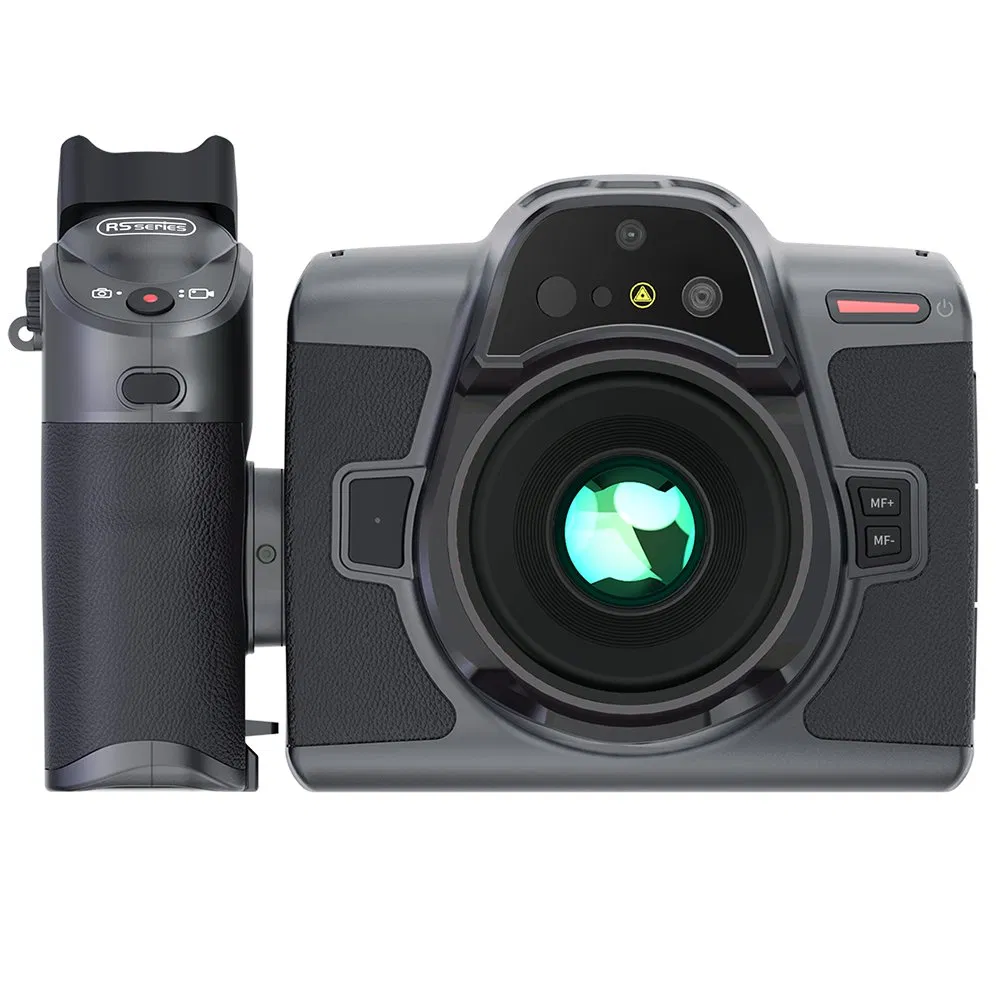

Flagship Handheld Thermal Imaging Camera

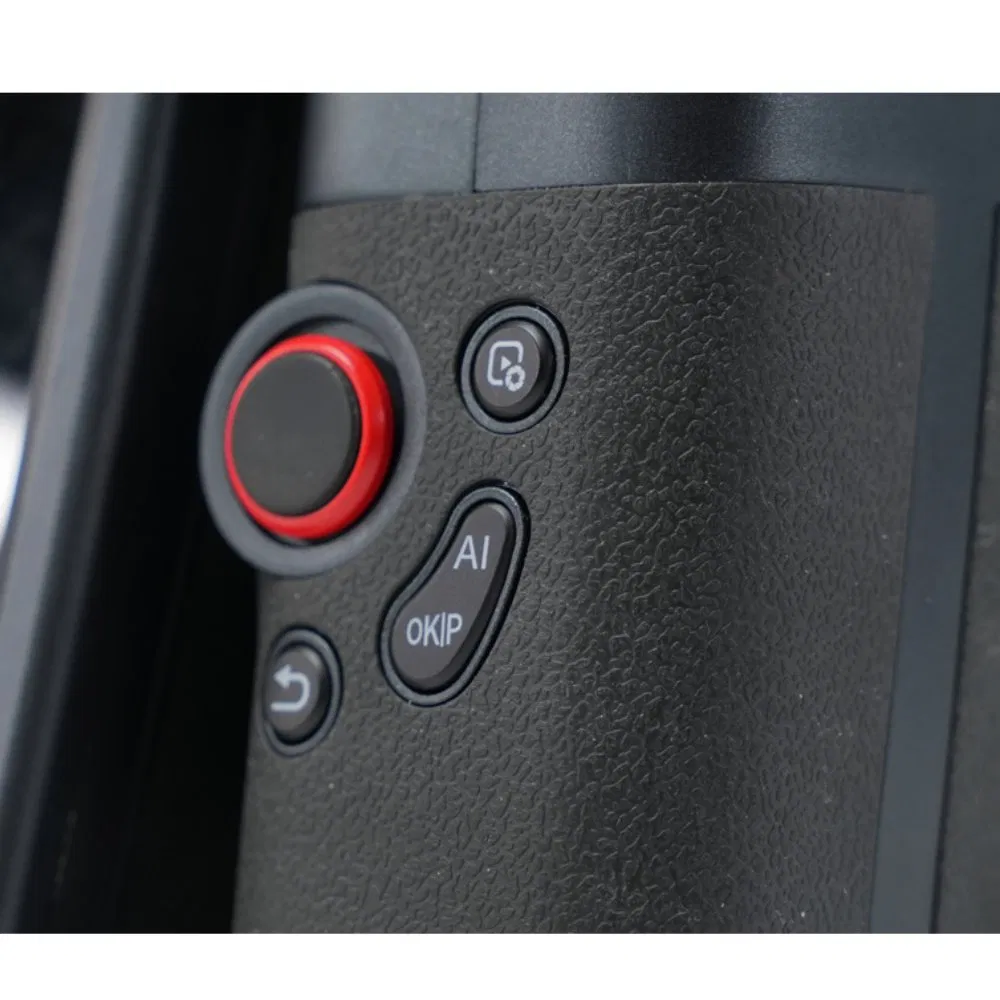

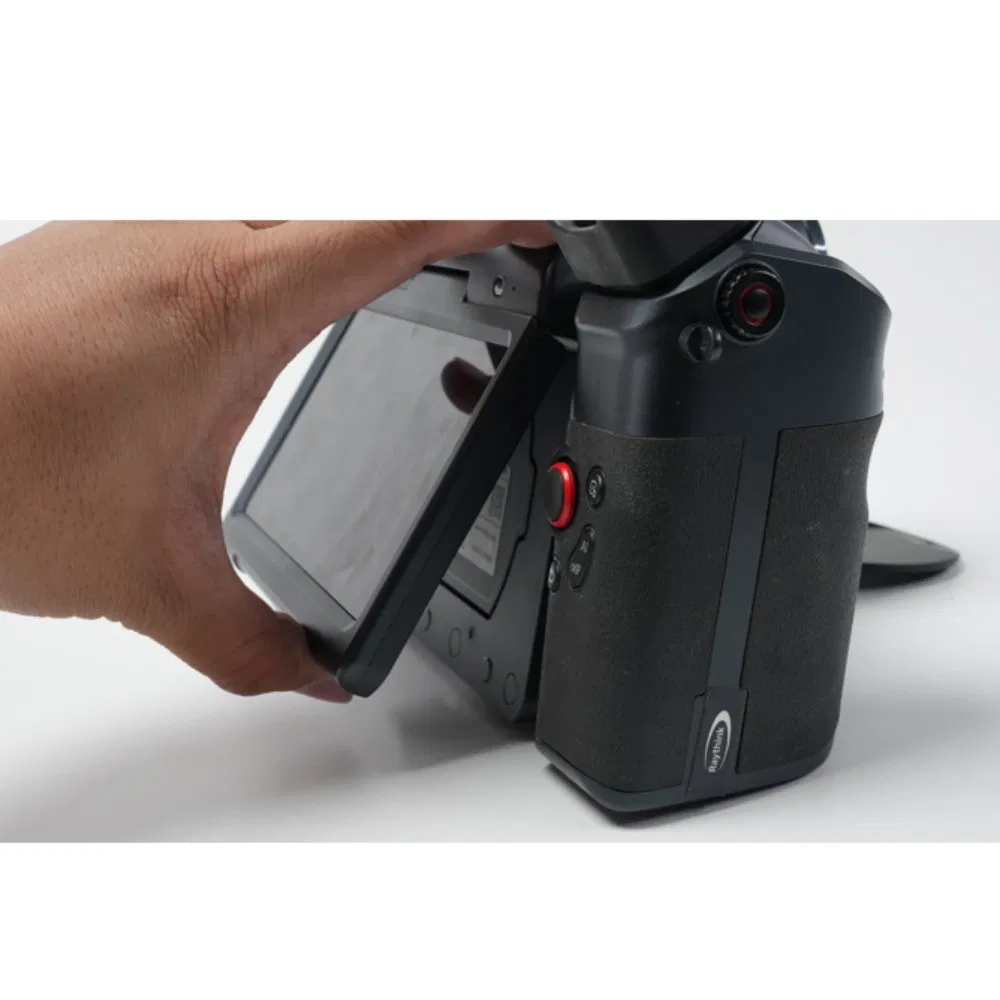

The RS1280 is a high-performance, high-pixel thermal camera especially for scientific research. Equipped with a self-developed new-generation VOx infrared detector with a thermal sensitivity as low as 25mK, this device uses intelligent image algorithms and precise temperature measurement algorithms to provide clearer infrared images and higher measurement accuracy. Features include an Android operating system, a 5.5-inch angle-adjustable display, and a rotatable handle for ergonomic excellence.

Key Features & Highlights
🎯 Clear Thermal Images

1280×1024 ultra-high infrared resolution, providing up to 2560×2048 high-definition super-resolution infrared thermal images. Distinguish temperature differences as small as 0.025°C.

🔍 Advanced Optical System

Full coverage of lens focal lengths: 45°, 25°, 12° and macro lenses (50μm, 25μm). Supports manual, auto, laser, and continuous auto-focusing.

🤖 AI-Powered Efficiency

Android-based system with support for up to 35 analysis area settings. 30Hz frame rate supports lossless compression of 16bit for high-end secondary video analysis.

📱 High-end Configuration

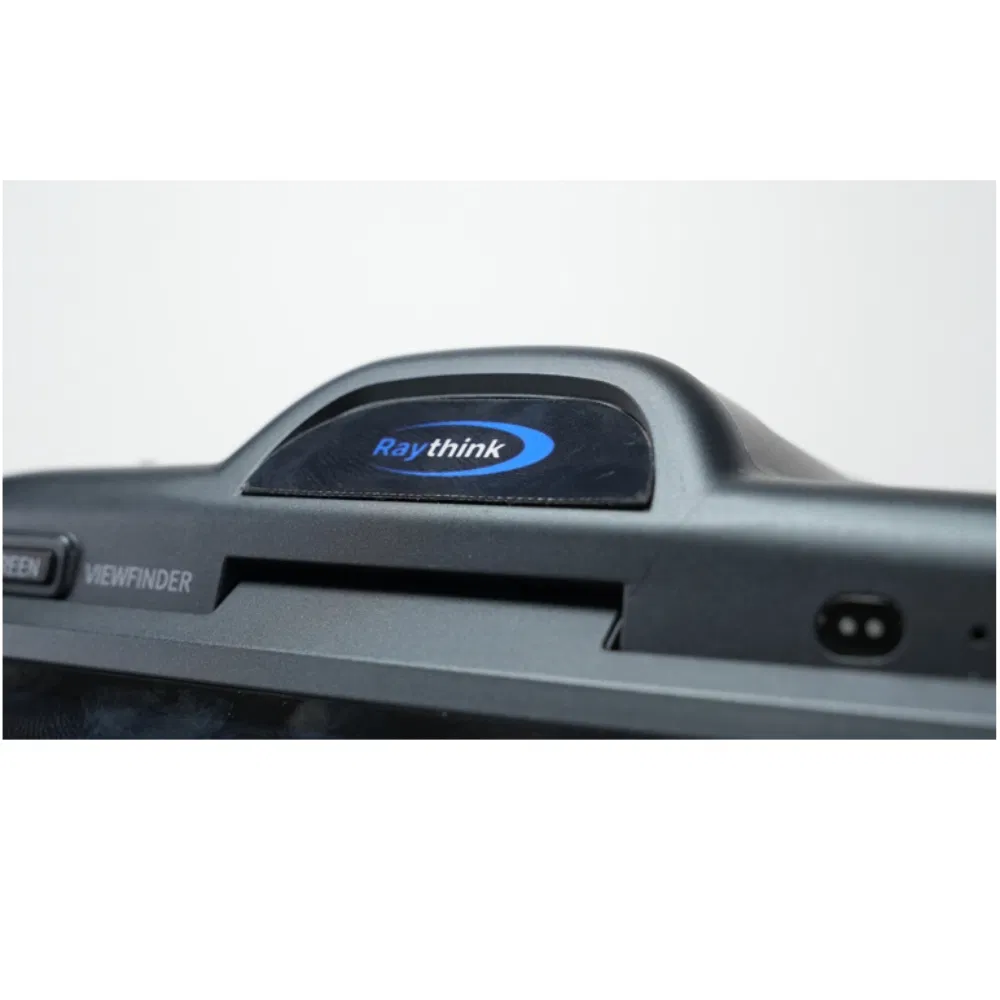

5.5-inch flippable touch screen + OLED viewfinder (1920×1080). Supports Wi-Fi wireless screen mirroring, OTA upgrades, and QC3.0/PD fast charging.

Technical Specifications
Thermal Imaging
Focal LengthStandard: 34.9mm; Wide: 19.8mm; Tele: 72.9mm; Macro: 17.8mm
FOVStandard: 25°×20°; Telephoto: 12°×9.6°; Wide-angle: 45°×36°
Measurement Range-20°C to +150°C (Low), 150°C to 800°C (Med), up to 2000°C (High)
Accuracy±1°C or ±1% (whichever is greater at normal temp)
Image Display & Analysis
Display5.5-inch LCD touch screen, 1920×1080
Image ModeInfrared, Visible, PIP, Dual-spectrum fusion
Analysis FunctionsUp to 35 movable points, lines, frames, and areas
Video & Storage
RecordingCompressed full radiation video (.irv), MP4 recording
StorageStandard 64GB Micro SD (Supports up to 2TB)
Physical & Environmental

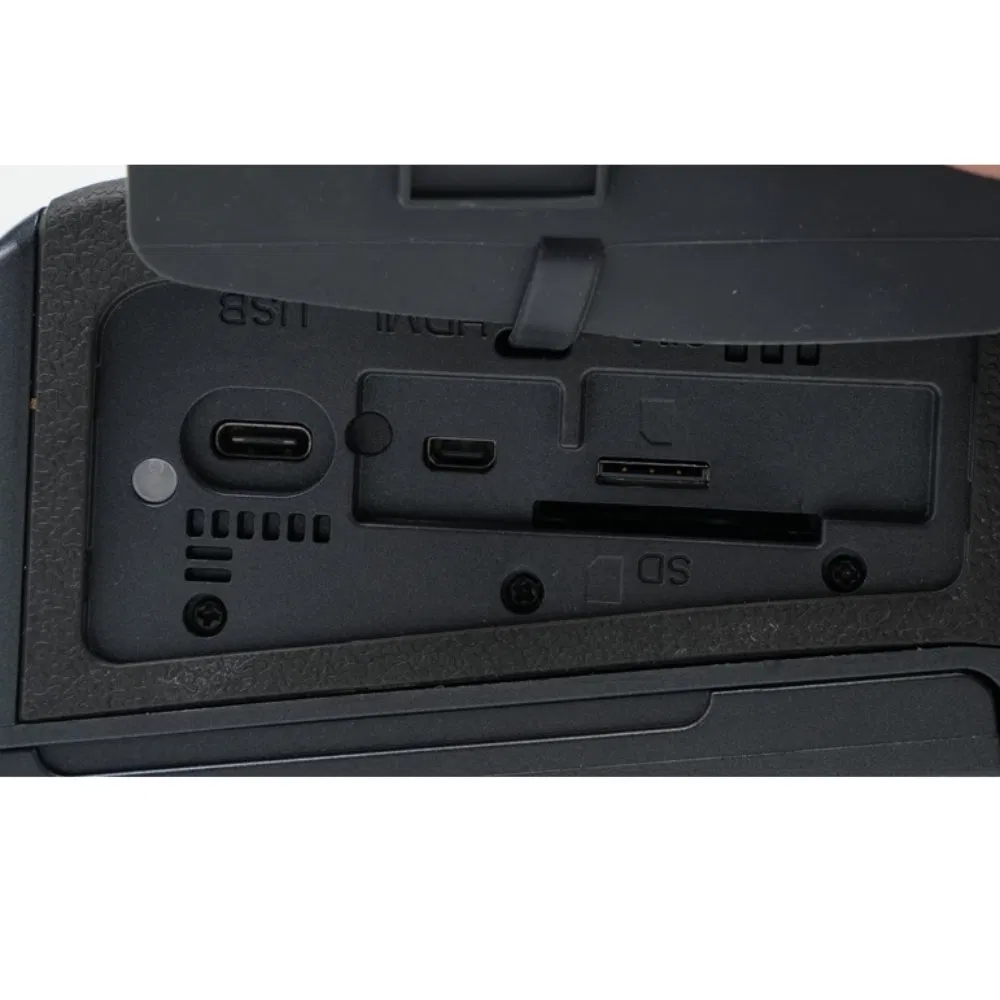

InterfaceUSB3.0 Type-C, SD, SIM, Mini HDMI
IP GradeIP54
Operating Temp-15°C to +50°C
Applications

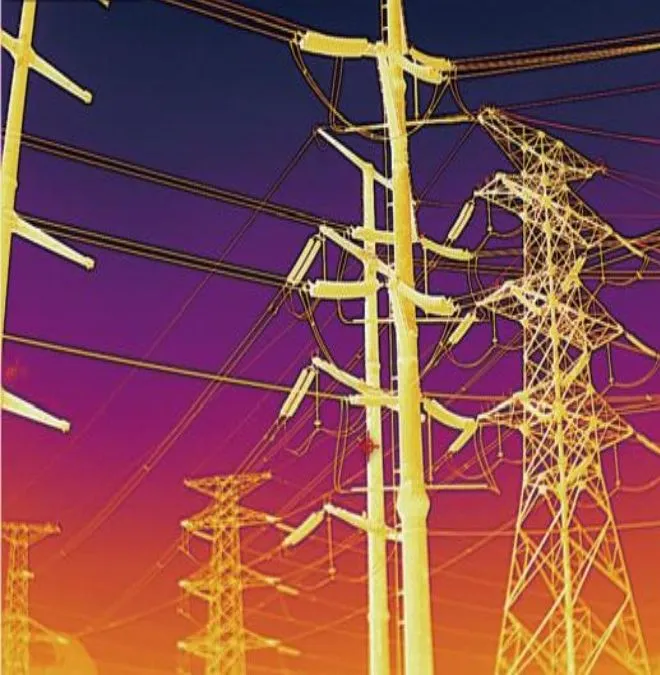

Electric Routine Inspection
Electric Routine Inspection

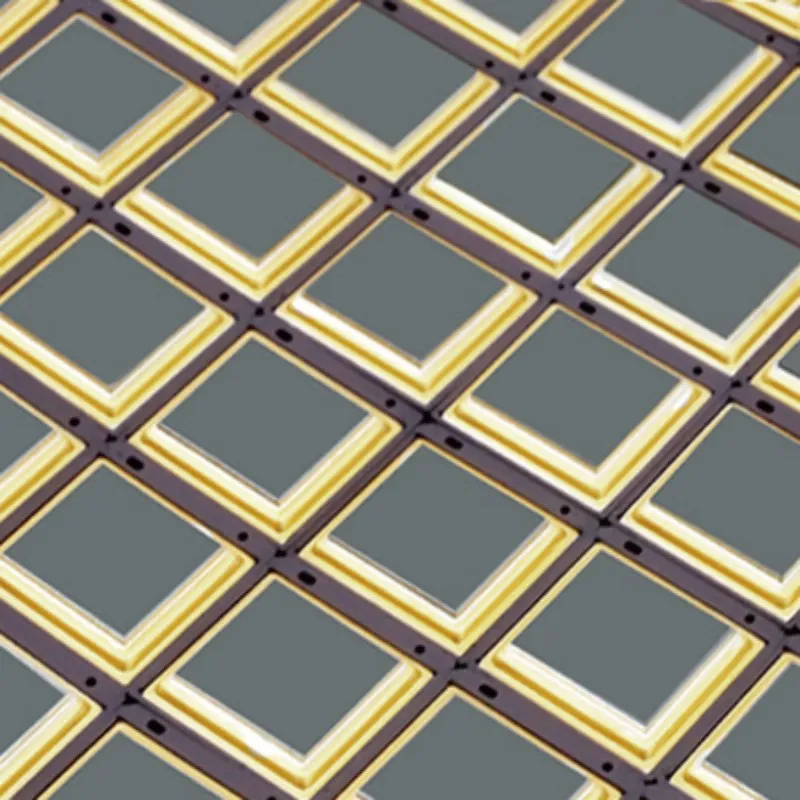

Scientific Research
Scientific Research

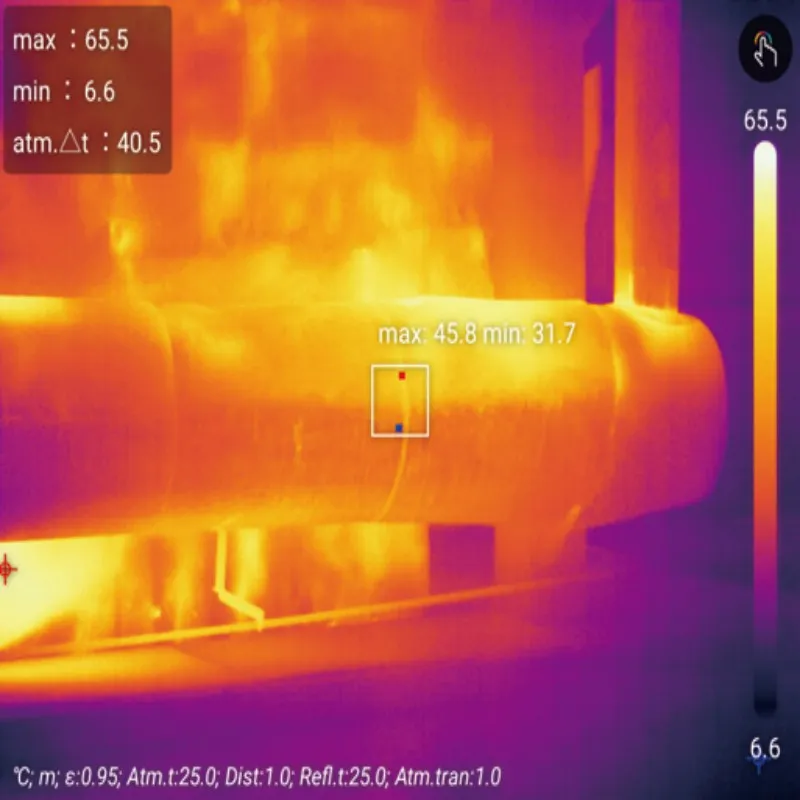

Chemical Inspection
Chemical Routine Inspection

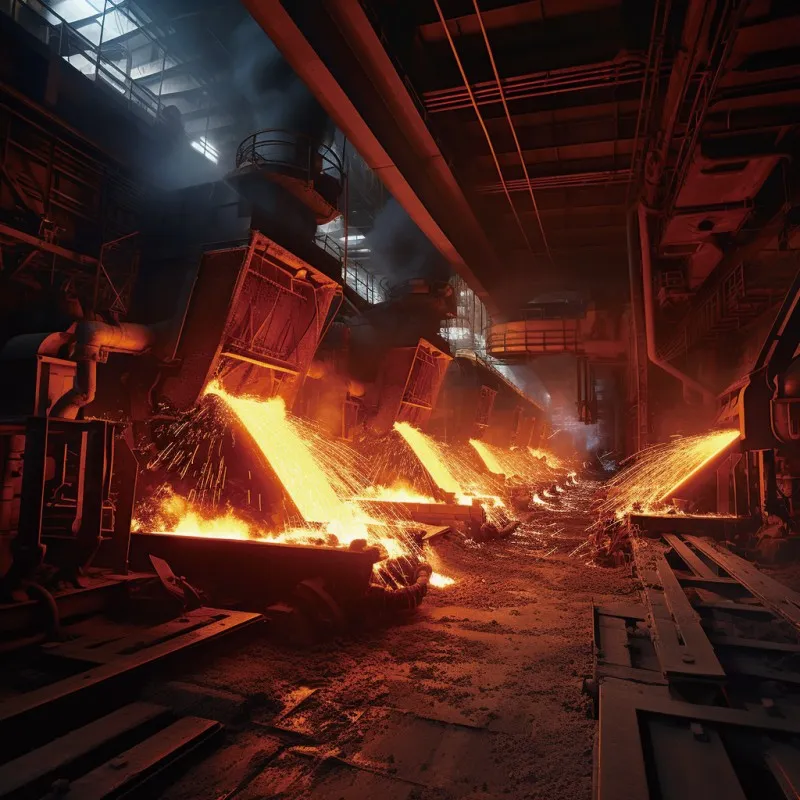

Material Testing
High Temperature Material Testing
Product Gallery
Frequently Asked Questions
Q1: How can we guarantee quality?

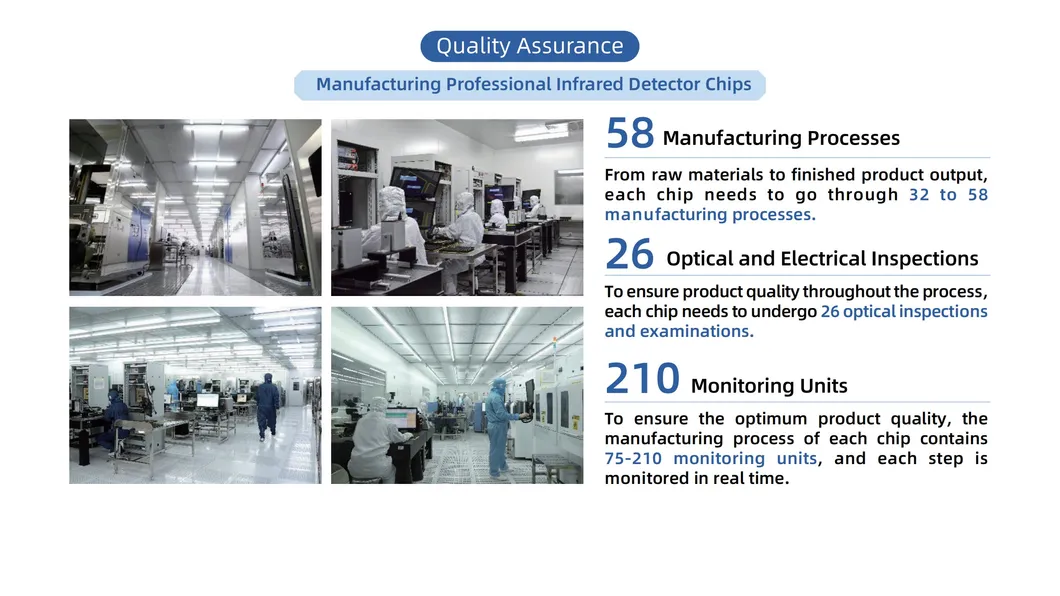

A: We maintain professional infrared detector chip manufacturing, rigid thermal camera manufacturing processes, a perfect quality management system, and CNAS certification reliability test platforms.
Q2: How long is your delivery time?
A: For small orders, it usually takes 7 working days. For OEM orders, please verify the specific shipping time with our team.
Q3: What's the MOQ?
A: The Minimum Order Quantity (MOQ) depends on the specific product model.
Q4: What are your payment terms?
A: Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
Q5: What's the product warranty policy?
A: Thermal cameras come with a 2-year warranty, while our detectors are covered by an extensive 10-year warranty.
Q6: How about after-sale support?
A: We provide lifetime Technical Support. Our engineers respond to technical inquiries within 24 hours.
