Model No.: SOAR977-TH675A52

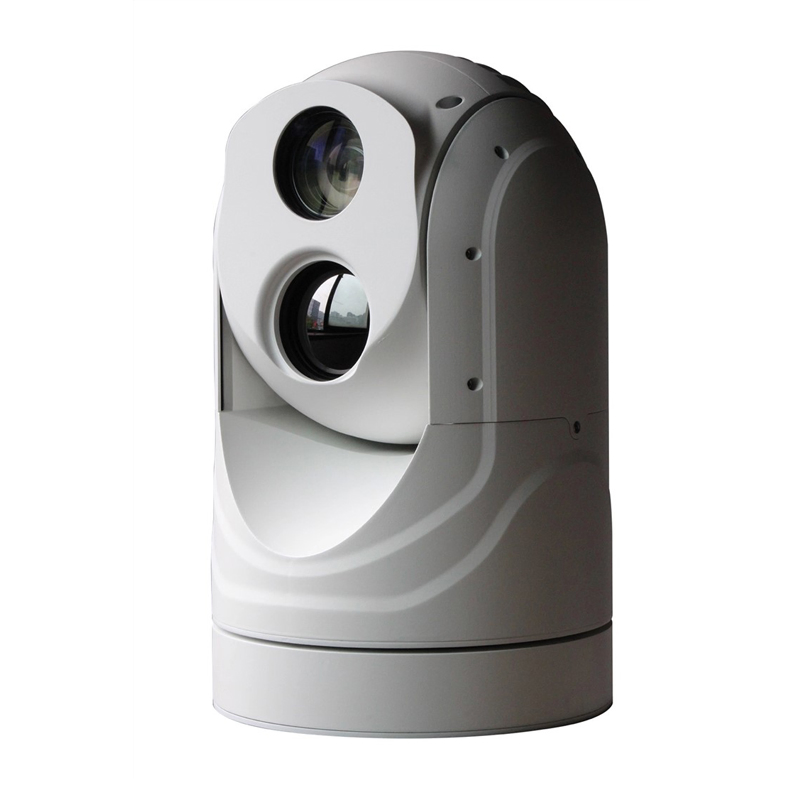

SOAR977 gyroscope stabilization thermal PTZ uses a cost-effective solution to present an affordable 2 axis image stabilization system. It is a compact photoelectric control system, built-in gyroscope module, servo motor system, high-definition optical lens, adjustable focus long-distance thermal imaging equipment, optimized for deployment on all types of ships, initially designed for naval boat applications.
Thanks to the high-definition visible light camera with optical fog penetration and low illuminance, the device can see clear targets in dense fog on the sea surface; the built-in 75mm lens can meet night monitoring while accurately detecting marine targets and obstacles, playing the role of early warning.
| Thermal Imaging Camera | |
| Detector | Uncooled amorphous silicon FPA |
| Array format/Pixel pitch | 640x480 /17μm |
| Sensitivity | ≤60mk@300K |
| Spectral range | 8-14μm |
| Lens | 75 mm |
| Digital Zoom | 1x, 2x, 4x |
| Daytime Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005 Lux; B/W: 0.0001 Lux |
| Focal Length | 6.1-317mm; 52x optical zoom |
| Resolution | 1920 × 1080 |
| Gyro Stabilization | |
| Stabilization | Support. 2 Axis |
| Static Accuracy | <0.2°RMS |
| Pan/Tilt | |
| Pan Range | 360° (endless) |
| Tilt Range | -90° ~ +90° (auto reverse) |
| Pan Speed | 0.05°/s ~ 500°/s |
Packing: To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Payment Way: T/T
Delivery Time: Goods in stock: 2-5 working days; Bulk orders: 7-20 working days.
OEM Service: OEM and ODM services are available for clients.
Quality Warranty: 1-year hardware warranty, with life-time technical service for cooperating customers.
