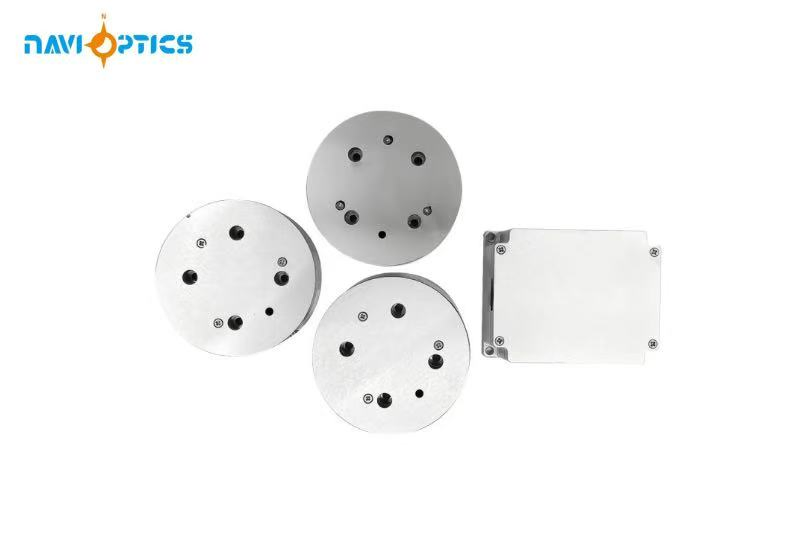

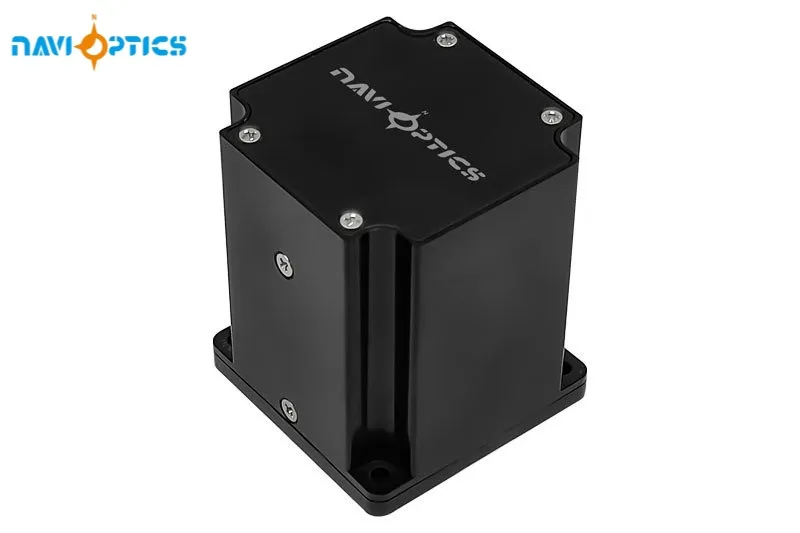

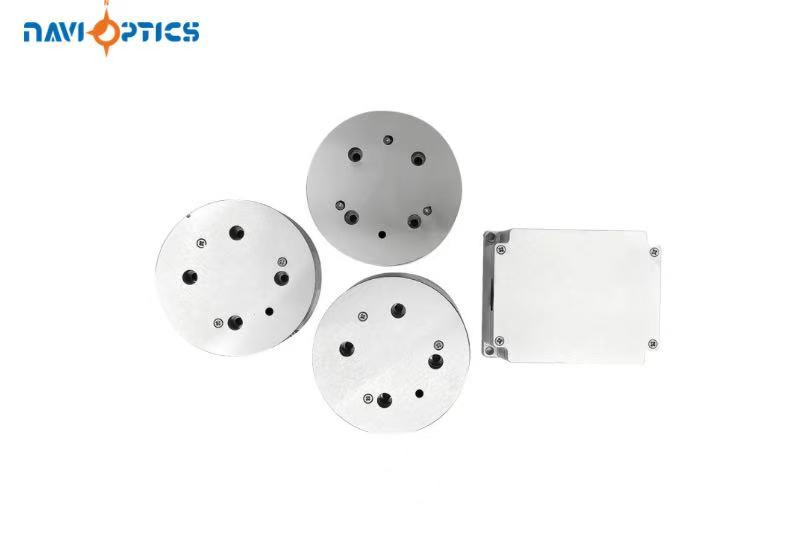

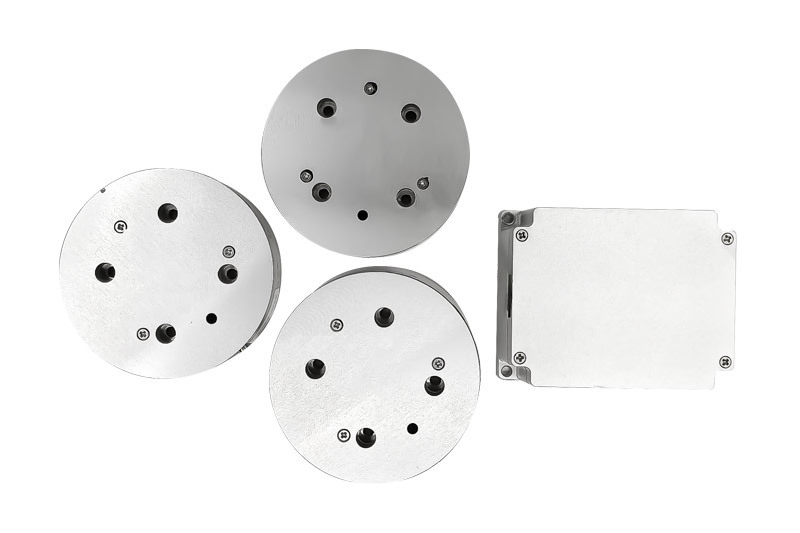

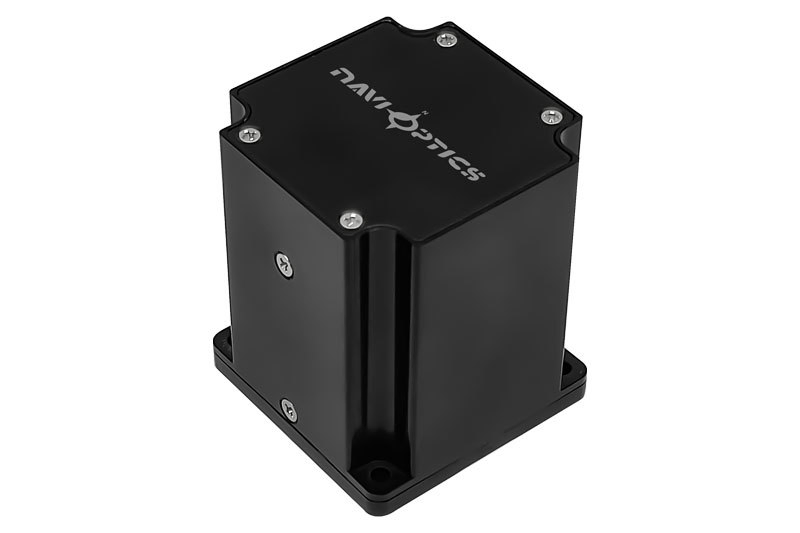

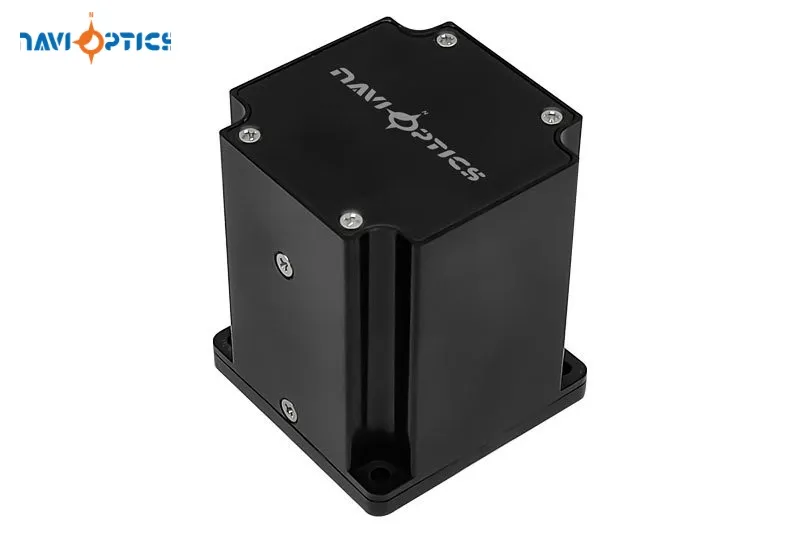

Automatic Tdfg50t Navigation Grade Fiber Optic Gyroscope for Precision Systems

Customization:	Available
Type:	Servo
Output Signal Type:	Digital Output

Basic Information

Model NO.

TDFG50T

Measuring Shaft

Double

Accuracy Grade

0.5G

IP Rating

IP30

Certification

ISO

Dynamic Range

±400°/S

Bias in-Run

<1°/H

Accuracy (10sec)

0.04°/H~0.02°/H

Output Signal

RS-422

Power Supply

5V

Weight

≤500g

Specification

70mmx70mmx30mm

Product Description

Dynamic Range	≥±400°/s
Bias in-run	<1°/h
Accuracy(100sec)	0.04°/h~0.02°/h
ARW(Angular random walk)	<0.007°/√hr,1σ
Vibration screening	20~2000Hz,6.06g
Bandwidth	>200Hz
Turn on time	10s
Output signal format	RS-422
Output signal update rate	500Hz~2000Hz
Operating temperature	- 40℃ ~ + 70℃
Storage temperature	- 55℃ ~ + 85℃
Power supply	5V
Power consumption	≤4.5w
MTBF	>100000hr
Dimensions	Φ50mm×19mm / 60mm×60mm×28mm

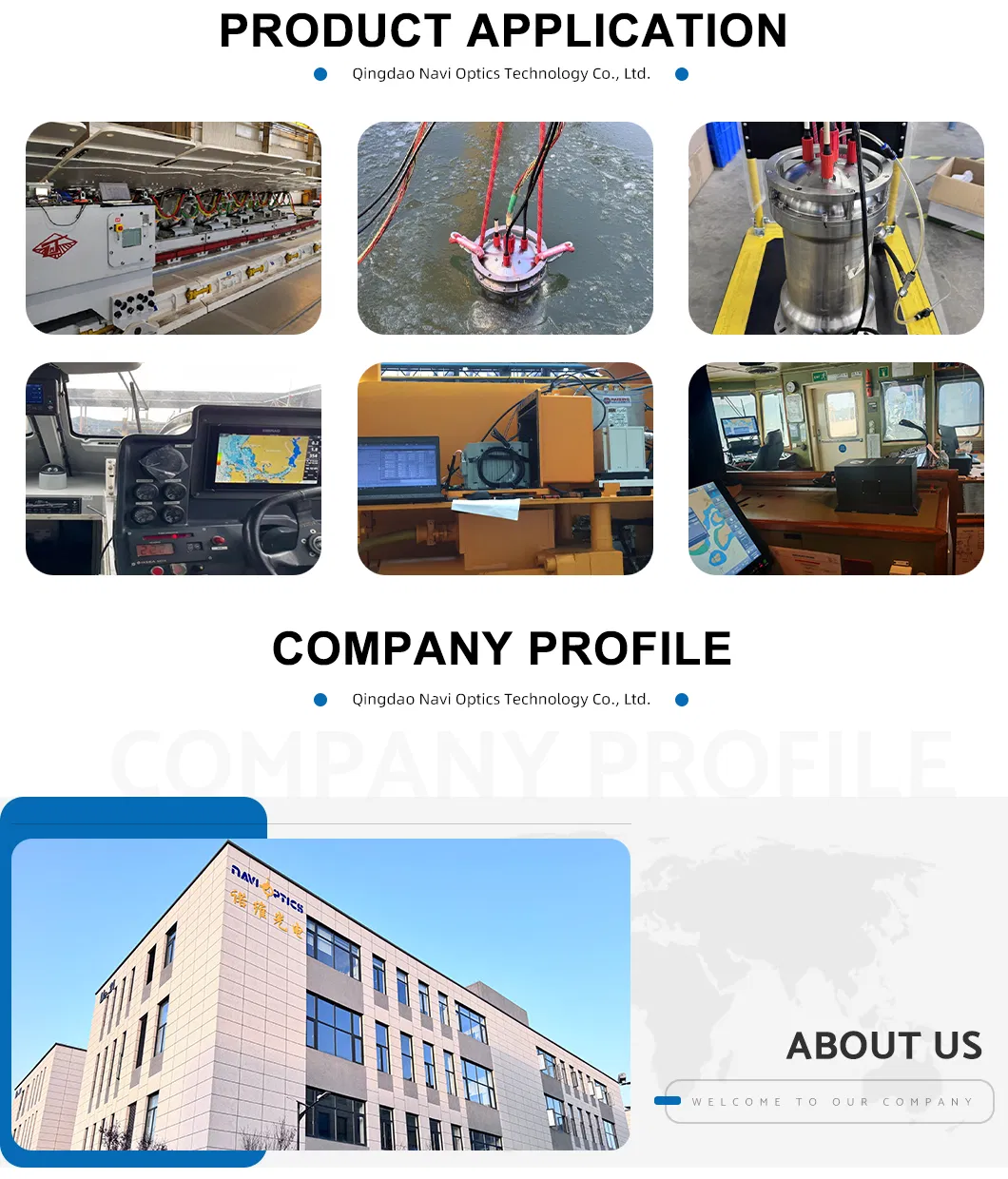

Product Application

We are a leading manufacturer specializing in advanced imaging and navigation solutions, including cooled and uncooled infrared thermal imaging cameras, fiber optic gyrocompasses, and inertial navigation systems. Our solutions are designed to enhance human perception through intelligent imaging and high-precision sensors.

With strong technical support and dedicated production lines, we provide reliable, high-quality fiber optic gyroscopes perfect for maritime, industrial, and precision defense applications. Our systems are built to ensure sustainability, efficiency, and superior performance in demanding environments.

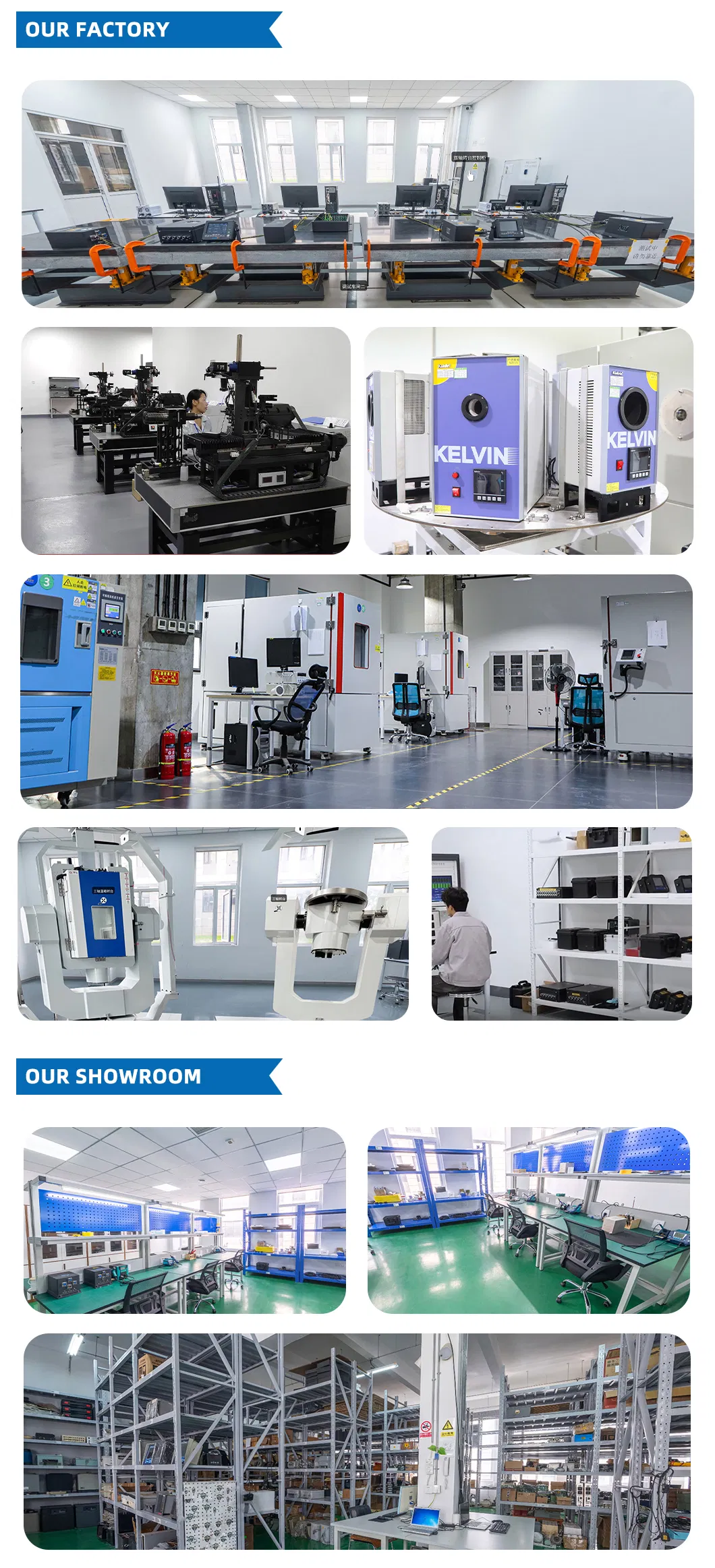

Our Factory

Frequently Asked Questions

1. What certificates do you have for this product?

As a professional manufacturer, we hold ISO, SGS, CCS, and MED certifications to ensure the highest quality standards.

2. Can we conduct a remote inspection via video?

Yes, we provide live video inspection services so you can verify the product's quality and specifications in real-time.

3. Do you support third-party inspections?

We welcome third-party inspections at our factory. Transparency and customer confidence are our top priorities.

4. What is your typical response time for support?

We treat every customer as a valued partner and aim to respond to all technical or commercial inquiries at the soonest possible speed.

5. How are the products shipped?

Products are usually shipped via air express for speed and safety. We provide a tracking number via email immediately after dispatch.

6. What is the lead time for standard orders?

Standard production cycles depend on the order volume, but we maintain an efficient production line to ensure timely delivery for all navigation systems.
