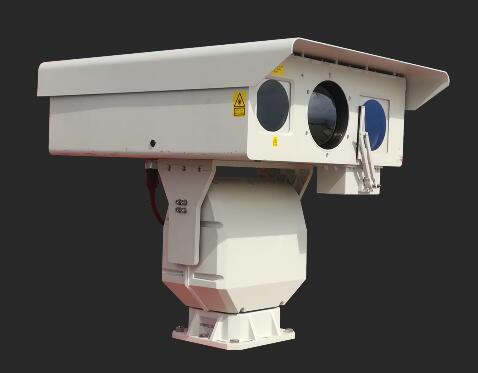

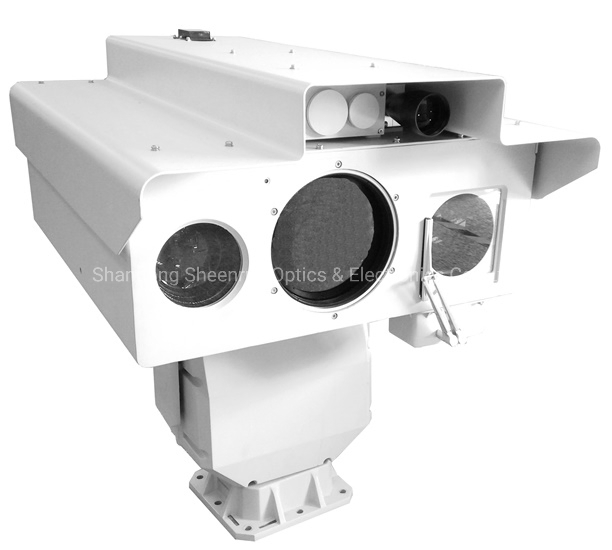

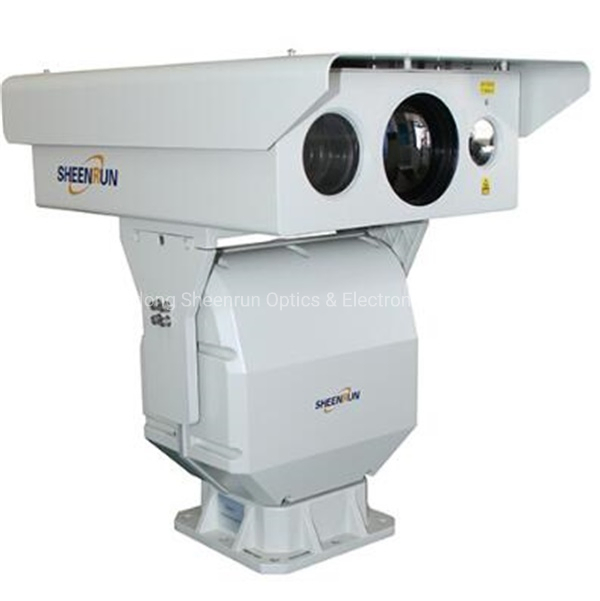

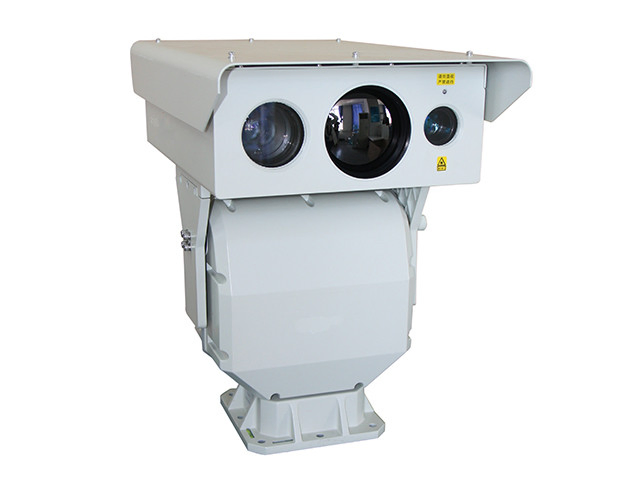

Multi Sensor Thermal Imaging and Day Night Vision Security Camera for

1 / 5

Multi Sensor Thermal Imaging and Day Night Vision Security Camera for

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SHR-WHLV3020ATIR185R

Sensor

CCD

Kind

Autofocus Lens

Certification

CE, FCC, ISO9001: 2000

Feature

Waterproof, High Definition, Auto BLC

Effective Distance

≥30m

Thermal Pixel

640X512

Visible Pixel

1024X768

🚀 Product Features

Three spectral imaging design: visible light, thermal imaging, and laser night vision.

Continuous zooming thermal imaging technology for large area searching and long-distance recognition.

High temperature sensitivity infrared detector (min resolution of 50mK).

Synchronous zooming laser illuminating system for monitoring in 0Lux complete darkness.

2 megapixels color to black camera for continuous day and night monitoring.

MCIC multi-tube core fusion light homogenization technology (no speckle or dark rings).

Supports fog penetration, backlight compensation, and multistage wide dynamic range.

3D locating function with frame selection magnifying and clicking to center functions.

Professionally designed shell: anti-corrosion, waterproof (IP66), and anti-acid rain.

📊 Technical Specifications

Operating distance	Visible light	Night vision	3000m
		Day vision	5000m
	Thermal imaging	object	human(1.8m×0.5m)	Vehicle(2.3 m×2.3 m)
		Detection distance	4320m	11880m
		Recognition distance	1080m	2970m
		Identification distance	540m	1440m
High definition lens	Focal lens	12.5~750mm
	FOV	0.5°~28.7°
	Auto focusing	supporting(optional)
	Fog penetration	supporting(optional)
	Camera Sensor	1/1.8" Progressive Scan CMOS
Illuminator	Lens	60* zooming laser telephoto lens
	Power / Wave length	20W / 810nm
	Illuminating angle	0.3°~18° continuous change
	Homogenization	MCIC multi-tube core fusion technology
Infrared lens	Focal length	36~180mm
	FOV / F value	2.5°×2.0°~12.7°×10.2° / F1.0~F1.2
	Detector type	uncooled microbolometer focal plane array(VOx)
	Effective pixels	324×256
Pan-tilt	Carrying capacity	50kg(top load)
	Angle	Horizontal 360° rotation, pitch -60°~+20°
	Protection grade	IP66

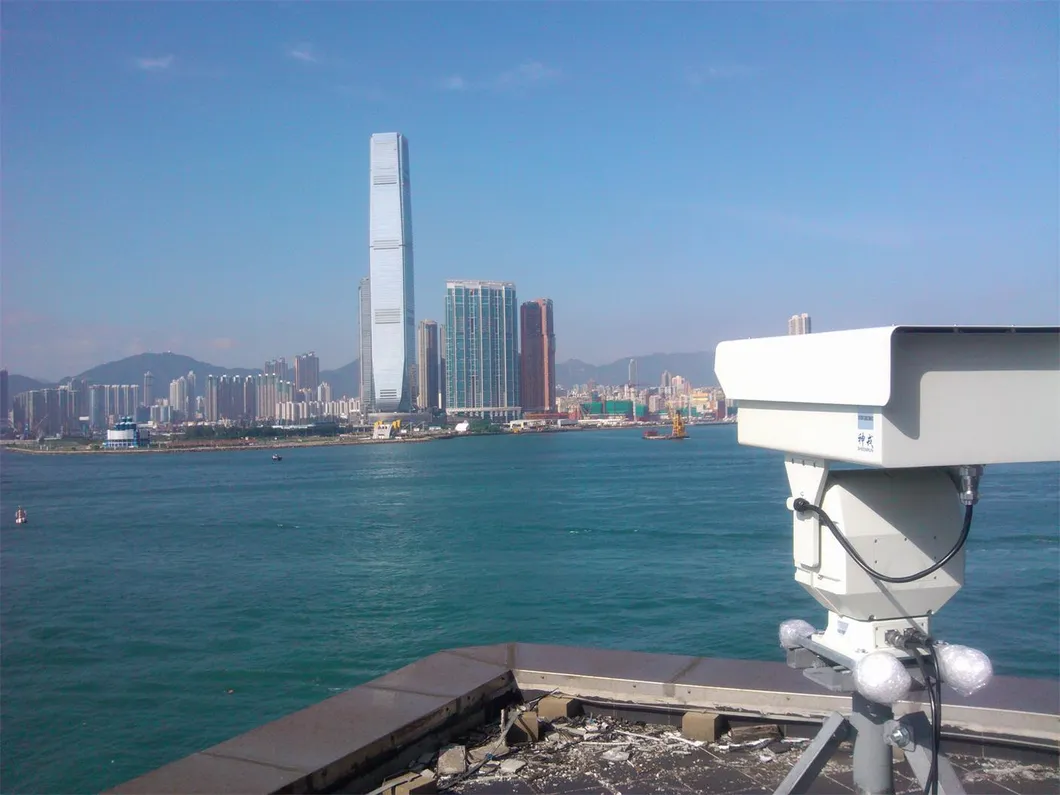

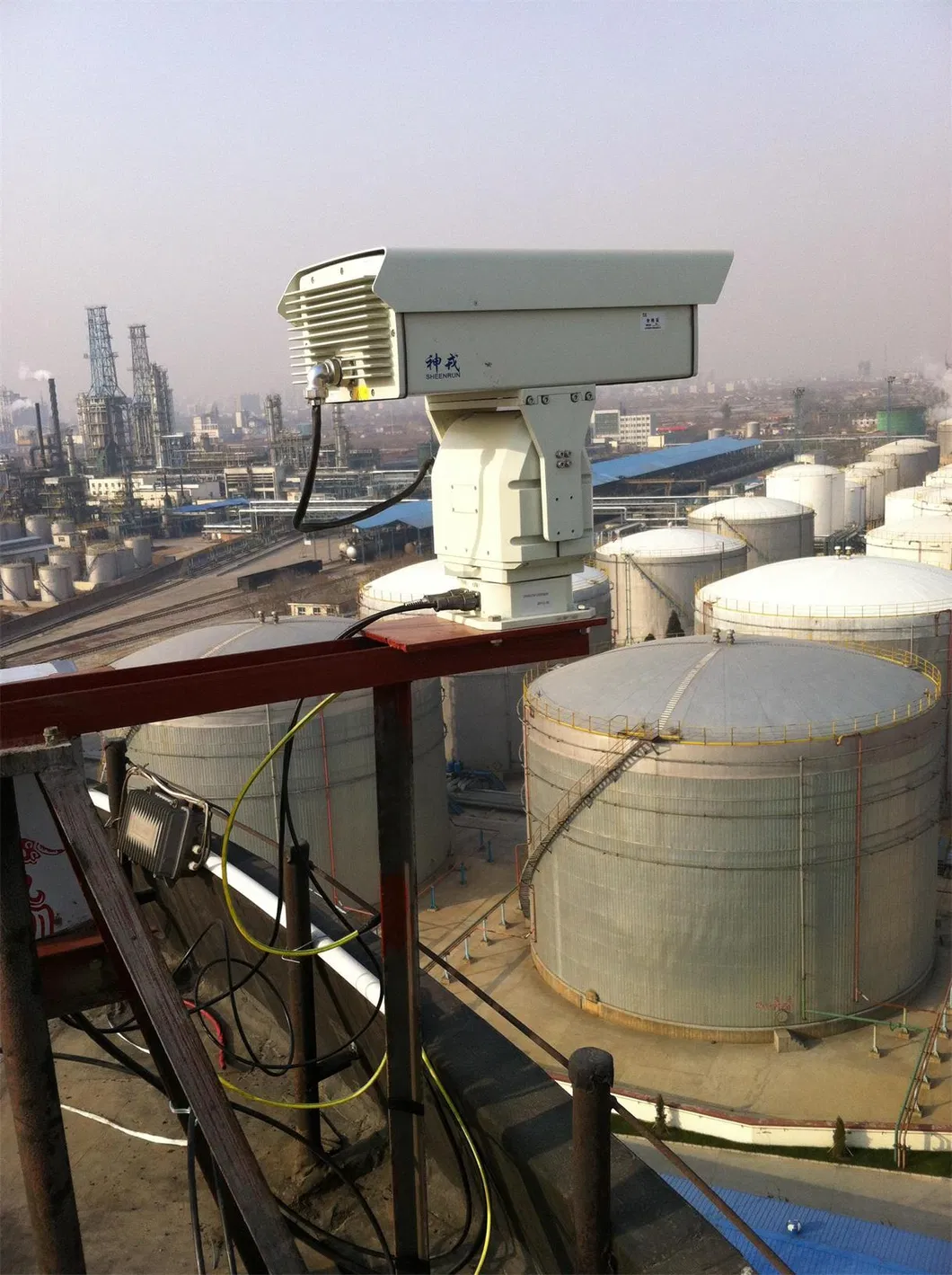

📷 Application & Gallery

🛠️ Our Services

One year standard warranty with extended options available.

Life-long technical support and professional troubleshooting.

OEM and customized product services.

Frequently Asked Questions

What is the maximum night vision distance?

The system provides a laser night vision range of up to 3000 meters and can detect vehicles at distances up to 11880 meters using thermal imaging.

Does the camera support monitoring in complete darkness?

Yes, the synchronous zooming laser illuminating system allows for high-clear monitoring in 0Lux complete black environments.

Is the device suitable for outdoor use in harsh weather?

Absolutely. The device features an IP66 protection grade, making it waterproof, anti-corrosion, and resistant to acid rain and high temperatures.

What imaging technologies are integrated into this system?

It uses a three-spectral design combining visible light imaging, thermal imaging, and laser night vision for comprehensive day and night surveillance.

Does the system support automatic focusing?

Yes, it features optional auto-focusing functions and supports multiple triggering modes to enhance operational efficiency.

Can the camera penetrate through fog?

Yes, the camera supports professional fog penetration technology, ensuring clear visibility in difficult atmospheric conditions.
