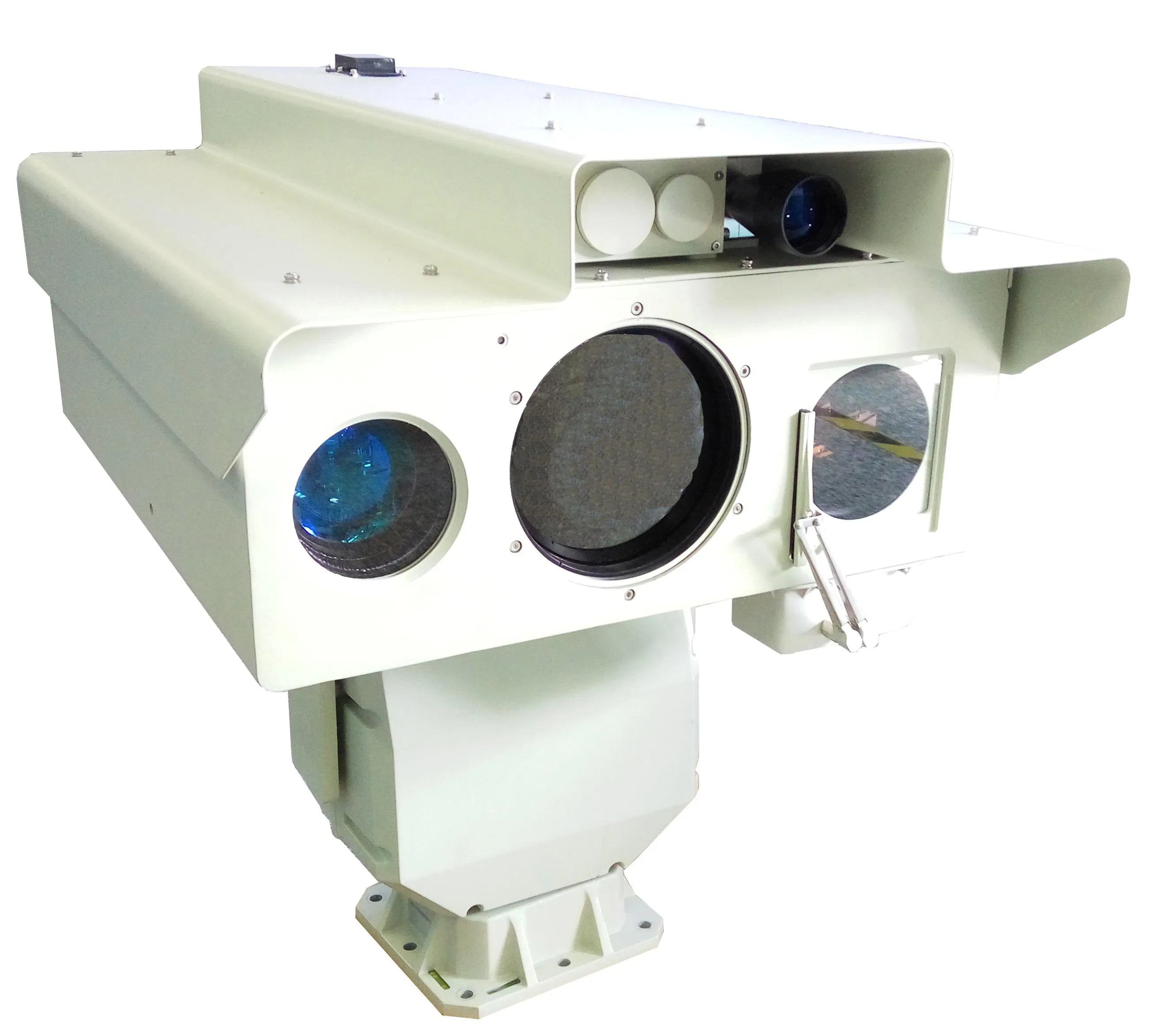

Multi Sensor Surveillance IP Thermal Imaging Camera with HD Laser Night Vision Camera and Laser Rangefinder

1 / 5

Multi Sensor Surveillance IP Thermal Imaging Camera with HD Laser Night Vision Camera and Laser Rangefinder

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Send Inquiry

Product Description

📋

Basic Specification

Model NO.

SHR-WHLVHTIR-LRF10K

Type

Thermal and Laser Three Sensor

Sensor

Thermal Camera

HDMI Format

Resolution

640*512

Effective Distance

10-20km

Certification

CE, FCC, RoHS, ISO9001

System

Thermal Camera, Laser Camera, Laser Rangfinder

Feature

Waterproof, High Definition, Auto BLC

HS Code

852580

🔍

Product Overview

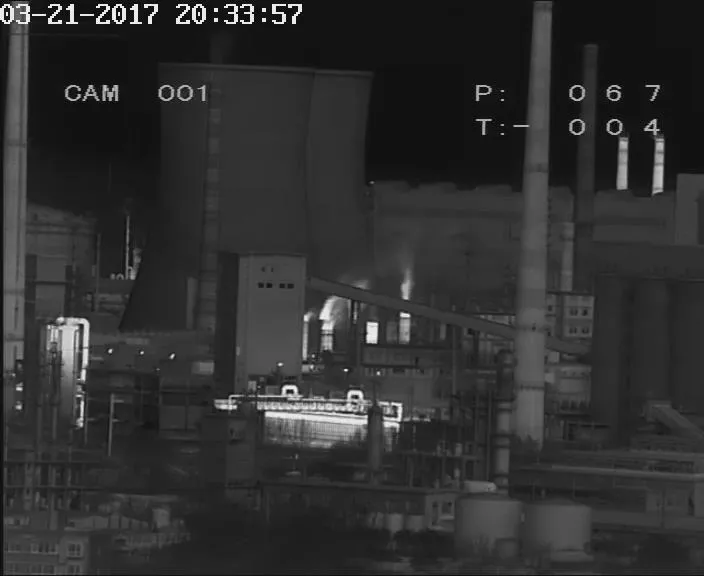

Multi Sensor Surveillance IP Thermal Imaging Camera

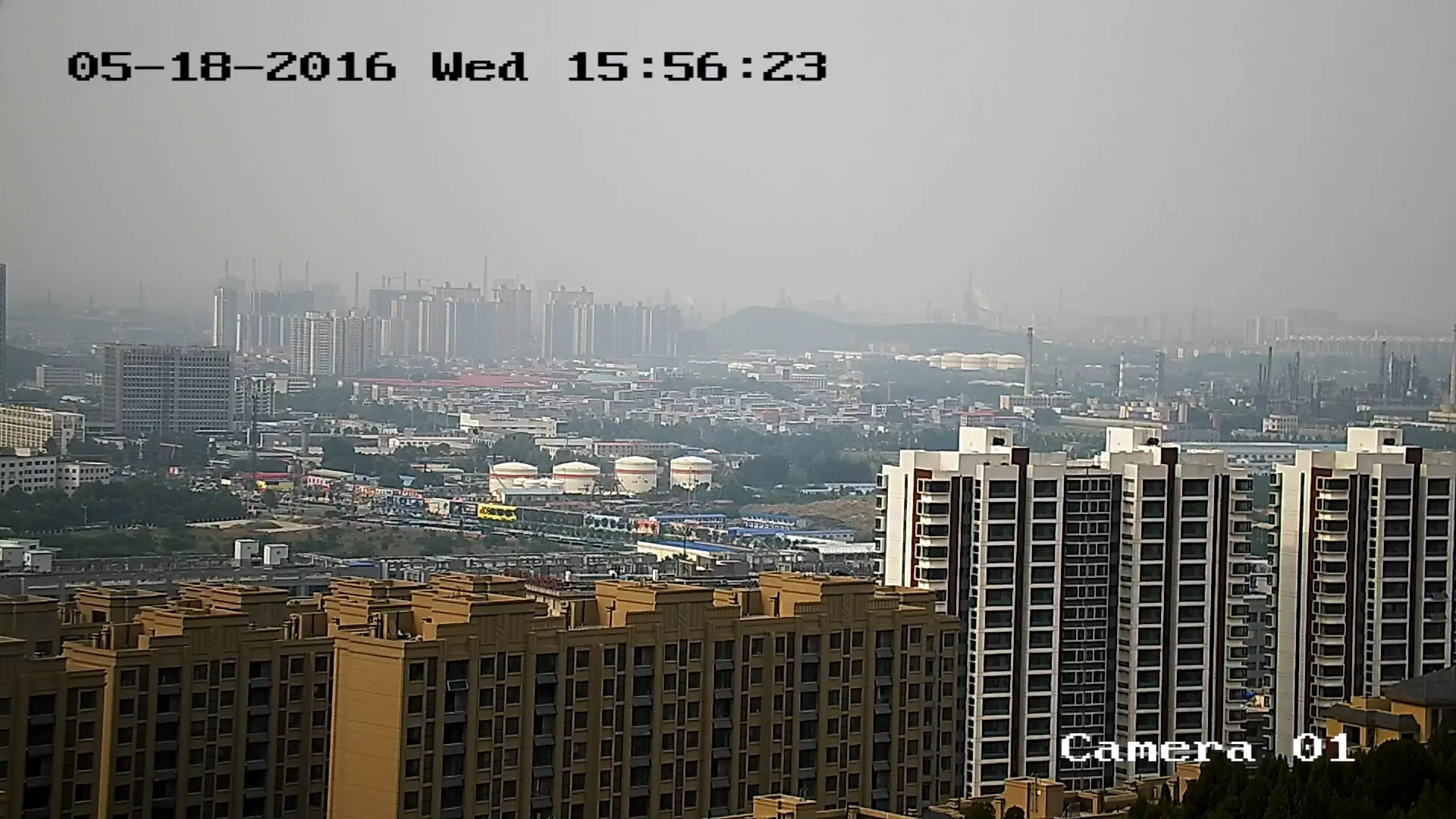

Three Spectral Imaging Design: This system leverages clear visible light imaging, long-range thermal detection, and wide-range laser night vision.

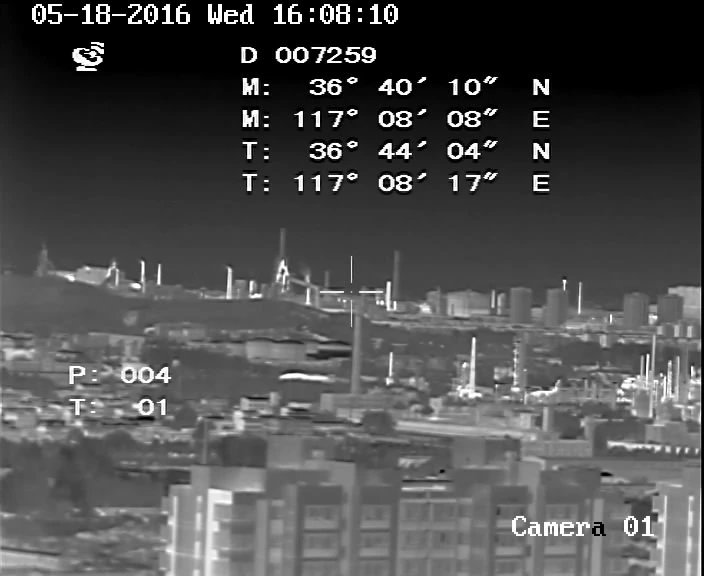

Thermal Camera: Optional 25-200mm lenses. Human detection up to 5.6km; Vehicle detection up to 16km.
Laser Night Vision: Optional 250mm to 1000mm lenses. Night vision range up to 5km; Day vision exceeds 10km.
Laser Rangefinder: Accurate measurement from 3km to 30km.

📊

Technical Indicators

Feature	High-End Configuration	Standard Configuration	Entry Configuration
Day Monitoring	8~10km	6~8km	3~6km
Laser Night Vision	4~5km	3~4km	2~2.5km
Thermal (Human)	5600m	5040m	4200m
Thermal (Vehicle)	16000m	14400m	12000m
Visible Focal Length	16.7~1000mm	12.5~750mm	15.6~500mm
Pan/Tilt Speed	Pan: 0.01°~ 12°/s; Tilt: 0.01°~ 8°/s

📷

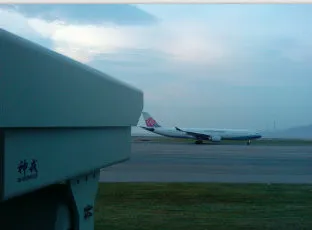

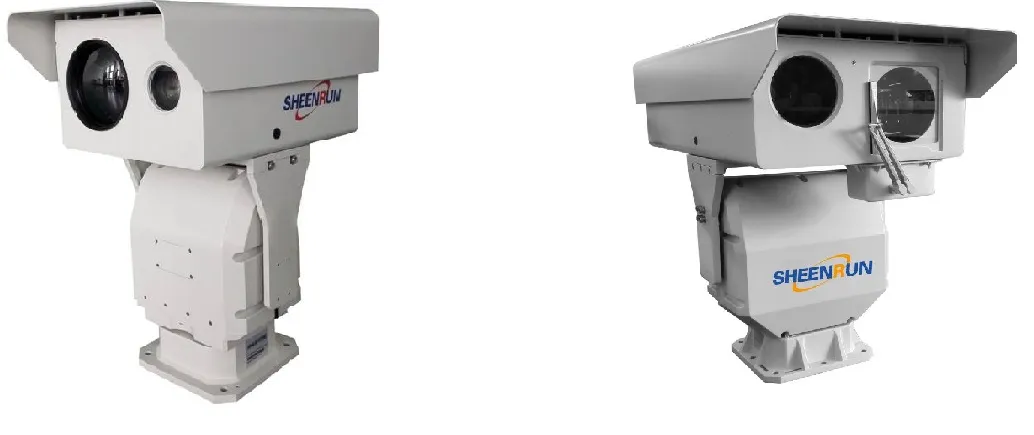

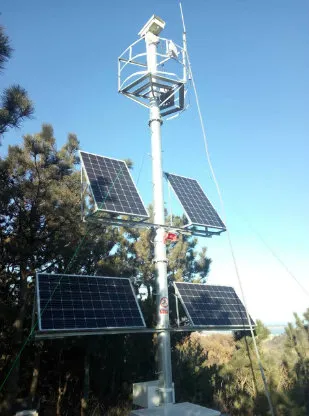

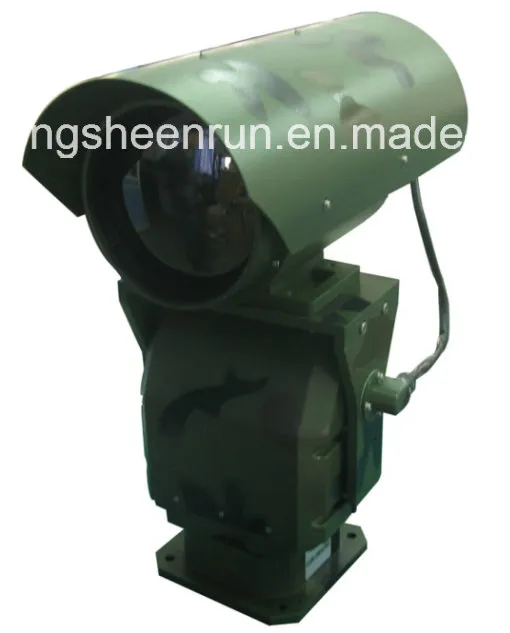

Application & Related Products

💡

Technology & Innovation

As a leading supplier in night vision equipment and rugged information systems, the focus is on independent innovation. Our technology includes the world's first uncooled continuous zoom infrared thermal imaging camera and synchronous zoom laser night vision systems. These technologies meet international advanced standards and hold a significant position in the global laser night vision market.

❓

Frequently Asked Questions

What is the maximum distance the thermal camera can detect?

The thermal camera can detect humans up to 5.6km and vehicles up to 16km away, depending on the chosen focal length.

How far can the laser night vision see at night?

The laser night vision camera provides clear visibility up to 5km in total darkness, with day vision extending beyond 10km.

Is the camera system weather-resistant?

Yes, the system is designed to be waterproof and weatherproof, featuring an integrated wiper and anti-lightning protection (4000V for power supply).

What imaging sensors are integrated into this unit?

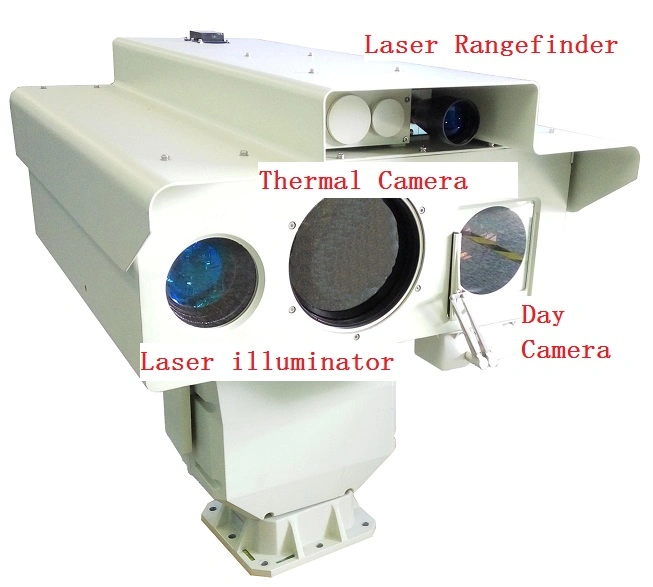

It features a triple-sensor design including an uncooled thermal imaging camera, a high-definition visible light camera, and a laser illuminator/rangefinder.

What is the accuracy of the laser rangefinder?

The laser rangefinder offers high precision with an error margin of only ±1 meter over distances up to 10km.

Does the system support remote control and automation?

Yes, it supports electric zoom, auto-focus, and is compatible with Pelco-D/P protocols for pan-tilt control, including 255 presets and auto-cruise paths.
