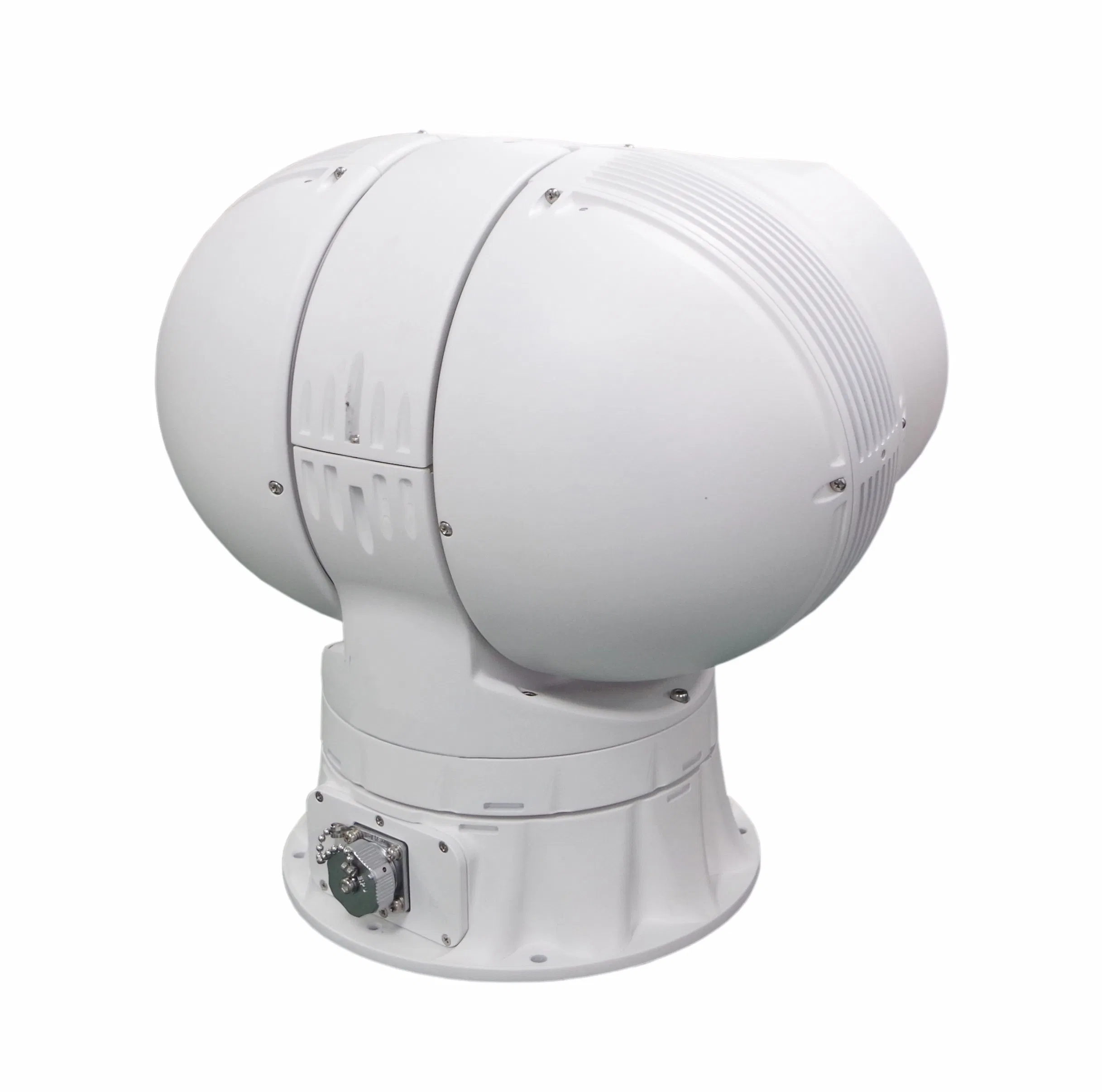

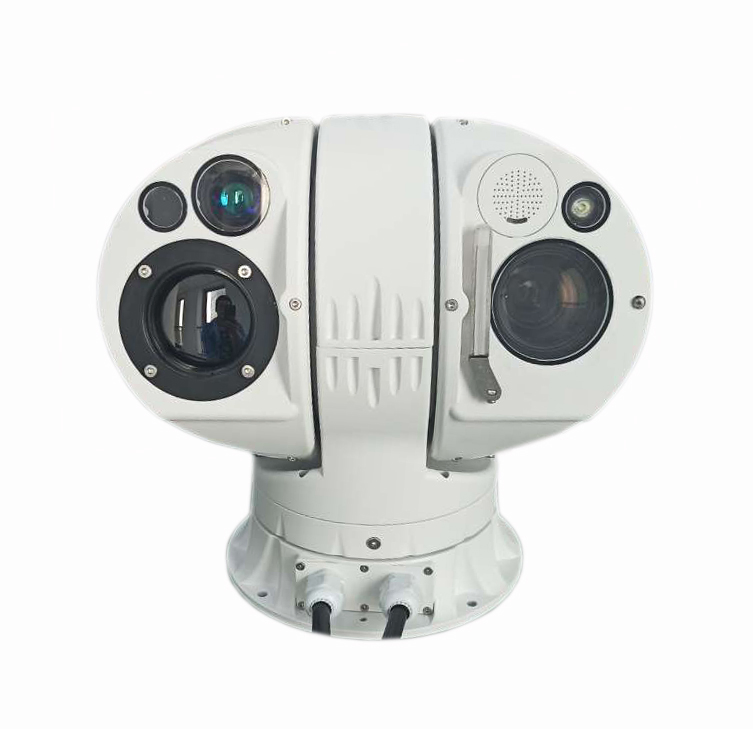

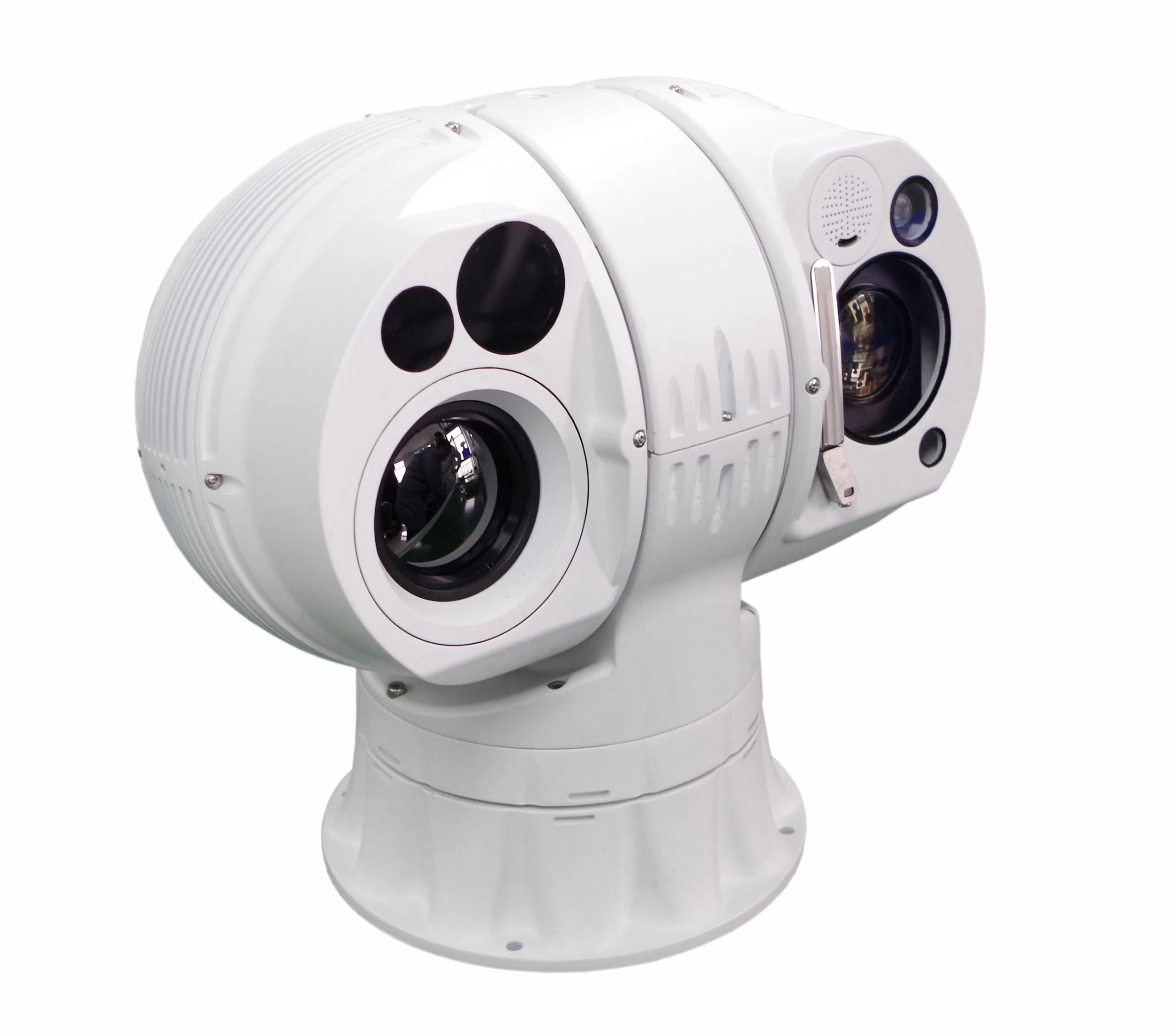

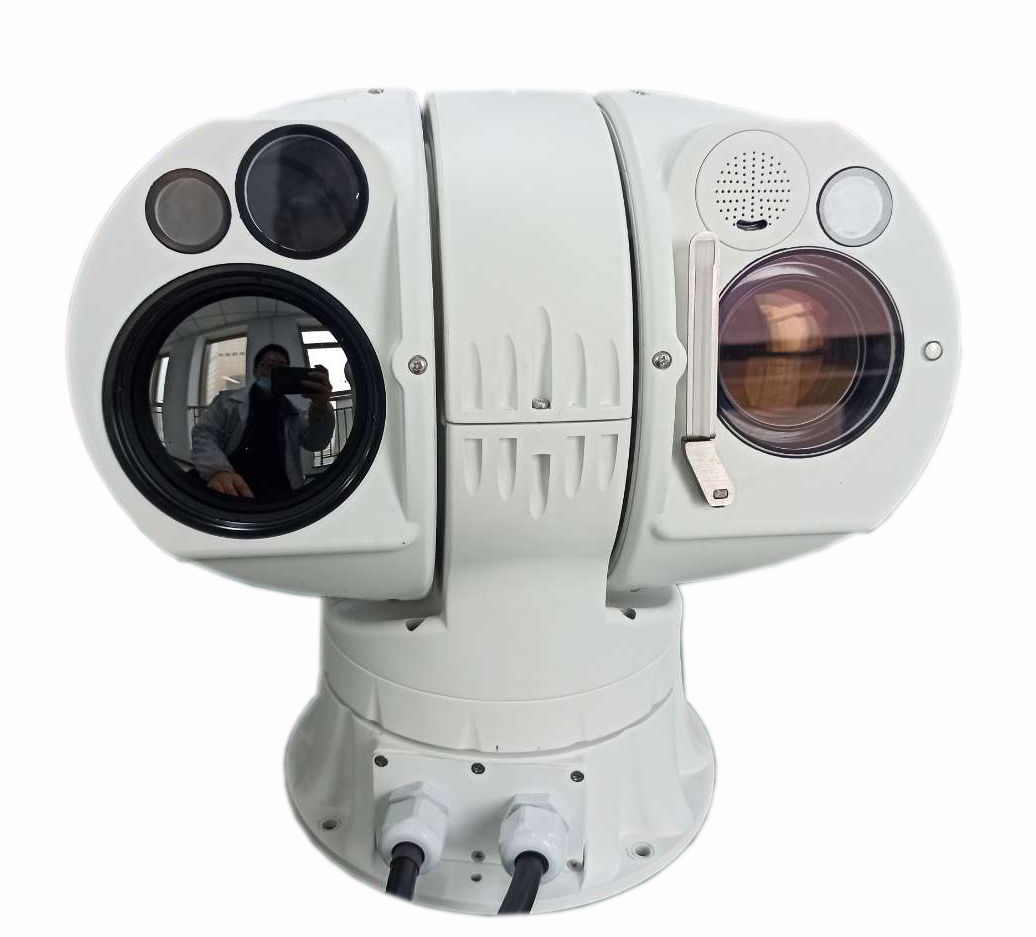

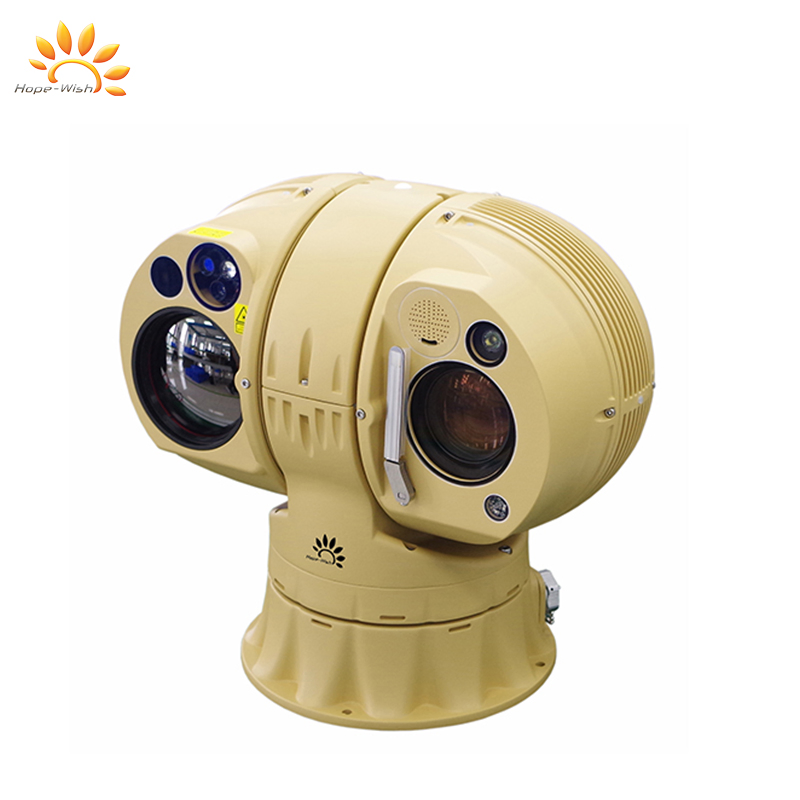

The electronic sentry product is based on the latest sixth-generation uncooled infrared technology, high-definition visible light imaging technology, and AI intelligent analysis technology. It integrates day and night monitoring, intelligent analysis, and active defense into one modular, light-weight system.
This product replaces traditional monitoring with intelligent algorithms and deep learning, integrating detection, analysis, and real-time countermeasures with sound and light, subverting traditional air defense models.
| Range | DRI for fire point (@2x2m): 2000m/3000m/5000m DRI for vehicles: 1500m-4000m DRI for human: 600m-2000m |
| Thermal Imaging | 5th gen uncooled VOx detector; 384×288 (640×512) pixels; 50mm/75mm/100mm Lens; SDE digital image enhancement. |

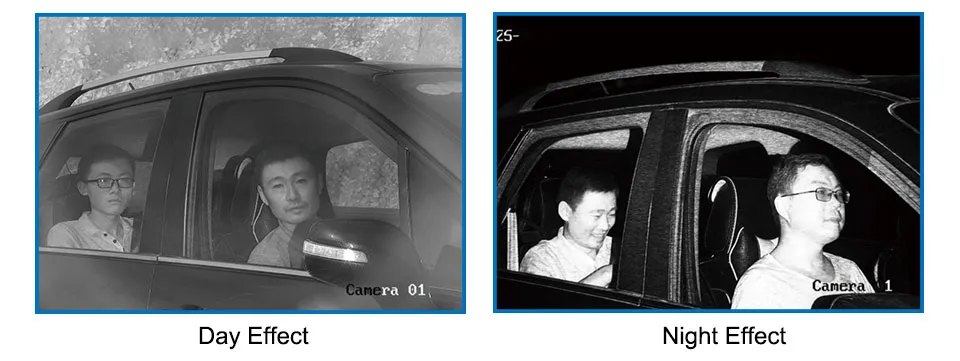

| Visible Camera | 1/2.8 inch starlight CMOS; 2MP; 7-330mm 47x optical zoom; 2D/3D noise reduction; Electronic image stabilization. |
| Laser Illuminator | 810nm wavelength; 1.5°~20° angle; GHT-II high-definition homogenization technology (≥92% balance). |

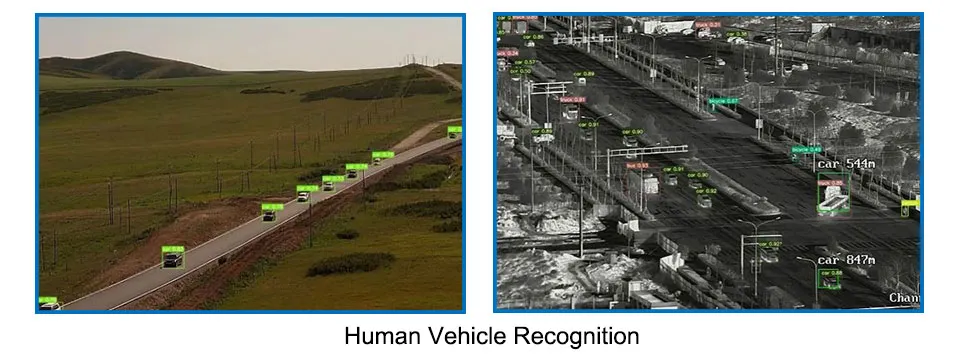

| Intelligent Functions | Fire detection (1-16 targets); Intrusion detection; Cross-border detection; Target tracking; 512 AR info overlay. |
| Proactive Defense | Integrated tweeter + flashing light; Customizable alarm sound; Optional laser dazzling rejector. |
| PTZ Control | 360° continuous rotation; Pitch: -90°~+90°; Positioning accuracy ≤0.1°; 400 preset positions. |
| Environment | IP67 Waterproof; Working Temp: -40ºC to 60ºC; Anti-surge 6KV; Anti-static 8KV. |
Our core R&D team focuses on laser imaging, infrared thermal imaging detection, and tracking technology. We specialize in night vision and multispectral imaging, utilizing artificial intelligence for advanced image analysis and processing.

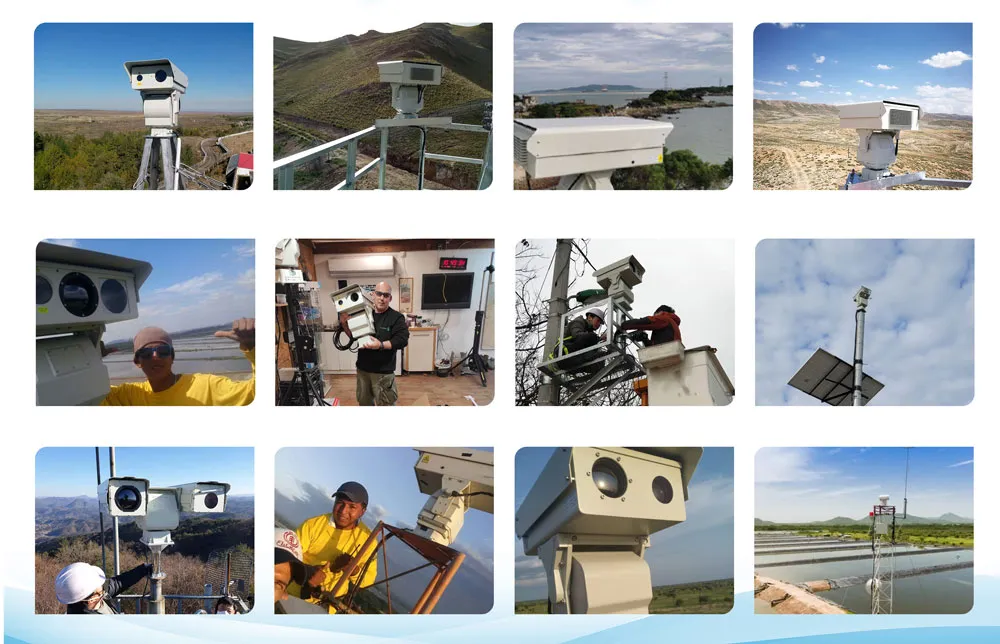

Our solutions cover border and coastal defense, anti-UAV systems, intelligent transportation, forest fire prevention, and environmental protection. Our products are recognized worldwide for reliable quality and excellent performance in complex environments.
