Long Range Thermal Imaging Camera Surveillance Multi-Spectrum

1 / 5

Long Range Thermal Imaging Camera Surveillance Multi-Spectrum

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Model NO.

HP-Z50II-TVC6516-2075

Specification

CE FCC SGS ISO

HS Code

8525801390

Production Capacity

100 Sets/Day

Packaging & Delivery

Package Size: 50.00cm * 50.00cm * 50.00cm

Package Gross Weight: 20.000kg

Product Description

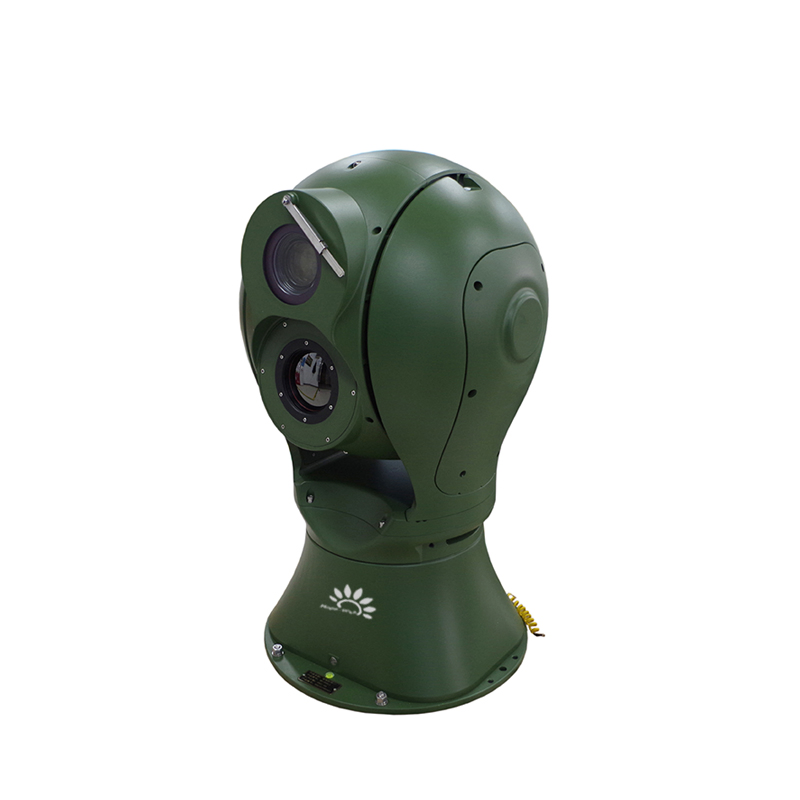

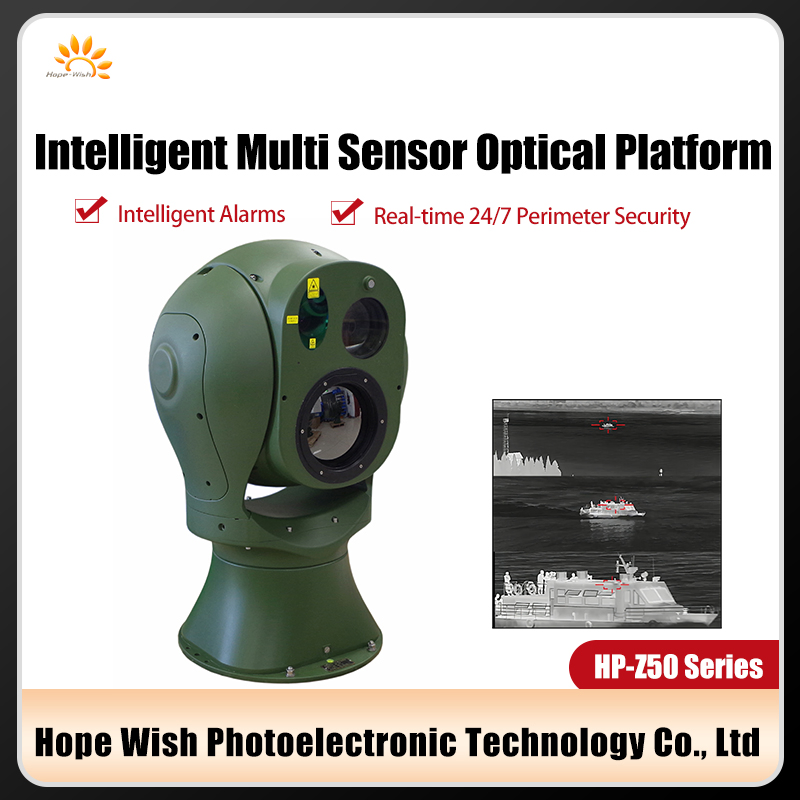

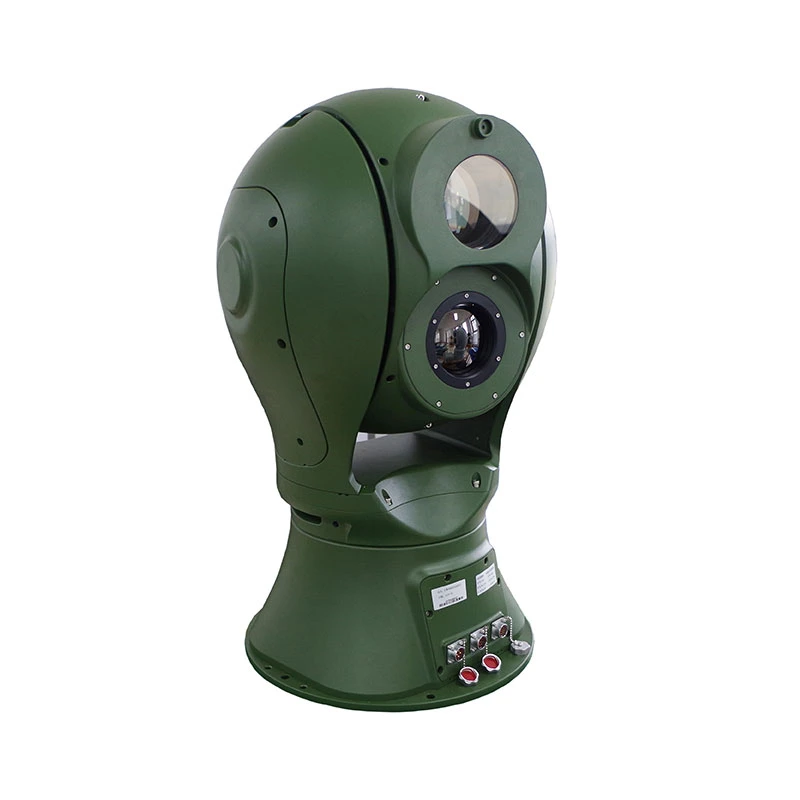

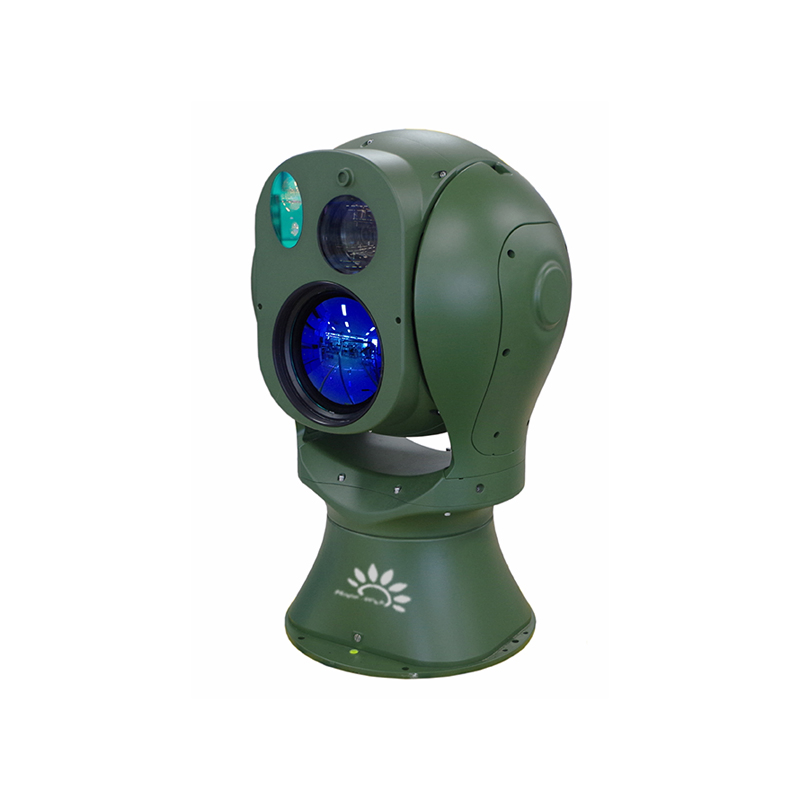

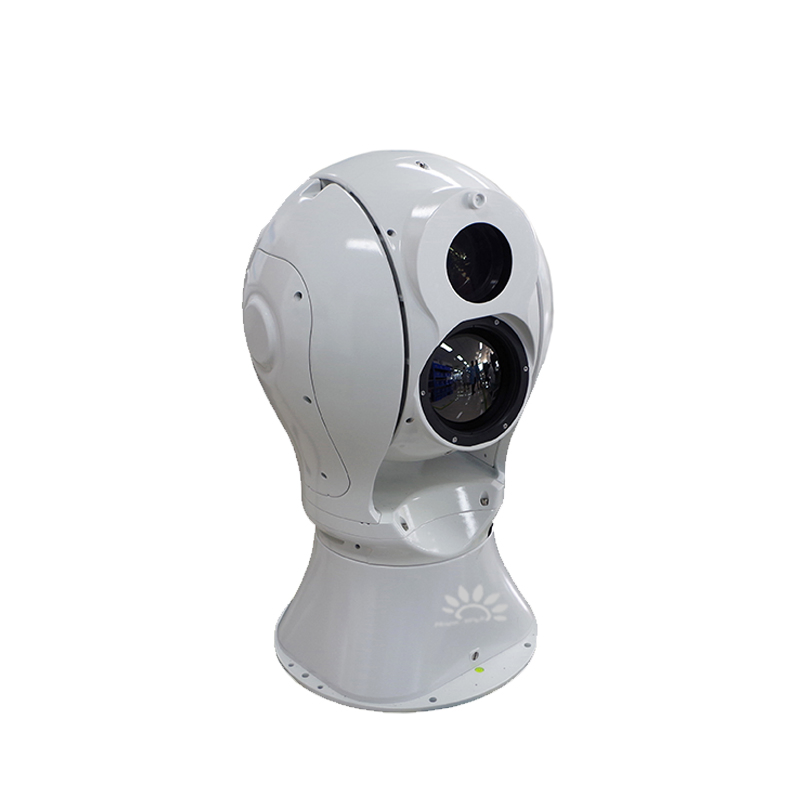

Z50IV Series Multi-spectrum Optical Electronical Platform

Combining visible camera, laser range finder, and MWIR thermal imaging camera, this platform is engineered for long-distance monitoring in total darkness and foggy/rainy environments. The spherical dome shape ensures high-quality performance for coastal, border, and airport security.

Key Features

🛡️

Rugged Design: Aluminum alloy housing with anti-corrosion paint and anti-seawater corrosion features. Spherical housing resists 3 m/s wind.

🎯

Precision Positioning: Real-time data feedback for direction, angle, focal length, and focusing data to track and locate targets accurately.

🔄

High Mobility: Pan rotation 0-360°, Tilt range ±90°. Maximum rotation speed of 60°/s and minimum precision of 0.01°/s.

🌊

All-Weather Protection: Integral aluminum alloy housing, waterproof IP66 rating, and anti-dust construction.

Product Parameters

Parameter	Specifications (HP-Z50IV)
Distance	5mX1m ship: D15km, R7km 20mX5m ship: D50km, R25km	5mX1m ship: D25km, R10km 20mX5m ship: D70km, R35km
Cooled Thermal Camera	MWIR 640x512 20X Continuous optical zoom FOV 25°~1.3°	MWIR 640x512 20X Continuous optical zoom FOV 14°~0.7°
Visible Camera	2 mega pixel CMOS, 50X continuous optical zoom, FOV 40°~0.8°
Laser Range Finder (LRF)	Accuracy ±3 m, Frequency 0.2Hz, Laser 1570nm
Stabilization	Gyro image stabilization 2mrad
Rotation Speed	Pan: 0.01°~60°/S; Tilt: 0.01°~60°/S
Environment	Working: -30 ºC ~ +60 ºC; Protection: IP66; Humidity: <90%
Weight/Dimensions	Weight: ≤110KG; Dimension: Ф565mm × H866mm

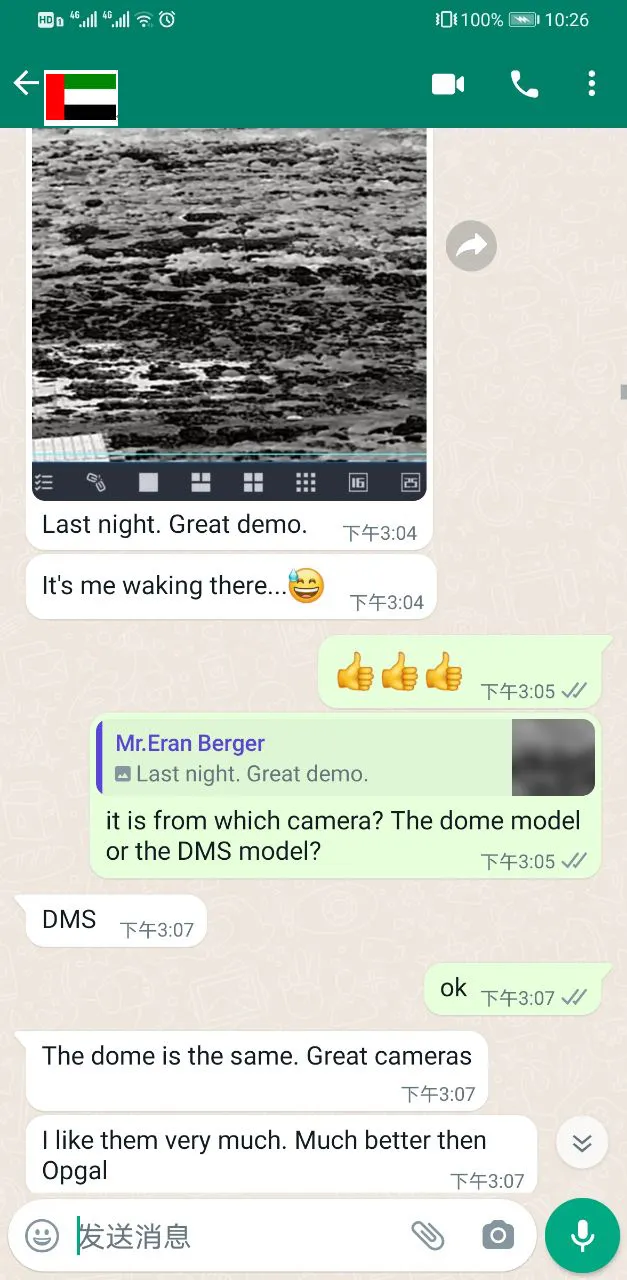

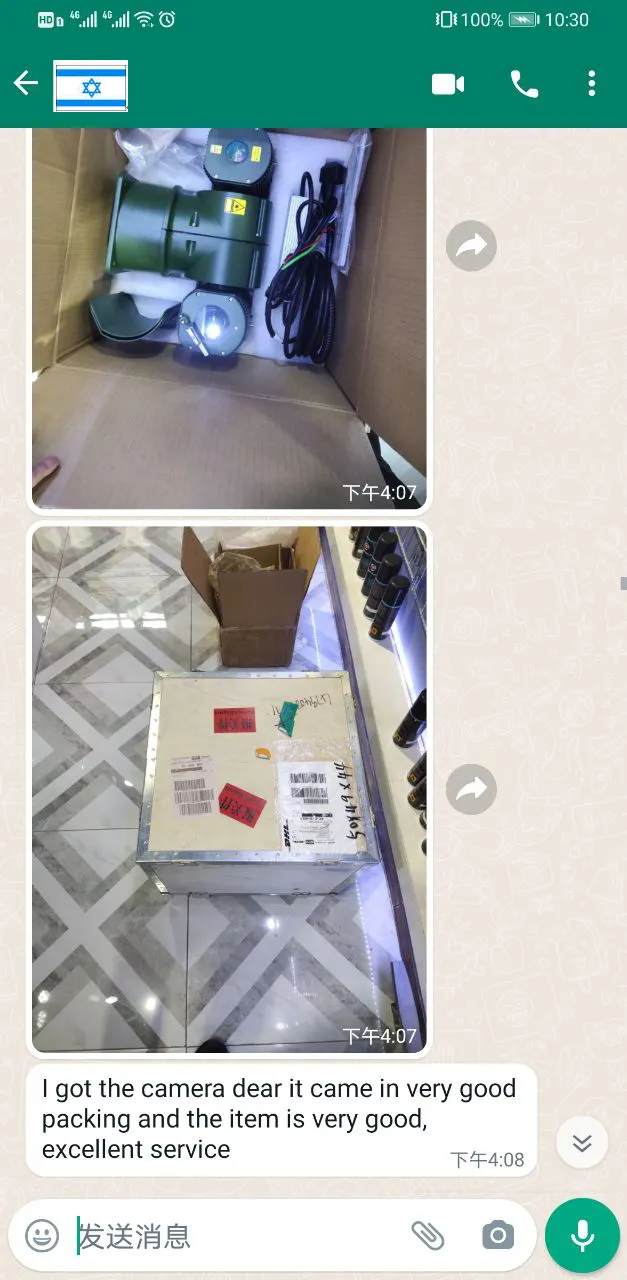

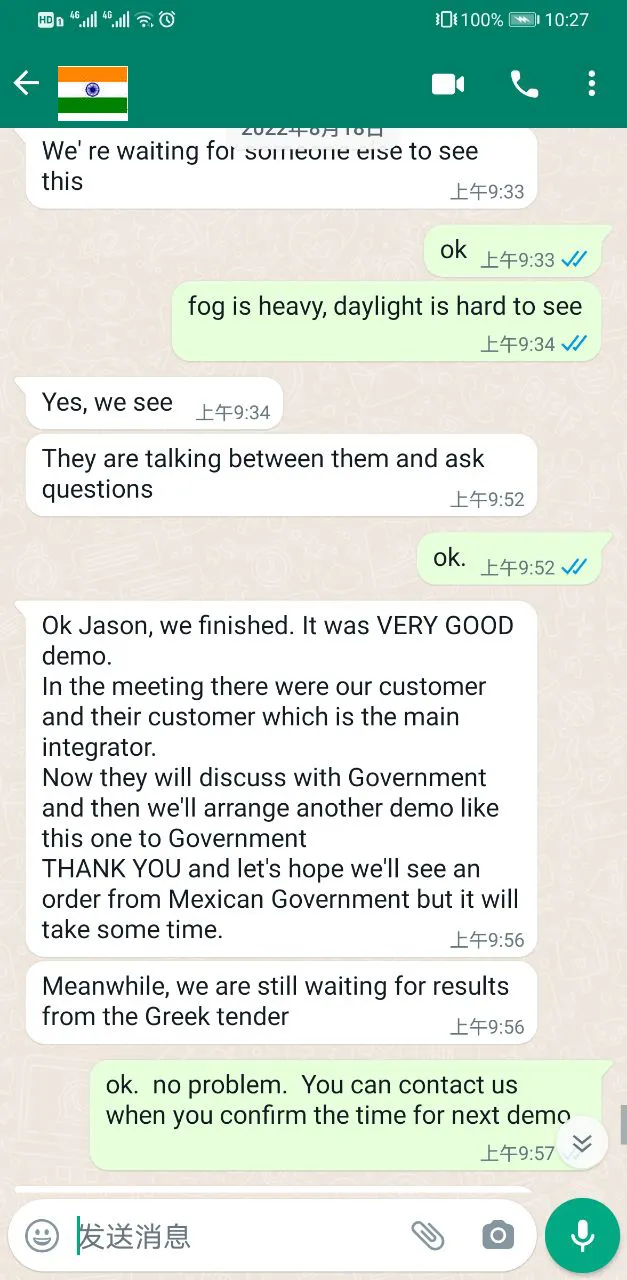

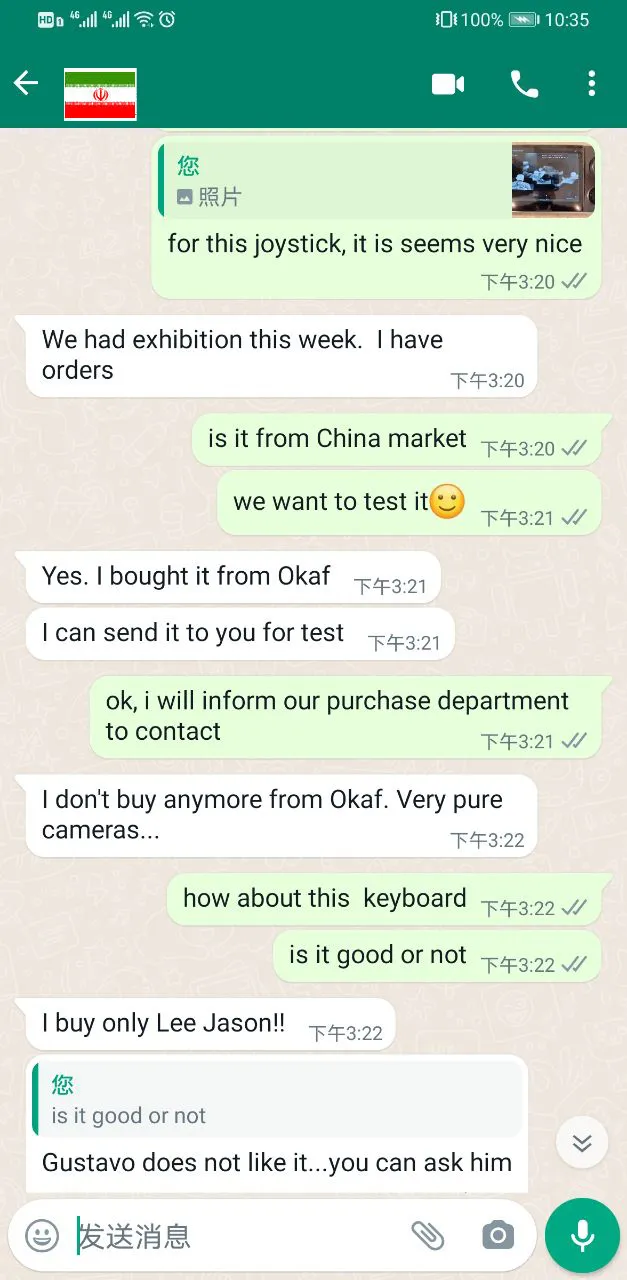

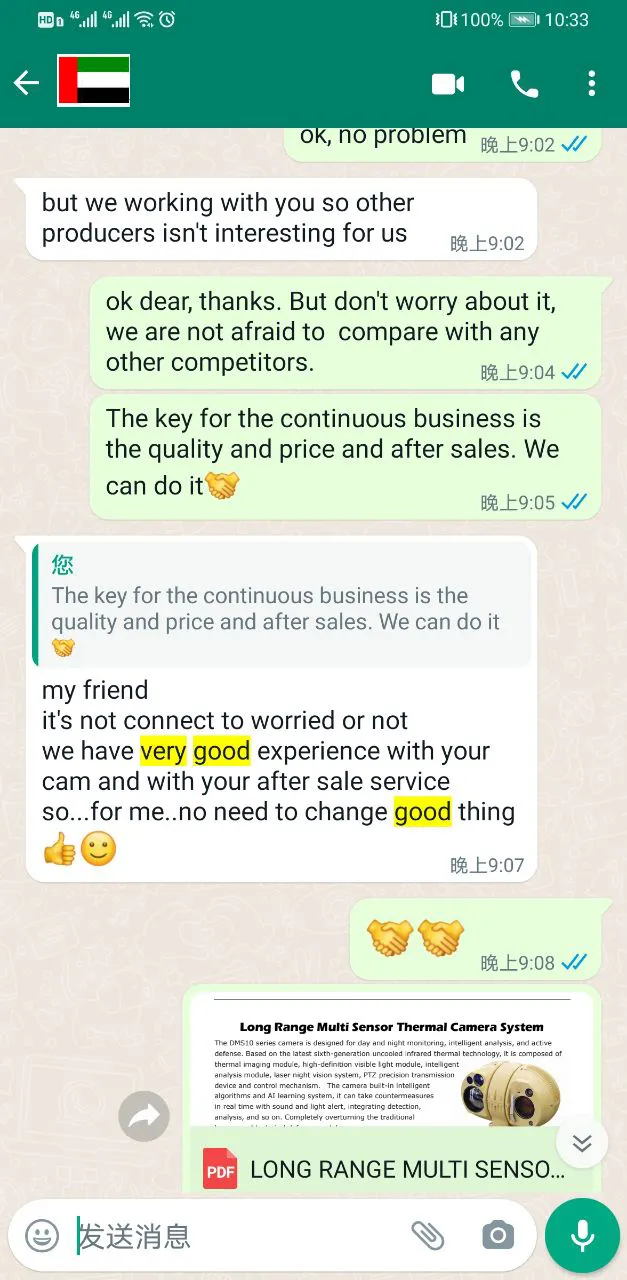

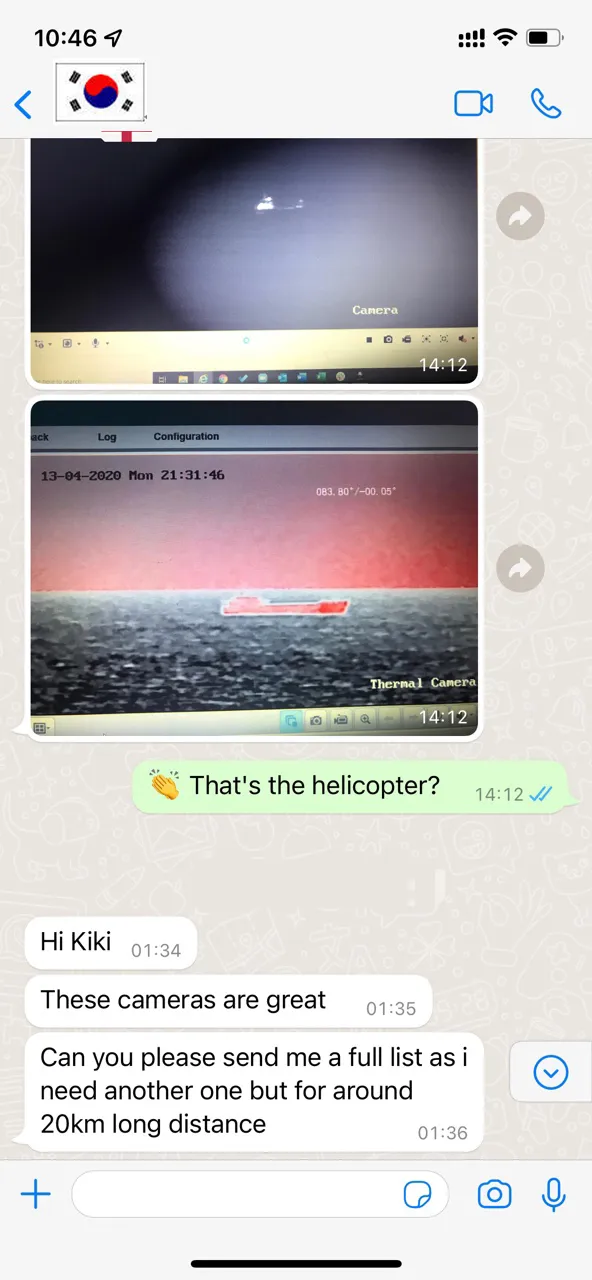

Customer Feedback

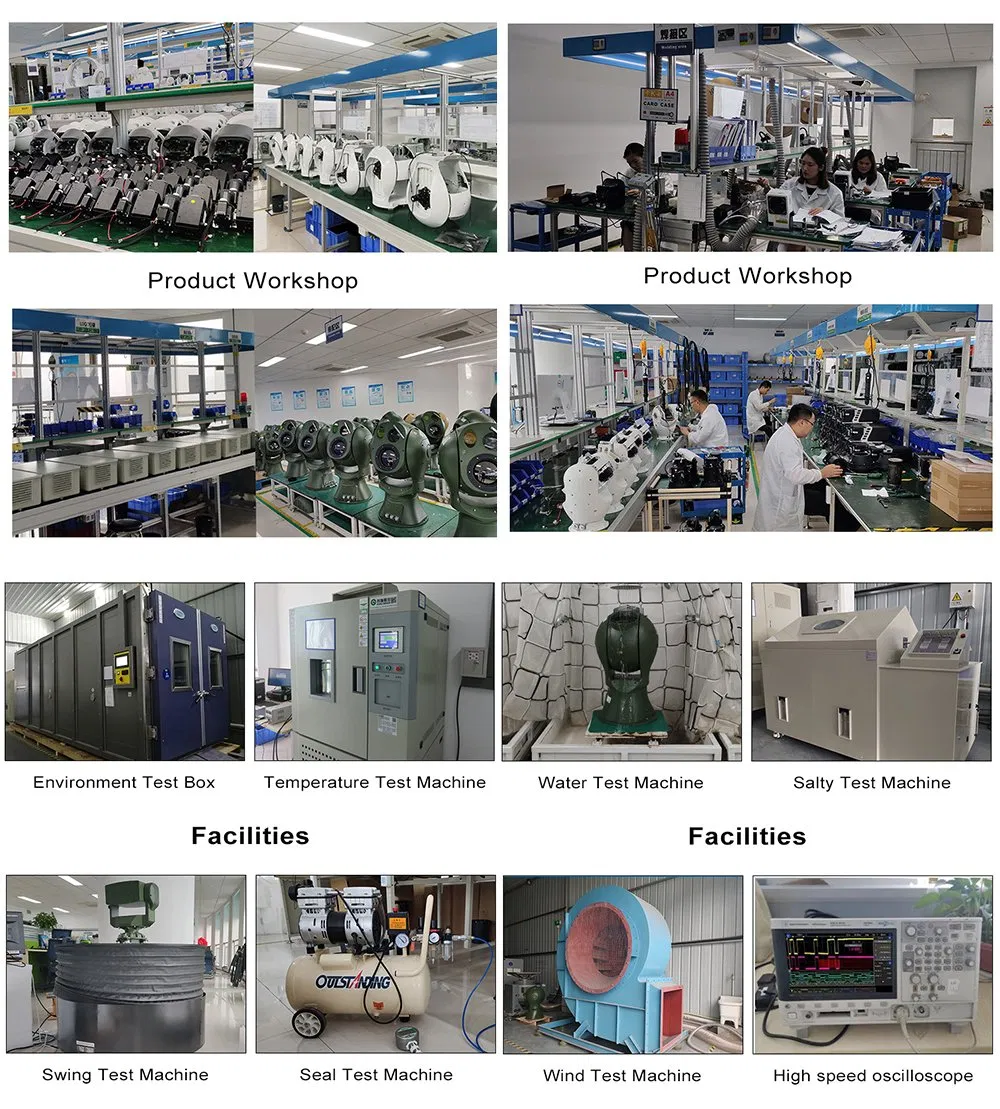

Technical Capability

Our core R&D team focuses on laser imaging, infrared thermal imaging detection, and tracking technology research. We specialize in night vision and multispectral imaging technology, utilizing artificial intelligence-based image analysis to provide comprehensive optoelectronic system solutions for complex environments.

Solutions cover border and coastal defense, anti-UAV operations, intelligent transportation, forest fire prevention, environmental protection, and marine industries. Our products are recognized for excellent performance and reliable quality in all-weather conditions.

Frequently Asked Questions

What is the maximum detection range for large targets?

The system can detect large vessels (20m x 5m) up to 70km and recognize them at distances up to 35km.

Can this camera operate in total darkness or heavy fog?

Yes, the MWIR cooled thermal imaging camera is specifically designed to provide high-definition monitoring in total darkness and through foggy or rainy conditions.

Is the platform protected against seawater corrosion?

Yes, the device features an aluminum alloy housing with specialized anti-corrosion and anti-seawater paint, making it ideal for coastal and marine environments.

Does the system support automatic target tracking?

Yes, it includes an integrated auto-tracking function and supports up to 255 presets and 8 patrol paths.

What is the environmental durability rating?

The system is rated IP66 for dust and water resistance and can operate in temperatures ranging from -30ºC to +60ºC.

What imaging sensors are integrated into this platform?

The platform combines a 2-megapixel visible HD camera with 50X optical zoom, a cooled MWIR thermal camera, and a 1570nm laser range finder.
