Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
1 / 5
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance

Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

📋

Basic Info.

Model NO.
SHR-WHLV3020TIR185R
Type
IP Camera
Sensor
CMOS
Kind
Electric or Auto Focusing Lens
Certification
CE, FCC, RoHS, ISO9001
Feature
Waterproof, High Definition, Auto BLC
Thermal Distance
10km
Protection Grade
IP66
Night Vision
3km
Day Vision
5km
Origin
China
Pan/Tilt
PTZ Heavy-Duty
🔍

Product Description

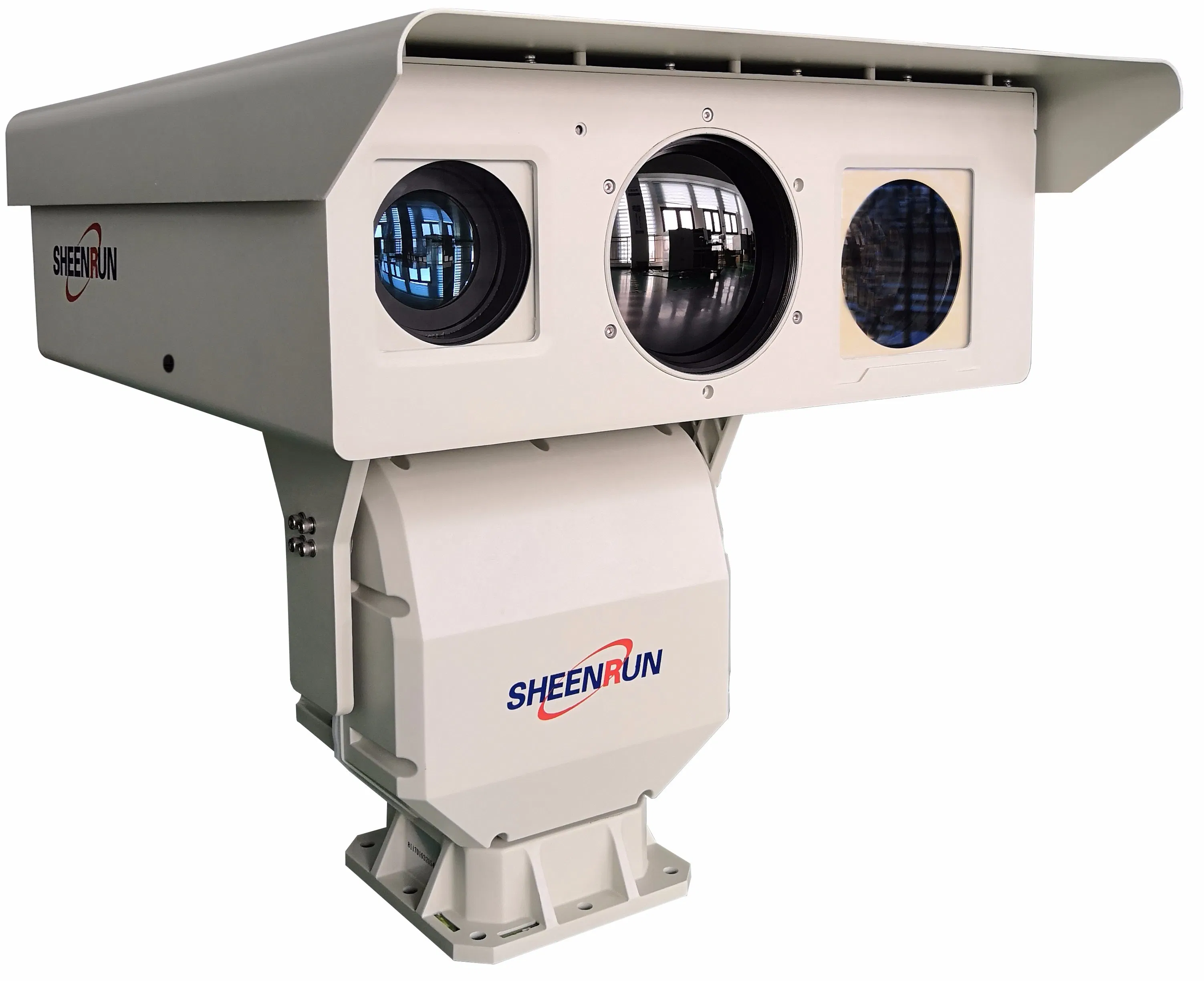

Long Range Multi-sensor PTZ Thermal Camera System
Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera
Operating Distance Visible light (Night) 3000m
Visible light (Day) 5000m
Thermal Imaging Detection Distance Human: 4320m / Vehicle: 11880m
Recognition Distance Human: 1080m / Vehicle: 2970m
Identification Distance Human: 540m / Vehicle: 1440m
Visible Lens Focal length 12.5~750mm
Visible Camera Sensor type 1/1.8" Progressive Scan CMOS
Laser Illuminator Power / Wave length 20W / 810nm
Infrared Lens Focal length 36~180mm
Thermal Camera Detector type Uncooled VOx microbolometer (324×256)
Pan-tilt Rotation Horizontal 360° continuous, Pitch -60°~+20°
Environment Working Temp / Grade -25ºC~+55ºC / IP66
Physical Weight / Power 45kg / ≤170W
Thermal Imaging Device Side View Thermal Imaging Device Front View Thermal Imaging System Details
❓

Frequently Asked Questions

What is the maximum thermal detection range for vehicles?
The system can detect vehicles at a distance of up to 11,880 meters using its high-performance thermal sensor.
Does this camera support night vision monitoring?
Yes, it features a 3km night vision range and a 5km day vision range for comprehensive long-distance surveillance.
Is the system protected against harsh outdoor weather?
The camera is rated IP66 waterproof and weatherproof, designed to operate in temperatures ranging from -25ºC to +55ºC.
What type of thermal sensor does this system use?
It utilizes an uncooled VOx microbolometer focal plane array with effective pixels of 324×256.
Can the pan-tilt head rotate continuously?
Yes, the heavy-duty PTZ supports 360° continuous horizontal rotation and a pitching range of -60° to +20°.
What is the power consumption of the whole unit?
The whole machine has a maximum power consumption of ≤170W and operates on an AC24V power supply.
