Vuelo Camera
1 / 5
| Model NO. | CV256 |
| Type | Normal |
| Certification | CE |
| Feature | High Definition |
| Resolution | 256*192 / 384*288 / 640*512 |
| Pixel Pitch | 12μm |
| Power Supply Input | 4.5-18V |
| Dimension | 21mm*21mm |

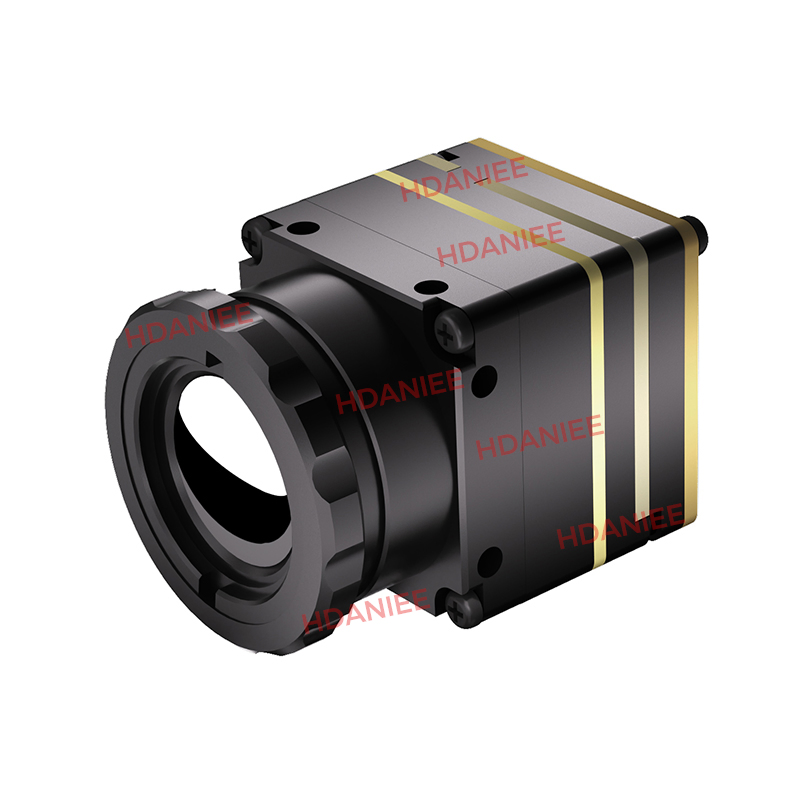

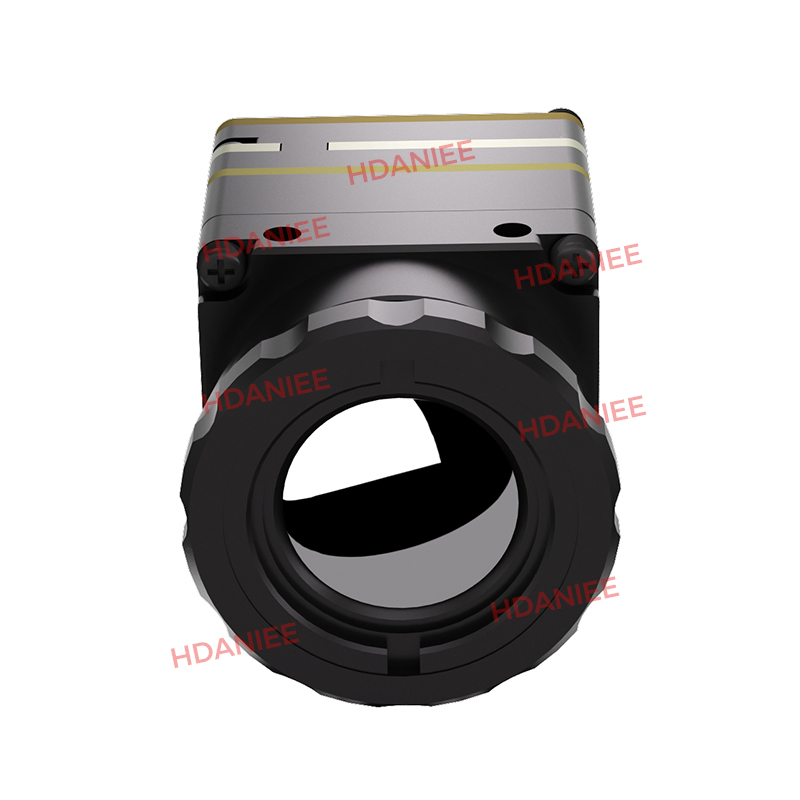

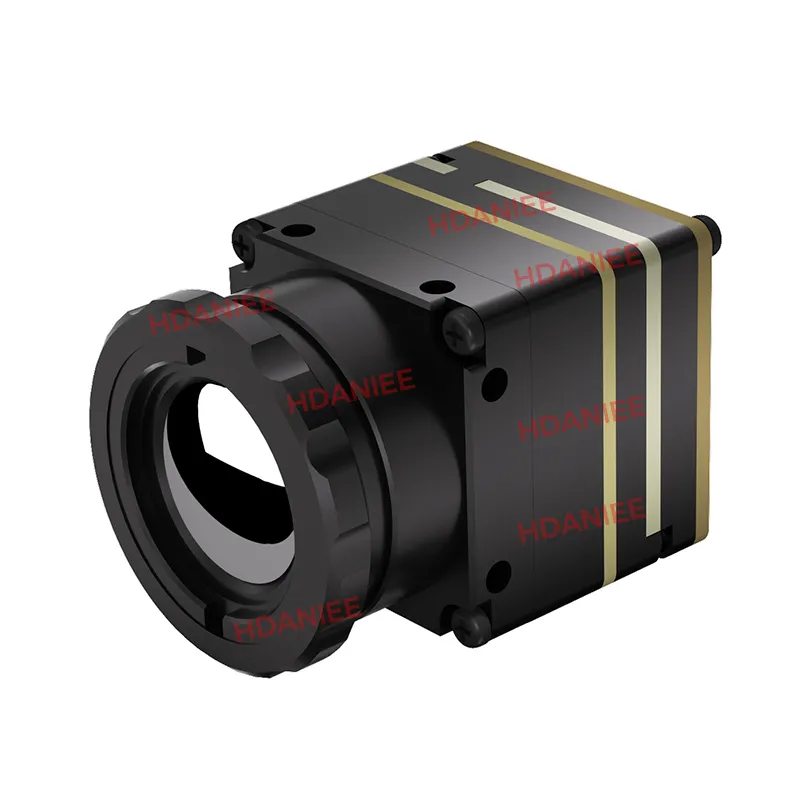

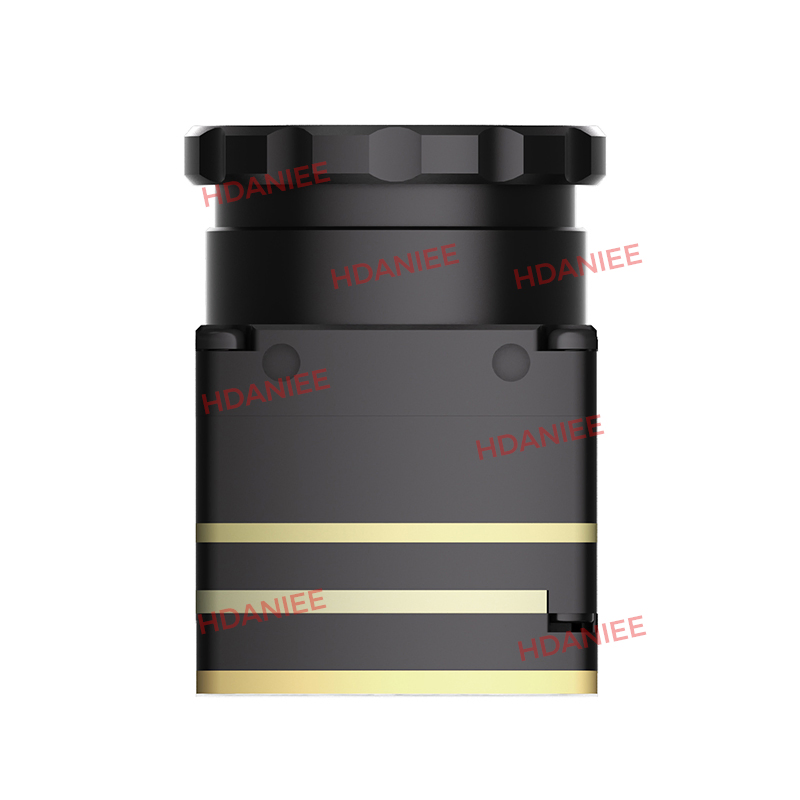

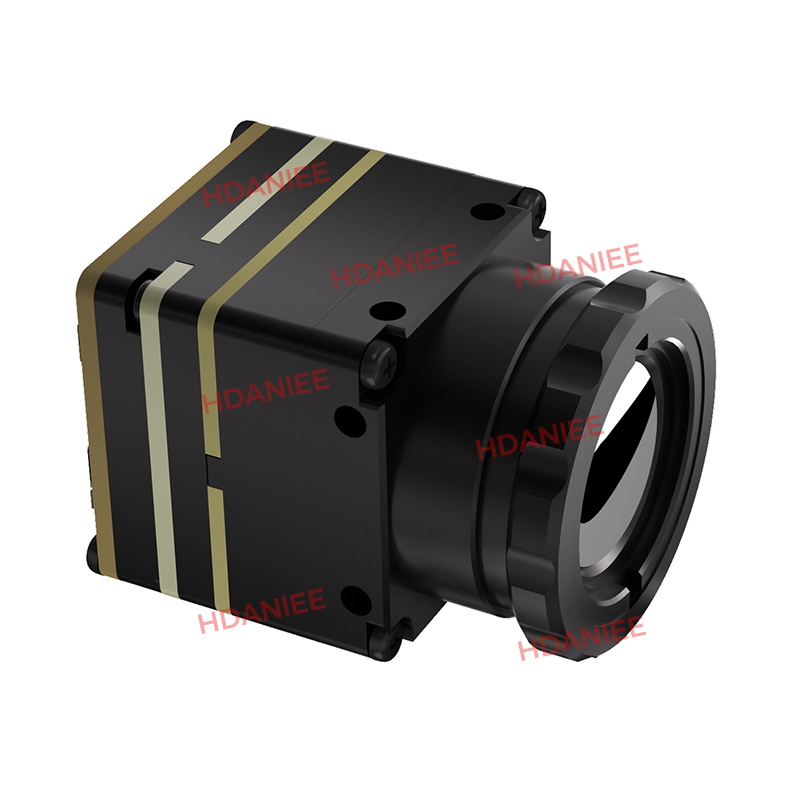

The CV series uncooled infrared module features optional resolutions of 640x512, 384x288, and 256x192, using high frame rate 12um WLP package detector, and the second-generation self-developed infrared ISP chip (LY Series).
| Package Size | 9.00cm * 9.00cm * 5.00cm |
| Gross Weight | 0.080kg |
| Transport Package | Carton |

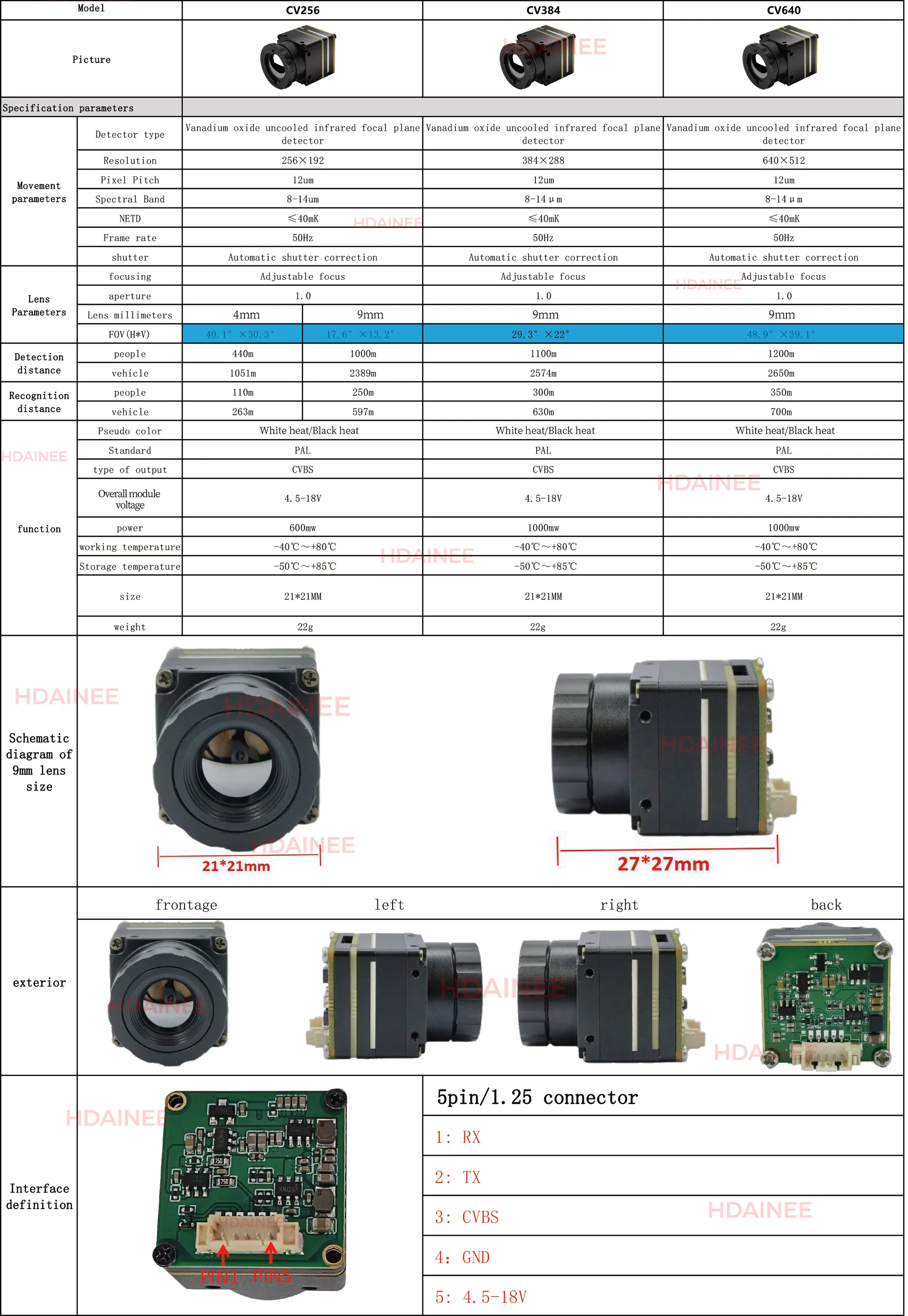

The CV series offers three optional resolutions: 640x512, 384x288, and 256x192 to meet different application requirements.
The 12μm pixel pitch allows for a more compact sensor design while maintaining high sensitivity, enabling smaller and lighter module dimensions (SWaP optimization).
Shutter-less technology ensures that the video stream remains smooth and continuous without the periodic image freezing commonly found in traditional thermal cameras during calibration.
Yes, it is specifically designed for drones, featuring CVBS/Analog output and a lightweight profile (21mm*21mm) ideal for nighttime FPV and search-and-rescue operations.
The module supports a wide power supply input range from 4.5V to 18V, making it compatible with various battery configurations.
Yes, the module is CE certified, ensuring it meets the required safety and environmental standards for international markets.
