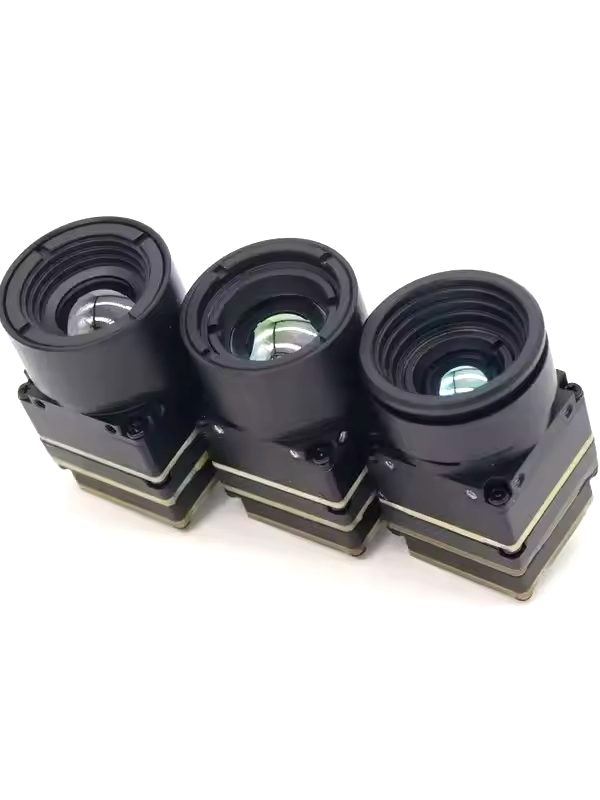

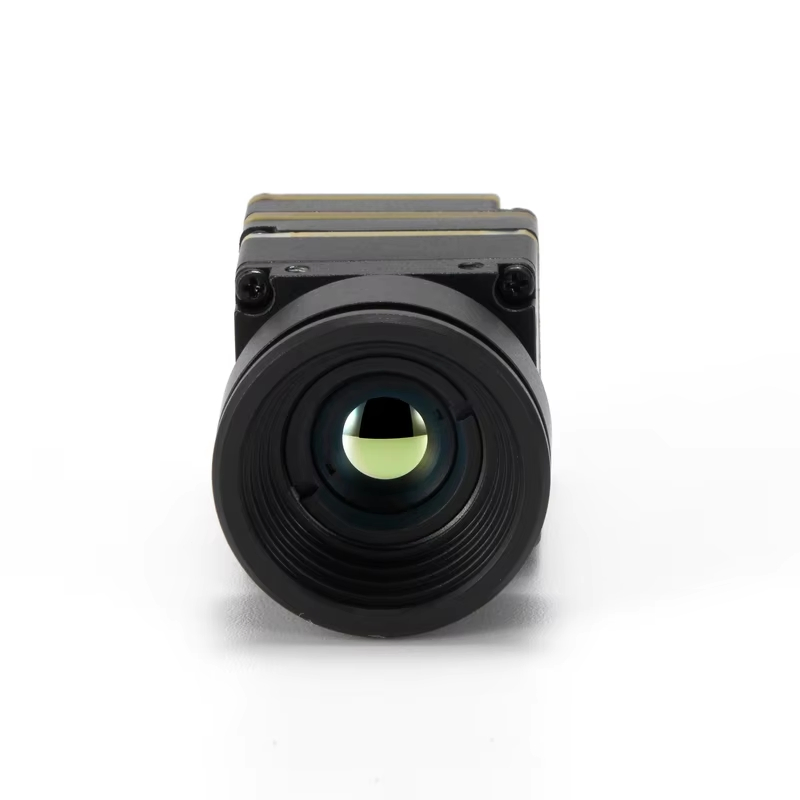

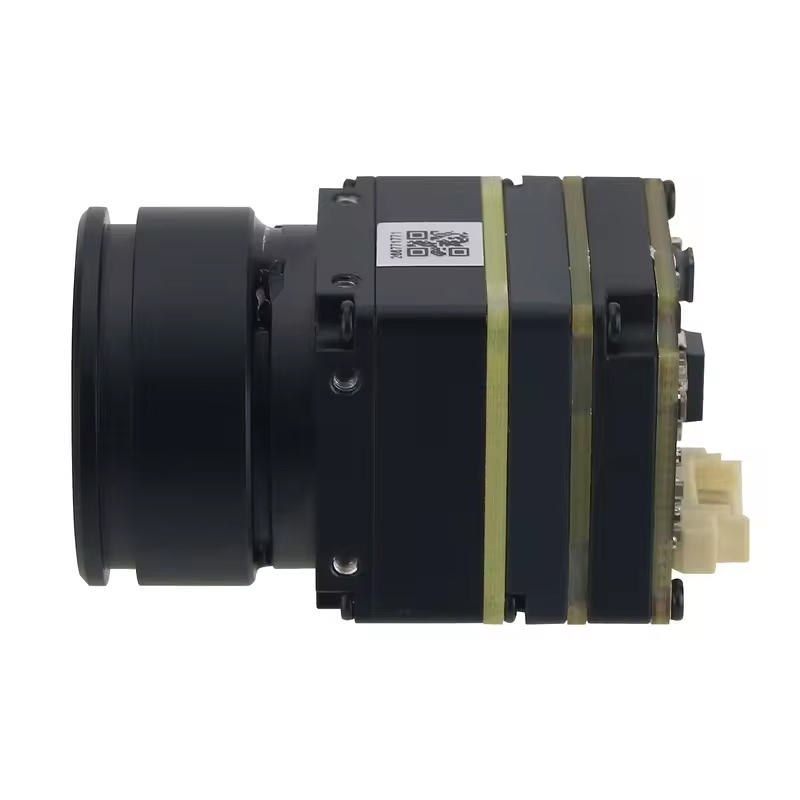

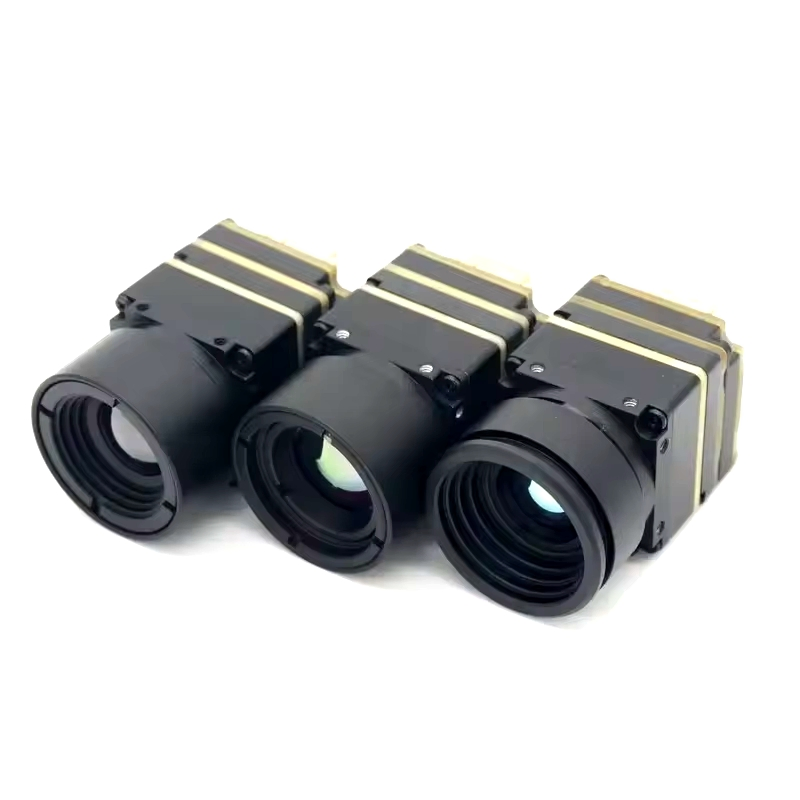

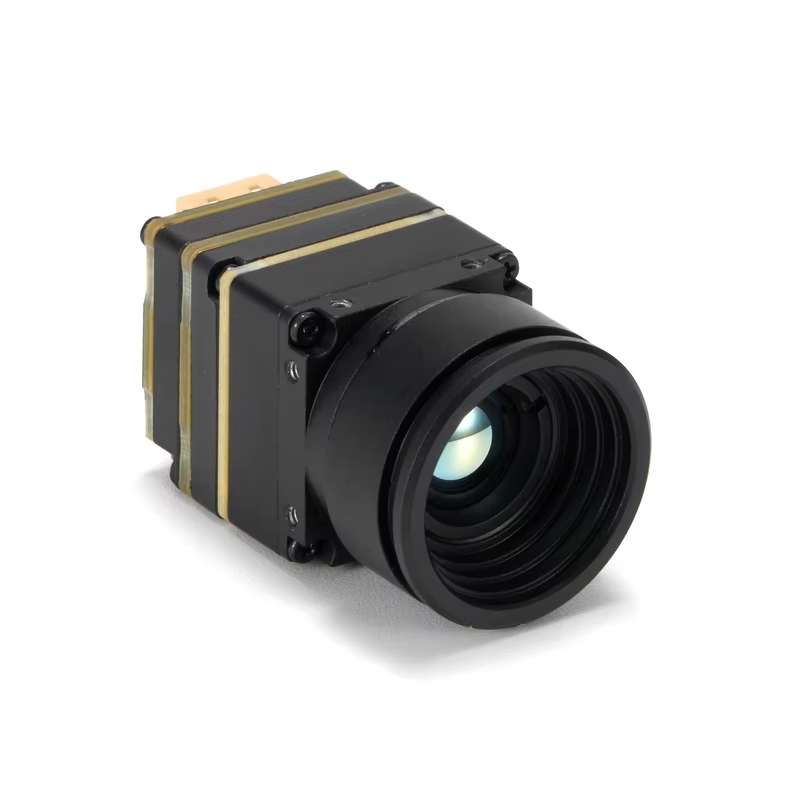

CVBS Analog Fpv Drone Thermal Imaging Camera Uncooled Long Wave Infrared Camera for Fpv Racing

1 / 5

CVBS Analog Fpv Drone Thermal Imaging Camera Uncooled Long Wave Infrared Camera for Fpv Racing

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

XK-FPV Thermal Camera

Pixels

12um

Max. Resolution

256*192

Shape

Fpv Drone Camera

Sensor Type

CMOS

Function

Night Vision, Peeping Prevention

Focus Range

1000m

Camera Lens

Uncooled Infrared Focal Plane Detector

Signal

Simulation Camera

Transport Package

Carton

Specification

6*5*5

Origin

China

Production Capacity

50000piece/Year

🔍 Product Description

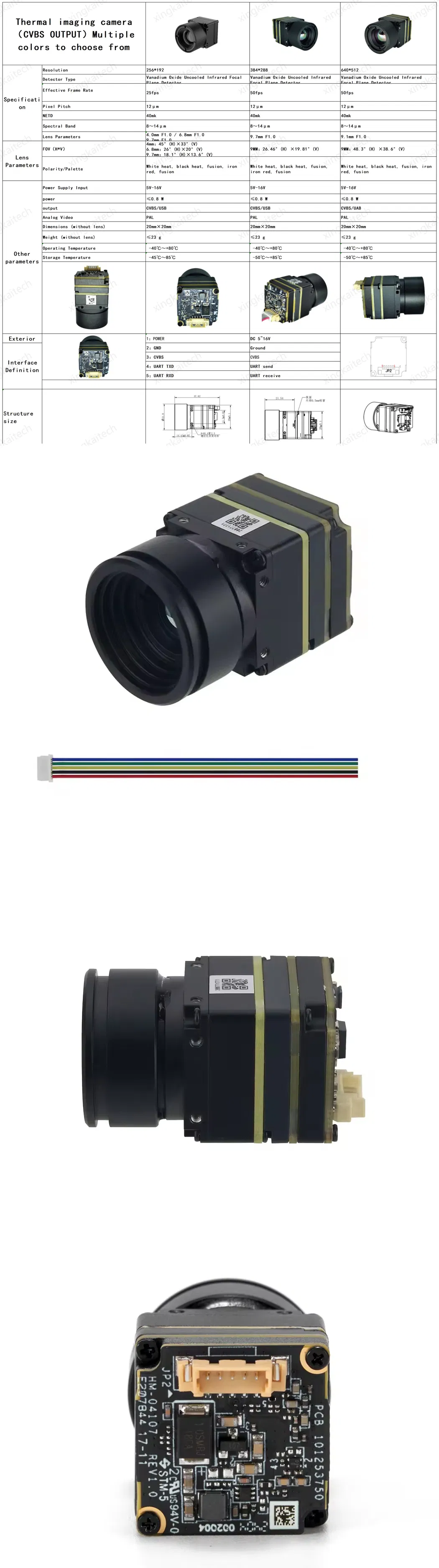

256 x 192 Specification:

✔ Resolution: 256 x 192

✔ Detector type: Vanadium oxide uncooled infrared focal plane detector

✔ Effective frame rate: 25fps

✔ Pixel pitch: 12um - NETD: 40mk

✔ Spectral band: 8 - 14um

✔ Lens parameters: 4.0mm F1.0 / 6.8mm F1.0 / 9.7mm F1.0

✔ FOV (HxV): 4mm: 45°x33°; 6.8mm: 26°x20°; 9.7mm: 18.1°x13.6°

✔ Polarity/palette: White heat, black heat, fusion, iron red

✔ Power supply: 5V - 16V (≤0.8W)

✔ Output: CVBS / Analog video: PAL

✔ Operating Temp: -40ºC ~ 80ºC

Specification	Standard Model	Mid-Range Model	High-End Model
Resolution	256*192	384*288	640*512
Frame Rate	25fps	50fps	50fps
Pixel Pitch	12um	12um	12um
NETD	40mk	40mk	40mk
Dimensions	20mm x 20mm	20mm x 20mm	20mm x 20mm

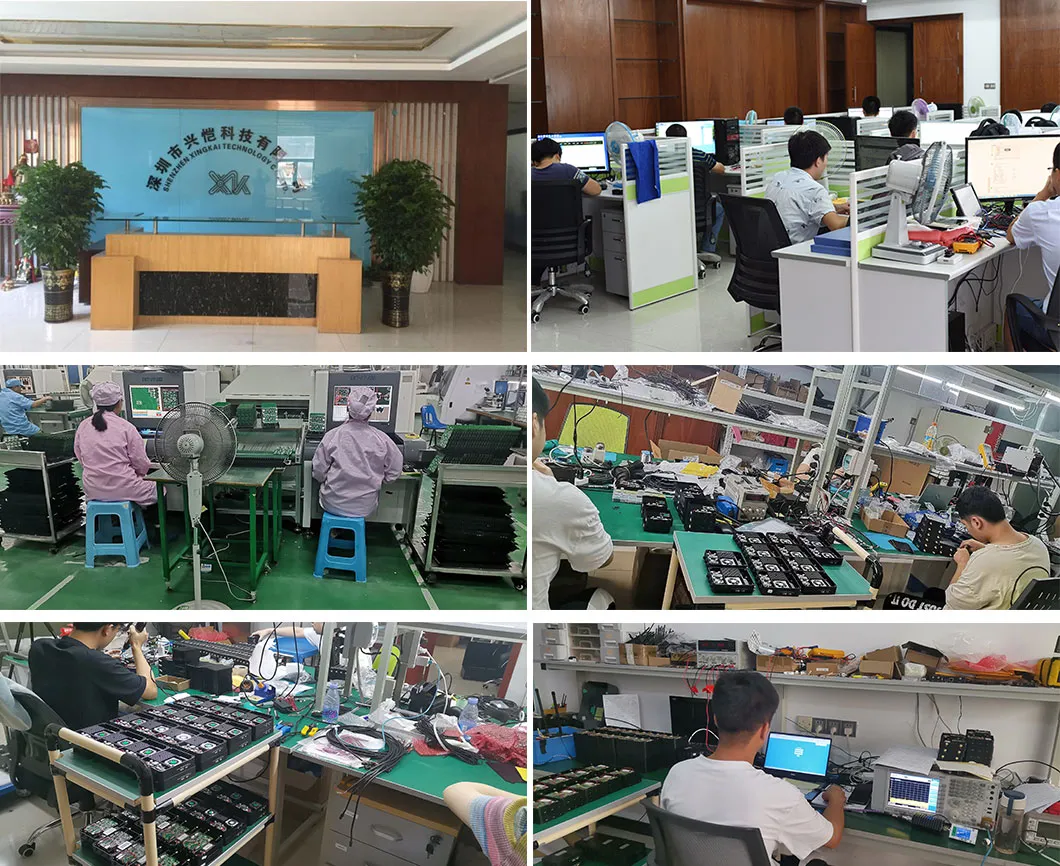

🏢 Company Profile & Facilities

Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for broadcast, surveillance, and defense industries. The R&D team has over 20 years of professional technical experience in advanced networking and image processing.

📜 Certifications & Partners

📦 Packaging & Shipping

Packing: Professional shipping box for maximum protection.

Ports: Yantian, Shekou or Hong Kong.

Frequently Asked Questions

❓ Who are we?

We are a Global leading high-tech enterprise specializing in R&D and production of RF wireless communication systems and advanced thermal imaging solutions.

❓ Do you support OEM & ODM?

Yes, we provide professional OEM/ODM services to offer the best customized solutions for your specific market needs.

❓ What is the typical delivery time?

Small quantity orders are usually dispatched within 2-5 working days. Bulk orders are typically shipped within 10-15 days.

❓ How do you guarantee product quality?

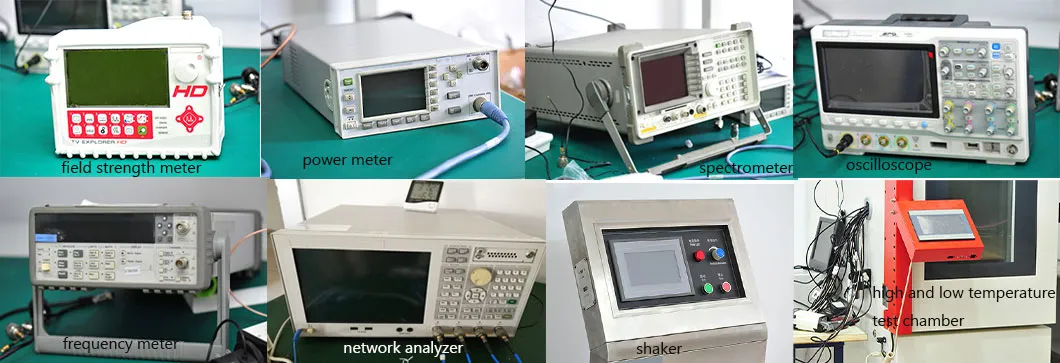

All systems undergo rigorous testing before shipment, including vibration, functional interface, RF indicators, temperature variations, and field trials.

❓ What are the accepted payment terms?

Our usual payment terms are T/T and Western Union for order processing.

❓ What products are included in your range?

Our range includes MIMO mesh networks, tactical radios, software defined radios, tactical data links, IP encoders, and thermal imaging systems.
