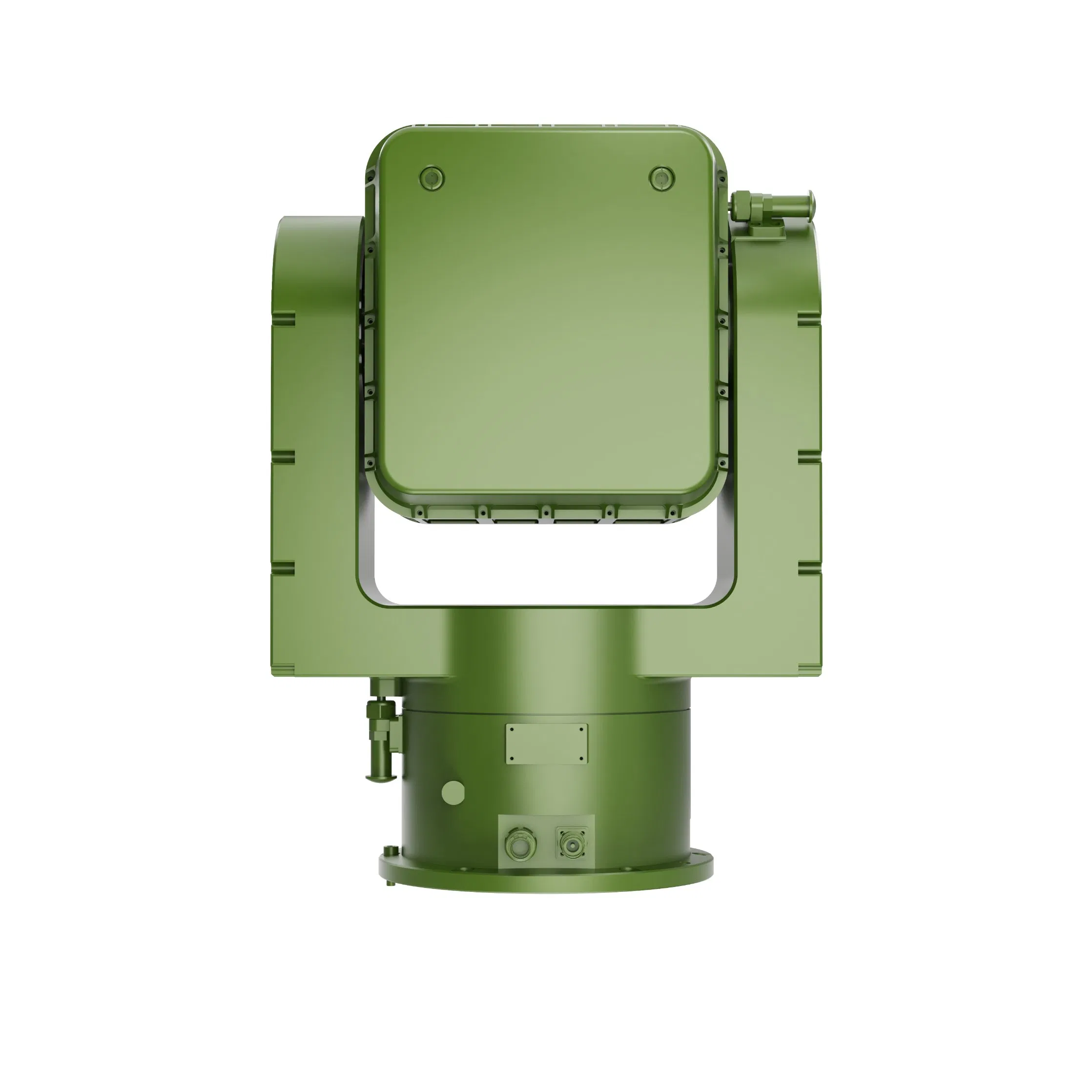

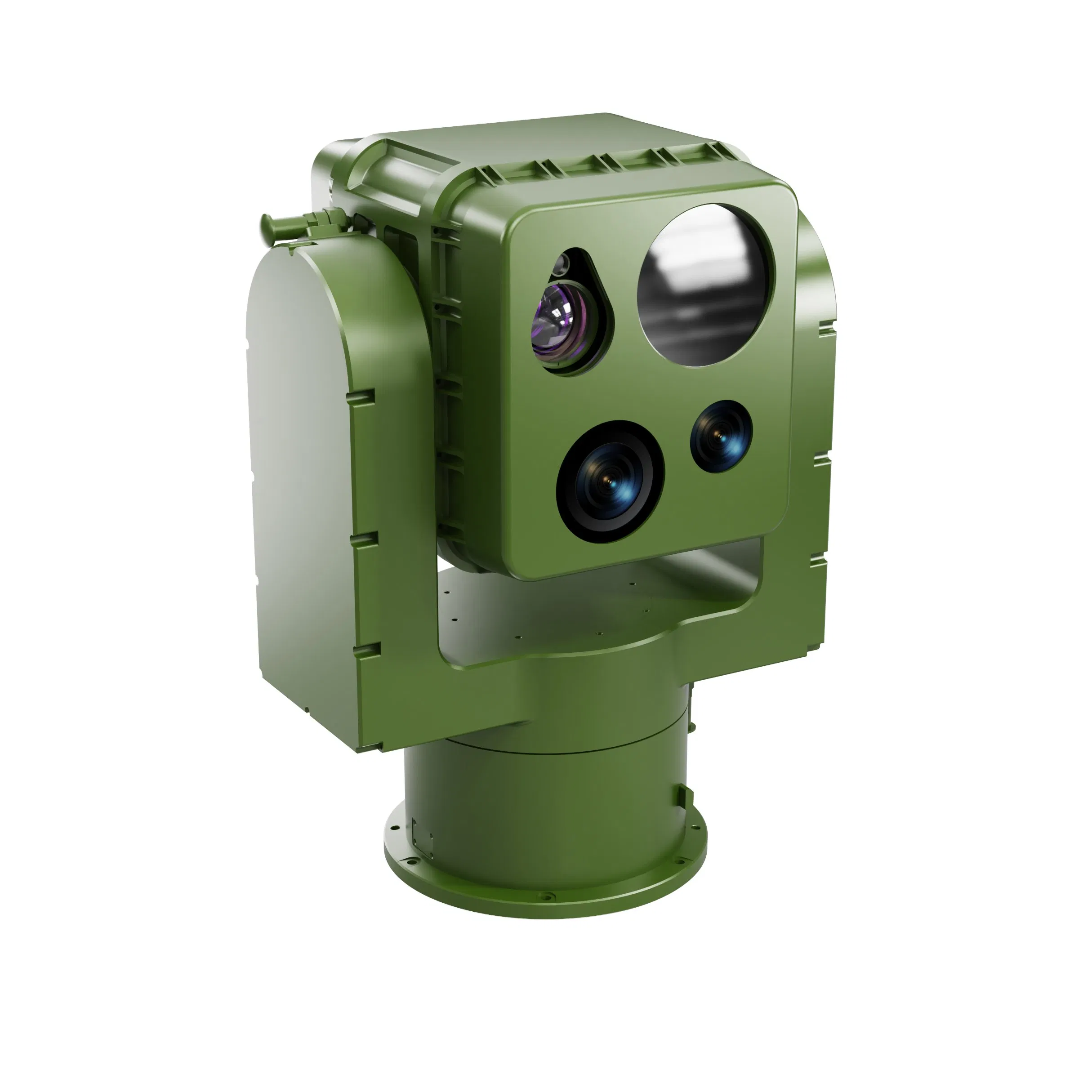

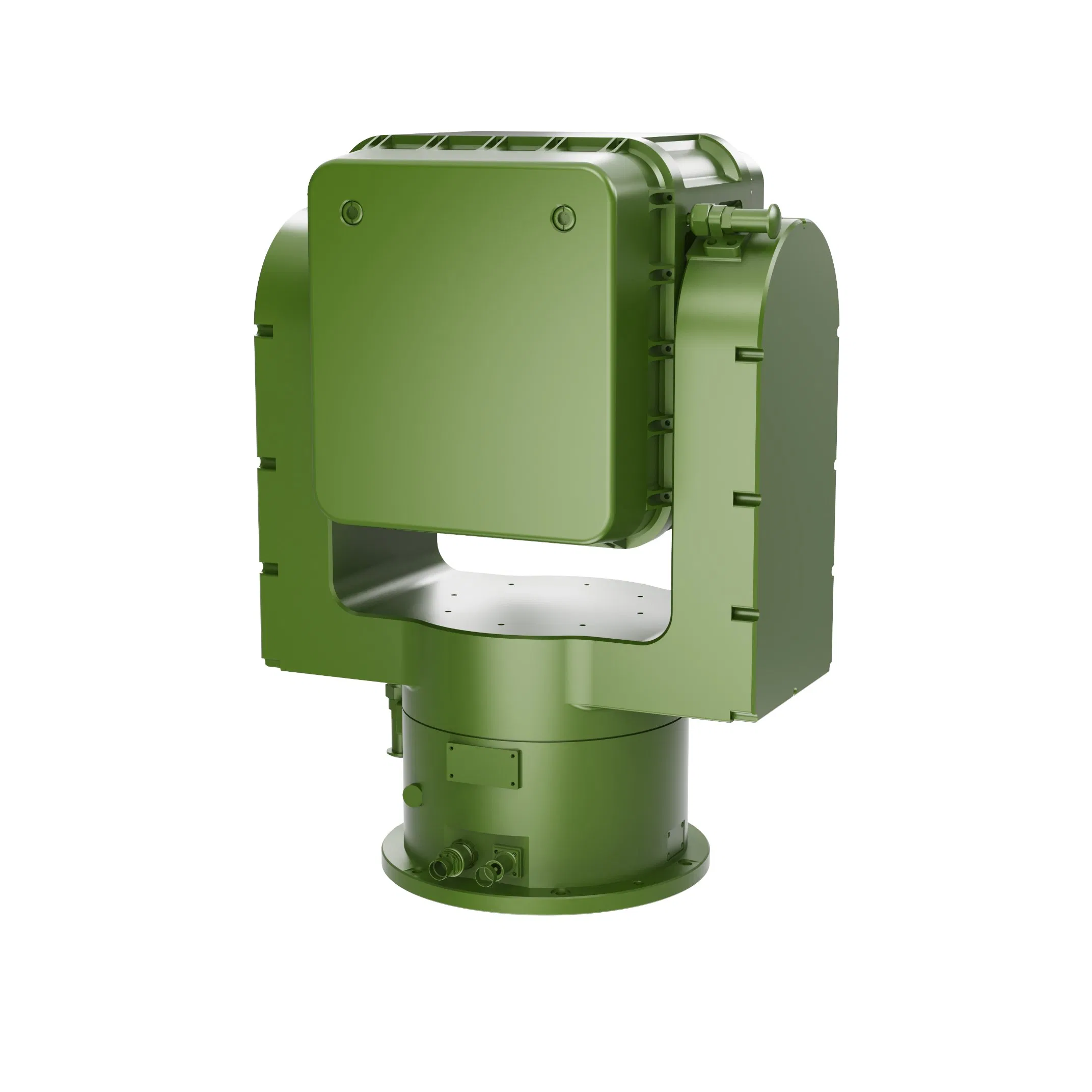

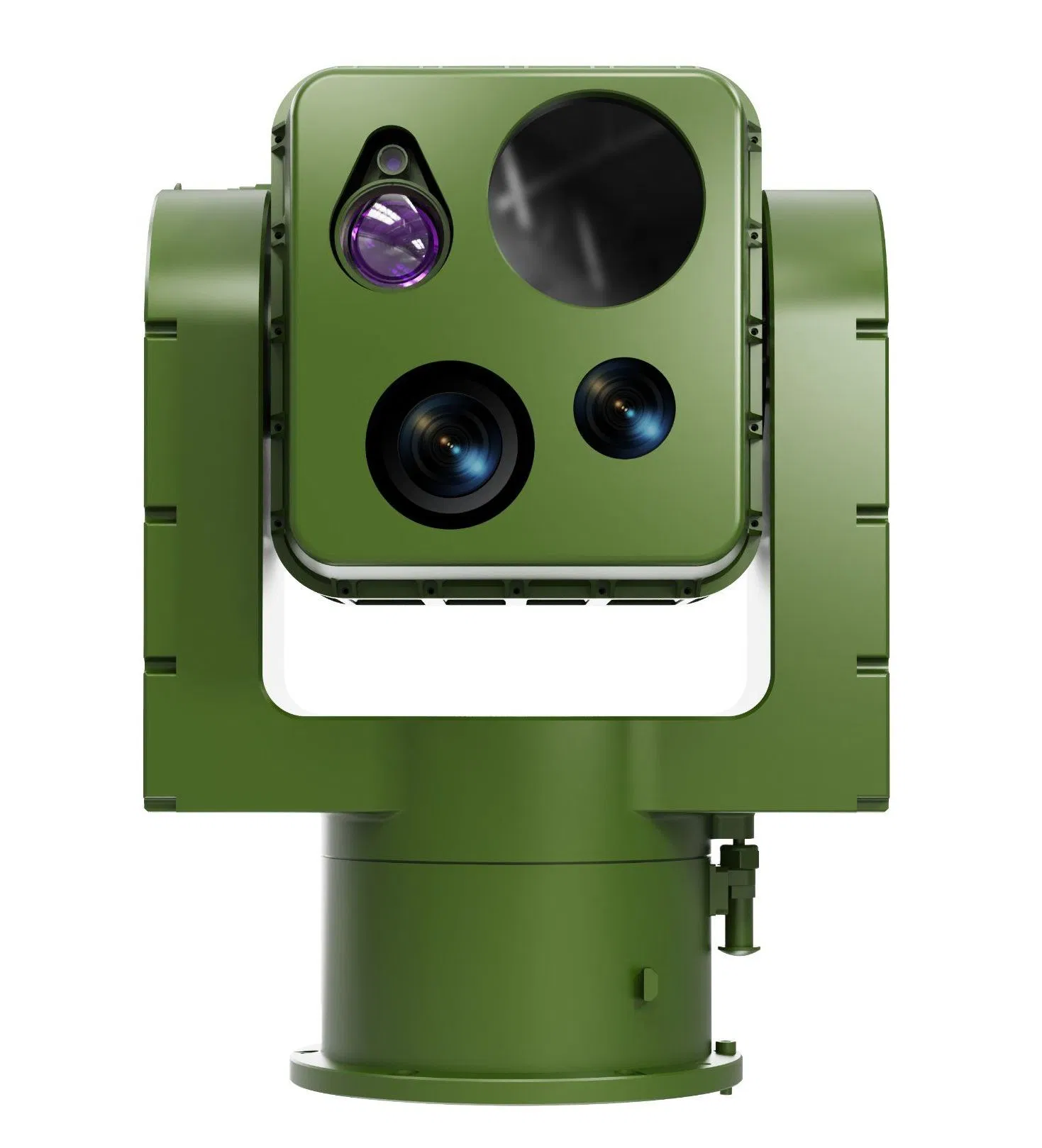

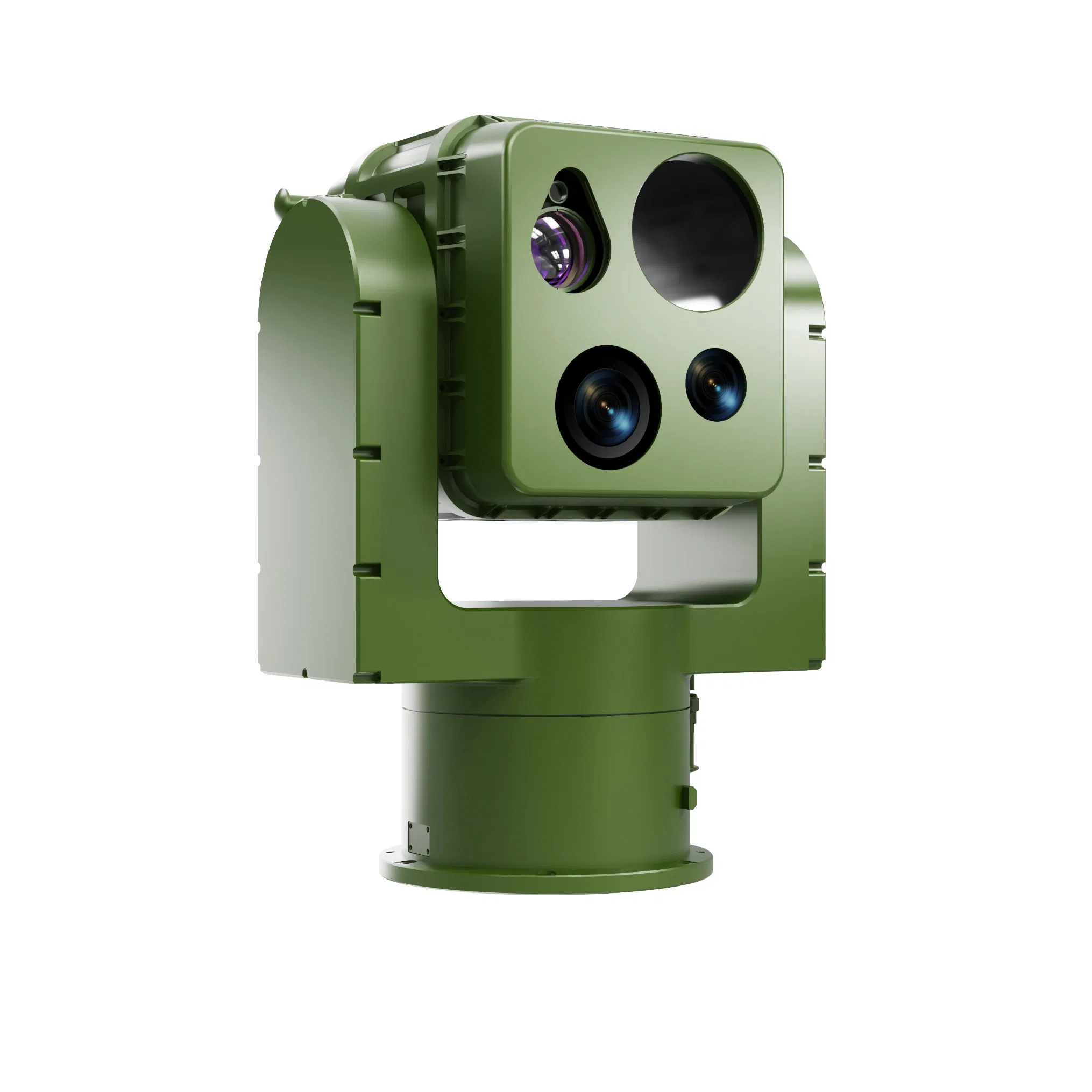

Advanced Thermal Imaging Camera with Four Sensors and Dual-Axis Design

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

📋Basic Information

Model NO.

ZT068FA

Type

IP Camera

Sensor

CMOS

HDMI Format

AVI

Resolution

650tvl

Feature

Waterproof / Weatherproof

Effective Distance

≧30m

Sensor Size

1/3 inch

Origin

China

HS Code

8525801390

🔍Product Overview

The Two-Axis Four-Optical Turret is an advanced surveillance system composed of a cooled thermal imager, visible light camera, laser rangefinder, and a pitch/azimuth two-axis stabilized structure. It integrates a high-precision gyroscope, servo control circuits, and an image tracker for superior performance.

Deployment Scenarios: Unmanned vehicles, armored vehicles, unmanned ships, and sentry towers. It is ideal for day and night reconnaissance, surveillance, and high-precision target positioning.

Capable of rapid scanning over large areas or detailed close-range inspection, this turret makes operations in inaccessible or dangerous areas more efficient, easier, and safer. It is primarily utilized in border patrol, search and rescue, and forest fire prevention.

✨Key Features

Automatic recognition and tracking of typical targets
30x optical zoom in the visible spectrum
Dual-band detection (Infrared and Visible Light)
Integrated laser rangefinding capability
Self-diagnostic and fault reporting capabilities
Stabilized aiming line against carrier disturbances
Memory tracking for reacquisition after brief loss
Target coordinate calculation via attitude info
Airtight optical cabin for environmental protection
Integrated photo and video recording

📊Technical Parameters

Visible Light Camera (Continuous Zoom)
Resolution	1920 × 1080
Focal Length	10 ~ 300 mm
Field of View	31°×17.8° ~ 1.1°×0.6°
Infrared Camera (Cooled)
Detector Type	Mid-wave Cooled Detector (640×512)
Pixel Size	15 µm
Lens Focal Length	15 ~ 300 mm
Laser Rangefinder
Maximum Range	≥10,000 m
Accuracy	±3 m
Servo Platform & System
Rotation	Azimuth: 360° continuous; Elevation: -25°~+50°
Power Consumption	Stable: ≤70W; Peak: ≤200W
Weight / Dimensions	28kg / 481.5mm × 347mm × 257mm
Operating Temp	-40ºC ~ +55ºC (Rainproof)

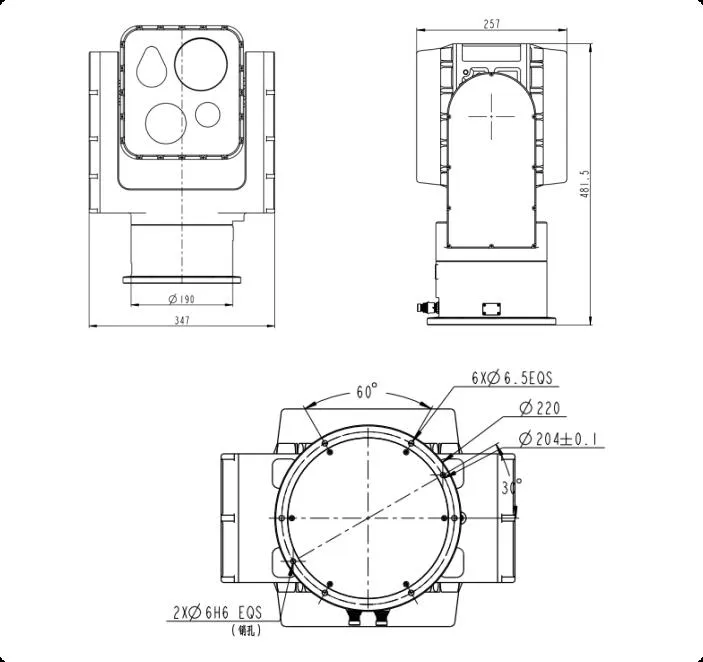

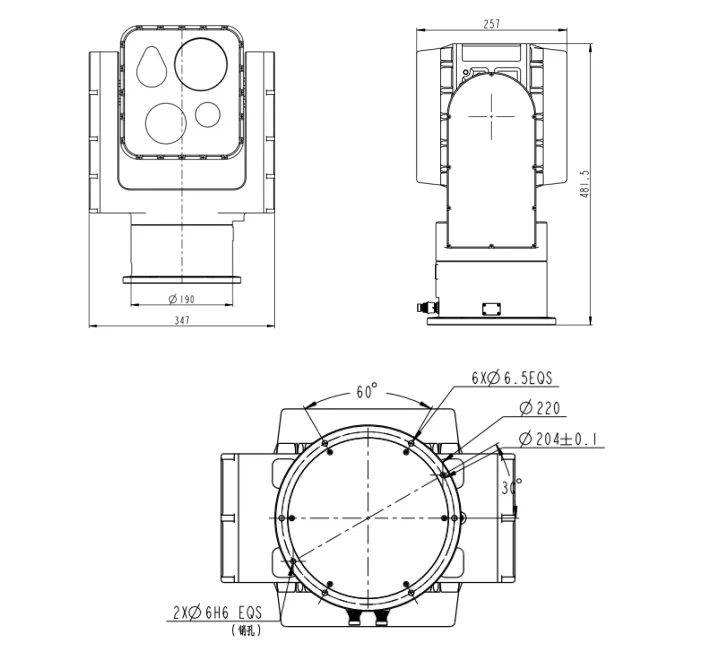

🛠️Dimensions & Mounting

❓Frequently Asked Questions

1. What are the primary applications for this optical turret? It is designed for reconnaissance, border patrol, search and rescue, and forest fire prevention, suitable for deployment on unmanned vehicles, armored ships, and watchtowers.

2. Does the system support both day and night operations? Yes, it features a dual-band system with both a continuous zoom visible light camera for daytime and a mid-wave cooled infrared camera for nighttime and low-visibility conditions.

3. How accurate is the target tracking and stabilization? The turret provides a stabilization accuracy of ≤0.3 mrad and includes automatic target tracking with memory functions to reacquire targets after temporary losses.

4. What is the maximum range of the integrated laser rangefinder? The laser rangefinder has a maximum range of ≥10,000 meters under good visibility conditions (≥12 km) with an accuracy of ±3 meters.

5. Can the turret withstand harsh environmental conditions? Yes, it is designed to operate in temperatures ranging from -40ºC to +55ºC and has a rainproof protection level with an airtight optical cabin.

6. What video interfaces are supported for integration? The system supports HDMI and 100M Ethernet (H.264) video interfaces, along with a 422/100M Ethernet control interface.
