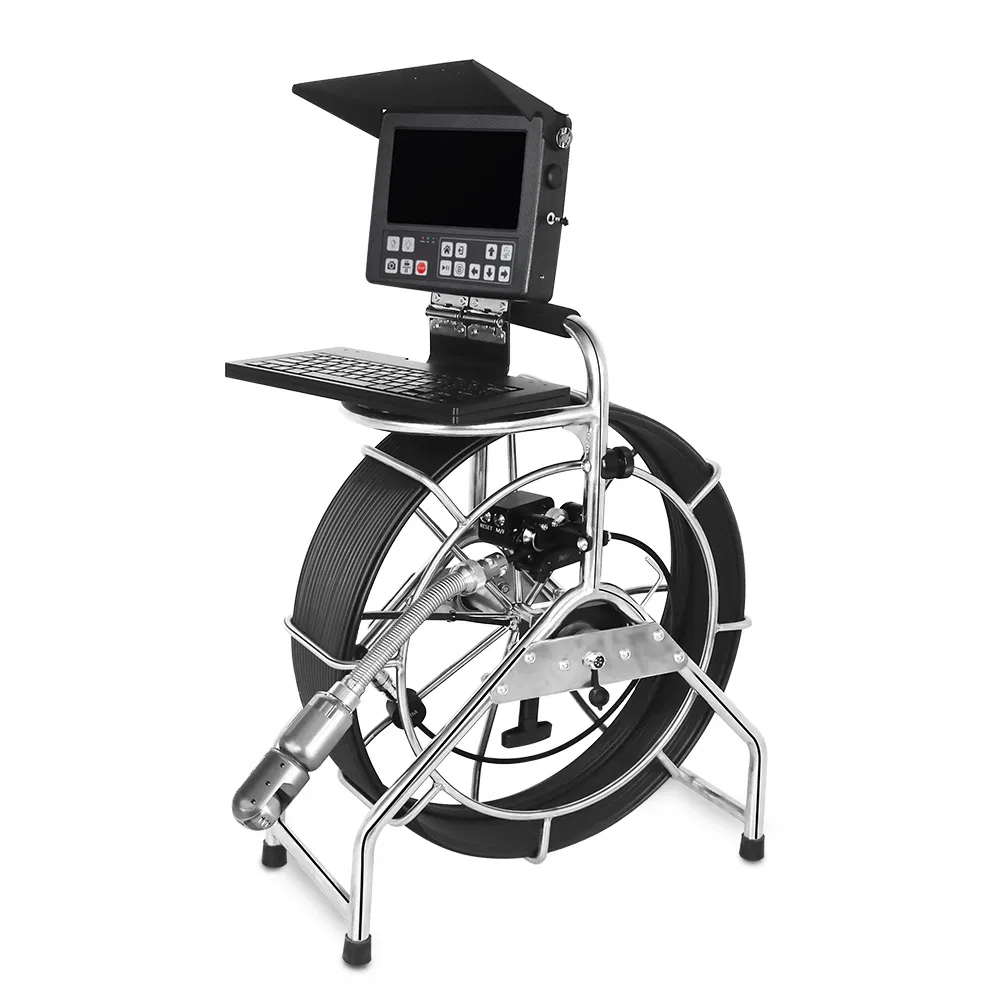

Waterproof Sewer Pipe Inspection 360 Degree Rotation Well Video Camera

1 / 5

Waterproof Sewer Pipe Inspection 360 Degree Rotation Well Video Camera

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

📋

Basic Information

Model NO.

V8-3250PTF

Type

CCTV Camera

Sensor

CMOS

HDMI Format

720P

Resolution

700tvl

Lens

Manual Focus

Certification

CE, FCC, RoHS

Feature

Waterproof, HD

Camera Dia.

50mm

Rotation

360 Degree

Waterproof

IP68

Cable Length

60m - 120m

📷

Product Description

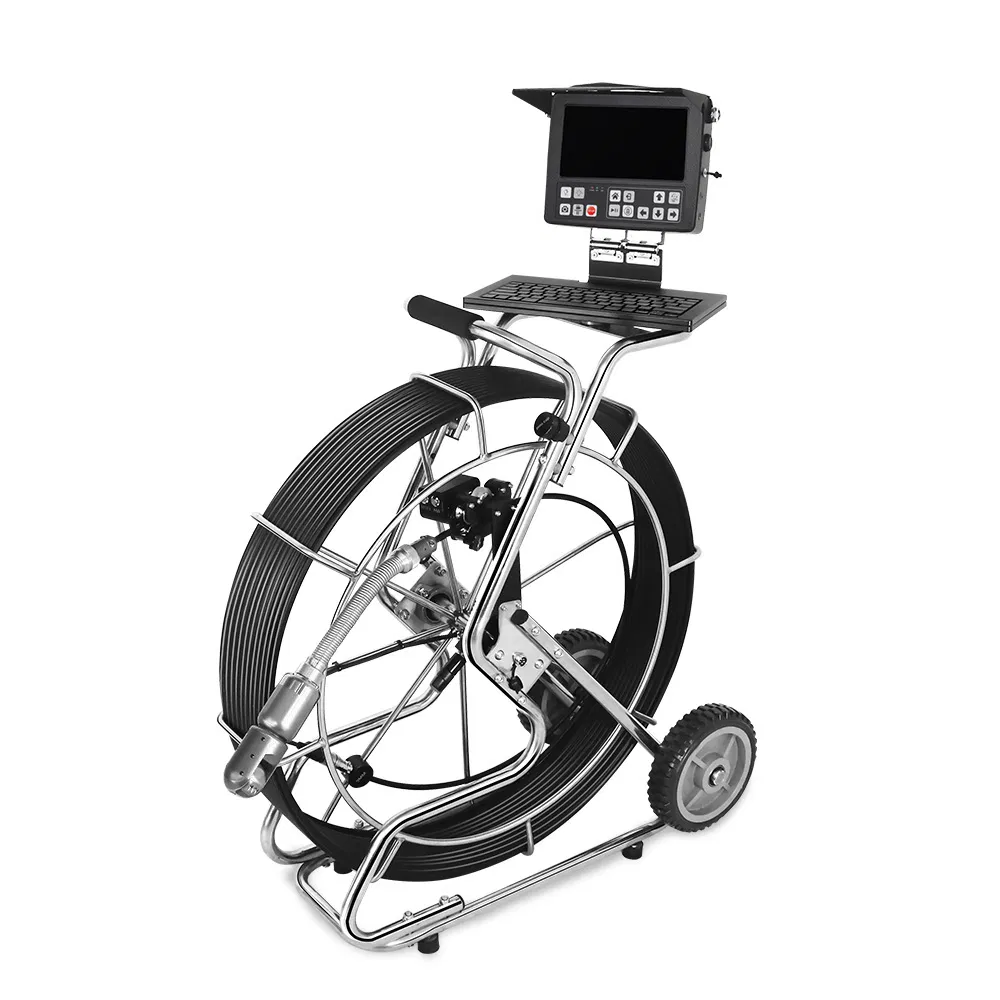

HD 50mm pan tilt rotation pipe camera with fiberglass cable.

360 degree rotation camera head, Pan 360°, Tilt 180°
1/3 CMOS, 1.3MP pixel HD camera head, waterproof up to 10 bars
8 inch IPS LCD screen, waterproof panel 1280*720 resolution
DVR control box with audio, video recording and photography function
60m to 120m Dia. 9mm fiberglass cable
USB wireless keyboard for real-time typewriting
Camera video resolution: 720P
Built-in 7000mA li-ion battery, supports over 6 hours working time

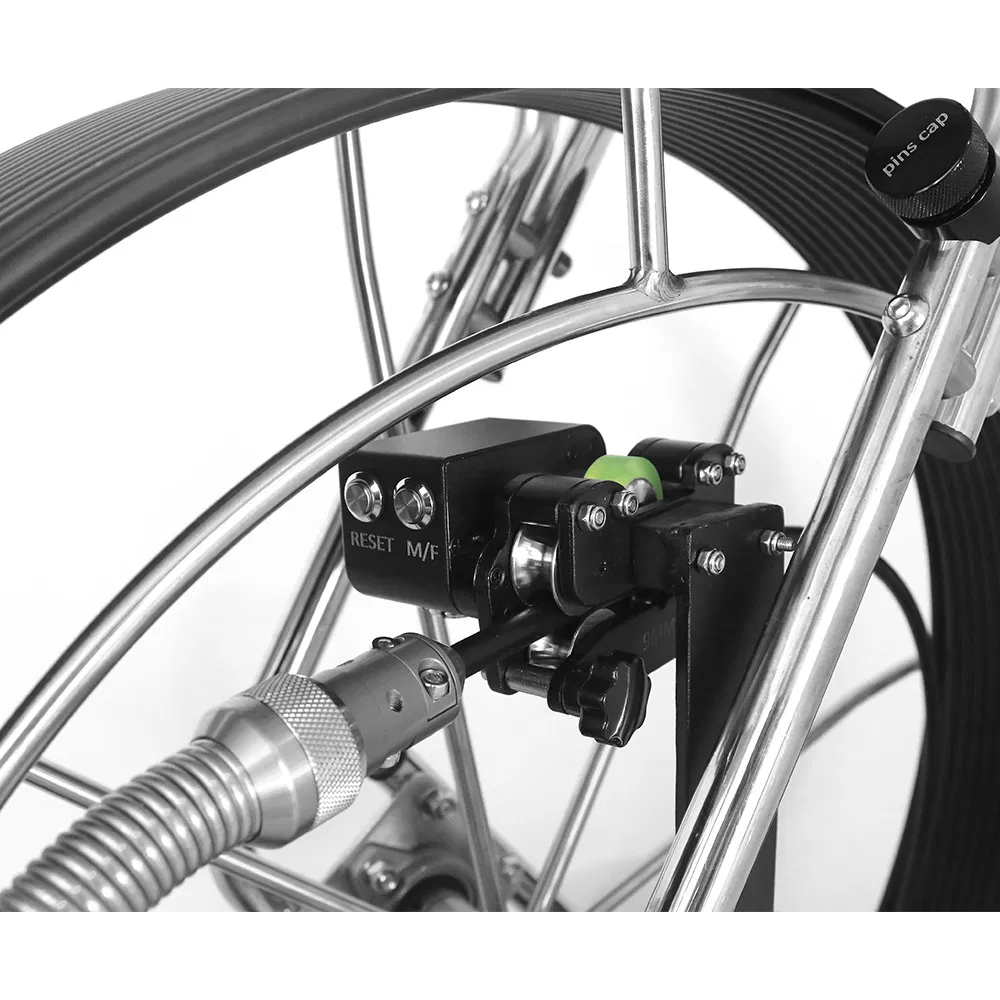

Digital meter counter function, error less than 1%

⚙️

Specifications

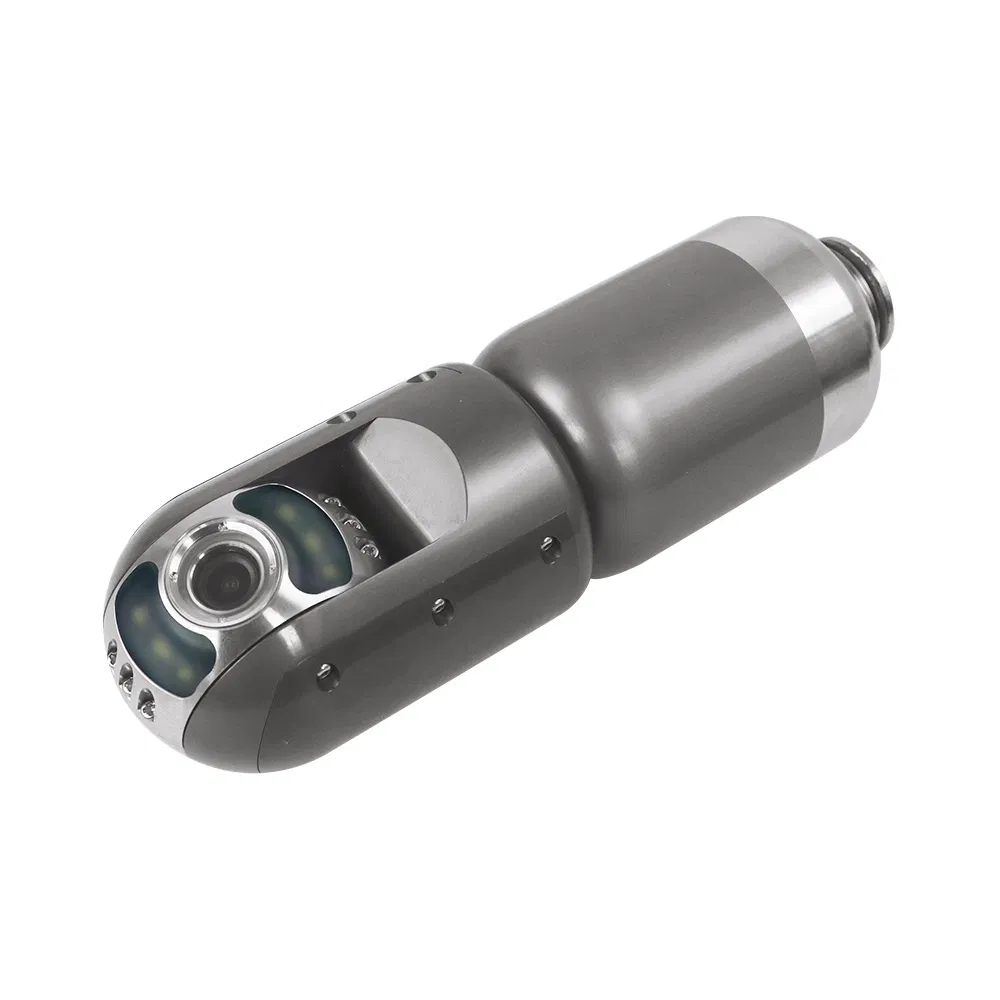

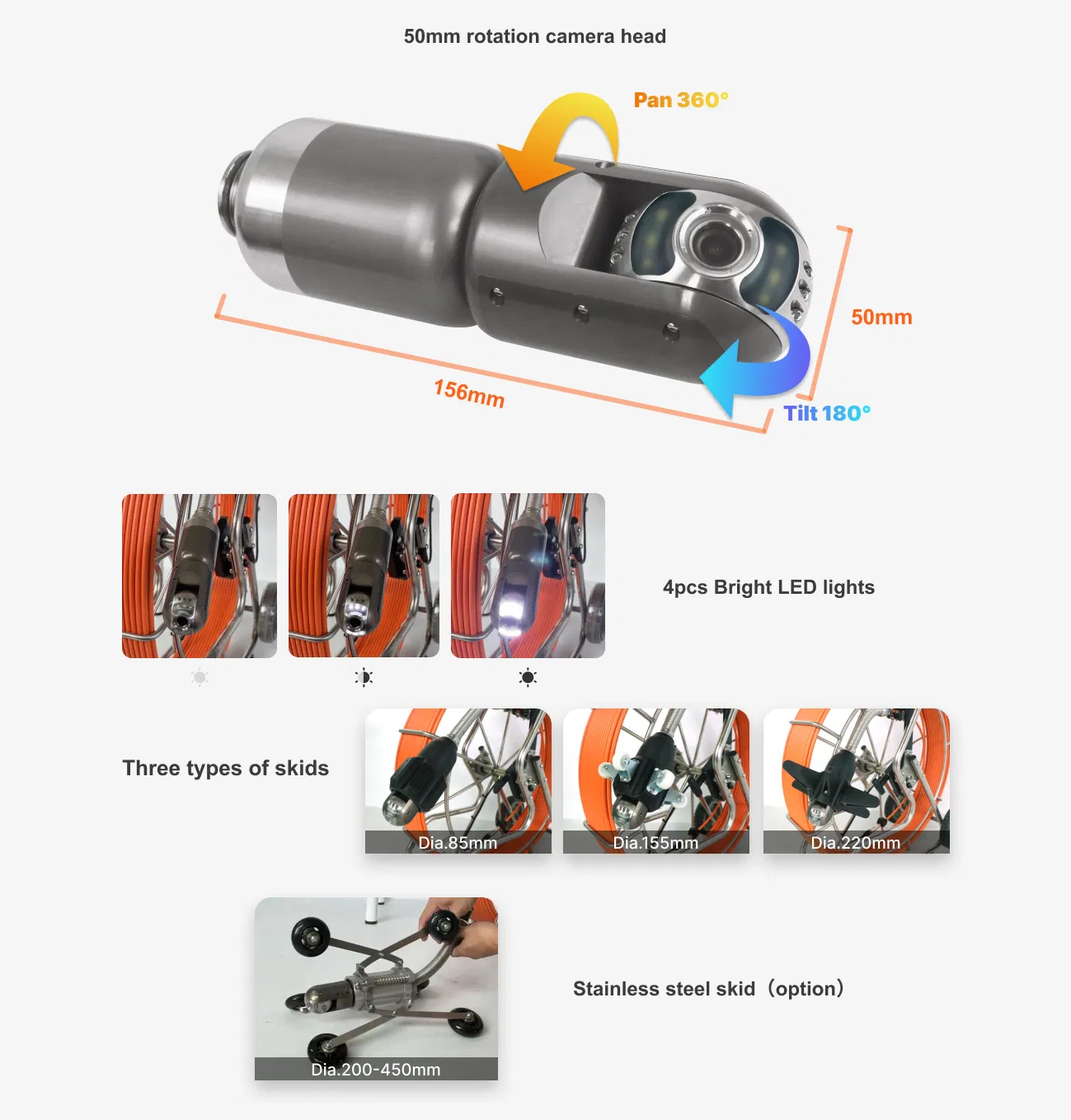

Camera Head Details:

Size: Ø50mm x 154mm
Waterproof: IP68 up to 10 bar
View Range: 120°
Automatic lens position reset
6pcs high light adjustable LED lighting
Sapphire glass lens window

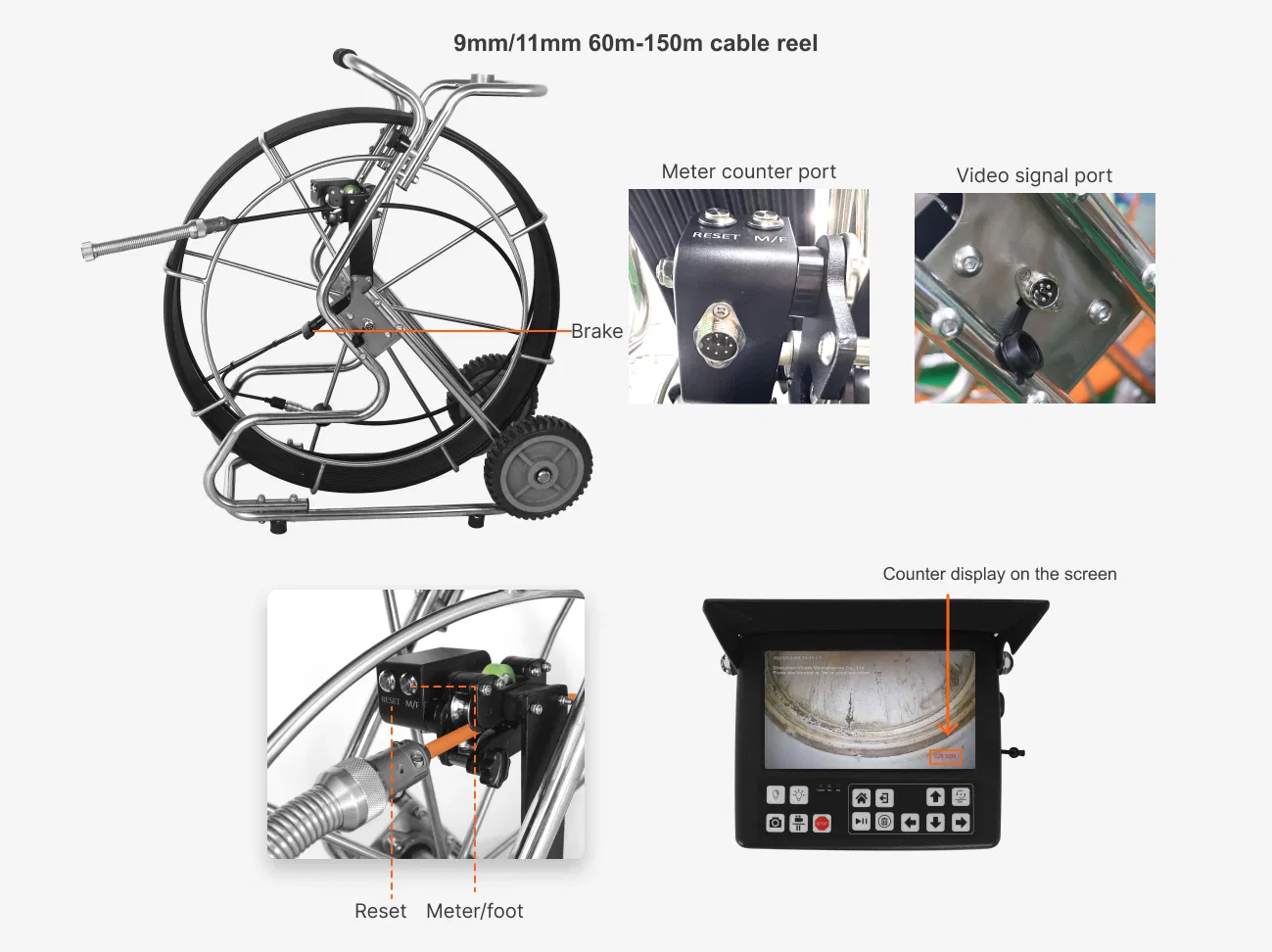

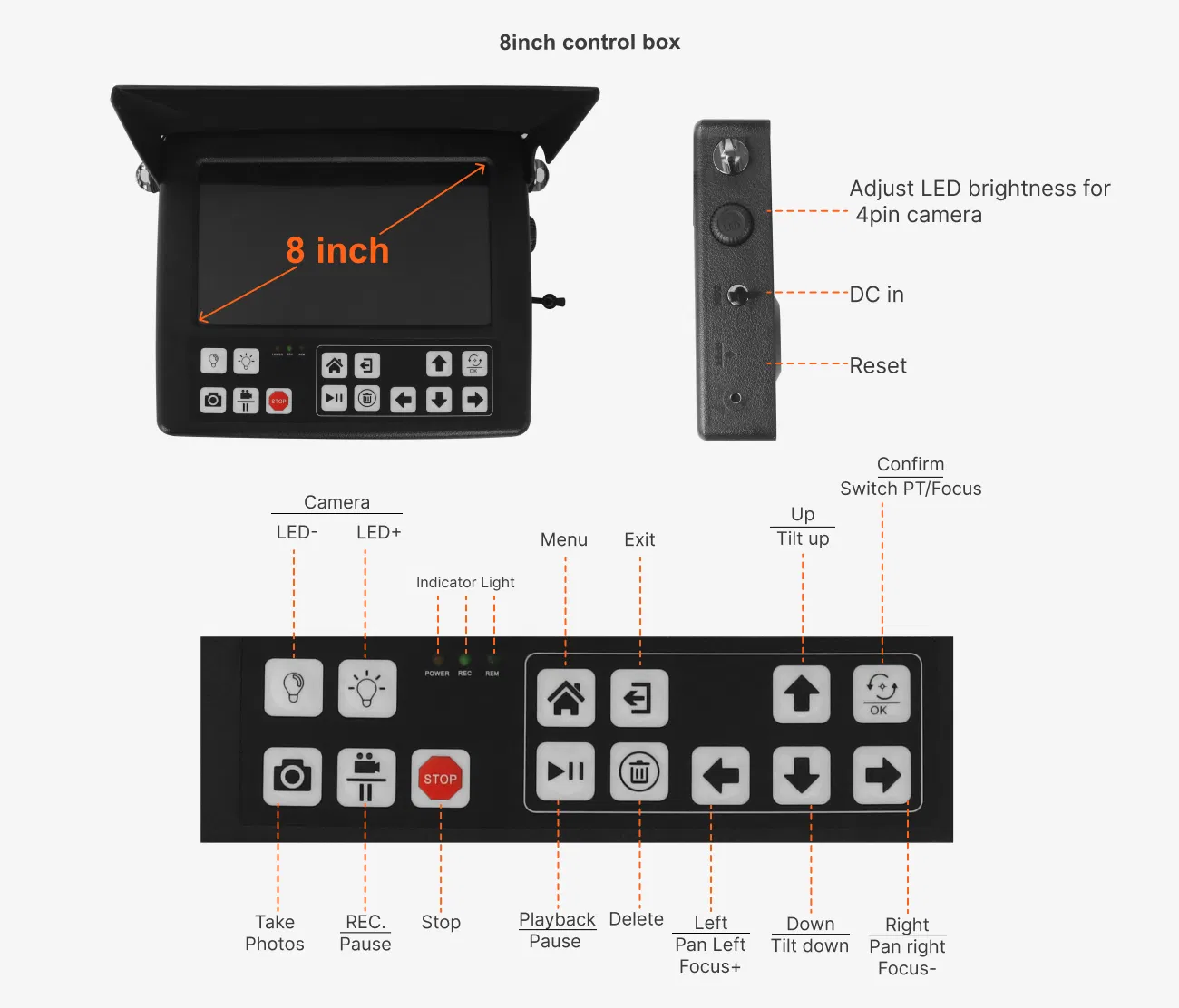

Control Box & Cable:

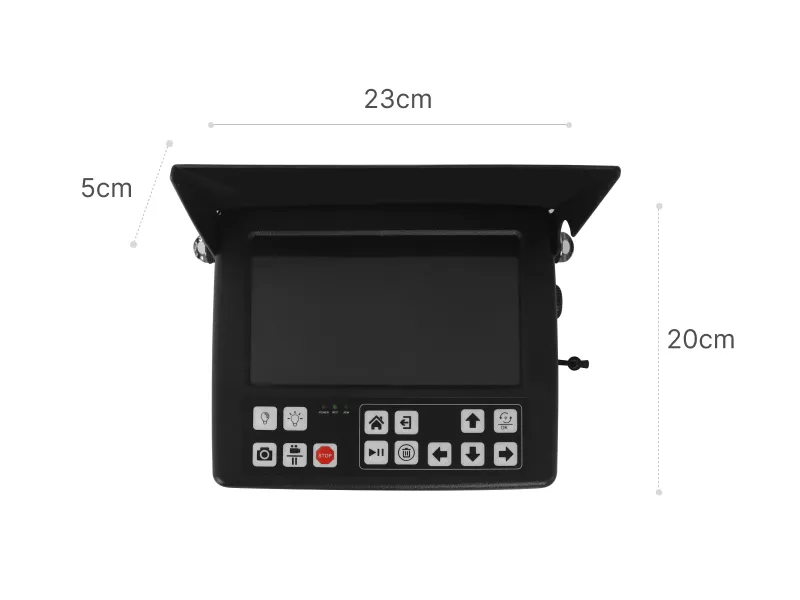

8" HD IPS LCD Screen (1280x720)
720P MP4 format recording
Fiberglass push rod cable (Ø7mm/9mm/11mm optional)

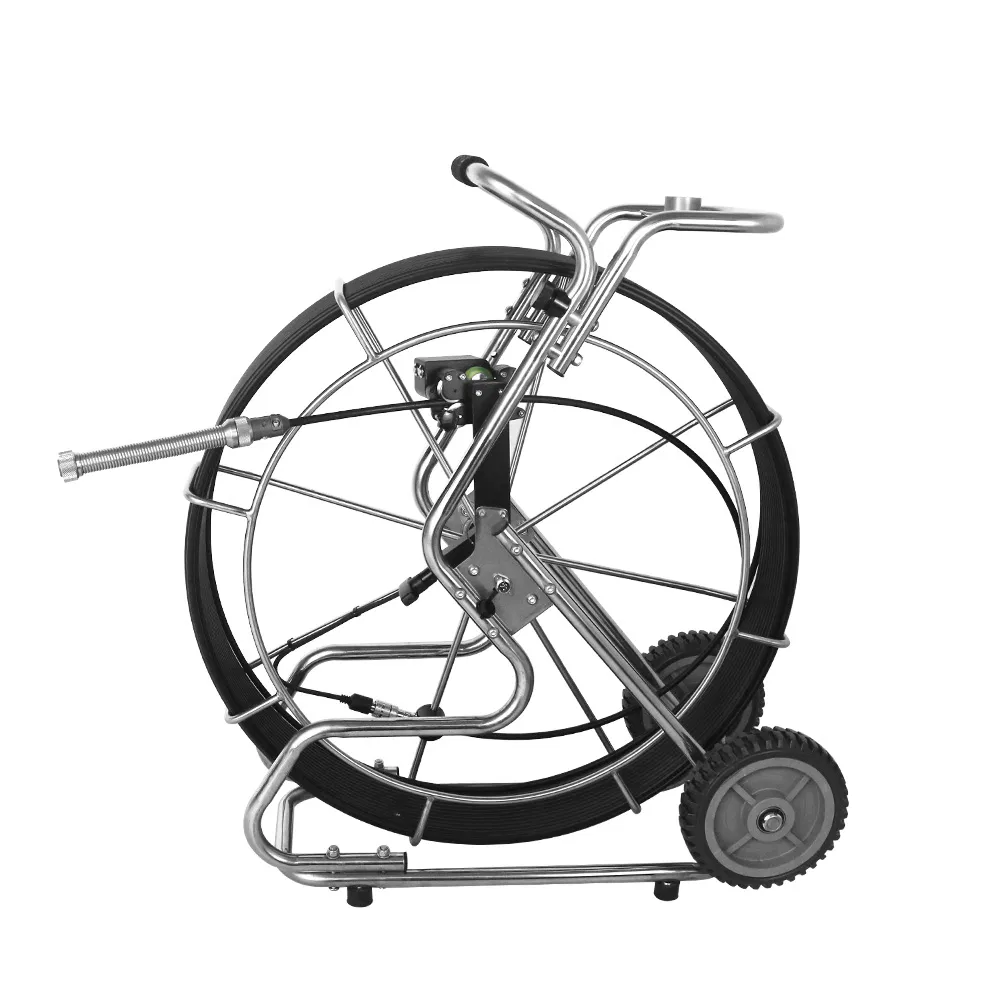

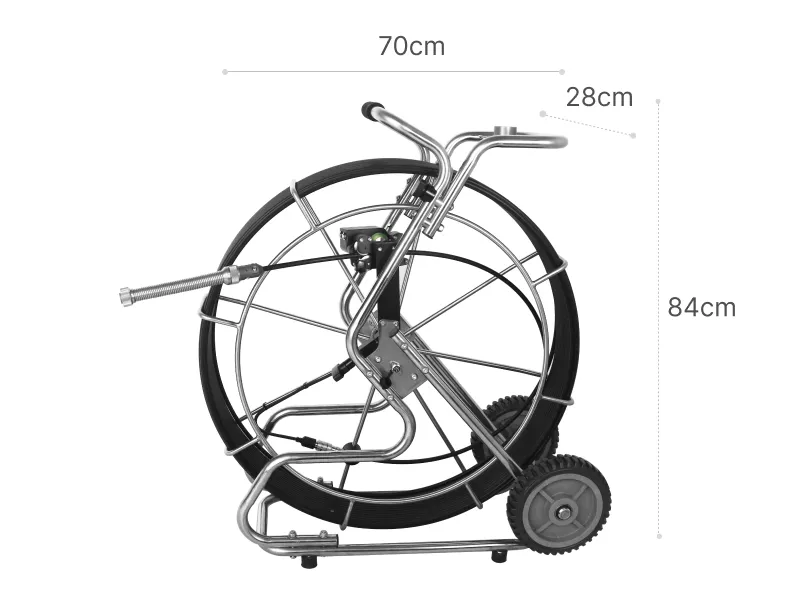

Reel size: 70 x 28 x 84cm

📦

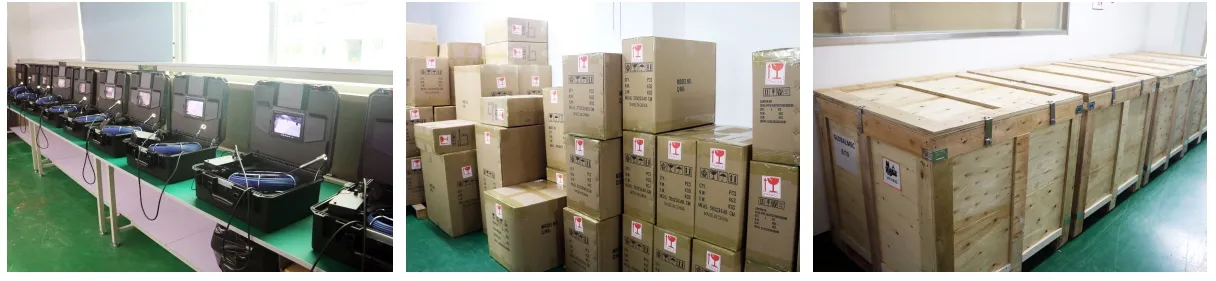

Packing & Delivery

📜

Certifications

🏭

Production Showcase

❓

Frequently Asked Questions

What is the rotation capability of the camera head?

The camera head features full 360-degree pan and 180-degree tilt rotation, allowing for comprehensive inspection of pipes and wells.

How deep can the camera go underwater?

The camera is rated IP68 waterproof and can withstand pressure up to 10 bars, making it suitable for deep-well and underwater pipe inspections.

What is the battery life for field operations?

It comes with a built-in 7000mA rechargeable Li-ion battery that supports more than 6 hours of continuous operation.

Does the system record audio and video?

Yes, the DVR control box supports audio and video recording as well as photography in 720P HD MP4 format.

Is there a way to track the length of the cable deployed?

Yes, the system includes a digital meter counter function that displays the cable distance on the screen with an error rate of less than 1%.

Can I type notes during the inspection?

Absolutely. The unit includes a USB wireless keyboard for real-time typewriting and data entry directly onto the video screen.
