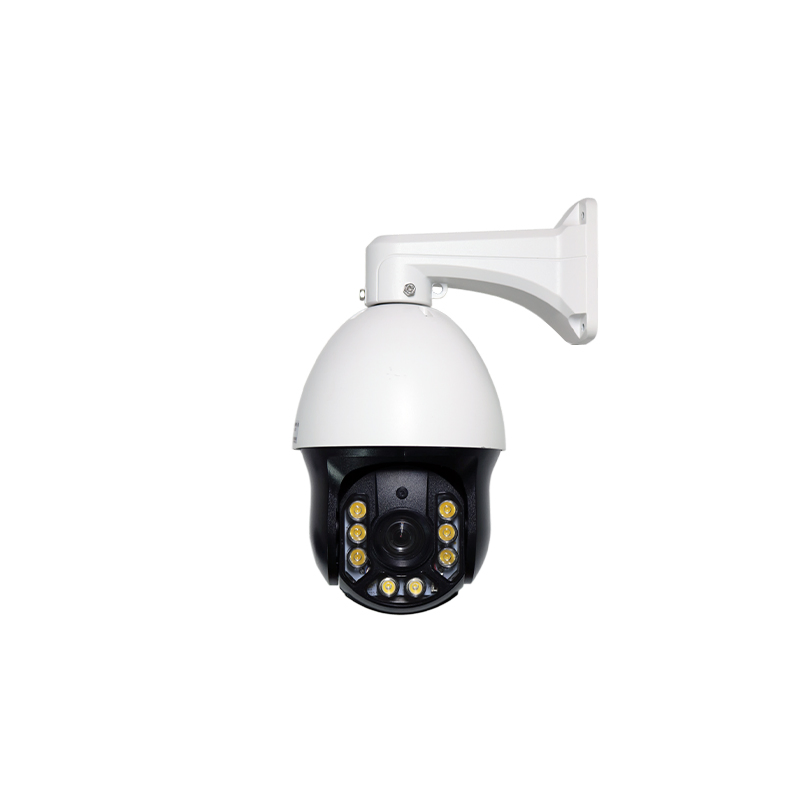

5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera
5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera
5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera
5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera
1 / 4
5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera
5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera
5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera
5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera

5 Inch 3MP Zoom Full Color 360 Degree Video Street Security Network PTZ Dome Camera

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
PH5C01-Q300
Type
Video Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
520tvl
Kind
Autofocus Lens
Certification
ISO9001: 2000
Feature
Waterproof / Weatherproof
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Resolution
3MP
Zoom
18X
Protection
IP66
Night Vision
100m
Capacity
1000 PCS / Month
Product Description
3MP 18X PTZ Dome Camera

Using the integrated video surveillance platform and the domestic leading front-end monitoring equipment, the video surveillance has been defined in the sense of public security. Using advanced video surveillance technology, it is committed to creating five visual prevention and control enclosures for safe city street level prevention and control, road prevention and control, card point prevention and control, position prevention and control and community prevention and control, and building a new generation of high-definition safe city video surveillance system.

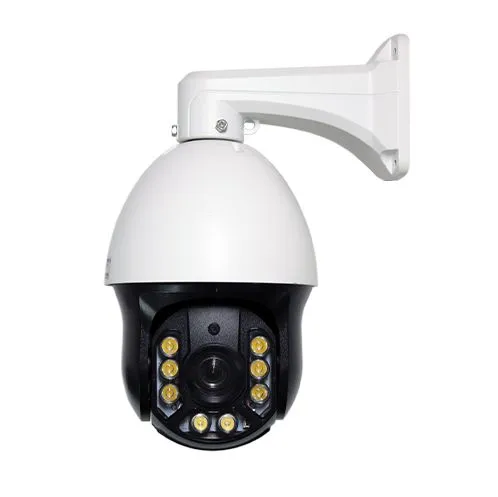

PTZ Dome Camera Main View
✔
Protection: IP66 grade, built-in 4000V lightning protection and surge protection.
✔
Network: Flexible expansion ability to adapt to various monitoring platforms.
✔
Protocol: Support ONVIF and mainstream platform private protocol applications.
Technical Specifications
Model & BasePH5C01-Q300
MechanicalPreset Bits255 preset bits
Rotation SpeedHorizontal: 0° ~ 20°/S | Vertical: 0° ~ 20°/S
Rotation RangeHorizontal: 360° Continuous | Vertical: 0 ~ 90°
Cruising Route2 Routes supported
CameraImage Sensor3MP 1/2.7" CMOS (2048 * 1536)
Zoom18X Optical Zoom
Video CompressionH.264; H.265; H.265+
Enhancement3D Noise Reduction, Digital WDR, BLC
ProtocolsHTTP, TCP/IP, ONVIF, RTSP, UDP, DDNS, FTP
GeneralNight Vision100m distance, 8 dot lights
Operating Temp-35ºC ~ 50ºC
Dimensions/WeightΦ 191 * 293 mm / 2.2 Kg
Product detail 1
Product detail 2

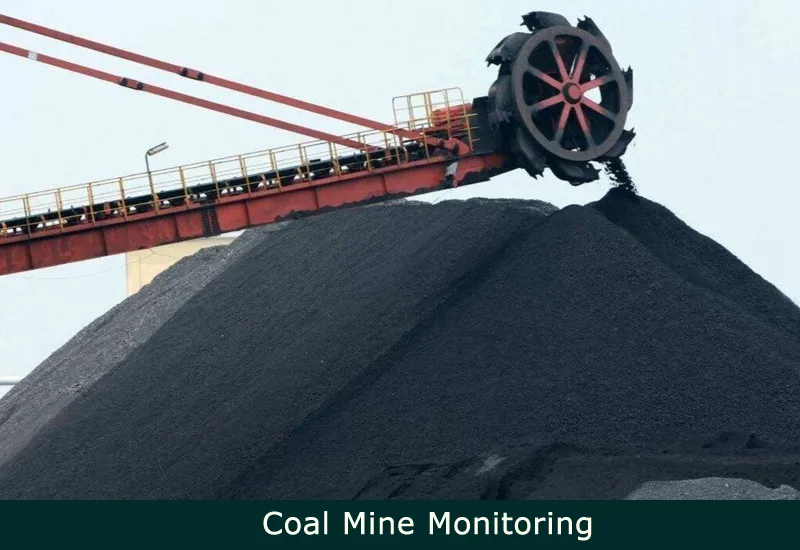

Product detail 3
Frequently Asked Questions
What is the night vision capability of this camera?
The camera is equipped with 8 dot lights, providing a powerful night vision distance of up to 100 meters.
Is the camera suitable for extreme weather conditions?
Yes, it features an IP66 waterproof and weatherproof rating, along with 4000V lightning and surge protection, and can operate in temperatures ranging from -35ºC to 50ºC.
Does this PTZ camera support zooming?
Yes, it features an 18X zoom capability with an autofocus lens to capture clear details at long distances.
What video compression standards are supported?
The camera supports H.264, H.265, and the advanced H.265+ compression standards for efficient storage and bandwidth usage.
Can I access the camera from my mobile phone?
Yes, it supports multiple client platforms including Android, iOS (Phone), and Windows via standard network protocols.
Does it support the ONVIF protocol?
Yes, the camera supports the ONVIF protocol, making it compatible with most mainstream NVRs and monitoring platforms.
