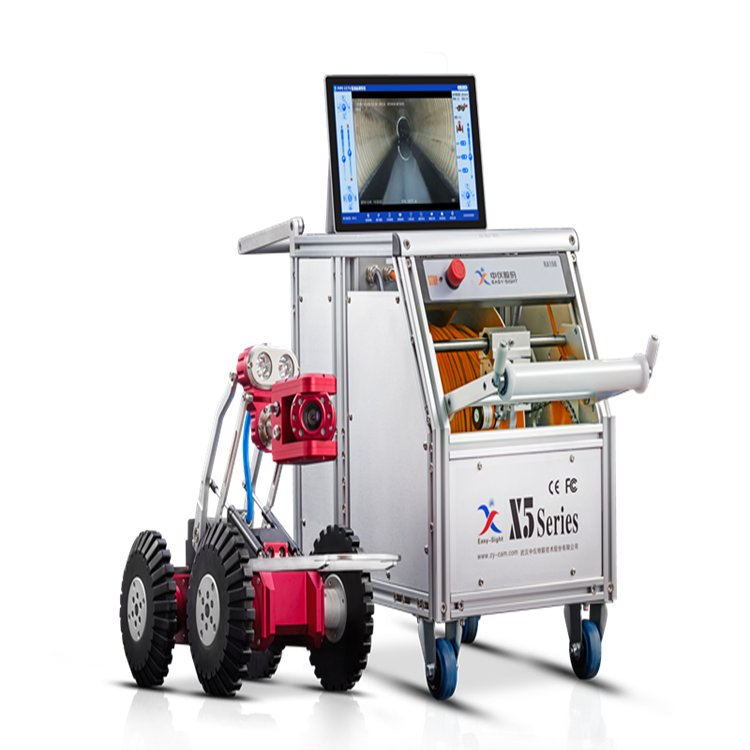

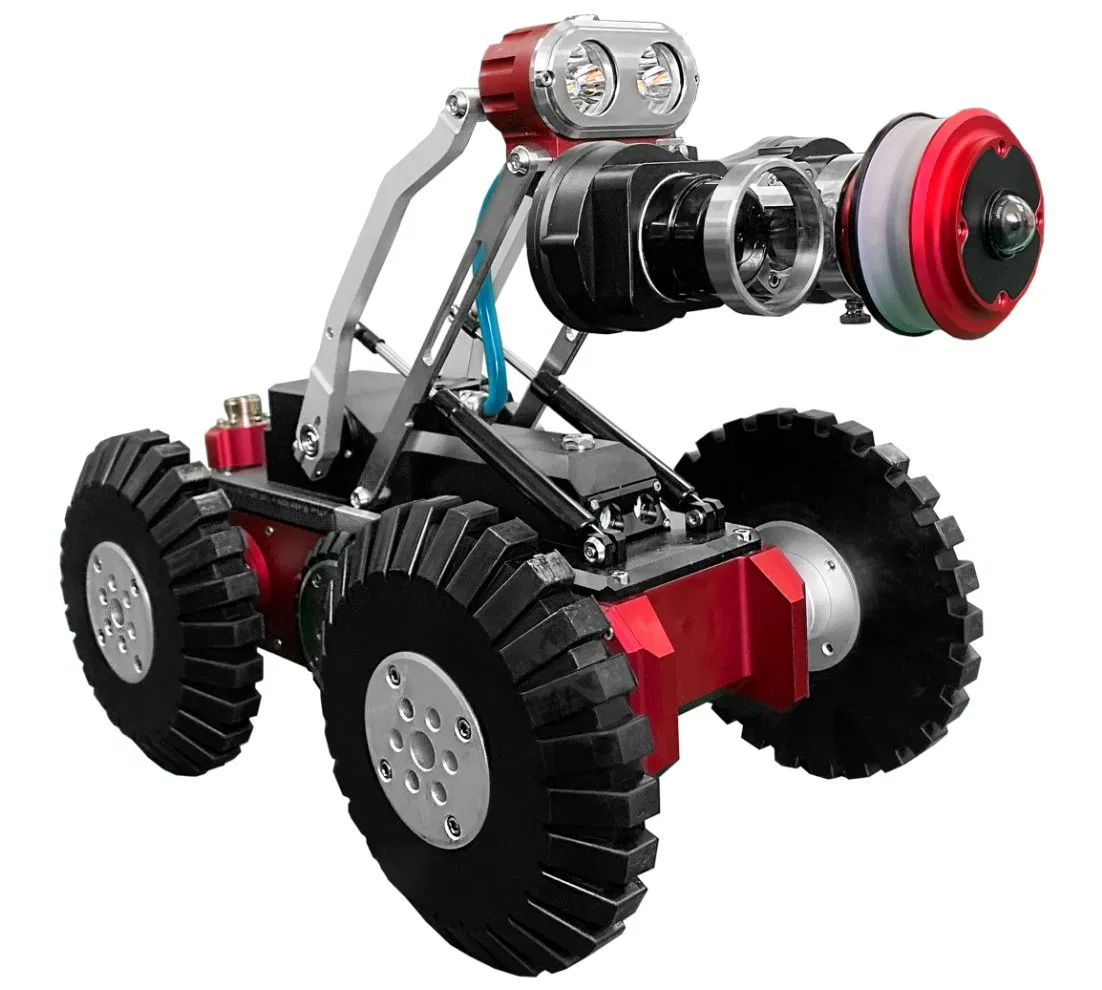

The X5-HT pipeline CCTV Inspection robot is a professional-grade industrial solution designed for drainage network maintenance. Utilizing an industrial personal computer (IPC) system, it replaces traditional controllers with laptop functionality for more efficient onsite testing and immediate report generation.
This system integrates advanced "PipePano pipeline panorama testing video analysis software," generating full panoramic images of internal pipe walls. This allows for precise quantitative measurement of pipe diameter, crack width, and sediment conditions through real-time gradient curves.
| Component | Technical Specifications |
|---|---|

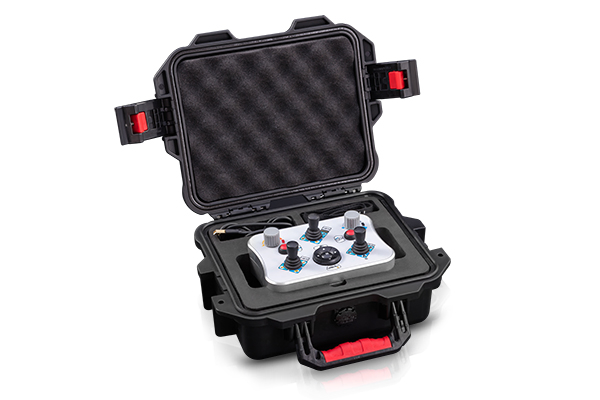

| Main Controller | Notebook/tablet control system; Wireless control; Real-time display of date, distance, and crawling attitude; Dual-view interface. |
| Electric Cable Reel | Standard 120M length; Two-core cable to reduce joint failure; Automatic retractable function. |

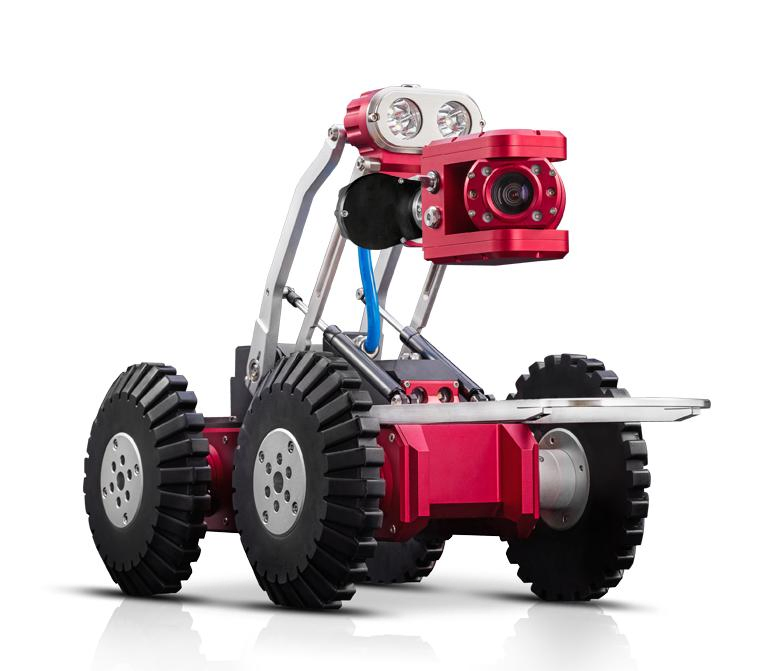

| Crawler | IP68 (10m depth); DN250mm--DN650mm range; Brass/Stainless steel/Aluminum alloy; Electric lift frame. |
| Camera | High resolution 2592*1520; 360° radial limitless rotation; One-click reset; 0.1Lux sensitivity. |
Widely applied in geophysical prospecting, urban development, municipal construction, national defense, and water conservancy. The X5-HT system provides full control over crawler advance, reverse, turning, and speed adjustment, alongside vertical/horizontal lens rotation and magnification change.
