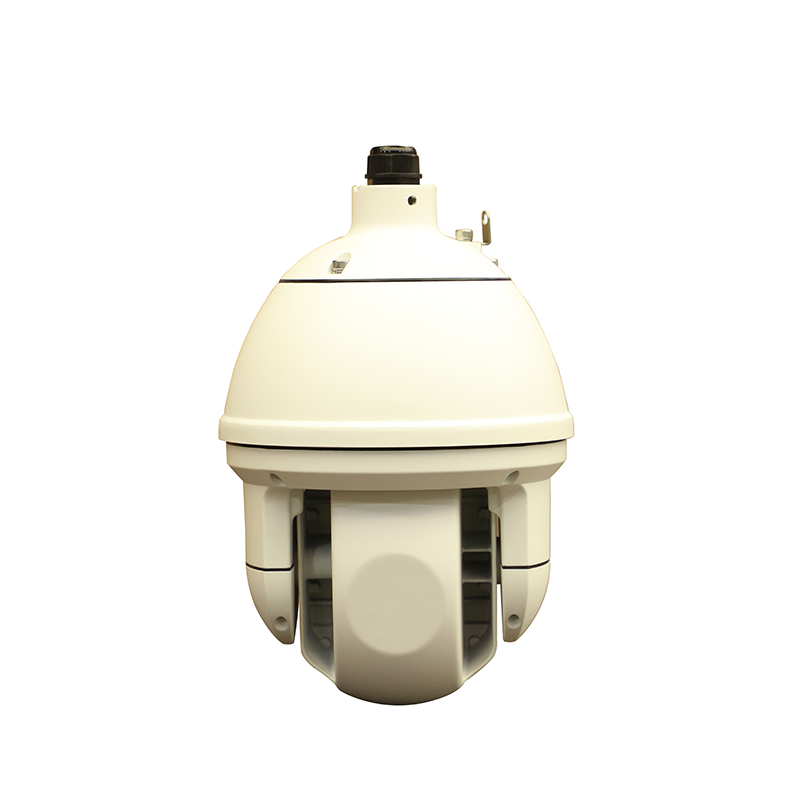

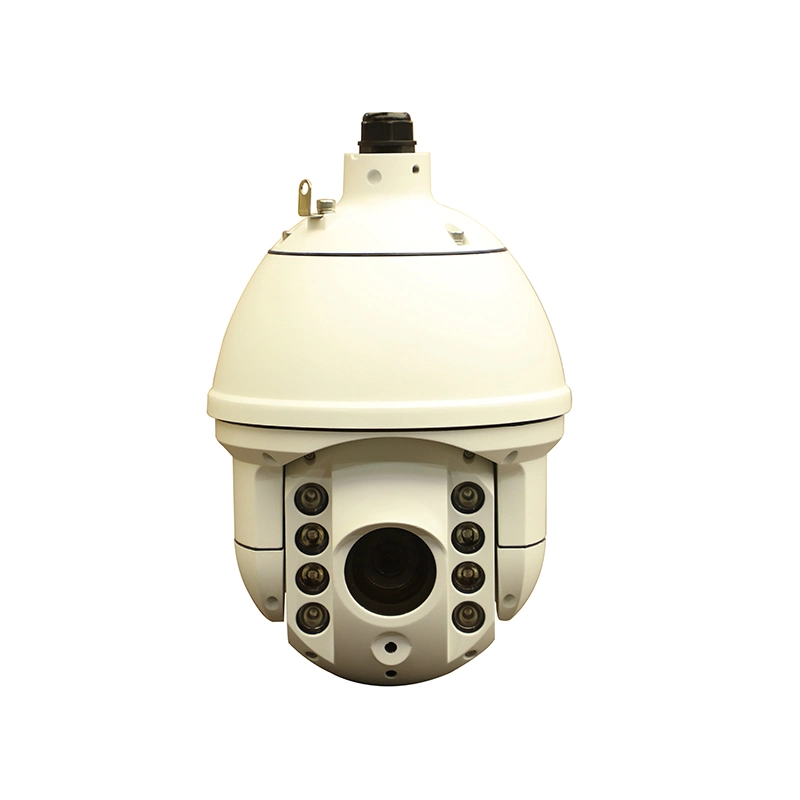

Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera
Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera
Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera
Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera
1 / 4
Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera
Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera
Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera
Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera

Pan/Tilt/Zoom LED Infrared Light High Speed 360 Degree PTZ Dome Camera

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

PTZ Dome Camera Banner
Basic Information
Model NO.
UV-928-XG-2126
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Resolution
2MP
Lens
Autofocus Lens
Certification
CE, RoHS
Effective Distance
≧30m
Sensor Size
1/2.8''
Specification
196*196*253mm
Key Highlights
Full HD Image
2MP (1920×1080) at 30fps real-time imaging.
Advanced Compression
Supports H.265/H.264/MJPEG algorithms.
Ultra Low Light
Starlight level illumination (0.001 lux color).
Powerful Zoom
26x Optical Zoom and 16x Digital Zoom.
Weather Resistance
-40ºC low temperature and IP66 protection.
PTZ Camera Detail 1

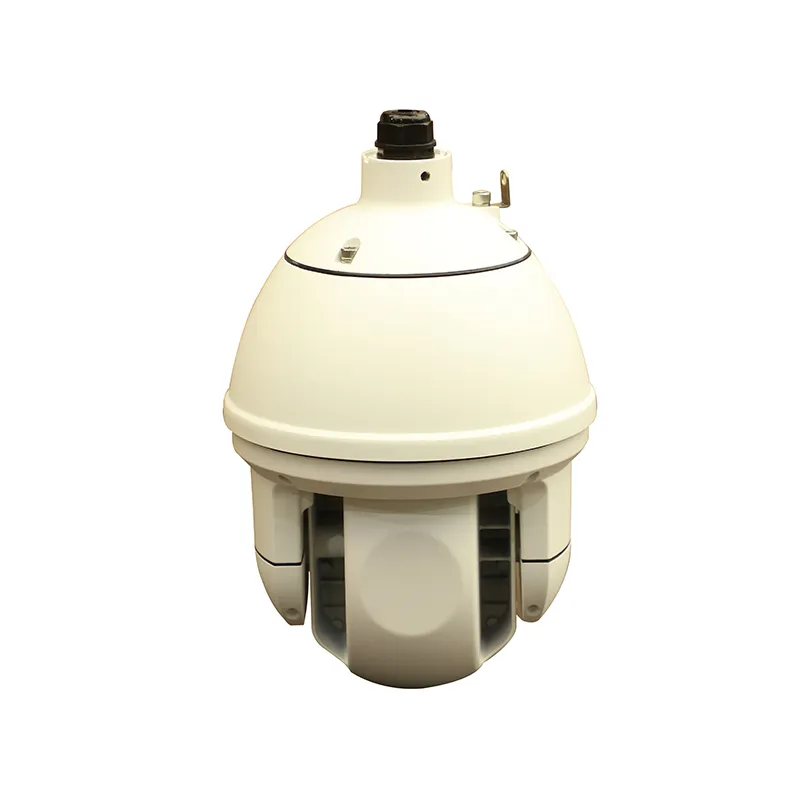

PTZ Camera Detail 2

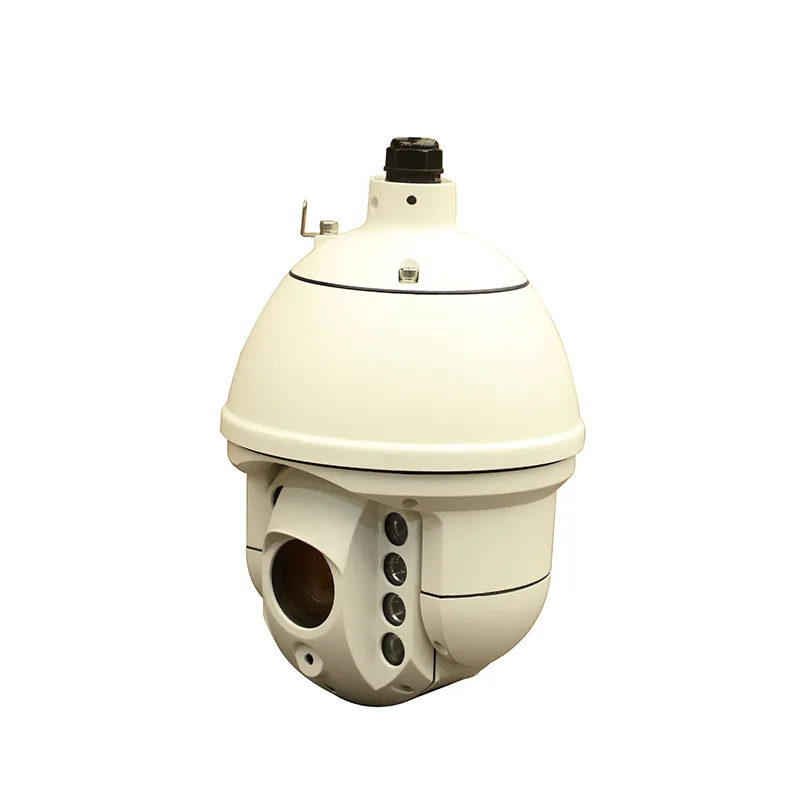

PTZ Camera Detail 3

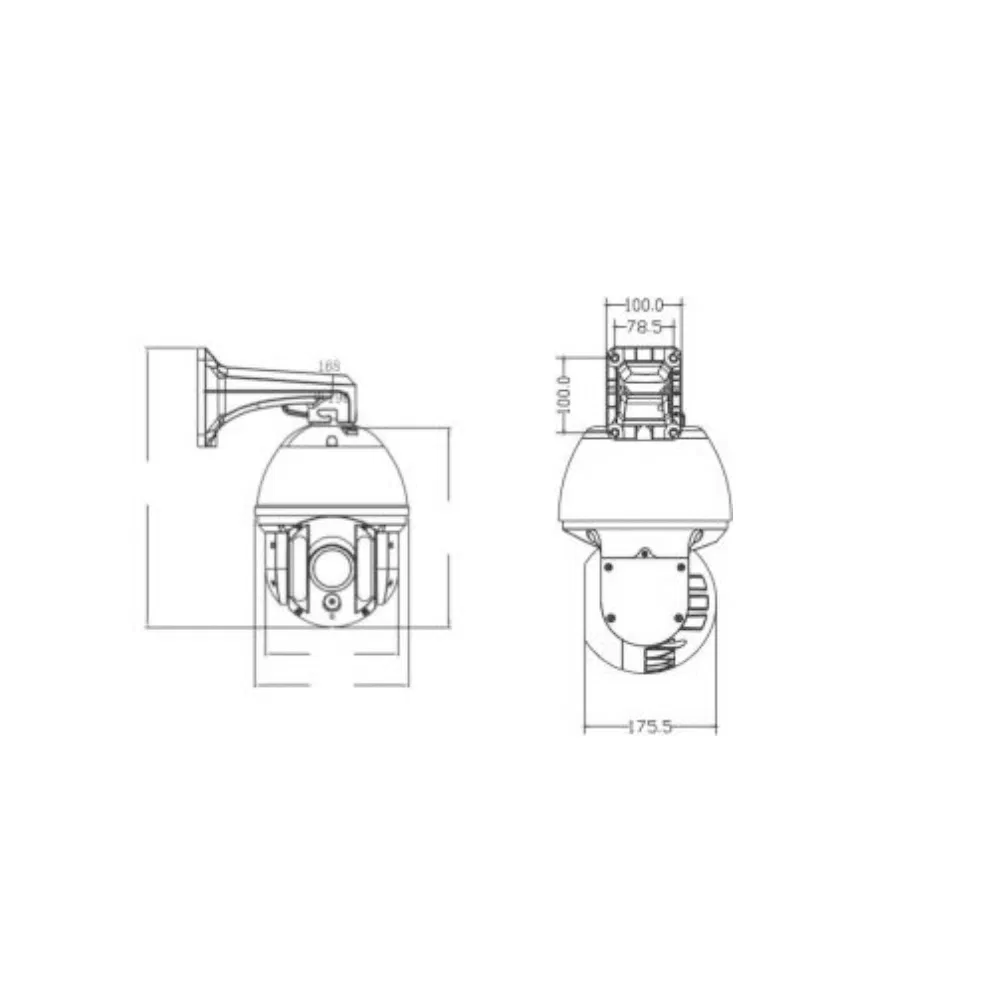

PTZ Feature Header Product Structure Specifications Banner
CMOS1/2.8"
Effective Pixel1920x1080, 2MP
Minimum Illumination0.001lux (color), 0.0005lux (B/W), IR 0lux
Auto-ControlWhite balance, gain, exposure
S/N Ratio≥55dB
Electronic Shutter1 / 25 ~ 1 / 100000 seconds
Focal Length5mm ~ 130mm, 26x Optical Zoom
Rotation Range360° Continuous Rotation
Horizontal Speed0.05°~300°/s
Vertical Range- 15°~90°
Preset Points255 Points
Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6
Local StorageMicro SD / SDHC / SDXC card (128G)
IR Distance100m
ProtectionIP66, 4000v Lightning Protection
Working Temp-40ºC ~ 65ºC

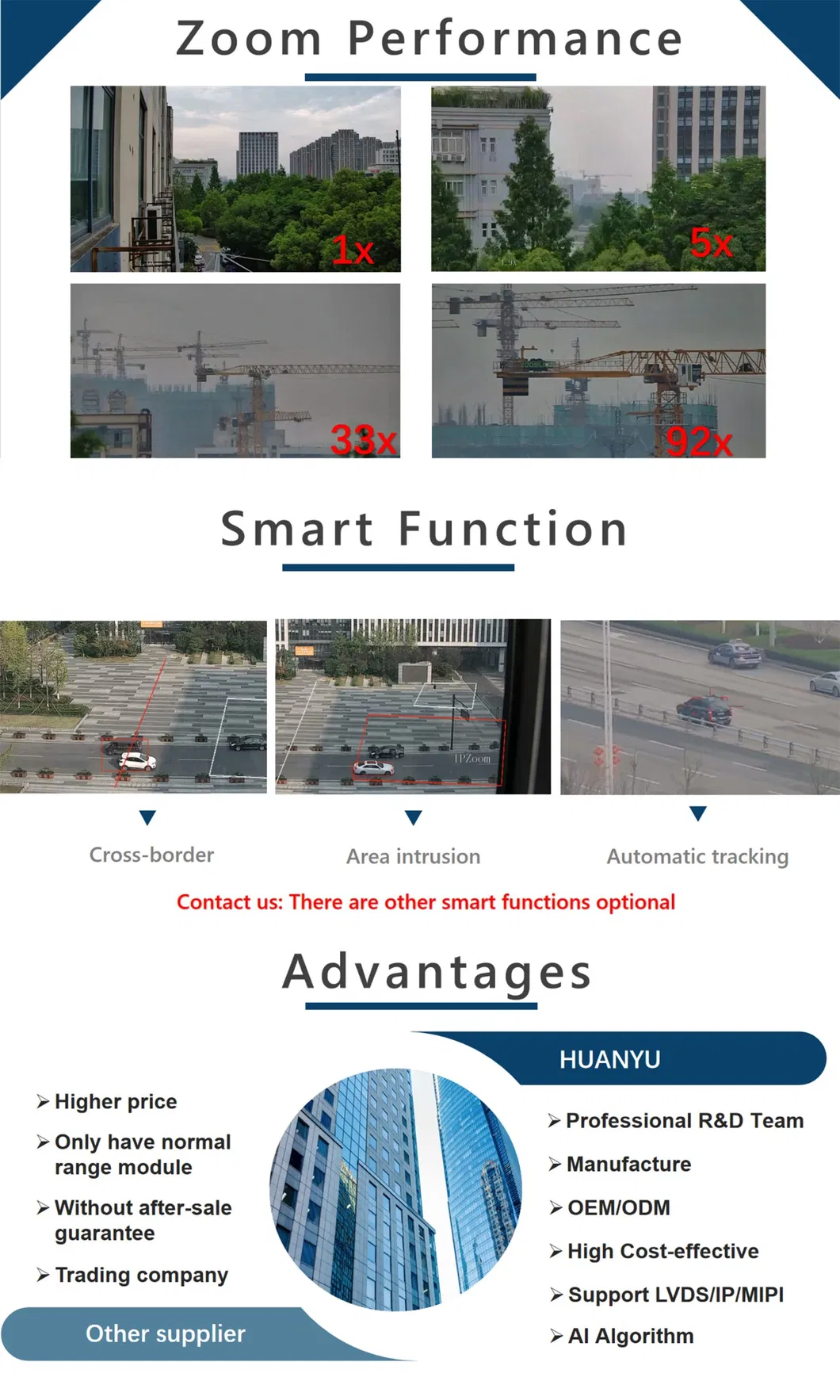

Full Tech Specs Part 1 Full Tech Specs Part 2
Frequently Asked Questions
What is the maximum zoom capability of this camera?
The camera features a powerful 26x optical zoom and a 16x digital zoom, allowing for clear long-distance monitoring.
Can this camera work in complete darkness?
Yes, it is equipped with high-performance infrared lights providing up to 100 meters of visibility even in 0 lux environments.
What kind of weather protection does it offer?
It has an IP66 rated waterproof housing, 4000V lightning protection, and can operate in temperatures as low as -40ºC.
How much internal storage does it support?
The camera supports local storage via Micro SD, SDHC, or SDXC cards with a maximum capacity of 128GB.
Does the camera support remote rotation?
Yes, it features 360° continuous horizontal rotation and a vertical range of -15° to 90° for full coverage.
What video compression standards are used?
The device supports the latest H.265 compression, as well as H.264 and MJPEG for compatibility and efficient storage.
