Basic Info.
Model NO.SZR602J
TypeVideo Camera
SensorCMOS
HDMI Format720P
Horizontal Resolution650tvl
KindManual Focus Lens
CertificationCE, CCC, RoHS
FeatureWaterproof / Weatherproof
Effective Distance0-9m
Sensor Size1/3 inch
External Diameter6mm
Angle of Field120 Degrees
Bend Angle180 Degrees
Depth of Field20-100 Millimetre
Insert Tube Length2 Meters
Pipe MaterialTungsten Woven Braid
Lighting6 PCS Highlight LED
Production Capacity280 Sets / Month

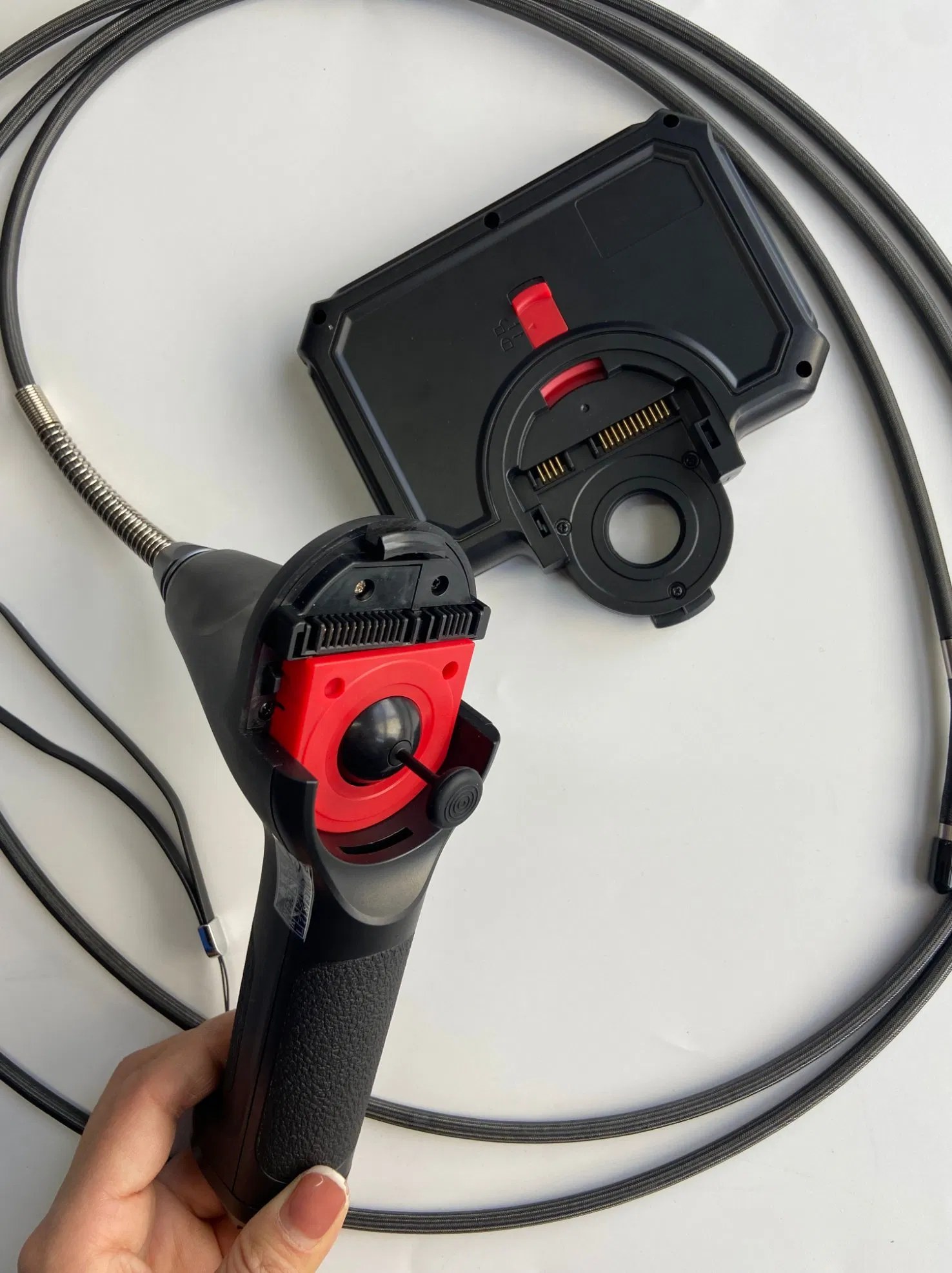

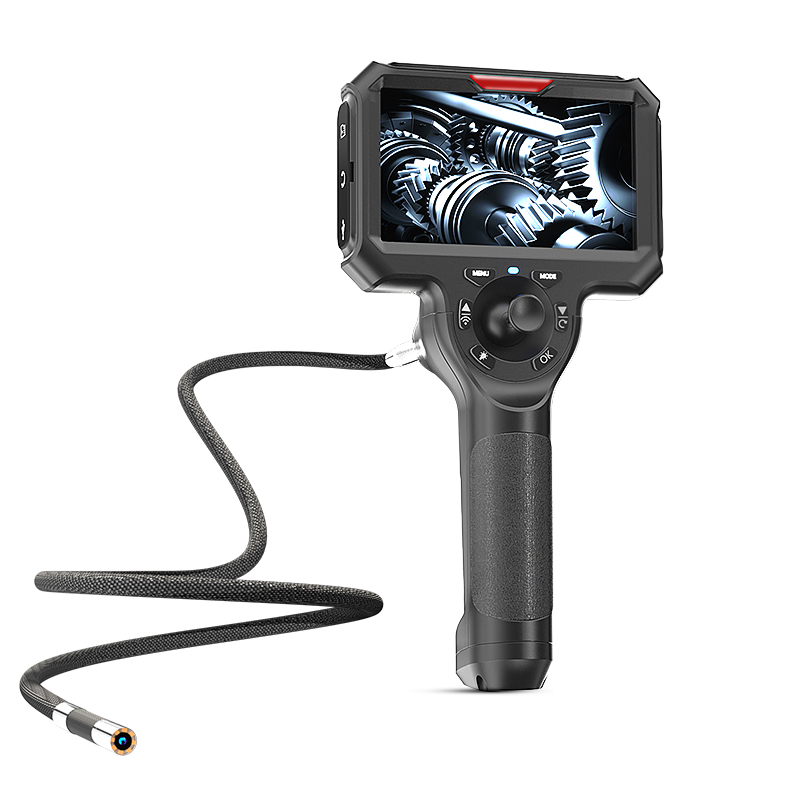

Flexible Videoscope Inspection Camera with 6.0mm Camera lens, 2 Meters cable length, Joystick 360 degrees, HD
✓ 1. Camera parameters
| Model |
SZR602J |
External Diameter |
6mm |
| Pixel Point |
1,000,000 pixels |
Probe Length |
16 millimetre |
| Angle of Field |
120 degrees |
Bend Angle |
180 degrees |
| Depth of Field |
20-100 millimetre |
Insert Tube Length |
2 meters |
| Observation Direction |
Foresight |
Insert Pipe Material |
Tungsten woven braid |
| Lighting |
6 pcs Highlight LED |
|
|
✓ 2. Probe-oriented parameters
| Lever Control |
360 degrees revolve |
Fixture |
Fixed internal resistance |
| Guide Angle |
One side more than 90 degrees |
Guide Distance |
Standard 1 meter |
| Axial Control |
360 degrees Axial rotation |
Insert Tube |
4-layer tungsten wire woven tube |
| System Weight |
Complete: 1.5 kg / Bare: max 1 kg |
Host Size |
14.5 cm X 10.5 cm X 4.5 cm |
| LCD Display |
Bright 5-inch color IPS |
Source |
Lithium battery: 3.7V, 3600 maH |
| Data I/O Port |

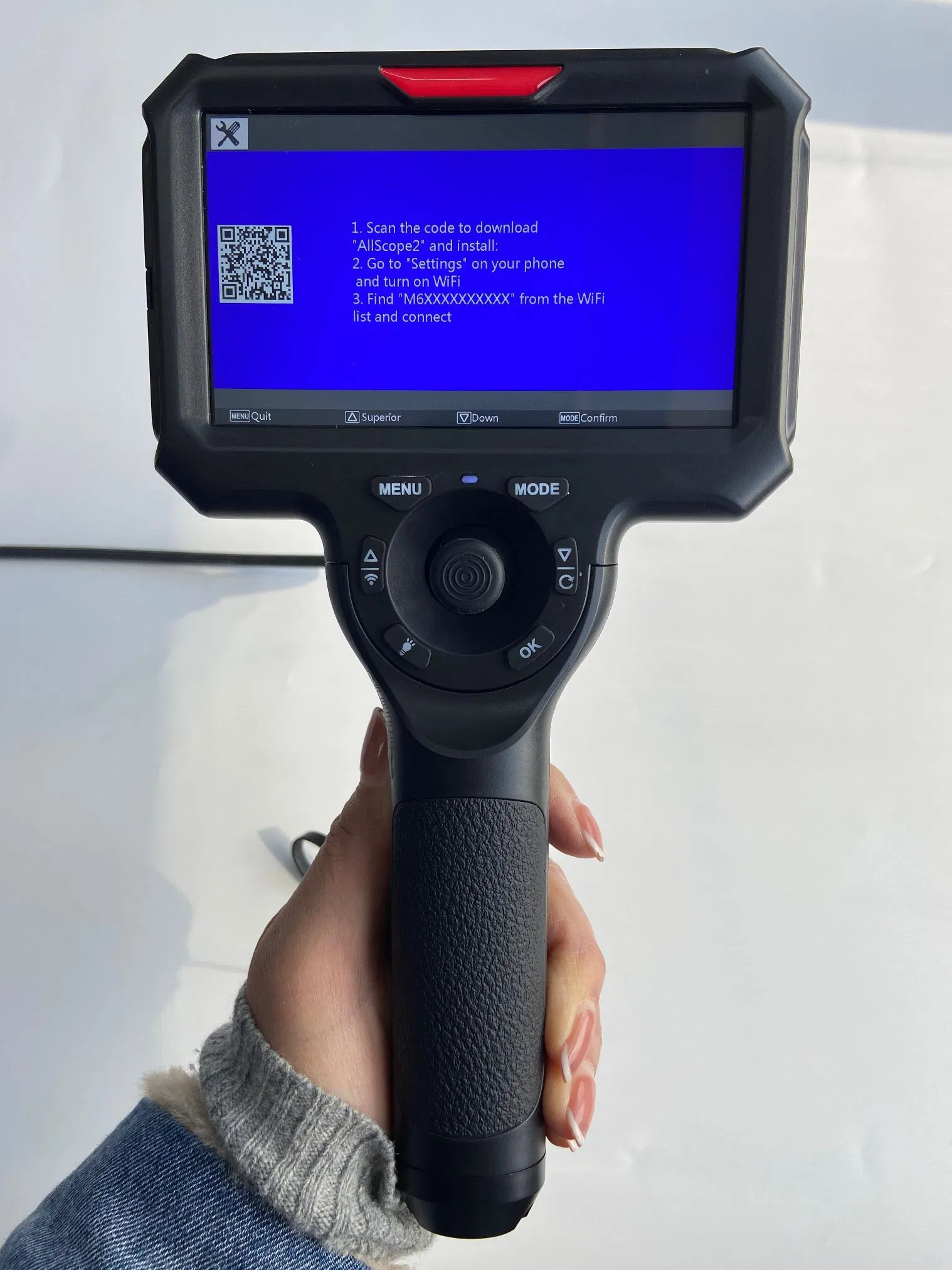

USB 2.0, WIFI |
Internal Storage |
8GB High-speed SD Card |
| Image Function |
Mirroring, Zoom, Preview, Recording, Rotation |
Linguistic |
Support for 8 countries |
✓ 3. Display and system configuration
| Host Temp |
-10 °C to 50 °C |
Relative Humidity |
Max 90%, no condensation |
| Probe Temp |
-20 °C to 60 °C |
Waterproof |
Probe & Lens IP67 waterproof |
| Storage Temp |
-20°C to 60°C |
|
|
Frequently Asked Questions
What is the diameter and length of the camera probe?

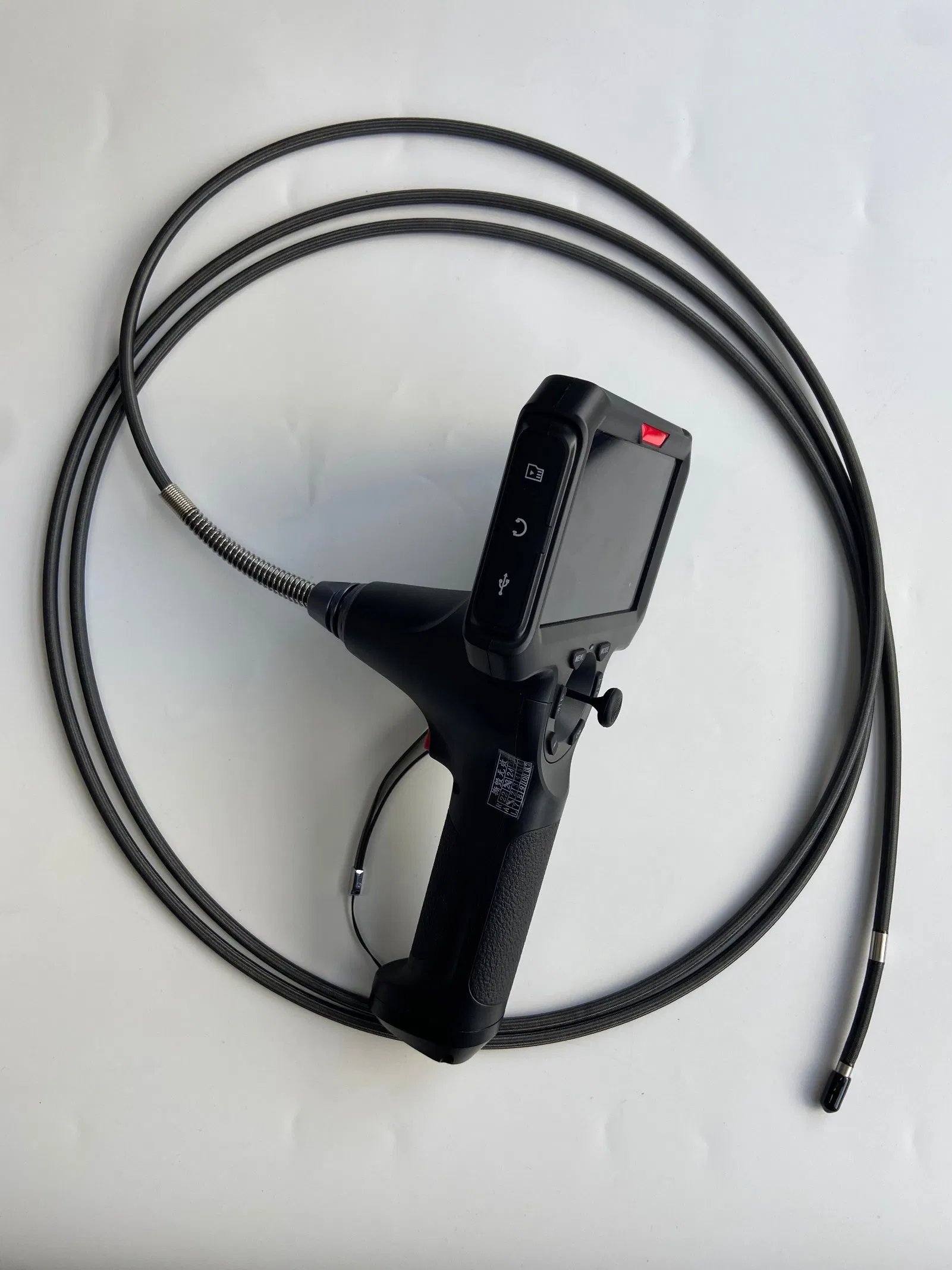

The SZR602J features a 6.0mm external diameter camera lens with a 2-meter long tungsten woven braid insertion tube.
How does the 360-degree articulation work?
The probe is controlled by a mechanical joystick allowing for 360-degree revolve and axial rotation, with a bend angle of up to 180 degrees for comprehensive inspections.
Is the inspection camera waterproof?
Yes, both the probe and the objective lens are designed to withstand IP67 waterproof standards, making it ideal for wet or harsh environments.
What are the display and storage capabilities?

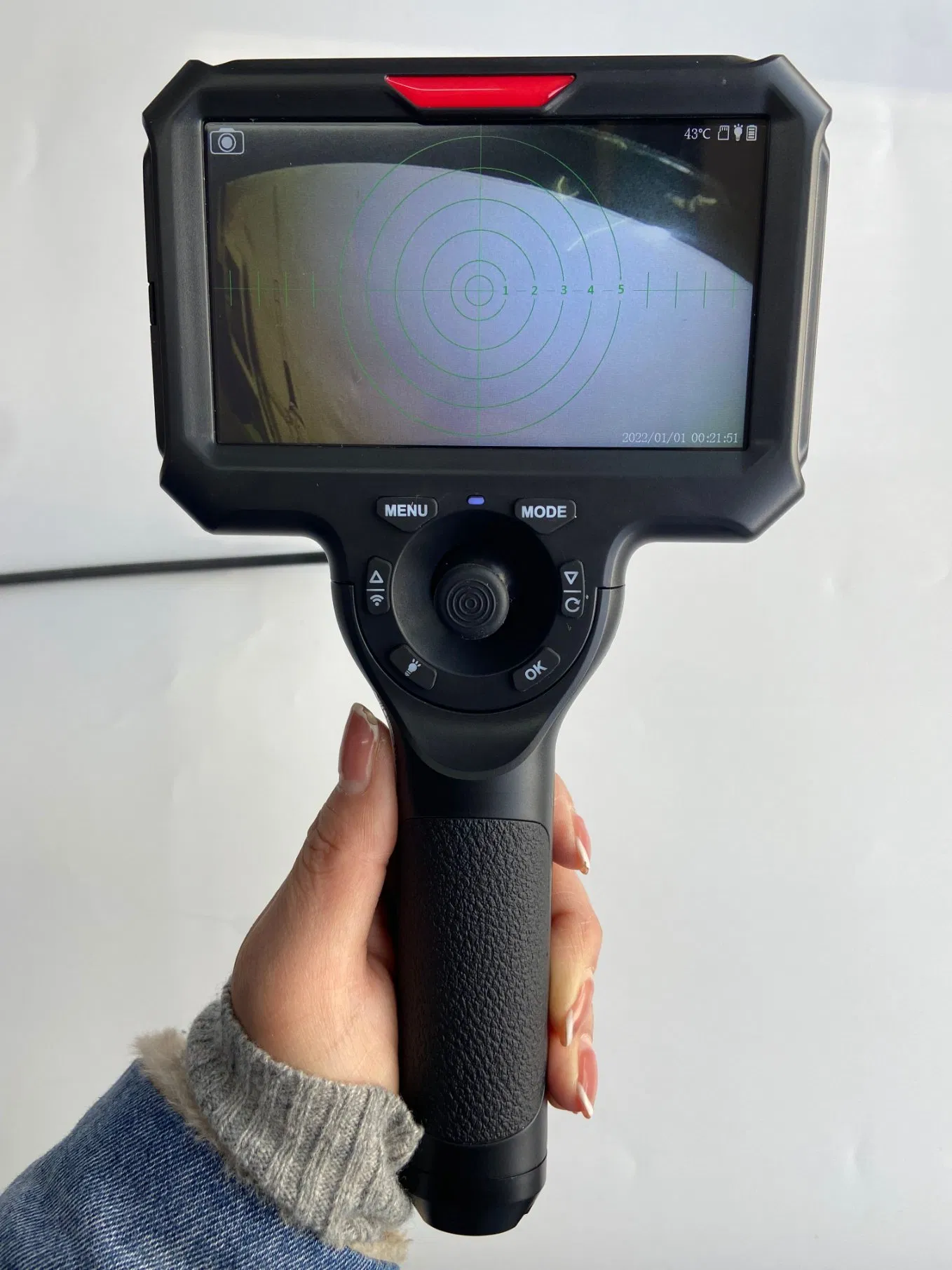

The device is equipped with a bright 5-inch color IPS display. It includes an 8GB high-speed SD card for internal storage and supports image/video recording.
What kind of lighting does the camera use?
The camera head is equipped with 6 PCS of highlight LEDs to ensure clear visibility in dark areas, with manual brightness adjustment available.
What power source does the videoscope use?
It is powered by a high-capacity 3.7V 3600mAh lithium battery, designed for portable and long-term field use.
