HD 360 Degree Rotation Water Well Inspection Camera with Depth Counter Function

1 / 5

HD 360 Degree Rotation Water Well Inspection Camera with Depth Counter Function

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

📋

Basic Information

Model NO.	v8-BCS	Type	Video Camera
Sensor	CMOS	HDMI Format	720P
Horizontal Resolution	600tvl	Camera Diameter	45mm Dual View
Certification	CE, FCC, RoHS	Feature	Waterproof, High Definition
Effective Distance	≧30m	Waterproof	IP68
Cable Length	200m	Fiberglass Cable Diameter	10.5mm
Illumination	12 PCS Intensity LED	Sensor Size	1/4 inch

💎

Product Description

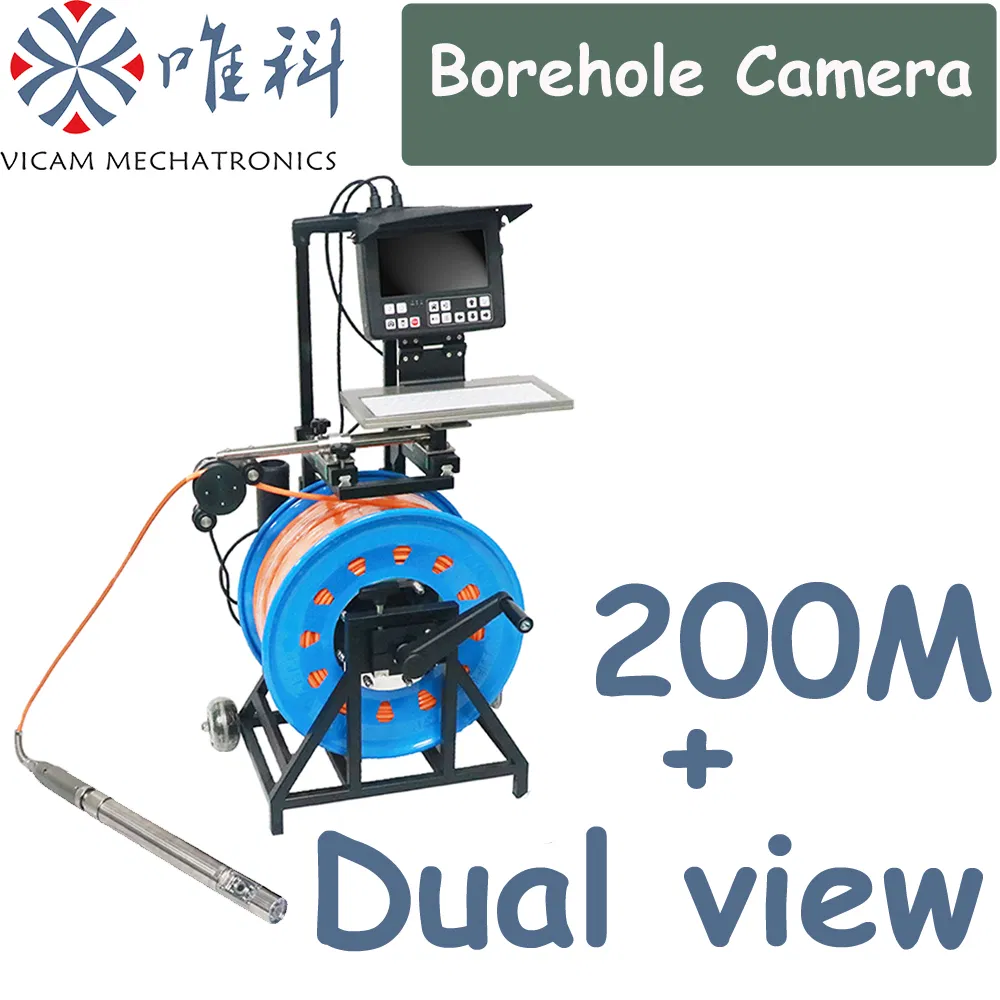

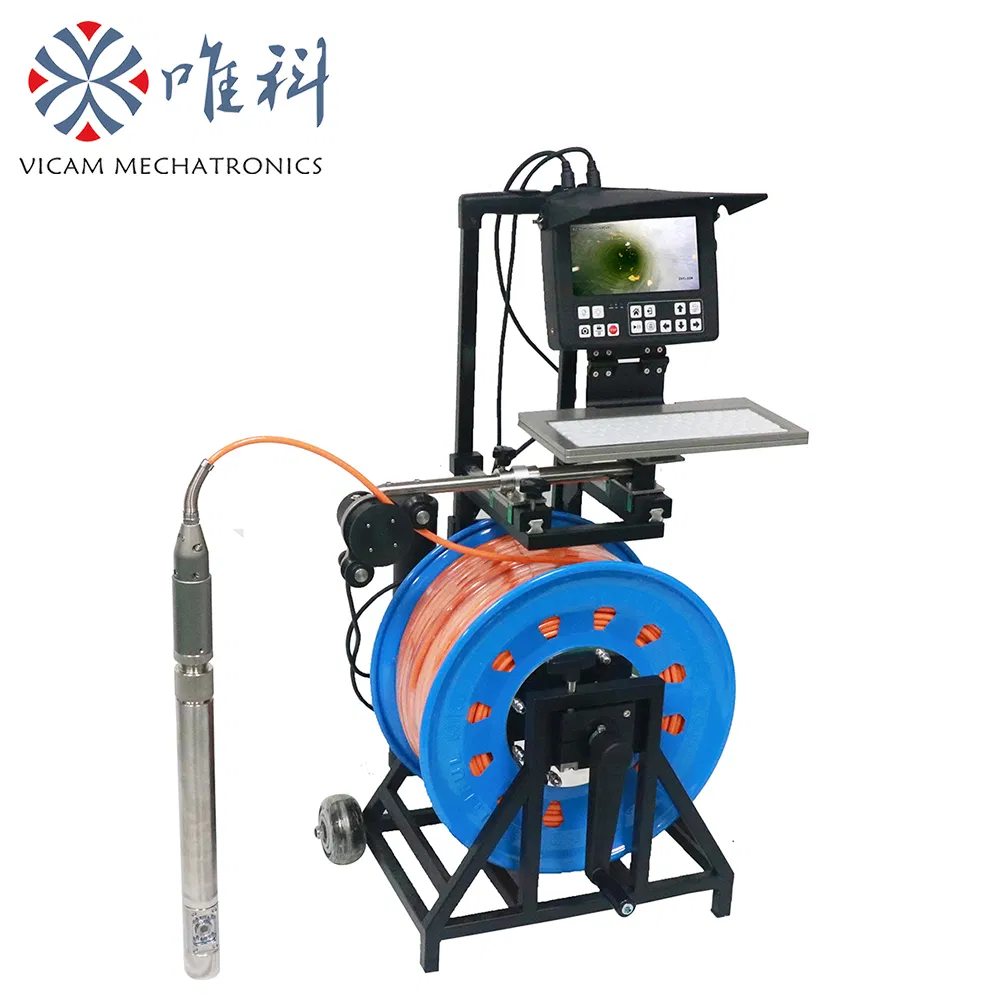

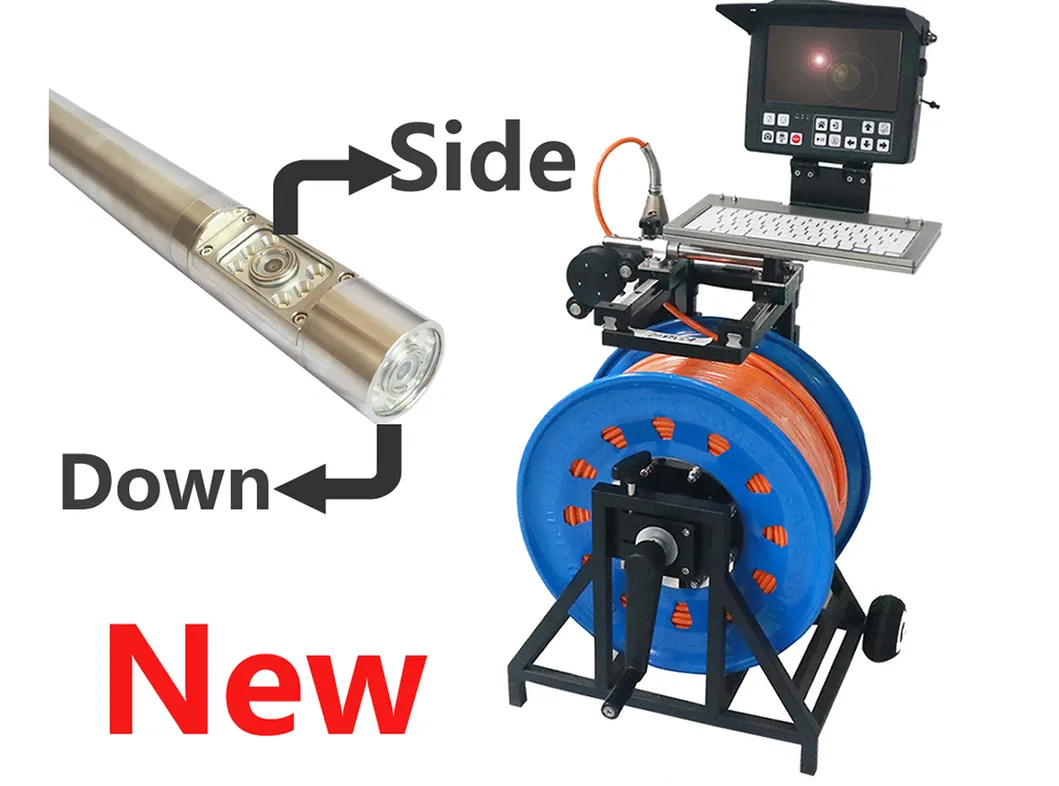

Water Well Camera 200m Cable Manual Reel 360 Degree Rotate Borehole Camera

Dia.45mm dual view(side/down) rotation camera head
Pan 360° rotation, Waterproof 30bars
1/3 CMOS, 1.3MP pixel HD camera sensor
8 inch IPS LCD screen, 1280*720 resolution
DVR control box with audio, video recording and photography function
200m Dia.8mm flexible cable

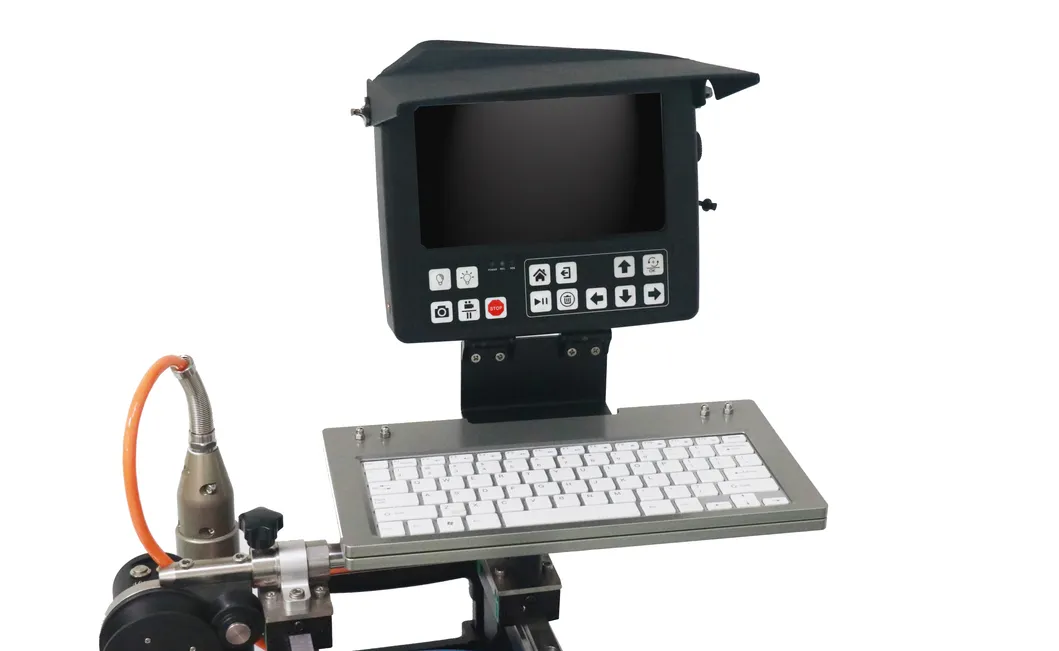

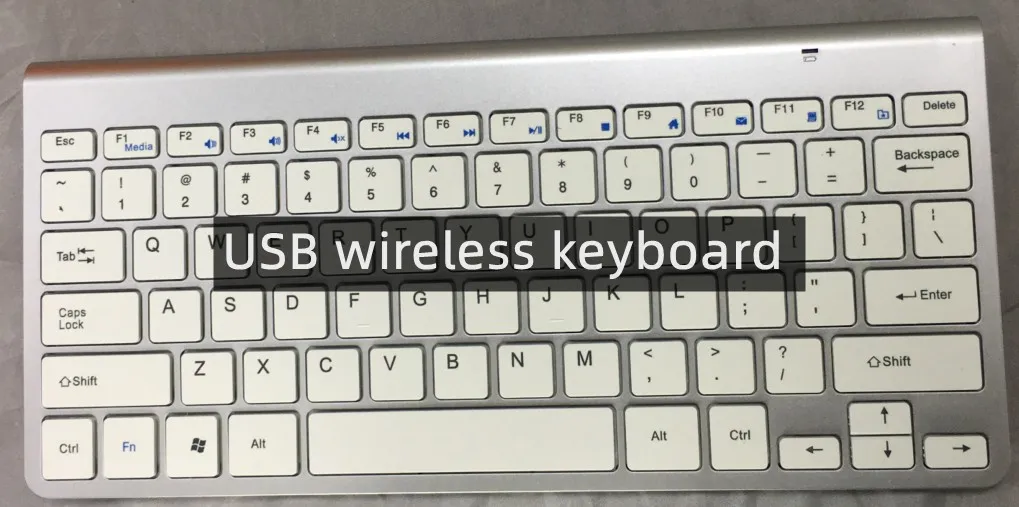

USB wireless keyboard to typewrite the words
Camera video resolution is 720P
Built-in 10500mA li-ion battery, supports working more than 5 hours
Digital meter counter function, error less than 1%

⚙️

Technical Parameters

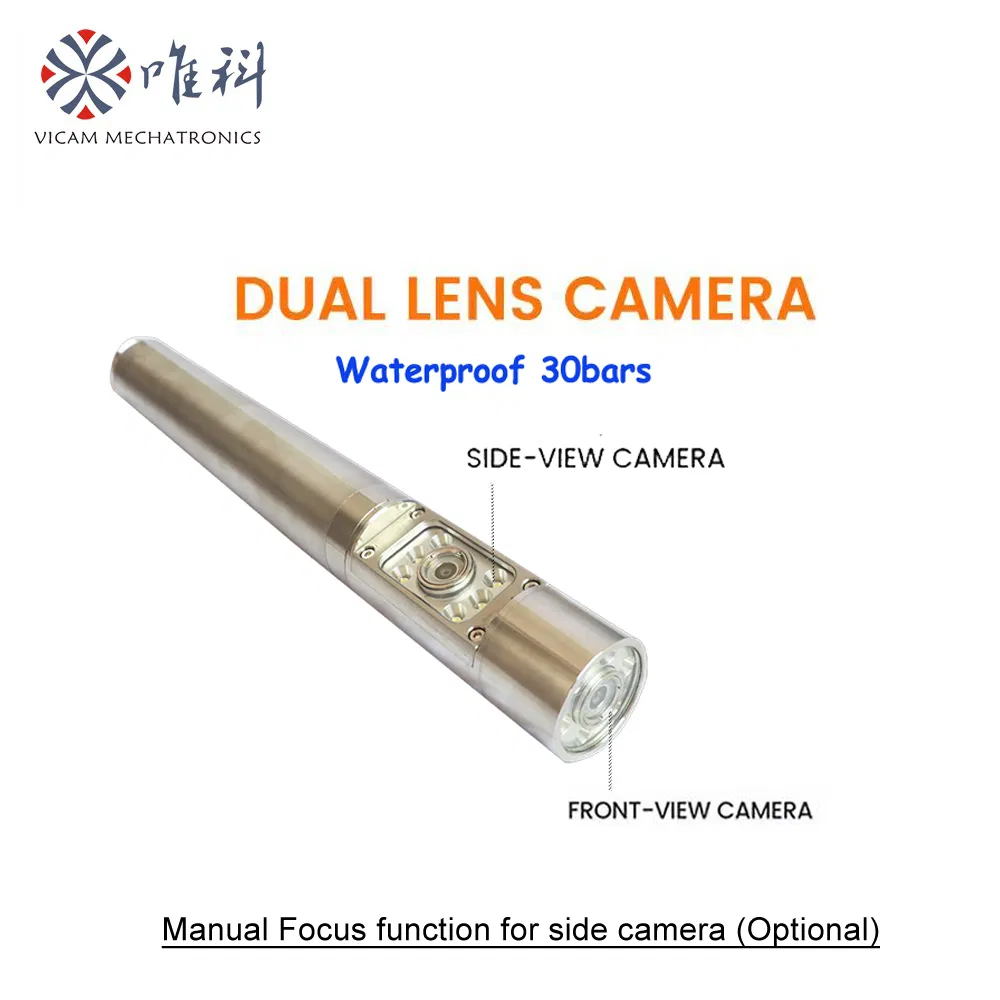

Part 1: Dia.45mm Dual View Rotation Camera Head

Camera size: Ø45mm x 422mm
Waterproof up to 20bars (underwater 200m)
6pcs high light LED for side camera; 6pcs for down camera
Lens window sapphire glass & Stainless steel housing

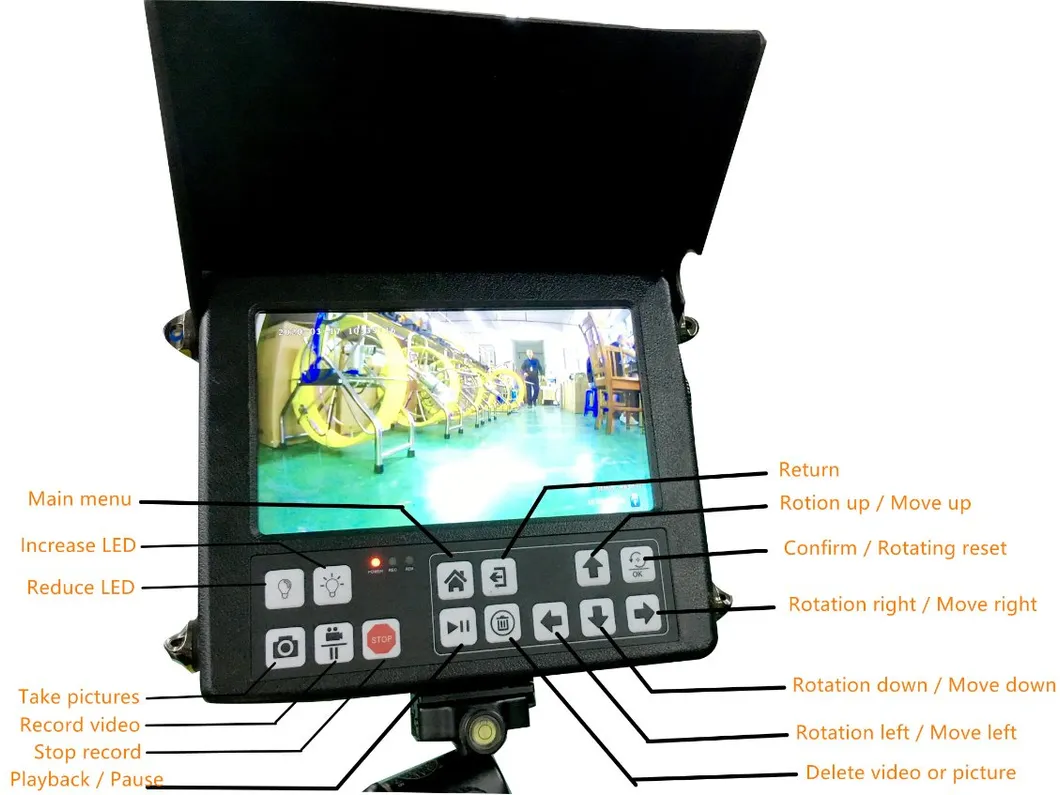

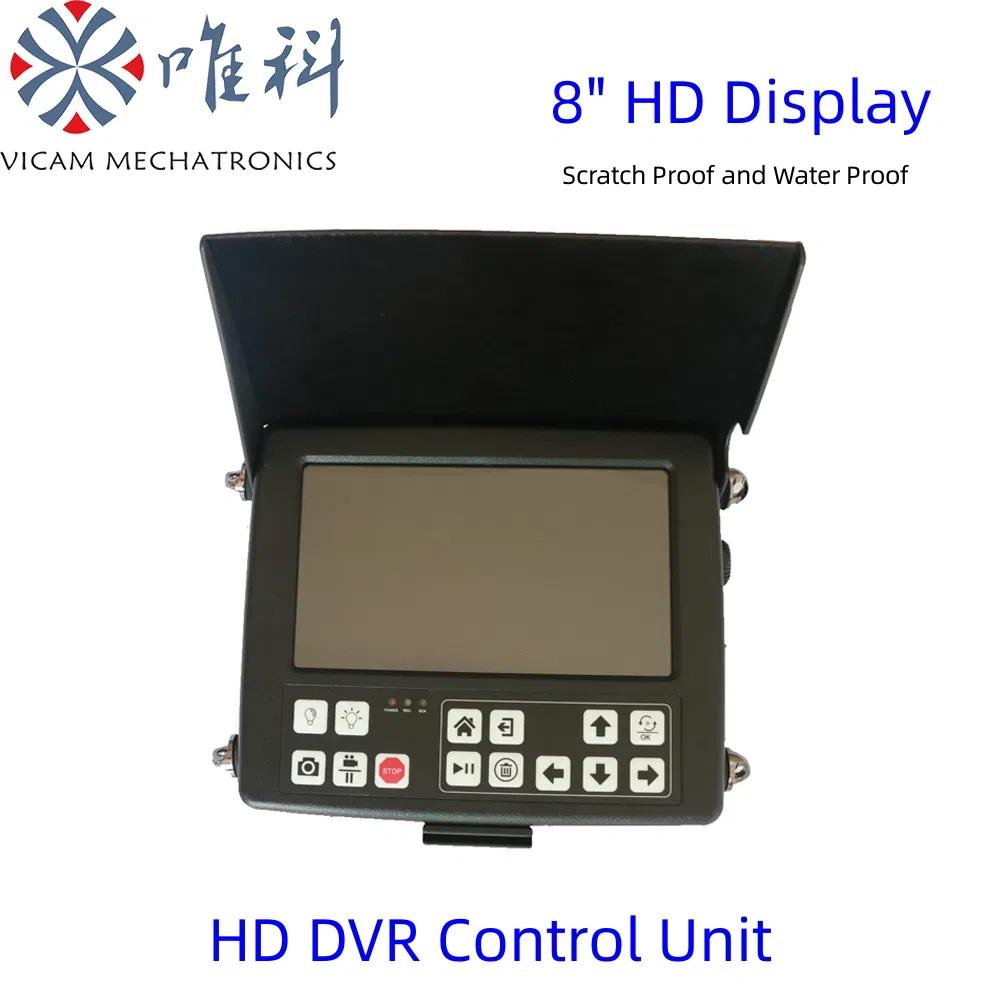

Part 2: Waterproof DVR Control Box

8" HD IPS LCD Screen, 1280X720 resolution
Recording 720P video, audio and photography function
10500mA rechargeable Li-ion Battery Pack
Switch button for side and down camera

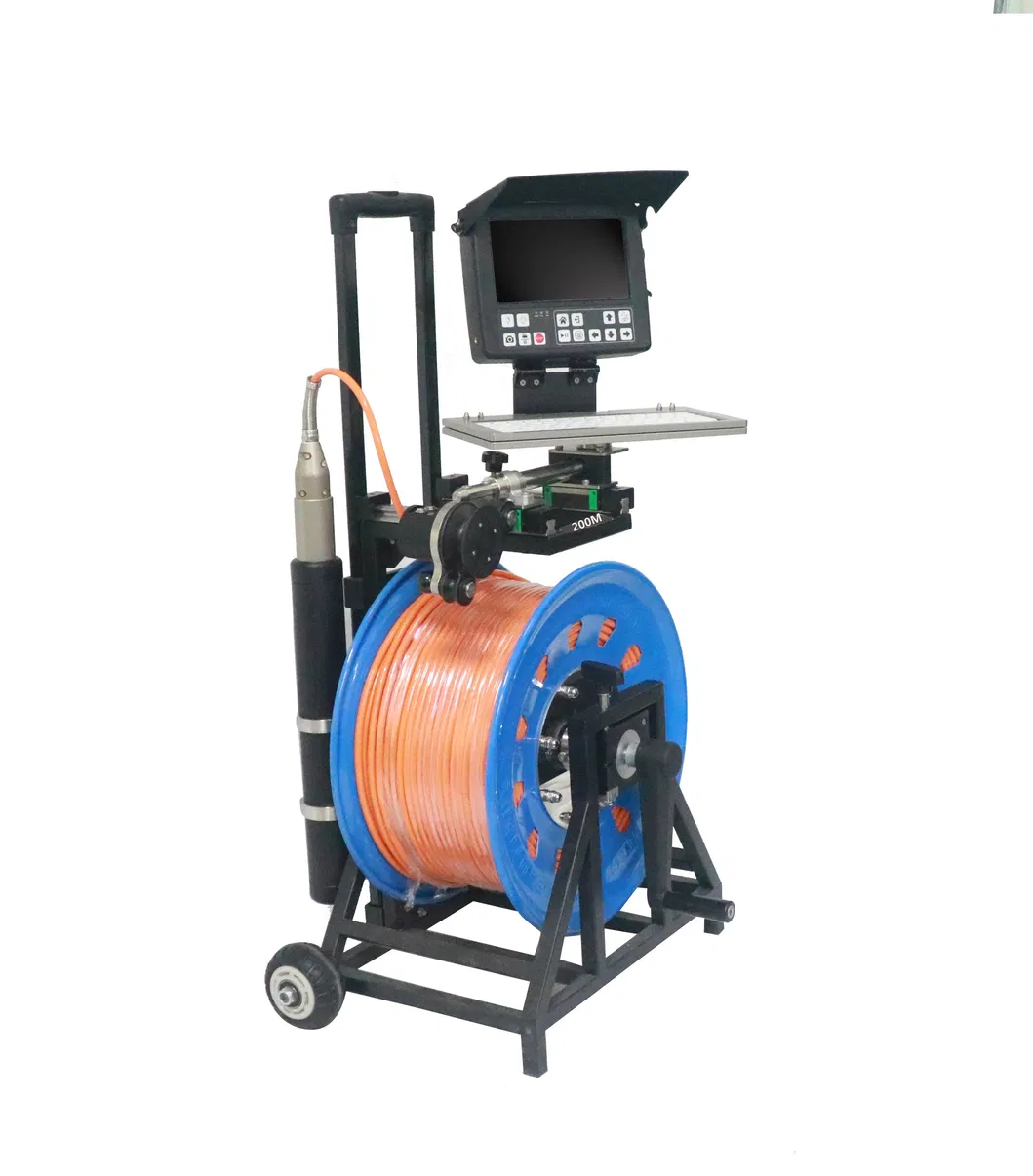

Part 3: 200m Manual Reel with Reel Brake

Manual cable reel with brake device

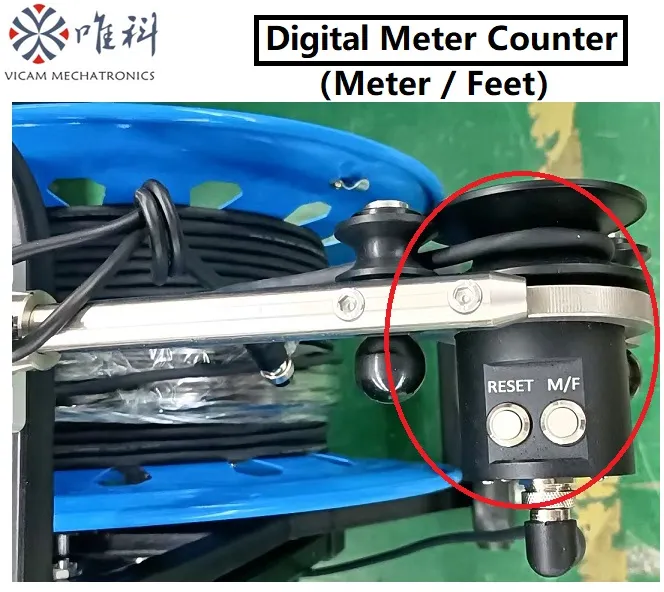

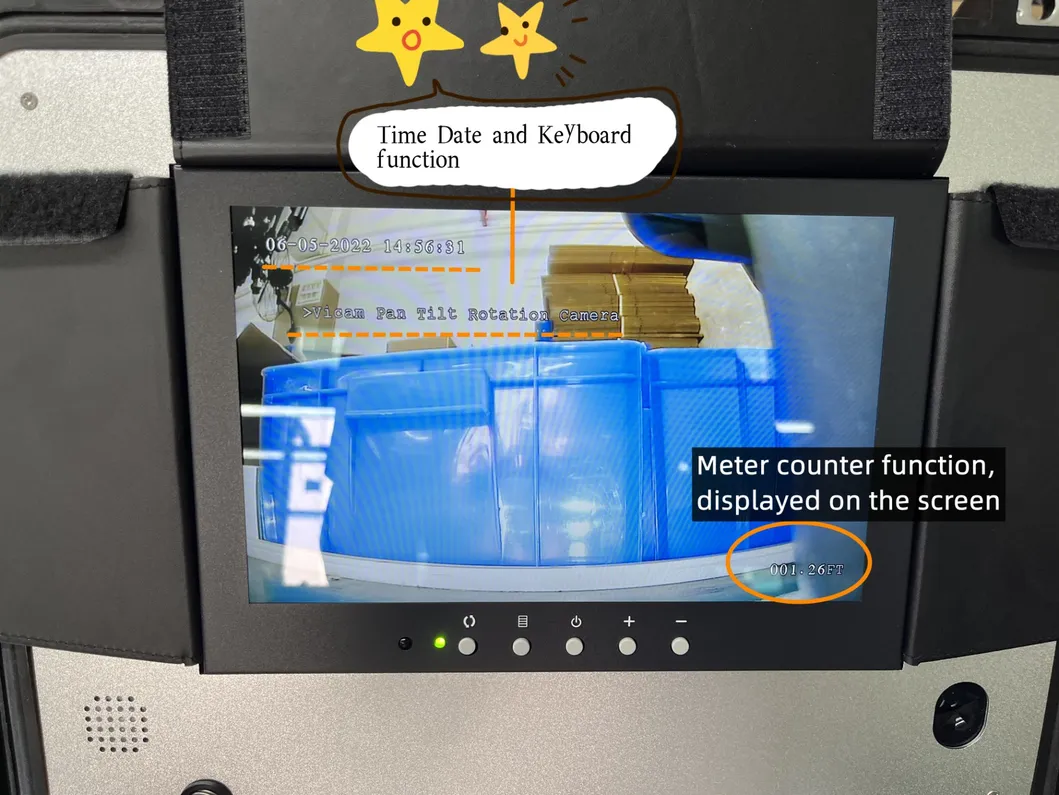

On-screen digital meter counter display
Cable diameter Φ8mm, Length 200m

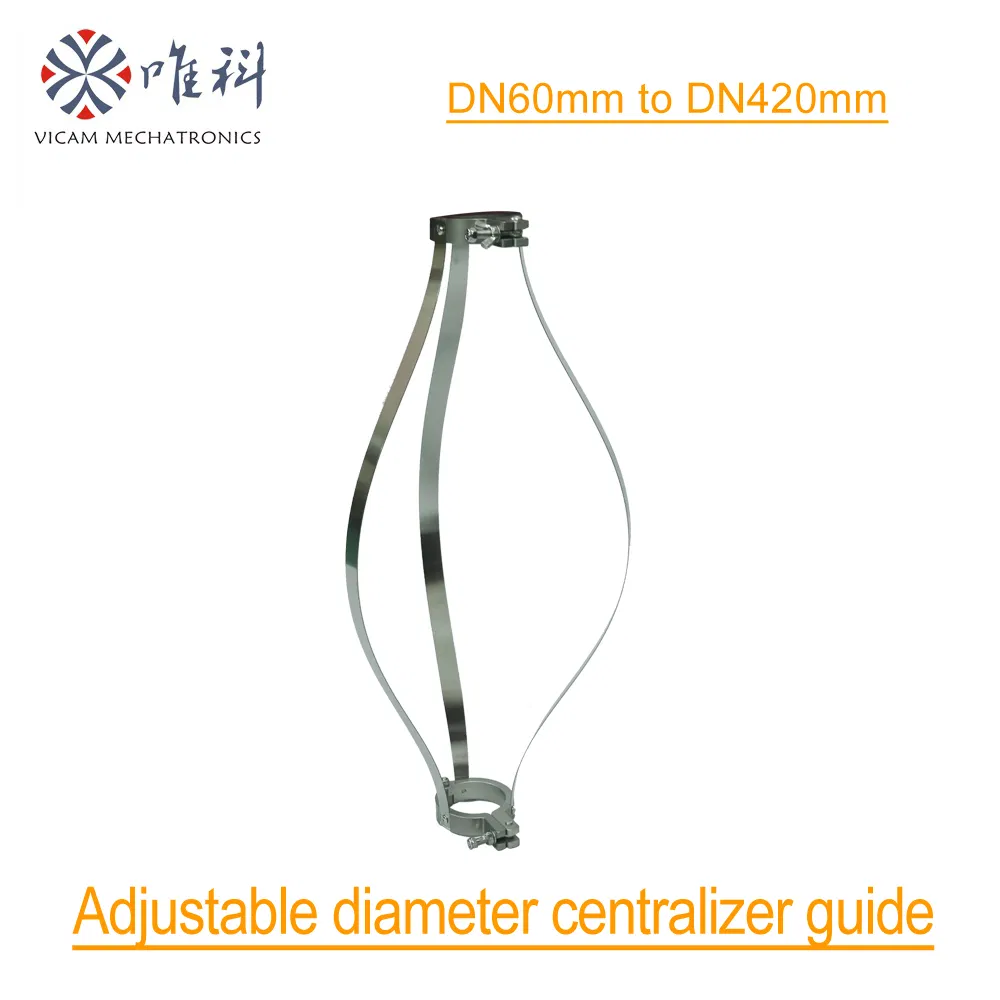

Part 4: Camera Centering Skid

Adjustable diameter skid for various pipe/well sizes.

Frequently Asked Questions

What is the maximum depth the camera can handle?

The system comes with a 200m flexible cable and is waterproof up to 20 bars, allowing for inspections at depths up to 200 meters.

How does the dual view camera function?

The camera head features both a side-view and a down-view camera. You can switch between them using a button on the control box, and it supports 360-degree pan rotation for full visibility.

Is the depth measurement accurate?

Yes, the system includes a digital meter counter that displays the depth on the screen in real-time, with an error margin of less than 1%.

How long can I use the device on a single charge?

The built-in 10500mA rechargeable Li-ion battery supports continuous operation for more than 5 hours.

Can I record and add notes to my inspections?

Absolutely. The DVR system supports 720P video recording, audio, and photography. A USB wireless keyboard is included for real-time typewriting on the screen.

What is the quality of the display?

The unit features an 8-inch IPS LCD screen with a high resolution of 1280x720, ensuring clear and vivid image reproduction.
