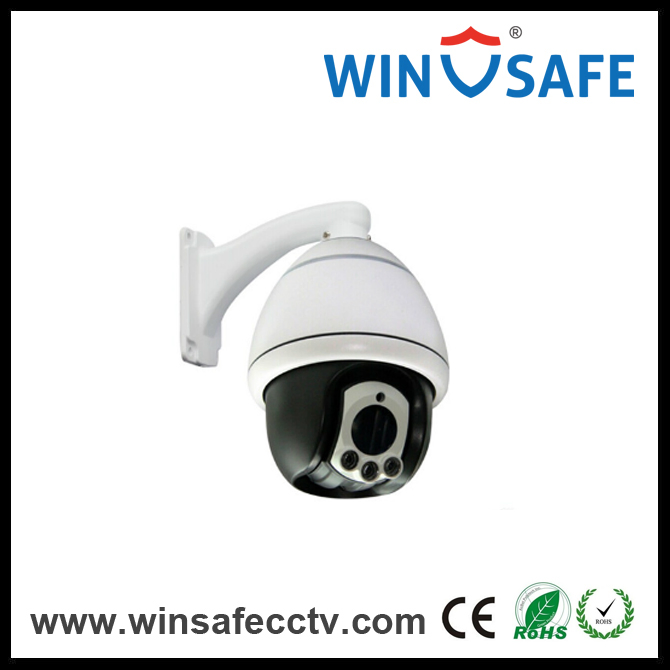

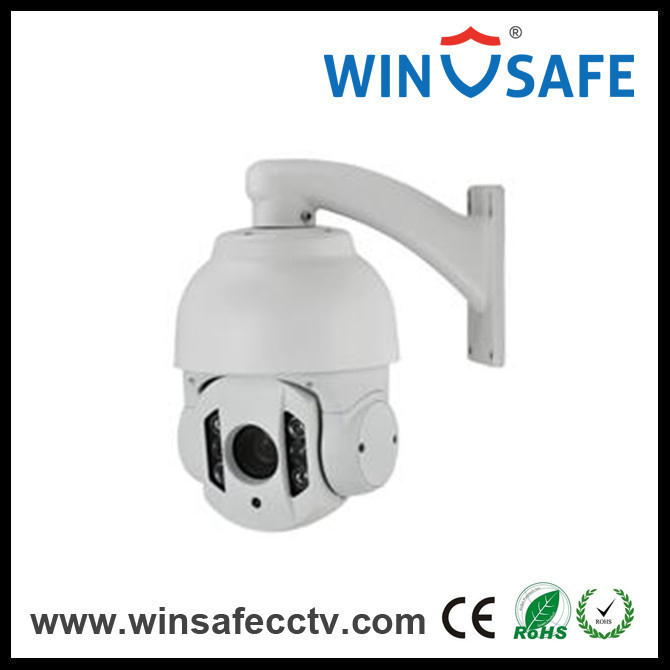

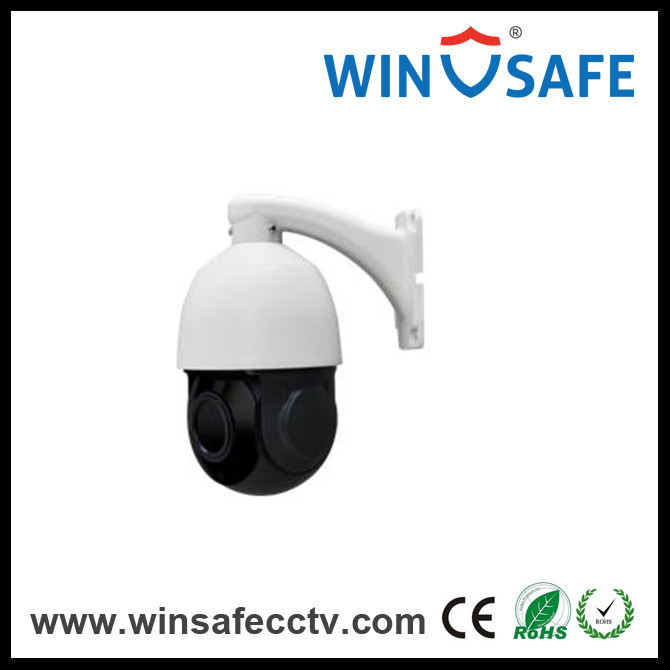

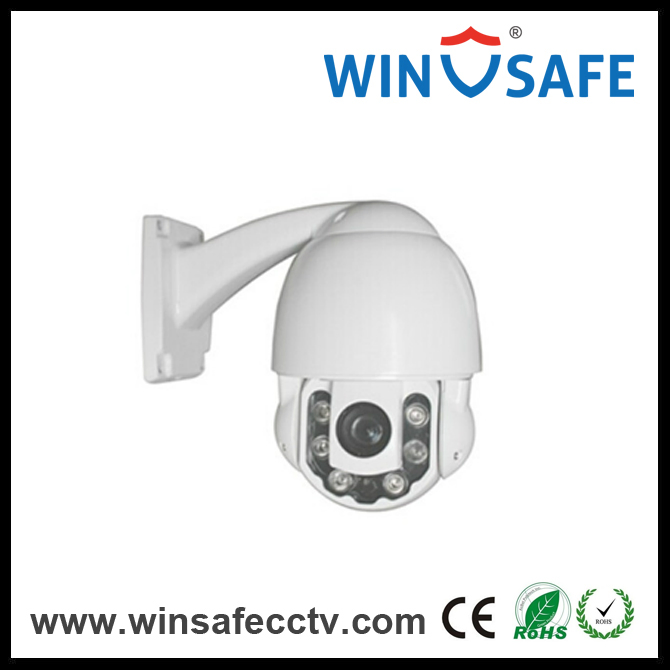

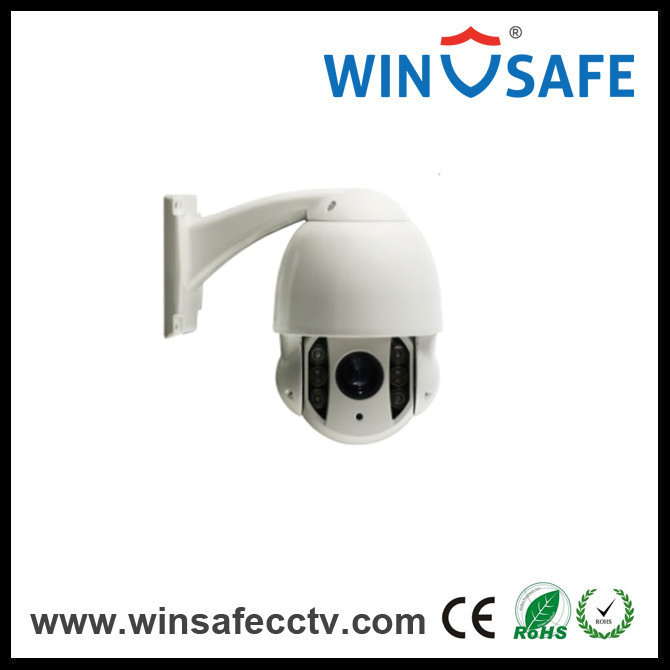

360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
1 / 5
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera

360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera

Customization: Available
Technology: Infrared
Style: Dome Camera
Send Inquiry

Product Description

Basic Specifications
Model NO.
WS-52EIRW/P- 200
Type
CCTV Camera
Sensor
CCD
HDMI Format
720P
Horizontal Resolution
650tvl
Kind
Manual Focus Lens
Certification
CE, CCC, RoHS
Feature
High Definition
Effective Distance
60m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Optical Zoom
10X
IR Distance
60m
Warranty
2 Years
Lead Time
3-7 days
HS Code
8525801390
Production Capacity
5000PCS/Month
Product Overview
360 Degree Endless Pan Rang PTZ Camera Mini Middle Speed Dome Camera

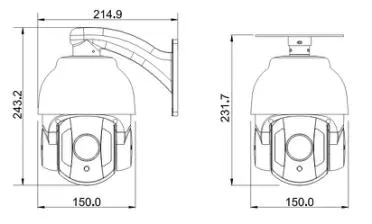

360 Degree Endless Pan Rang PTZ Camera
Product Introduction
  • Precision motor-driven, keen responsive, smoothly operation, deviation less than 0.1 degree.
  • 2.0MP 1/3" CMOS sensor with 10X optical zoom.
  • Support ONVIF and multiple protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP.
  • Strong lightning protection and anti-surge function.
  • IP66 outside weather-proof level.
Key Features
  • 6PCS high-power infrared light, IR distance up to 60m without flashlight effect.
  • 360° endless pan range and 0°- 90° tilt range with auto-flip.
  • Pan speed: 6°~30°/s; Tilt speed: 5°~17°/s.
  • Support 128 presets, 4 patrols, and A-B line scanning.
  • Proportional zoom function: rotation speed adjusts automatically according to zoom.
  • Park action: presets/patterns invoke automatically after inactivity.
Technical Specifications
Model WS-52EIRW/P-200
PTZ IR Distance 60m
Pan Range 360° endless; Speed 6°-30°/S
Tilt Range 0°- 90°; auto flip; Speed 5°- 17°/S
Video Image Sensor 1/2.7" Ex-view 2.0MP Aptina CMOS OV2715
Resolution Main stream: 1280×960, 1280×720 | Sub stream: 640×480, 352×288
Low Lux 0.1Lux (Color), 0.01Lux (B/W), 0 Lux (IR On)
Lens Focal Length 5.1~51mm (10X Optical Zoom)
Angle of View 68°~6.7° (Wide-Telescope)
Function WDR & DNR Digital WDR, Support DNR, 3DNR
Compatibility Support Hikvision, Dahua, Jufeng CMS, UC2, and major NVR brands
Remote Control Support Android, iOS smartphone remote access
Physical Protection IP66 Weatherproof, TVS3000V Lightning Protection
Product Gallery

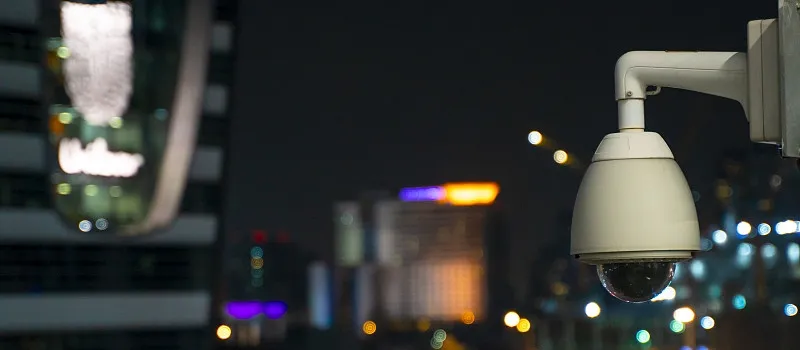

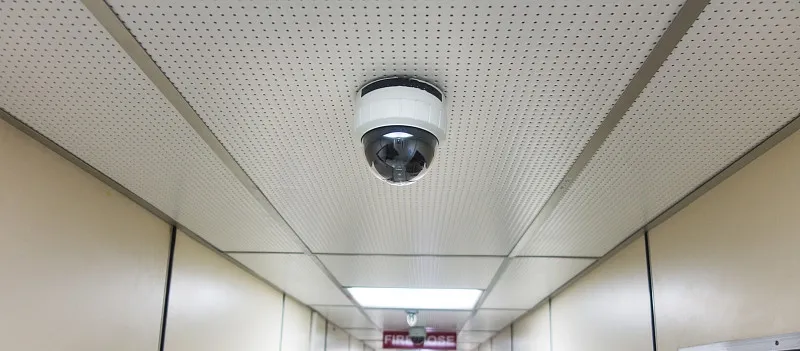

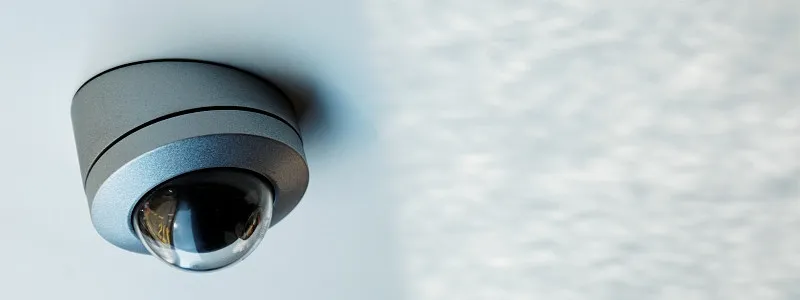

PTZ Camera Detail 1 PTZ Camera Detail 2 PTZ Camera Detail 3
Frequently Asked Questions
What is the night vision range of this camera?
This PTZ camera is equipped with 6PCS high-power infrared lights, providing an effective IR distance of up to 60 meters.
Does the camera support optical zoom?
Yes, it features a 5.1~51mm lens which provides 10X optical zoom for clear close-up images.
Is this camera waterproof for outdoor installation?
Yes, it has an IP66 weatherproof rating and includes TVS3000V lightning and surge protection, making it suitable for outdoor use.
Can I monitor the feed on my smartphone?
Yes, the camera supports remote control and monitoring via Android and iOS smartphones.
What is the rotation capability of the dome?
The camera offers a 360° endless pan range and a 0° to 90° tilt range with auto-flip functionality to eliminate blind spots.
Is it compatible with other NVR brands?
Yes, it supports the ONVIF protocol and is compatible with many major brands like Hikvision and Dahua.
