📦 Basic Info.
Model NO.MS-792RSC
Screen Size9"
Waterproof GradeIP68
CertificationRoHS, CE, ISO
Warranty18 Months
MaterialABS
Transport PackageCarton Box
OriginChina
Production Capacity50000PCS/Year
🚛 Product Description

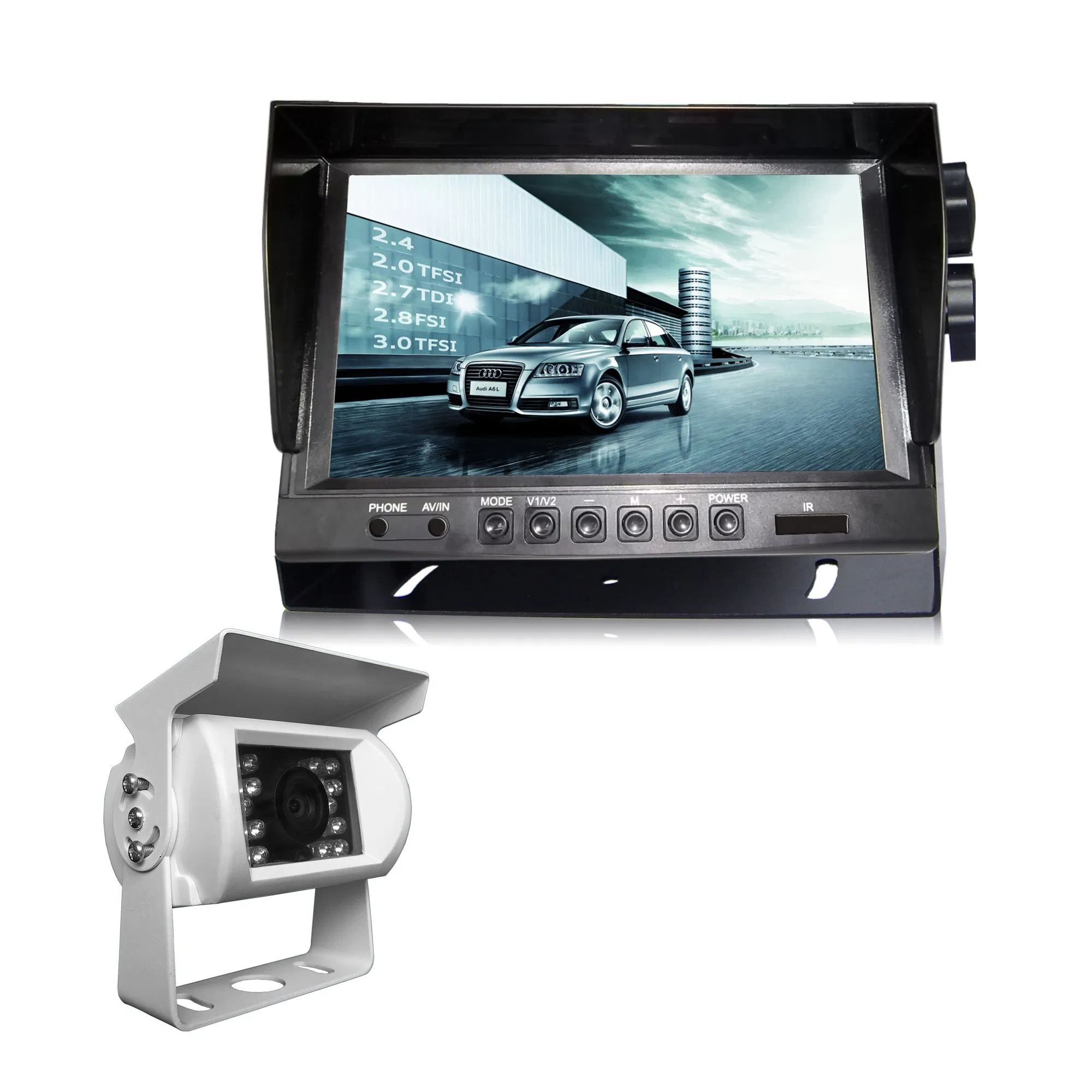

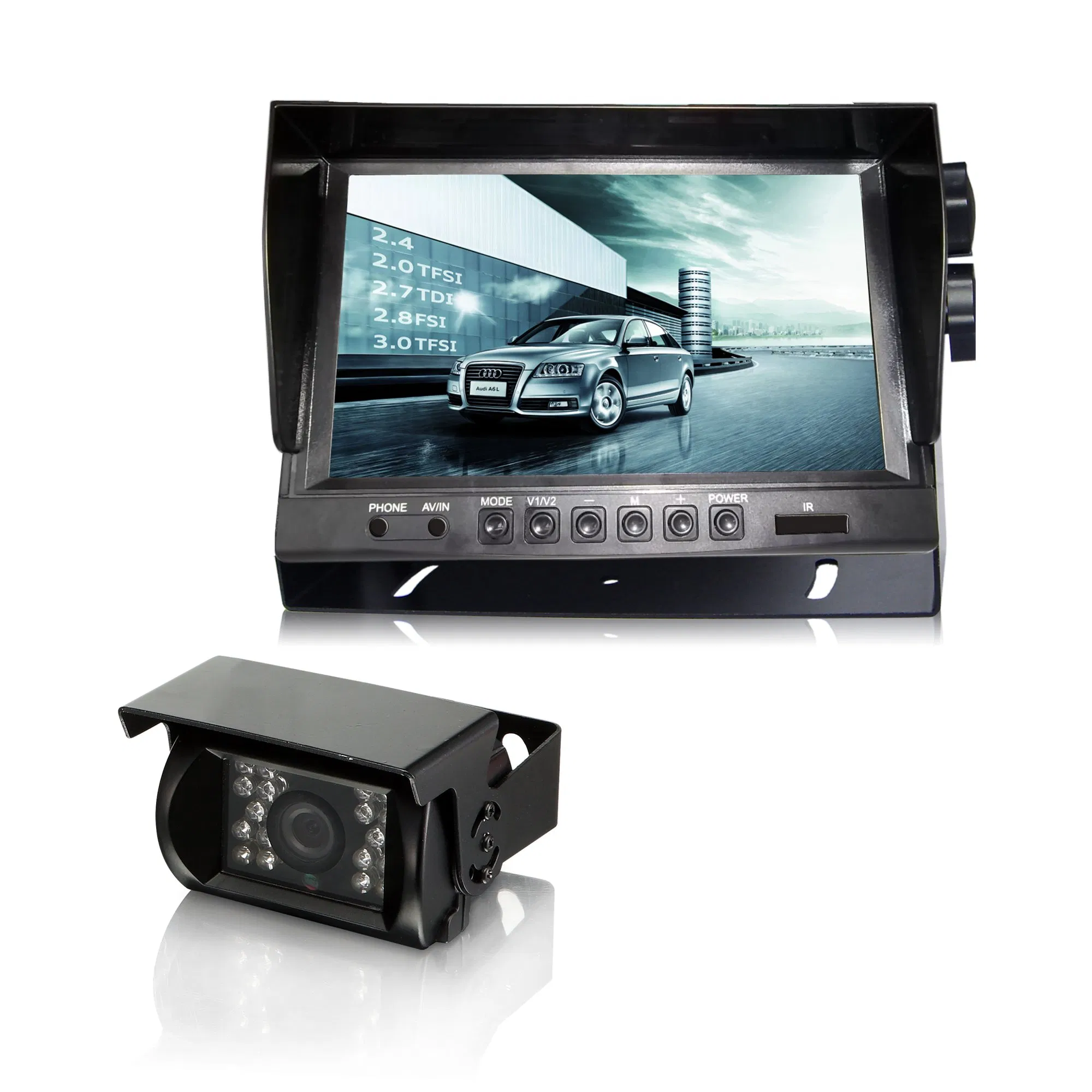

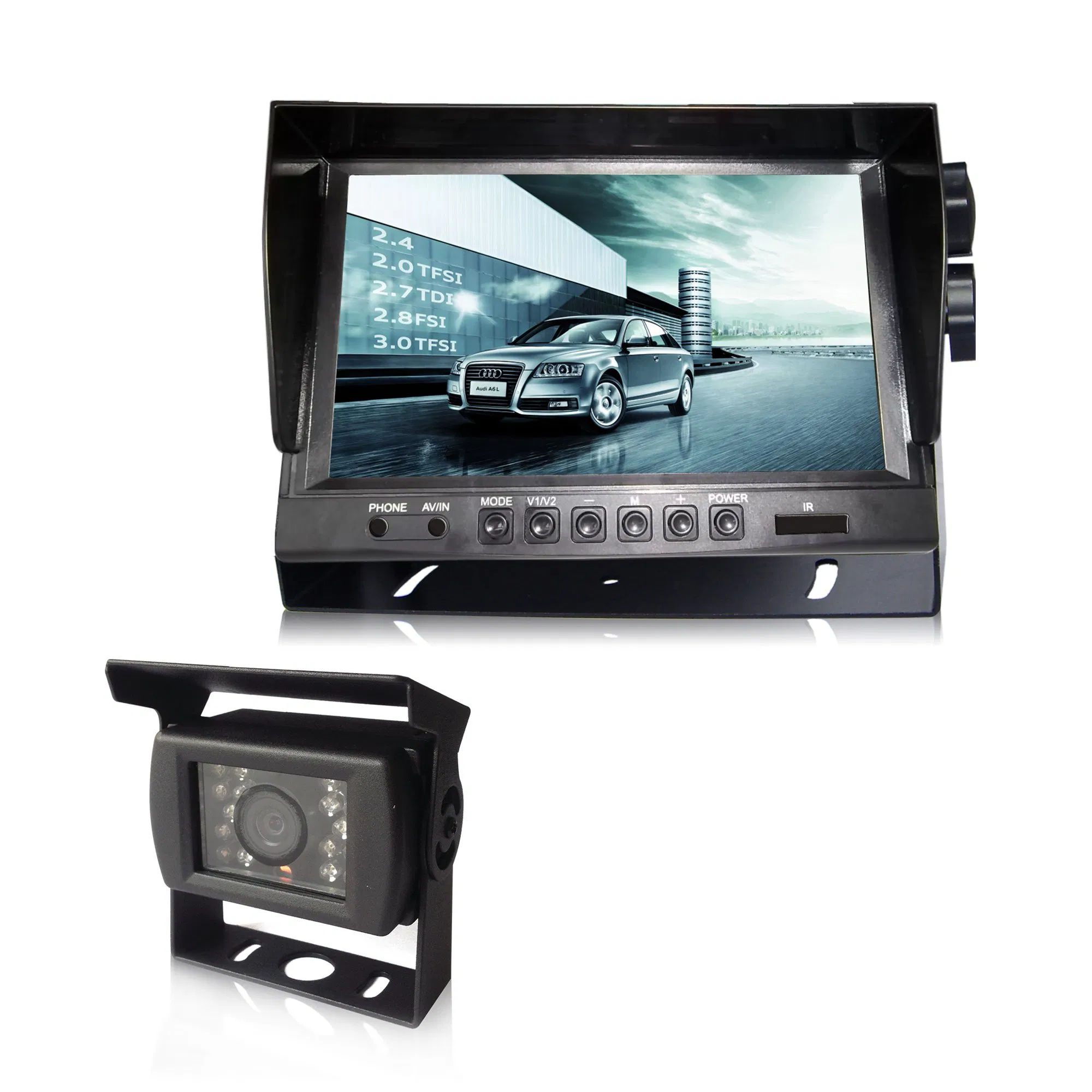

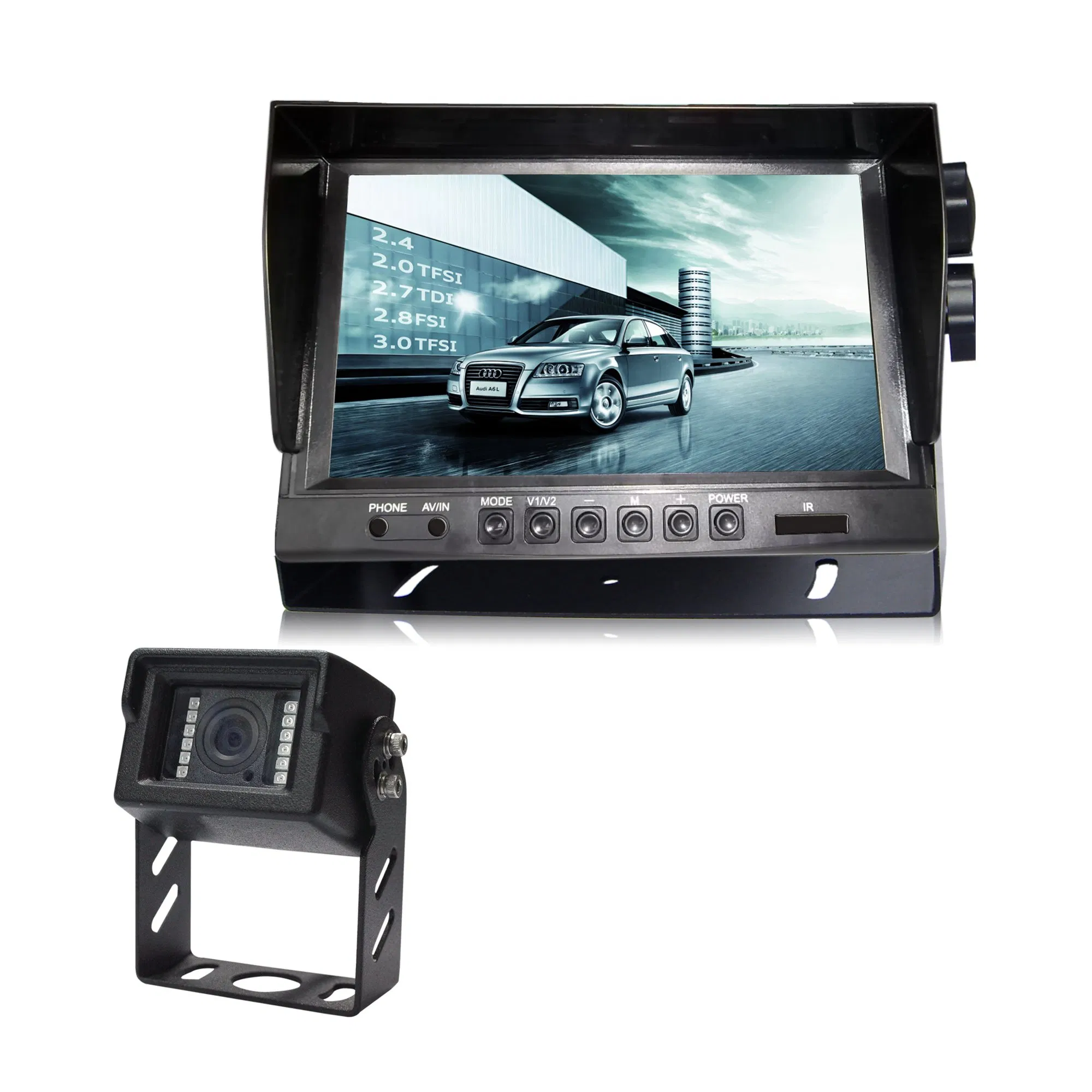

Truck Camera System Overview
9" rear view system with 4 CCD waterproof cameras. Features 4 channels video and 1 channel audio with 4 triggers for comprehensive vehicle monitoring.
- Automatic switching with three triggers for seamless operation.
- Individually adjustable mirror function for each camera channel.
- Wide supply voltage range: DC 10~32V with built-in speaker.
- Industrial-grade design: 20G vibration and 100G shock resistance.
- Dust and waterproof construction with fully waterproof connectors.
- USA imported IC & Techwell industrial digital video processor.
- Short-circuit protection design to prevent circuit damage.
📺 Monitor Specifications (MS-792)
| Supply Power | DC 10V-32V |
| Pixel Resolution | 800*480 |
| Brightness | 400cd/m2 |
| Contrast Ratio | 500:1 |
| Display Format | 16:9 |
| Operating Temperature | -20ºC ~ 70ºC |
| System | PAL / NTSC |
⚙️ Camera Specifications
| Sensor | Sharp CCD |
| Waterproof Rating | IP68 |
| Resolution | 600 TV lines |
| View Angle | 120 Degree |
| Night Vision | LED lights included |
| Operating Temperature | -30ºC ~ +80ºC |
| Voltage | DC 12V |
❓ Frequently Asked Questions
Q1: Is the camera system suitable for extreme weather conditions?
Yes, the system is designed to meet requirements for both hot and cold weather, with an operating temperature range of -30ºC to +80ºC for cameras and -20ºC to 70ºC for the monitor.
Q2: How many cameras can be connected to the 9-inch monitor?
The system supports up to 4 CCD waterproof cameras with 4 video channels and 4 triggers for automatic switching.
Q3: Does the system include night vision capabilities?
Yes, the cameras are equipped with LED lights specifically designed for clear night vision.
Q4: What is the waterproof rating of this truck camera system?
The cameras feature an IP68 waterproof grade, and all connectors are designed to be dust and waterproof for industrial use.
Q5: What is the power requirement for installation?
The monitor supports a wide voltage range of DC 10V to 32V, making it compatible with most trucks and heavy-duty vehicles.
Q6: Is the display format adjustable?
The monitor features a 16:9 display format with a resolution of 800*480 pixels, providing a clear and wide view for the driver.
